Nissan Versa Sedan. Manual - part 399

EX-4

< PERIODIC MAINTENANCE >

EXHAUST SYSTEM

PERIODIC MAINTENANCE

EXHAUST SYSTEM

Inspection

INFOID:0000000009267432

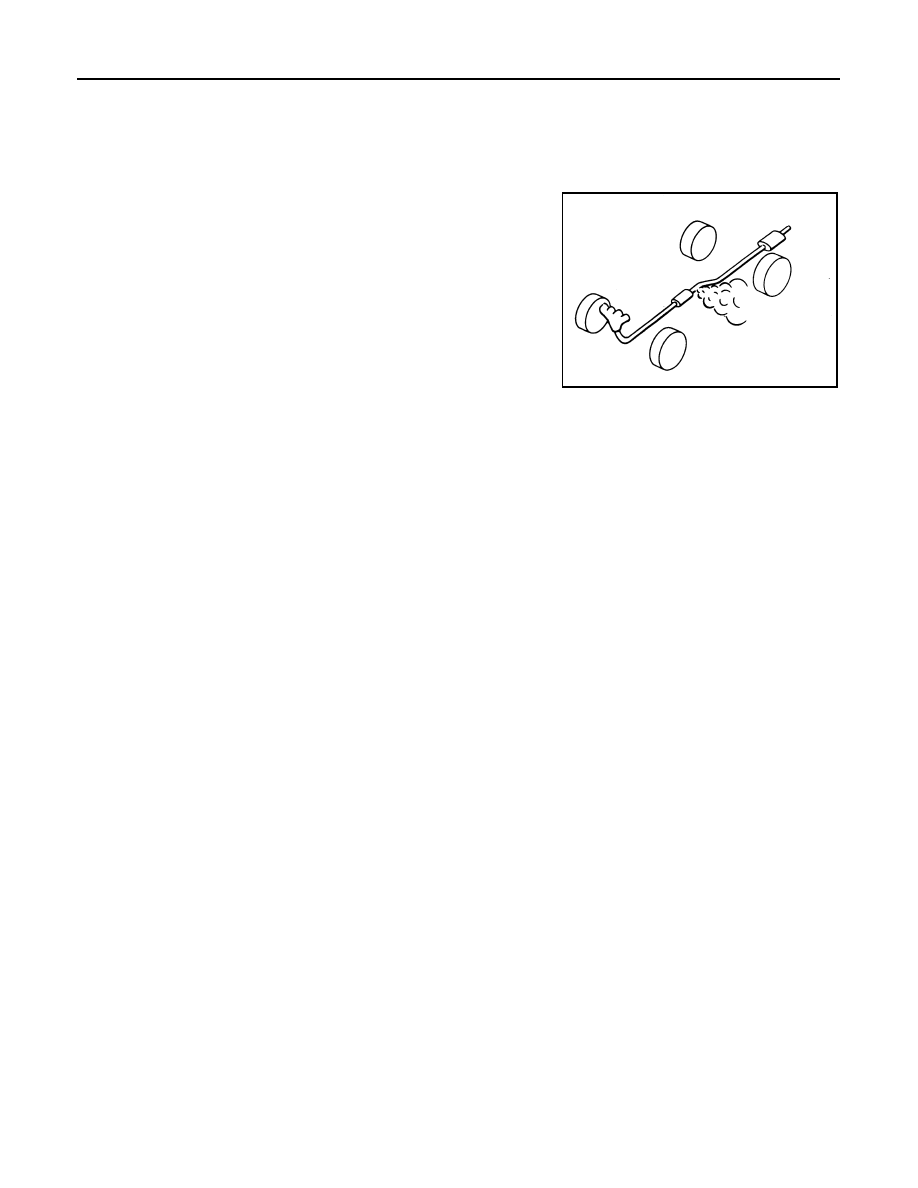

Check exhaust pipes, muffler, and mounting for improper attach-

ment, leaks, cracks, damage or deterioration. Repair or replace as

necessary.

SMA211A

EXHAUST SYSTEM

EX-5

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

REMOVAL AND INSTALLATION

EXHAUST SYSTEM

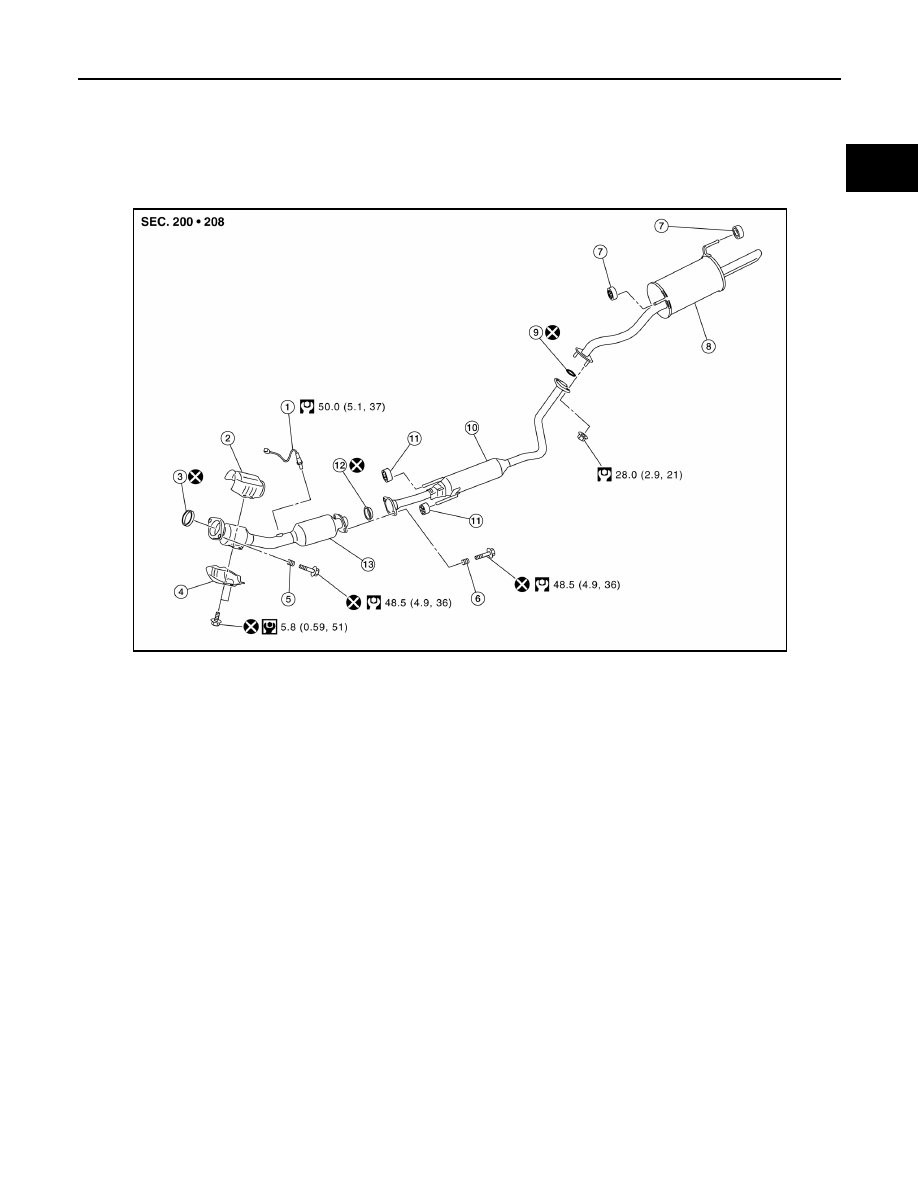

Exploded View

INFOID:0000000009267433

Removal and Installation

INFOID:0000000009267434

WARNING:

• Perform the operation with the exhaust system fully cooled. The system will be hot just after engine

stops.

• Be careful not to cut your hand on the heat insulator edge.

CAUTION:

Be sure to use genuine exhaust system parts or equivalents because they are designed for heat resis-

tance, corrosion resistance, proper fit, and shape

REMOVAL

Remove the exhaust system components using power tools.

• Disconnect each joint and mounting as necessary.

1.

Heated oxygen sensor 2

2.

Catalyst cover (upper)

3.

Seal bearing

4.

Catalyst cover (lower)

5.

Spring

6.

Spring

7.

Mounting rubber

8.

Main muffler

9.

Ring gasket

10. Center muffler

11. Mounting rubber

12. Seal bearing

13. Exhaust front tube

AWBIA1137GB

EX-6

< REMOVAL AND INSTALLATION >

EXHAUST SYSTEM

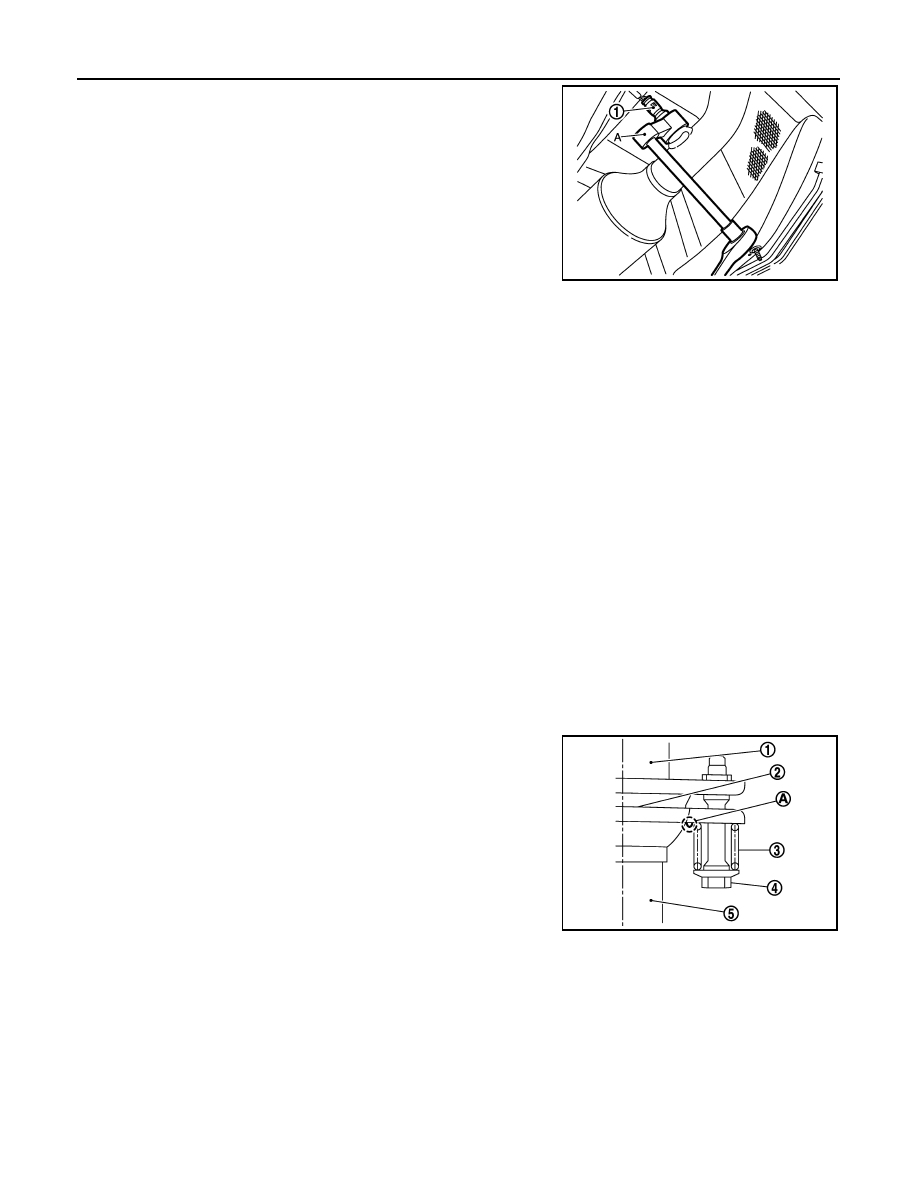

• Remove heated oxygen sensor 2 (1) as needed using Tool (A).

CAUTION:

Be careful not to damage heated oxygen sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Always replace seal bearings and ring gaskets with new ones when reassembling.

• Temporarily tighten nuts and bolts. Check each part for unusual interference and mounting rubber

interference, and then tighten them to the specified torque.

• Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7

in) onto a hard surface such as a concrete floor; replace with a new one.

• Before installing a new heated oxygen sensor 2, clean exhaust system threads using the heated oxy-

gen sensor thread cleaner and apply anti-seize lubricant.

• Do not over-tighten heated oxygen sensor 2. Doing so may cause damage to the heated oxygen sen-

sor 2, resulting in the MIL coming on.

• Prevent rust preventives from adhering to the sensor body.

• If heat insulator is badly deformed, repair or replace it. If deposits such as mud pile up on the heat

insulator, clean and inspect them.

• When installing heat insulator avoid large gaps or interference between heat insulator and each

exhaust pipe.

• Remove deposits from the sealing surface of each connection. Connect them securely to avoid

exhaust leaks.

• Avoid twisting or deforming the mounting rubbers when installing them.

Exhaust Manifold to Exhaust Front Tube

• When installing the seal bearing (2), insert it into the exhaust man-

ifold (1) in the direction shown.

• When installing the spring (3) and bolt (4), ensure the following:

- Make sure the spring (3) sits properly on the flange surface by

aligning it to the locator dimples (A).

- Make sure the bolt (4) does not contact the inside of the flange bolt

hole.

CAUTION:

Be careful not to damage seal bearing surface when install-

ing.

• Tighten bolt with spring.

CAUTION:

• Ensure springs are seated correctly on the flange and not sitting on (A).

• Assemble the seal bearing so that the bolt is located in the center of the flare flange hole without

contact with the flange.

Exhaust Front Tube to Center Muffler

Tool number

: KV10114400 (J-38365)

JPBIA3468ZZ

Oxygen sensor thread cleaner

: — (J-43897-18)

Oxygen sensor thread cleaner

: — (J-43897-12)

(5)

: Exhaust front tube

JPBIA3652ZZ

EXHAUST SYSTEM

EX-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

• When installing the seal bearing (2), insert it into the exhaust man-

ifold (1) in the direction shown.

• When installing the spring (3) and bolt (4), ensure the following:

- Make sure the spring (3) sits properly on the flange surface by

aligning it to the locator dimples (A).

- Make sure the bolt (4) does not contact the inside of the flange bolt

hole.

CAUTION:

Be careful not to damage seal bearing surface when install-

ing.

• Tighten bolt with spring.

CAUTION:

• Ensure springs are seated correctly on the flange and not sitting on (A).

• Assemble the seal bearing so that the bolt is located in the center of the flare flange hole without

contact with the flange.

INSPECTION AFTER INSTALLATION

• Ensure the clearance between the tail tube and rear bumper is evenly spaced.

• Check exhaust tube joints for exhaust leaks and unusual noises with the engine running.

• Ensure the mounting brackets and mounting rubbers are installed properly and free from undue stress.

• Improper installation could result in excessive noise and vibration.

(5)

: Exhaust front tube

JPBIA3652ZZ
