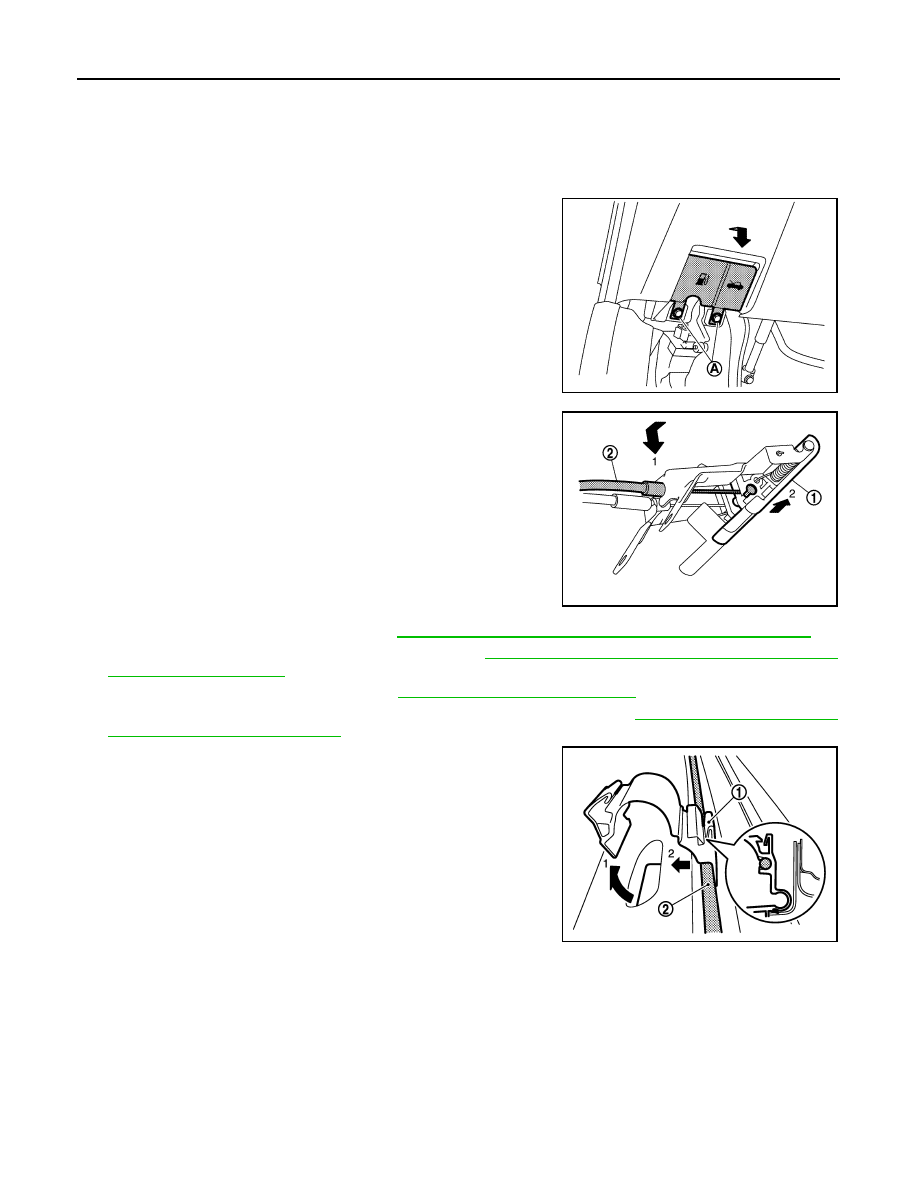

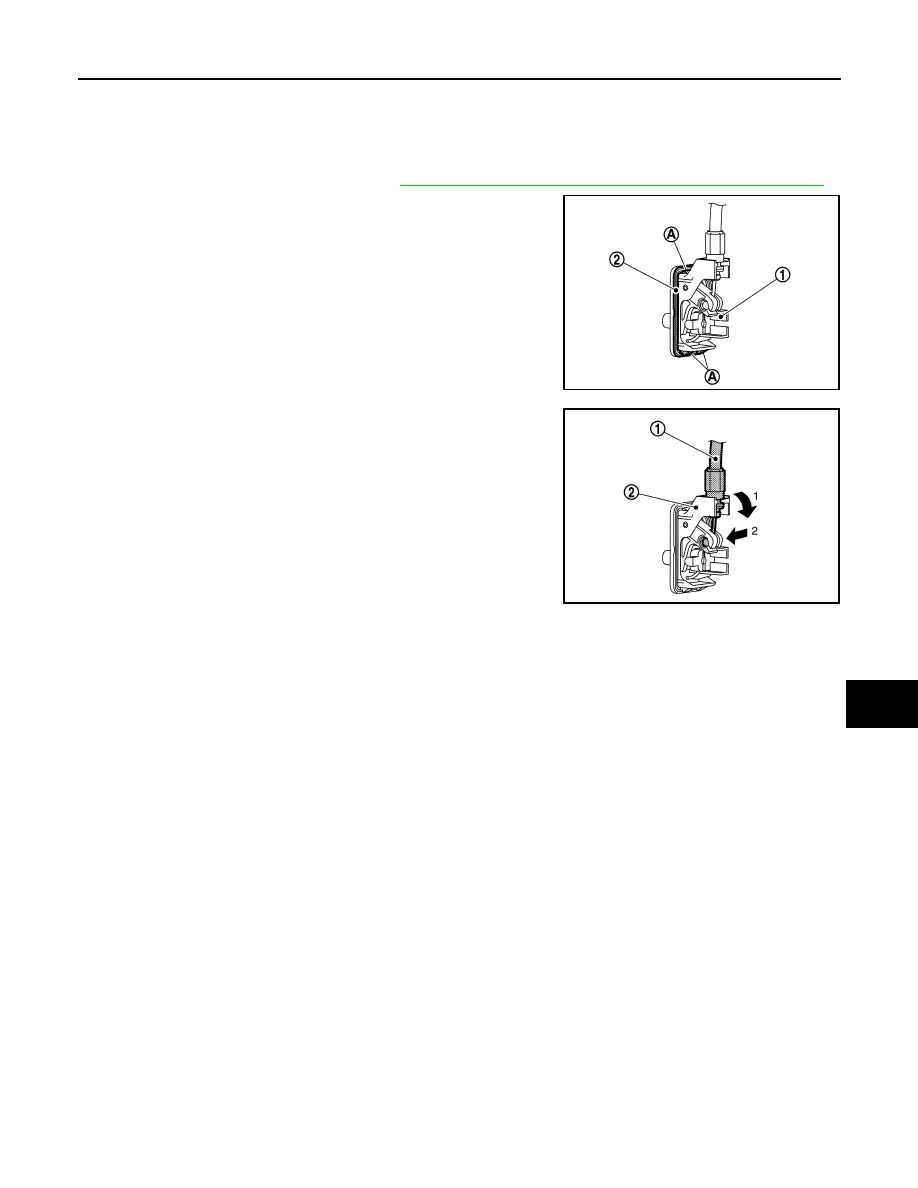

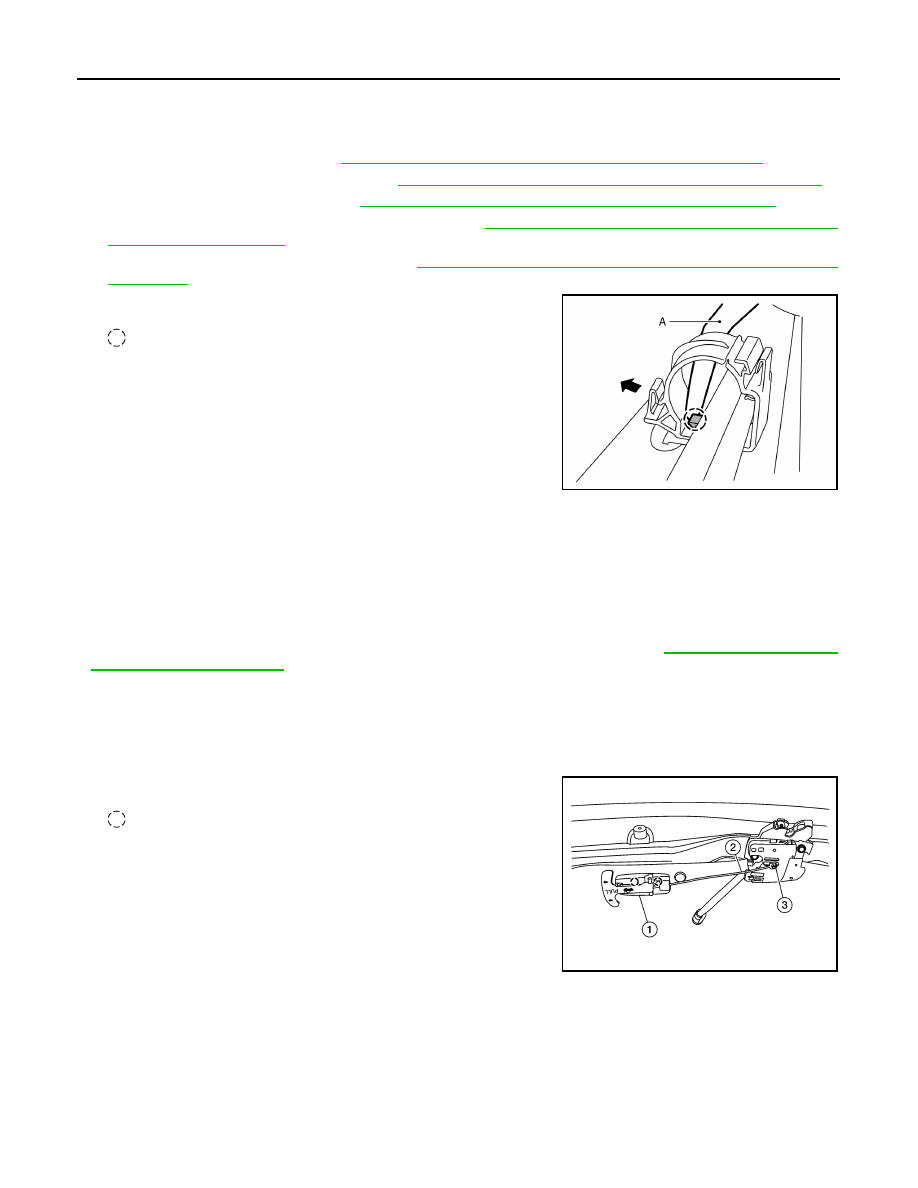

DLK-178 < REMOVAL AND INSTALLATION > [WITH INTELLIGENT KEY SYSTEM] TRUNK LID LOCK TRUNK LID OPENER CABLE : Removal and Installation INFOID:0000000009268878 REMOVAL 1. Remove trunk lid striker. Refer to DLK-160, "TRUNK LID STRIKER : Removal and Installation" 2. Remove trunk side finisher (LH). Refer to INT-33, "TRUNK SIDE FINISHER : Removal and Installation" . 3. Remove rear seat cushion. Refer to SE-23, "Removal and Installation - Seat Cushion Assembly" . 4. Remove center pillar lower finisher (LH). Refer to INT-23, "CENTER PILLAR LOWER FINISHER : . 5. Remove trunk lid opener handle. Refer to DLK-177, "TRUNK LID OPENER HANDLE : Removal and . 6. Release pawl using a suitable tool (A) and open the harness clip. : Pawl 7. Remove trunk lid opener cable. CAUTION: Use care not to damage the trunk lid opener cable when removing. INSTALLATION Installation is in the reverse order of removal. CAUTION: • After installation, check trunk lid open/close, lock/unlock operation. • After installation, perform the trunk lid adjustment procedure. Refer to . EMERGENCY LEVER INFOID:0000000009268879 Removal 1. Release the pawls using a suitable tool and remove emergency release handle (1) from trunk lid assembly. : Pawl 2. Disconnect emergency release handle cable (2) from trunk lid lock assembly (3). AWJIA0737ZZ ALKIA2310ZZ |
