BRM-42

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

Description

INFOID:0000000009268596

• All dimensions indicated as shown are actual.

• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself

to make sure there is no free play.

• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.

• Measurements should be taken at the center of the mounting holes.

• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side

is symmetrically the same value.

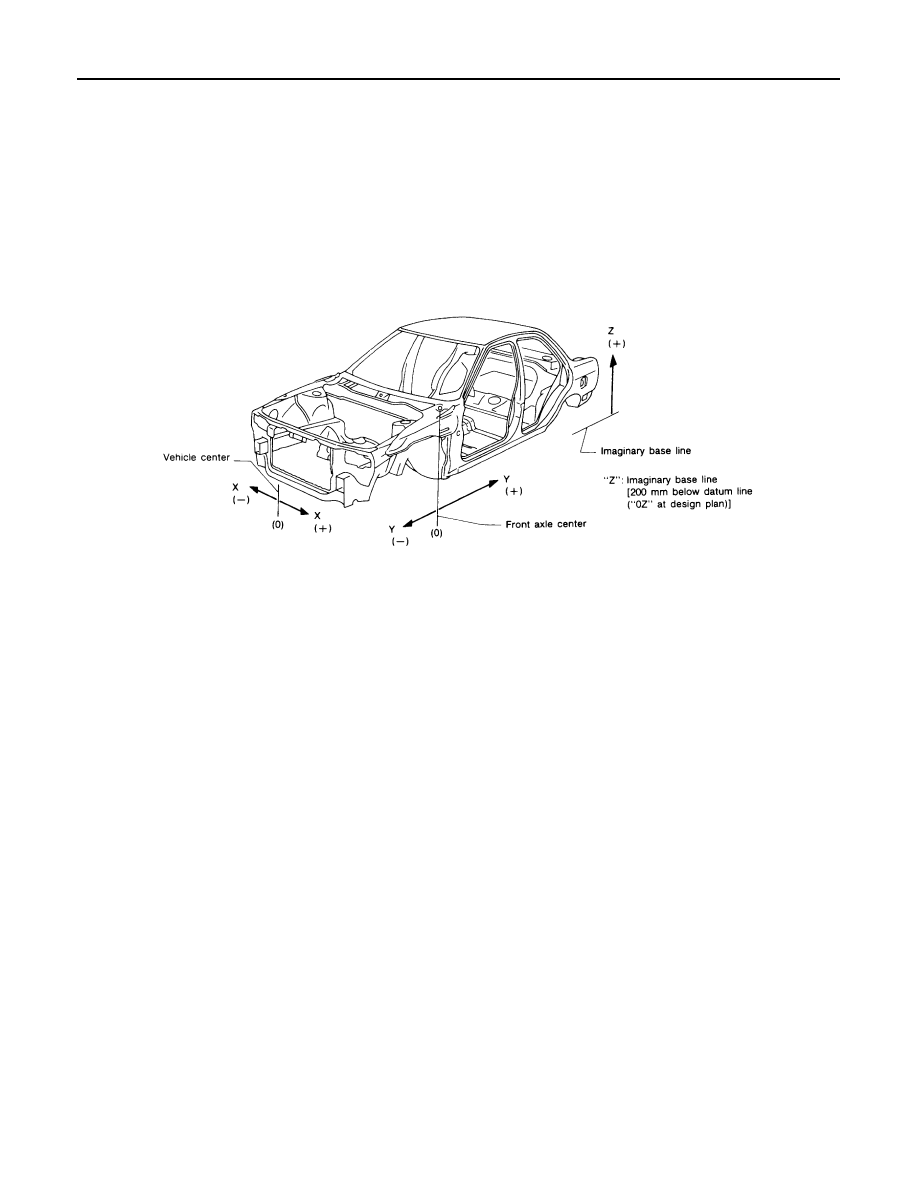

• The coordinates of the measurement points are the distances measured from the standard line of

″X″, ″Y″

and

″Z″.

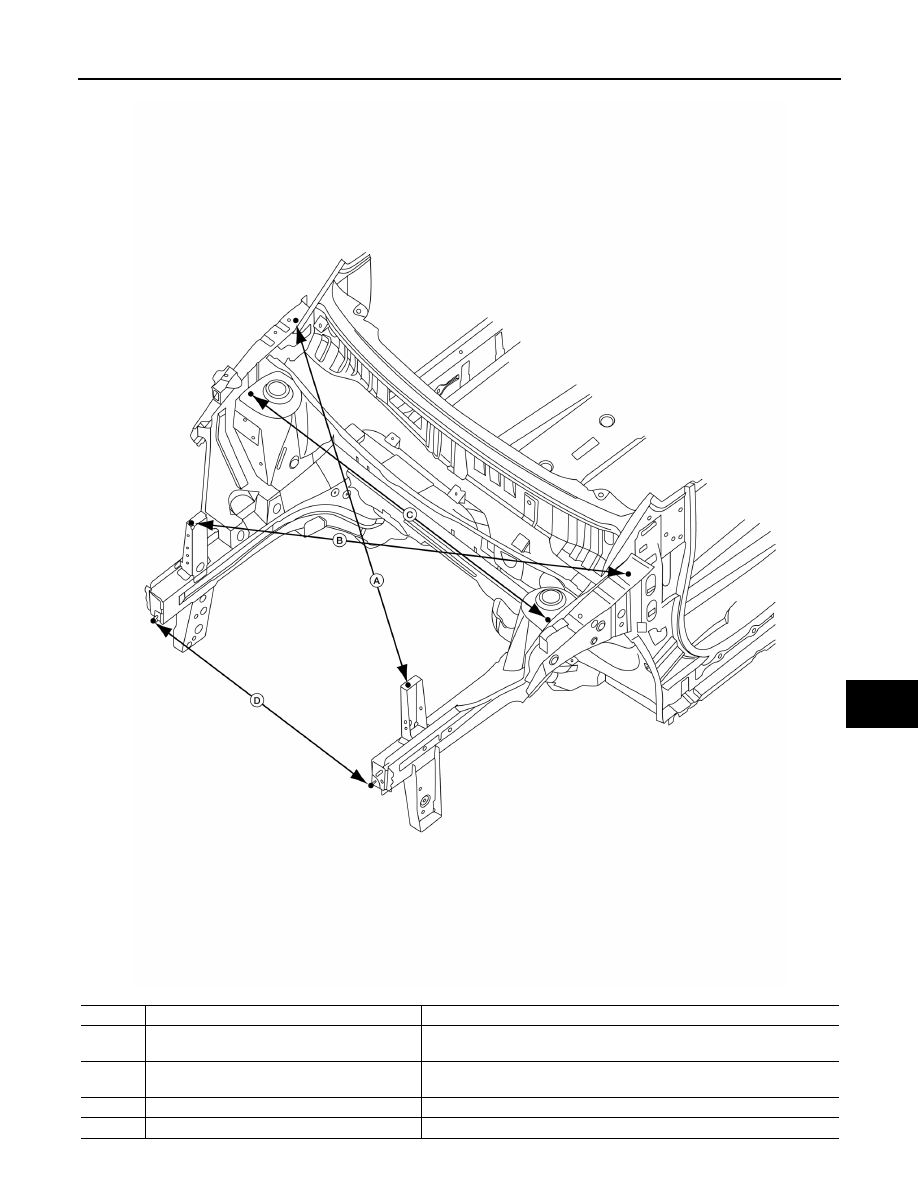

Engine Compartment

INFOID:0000000009268597

Measurement

PIIA0104E

BODY ALIGNMENT

BRM-43

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Unit: mm (in)

Position

Measurement

Description

A.

1321 (52.0)

Center of rear hood hinge hole to the front center of radiator support bolt
hole.

B.

1321 (52.0)

Center of rear hood hinge hole to the front center of radiator support bolt
hole.

C.

1228 (48.3)

Center of front strut hole to the center of the front strut bolt hole.

D.

904 (35.6)

Lower bumper reinforcement stud to lower bumper reinforcement stud.

ALKIA2680ZZ

BRM-44

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

* Figures marked with an * indicate symmetrically identical dimensions on both RH and LH sides of the vehicle.

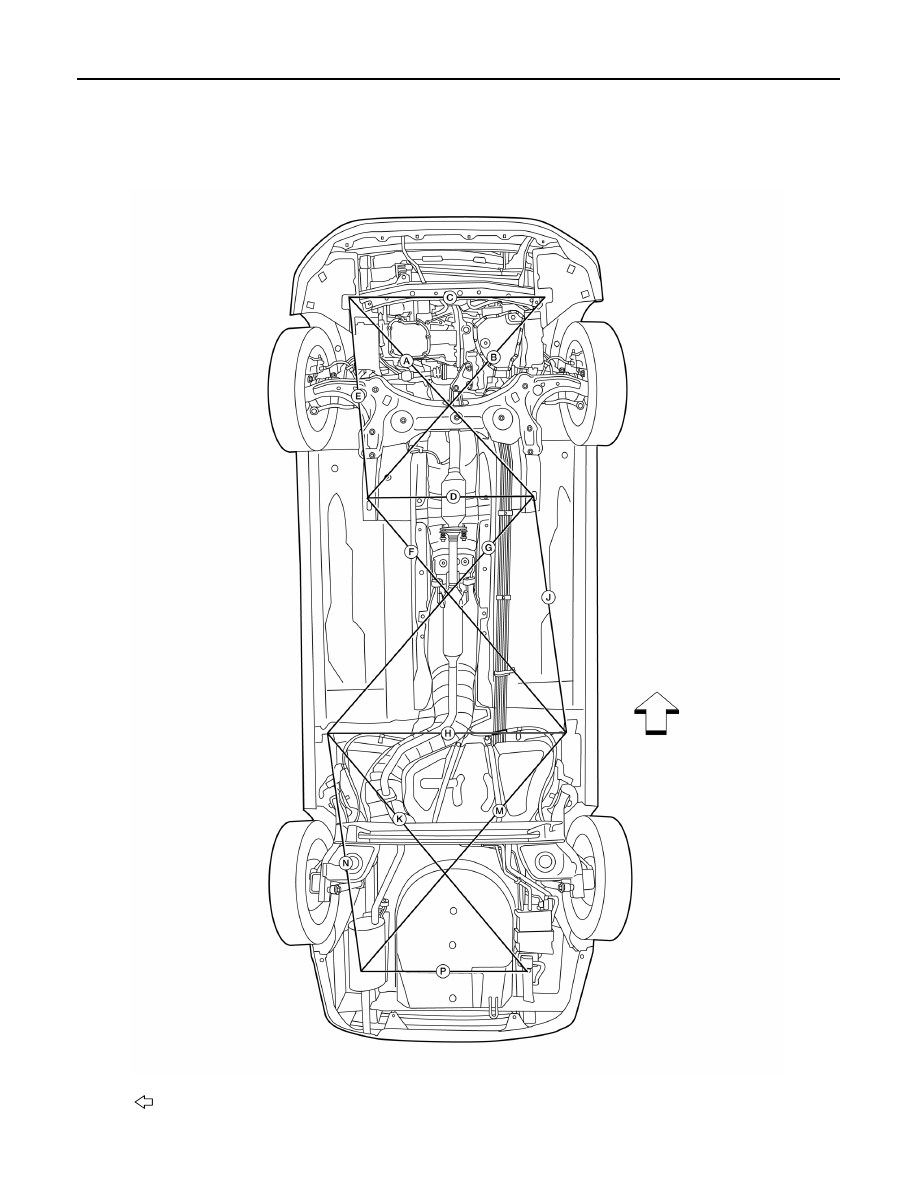

Underbody

INFOID:0000000009268598

Measurement

Front

ALKIA2697ZZ

BODY ALIGNMENT

BRM-45

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

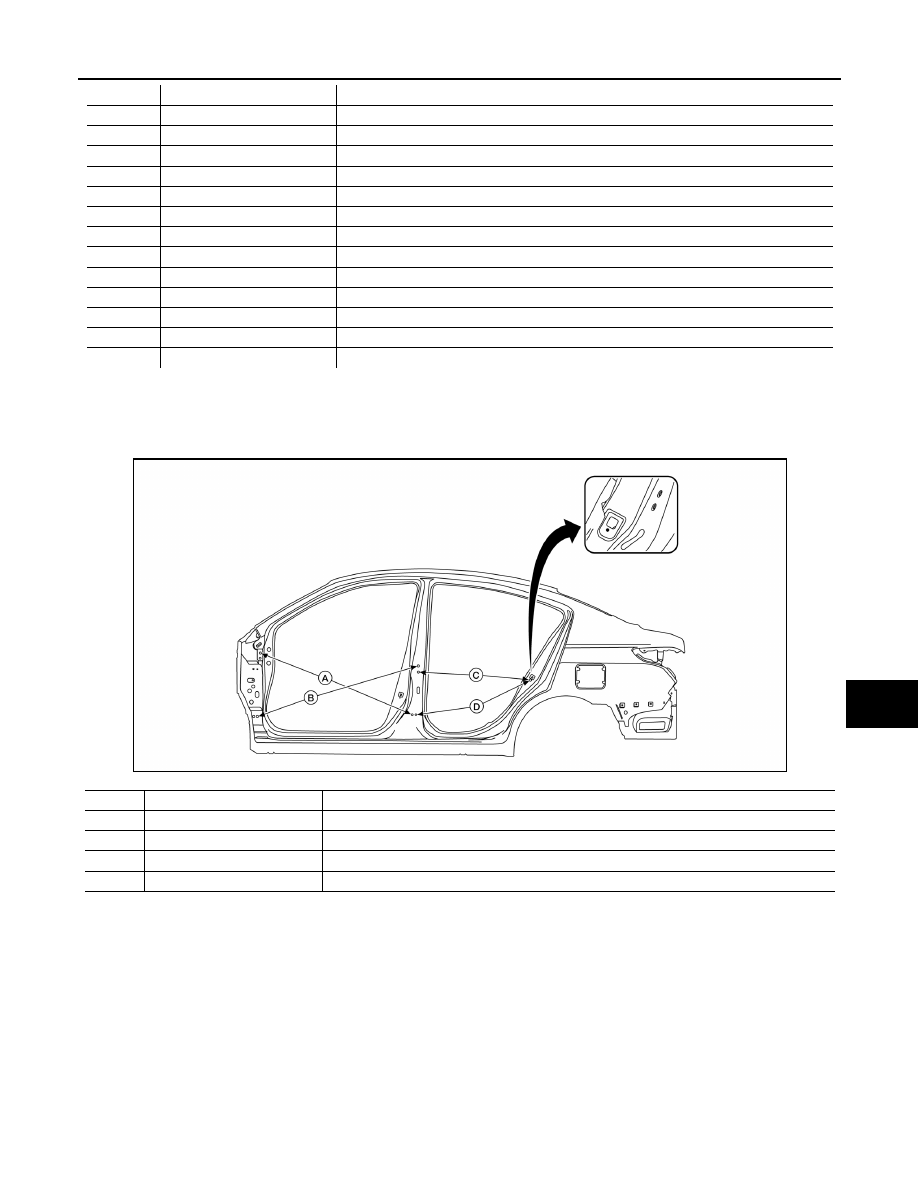

Passenger Compartment

INFOID:0000000009268599

Measurement

Unit: mm (in)

* The vehicle is symmetrically identical dimensions on both RH and LH sides of the vehicle.

Position

Measurement

Description

A.

1310 (56.6)

Distance between lower radiator support bolt (outer) to 15 (0.59) locator hole.

B.

1310 (56.6)

Distance between lower radiator support bolt (outer) to 15 (0.59) locator hole

C.

990 (30.0)

Distance between lower radiator support bolts.

D.

815 (32.1)

Distance between LH and RH 15 (0.59) locator holes

E.

970 (38.2)

Distance between lower radiator support bolt (outer) to 15 (0.59) locator hole.

F.

1790 (70.5)

Distance between LH and RH 15 (0.59) locator holes.

G.

1790 (70.5)

Distance between LH and RH 15 (0.59) locator holes.

H.

1210 (48.0)

Distance between LH and RH 15 (0.59) locator holes.

J.

1485 (58.5)

Distance between 15 (0.59) locator holes.

K.

1580 (62.2)

Distance between 15 (0.59) locator holes.

M.

1580 (62.2)

Distance between center15X17 (0.59X0.67) slot to 15 locator holes.

N.

1150 (45.3)

Distance between center 15X17 (0.59X0.67) slot to 15 locator holes.

P.

950 (37.4)

Distance between center 15X17 (0.59X0.67) slot to center of 15x17 (0.59X0.67) slot.

Position

Measurement

Description

A.

1155 (45.5)

Front door upper hinge bolt hole to rear door lower hinge front bolt hole.

B.

1196 (47.1)

Front door lower hinge rear bolt hole to rear door upper hinge top bolt hole.

C.

796 (31.3)

Rear door upper hinge lower bolt hole to the rear door switch retaining screw hole.

D.

847 (33.3)

Rear door lower hinge rear bolt hole to the rear door switch retaining screw hole.

ALKIA2689ZZ
