BRM-38

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

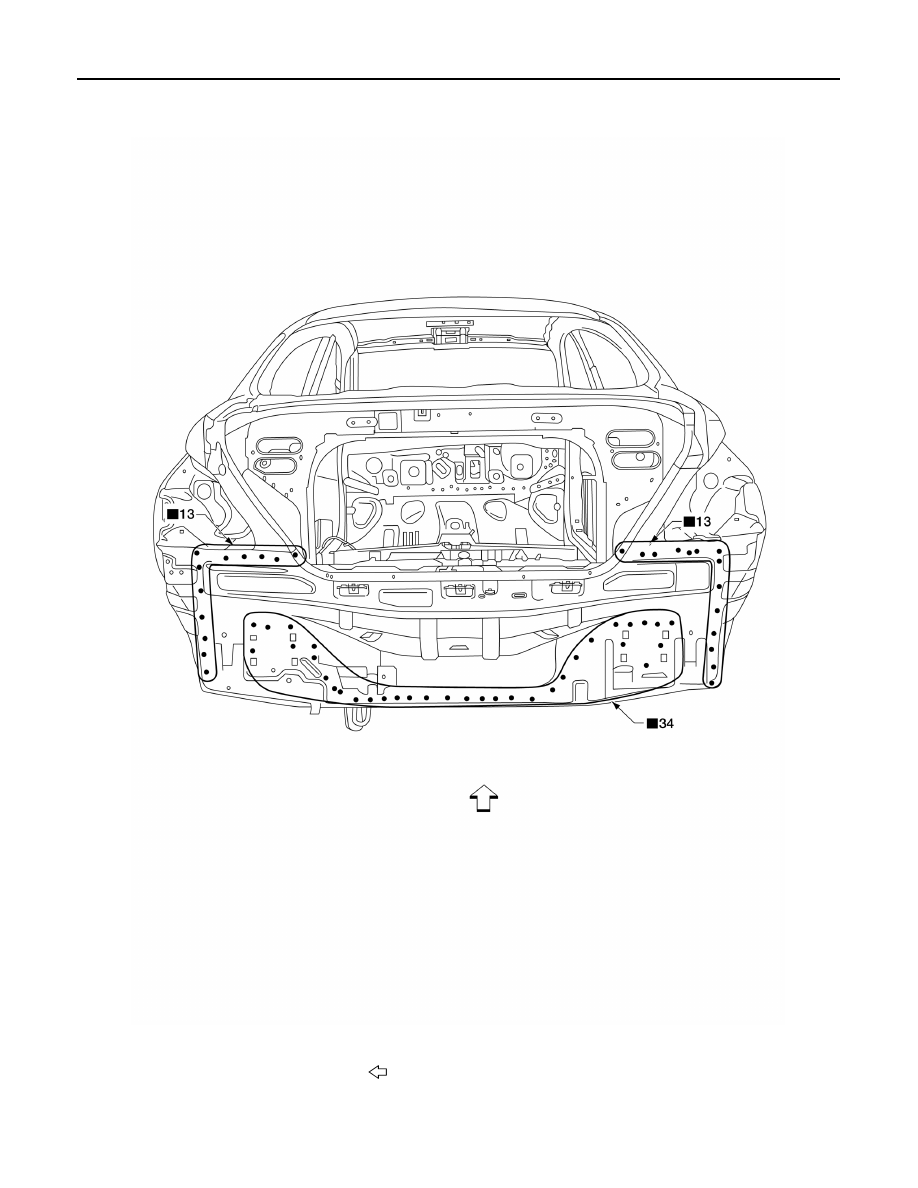

Rear Panel

INFOID:0000000009268592

Change parts

z

Rear panel assembly

Front

ALKIA2650ZZ

REPLACEMENT OPERATIONS

BRM-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

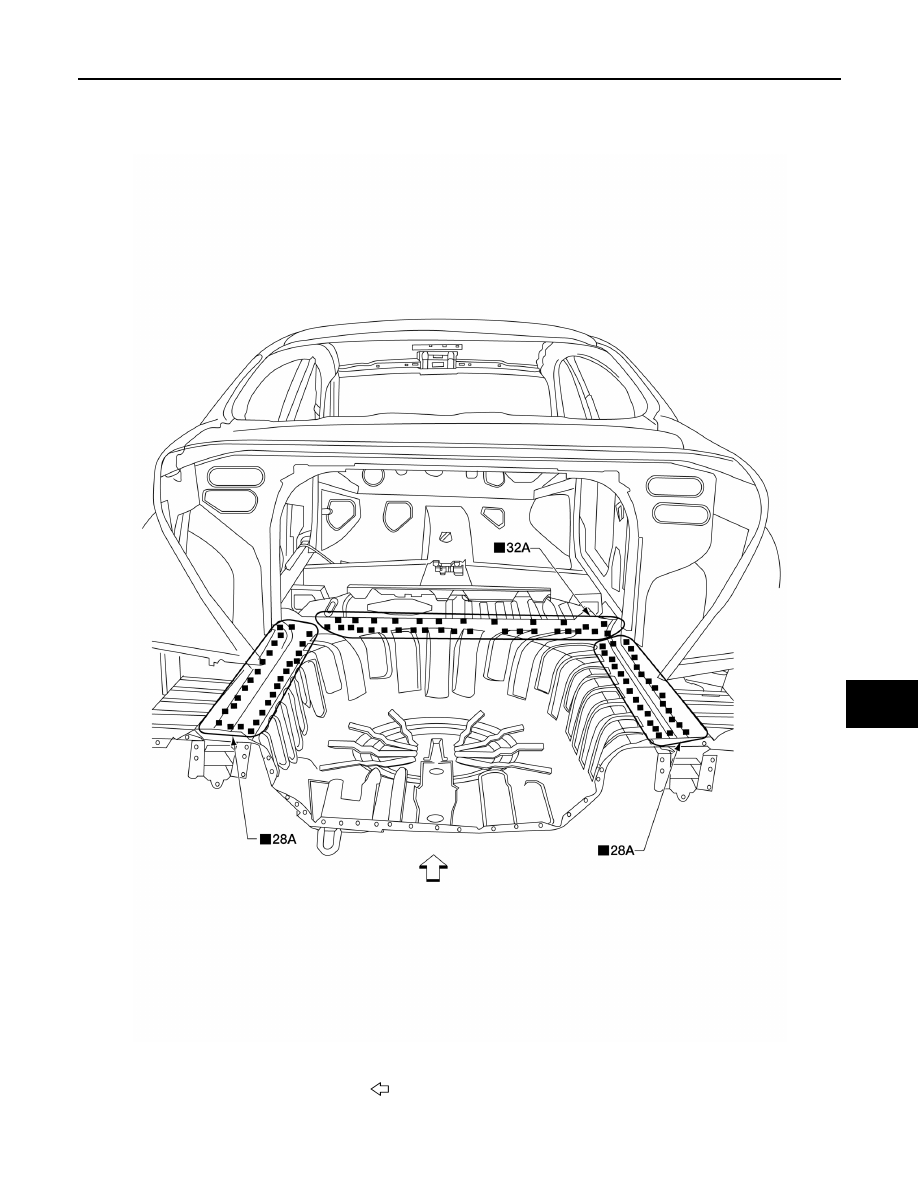

Rear Floor Rear

INFOID:0000000009268593

• Work after rear panel assembly has been removed.

Change parts

z

Rear floor rear

Front

ALKIA2651ZZ

BRM-40

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

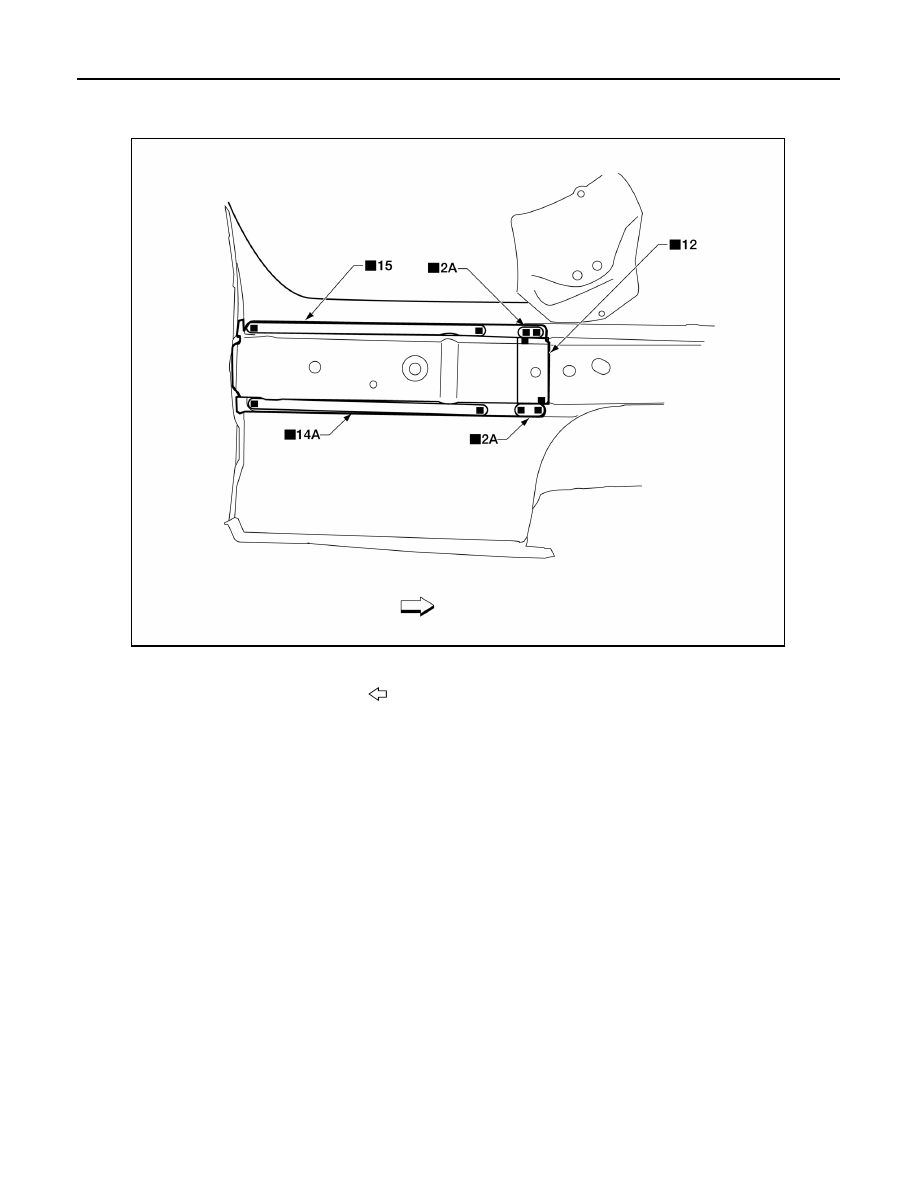

Rear Side Member Extension

INFOID:0000000009268594

• Work after rear panel assembly and rear floor rear have been removed.

Change parts

z

Rear side member extension

Front

ALKIA2659ZZ

BODY ALIGNMENT

BRM-41

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

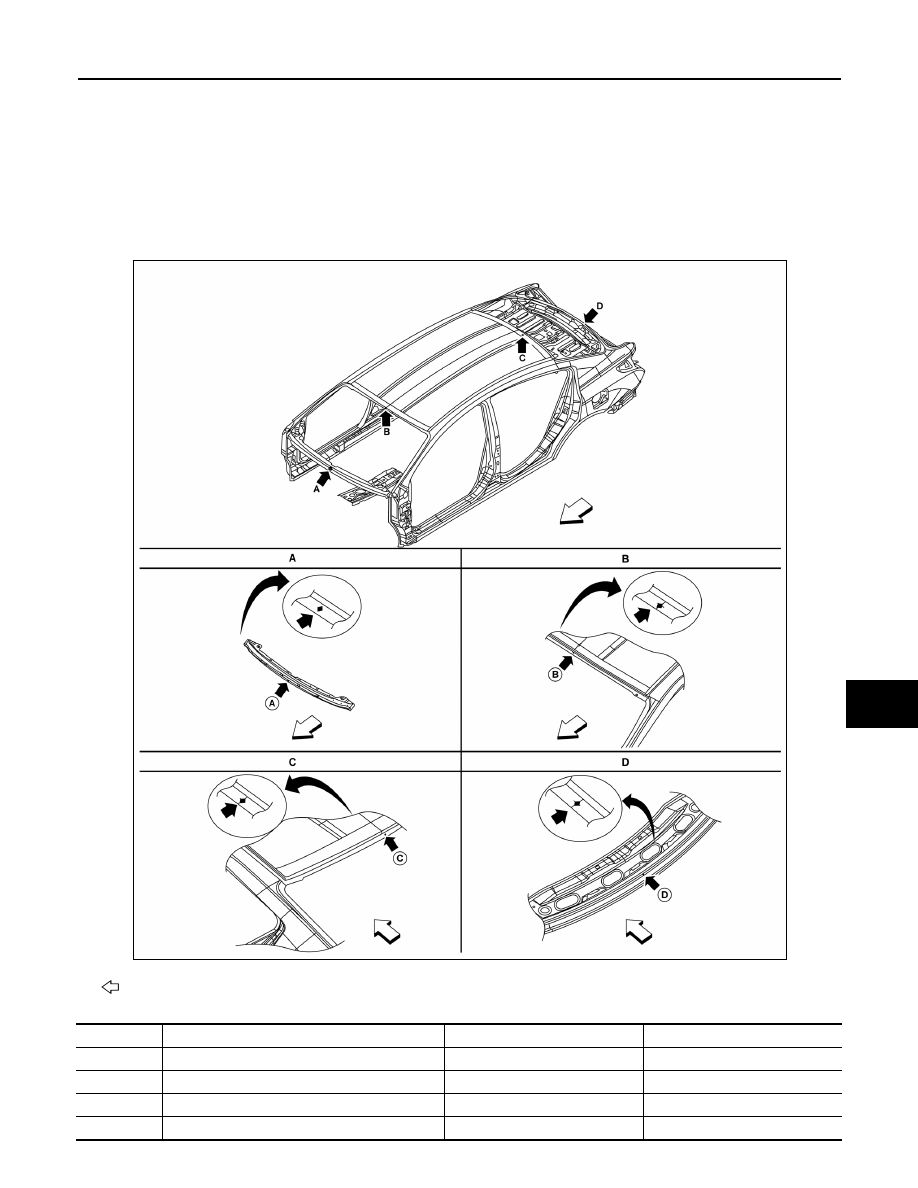

Body Center Marks

INFOID:0000000009268595

A mark has been placed on each part of the body to indicate the vehicle center. When repairing parts dam-

aged by an accident which might affect the vehicle frame (members, pillars, etc.), more accurate and effective

repair will be possible by using these marks together with body alignment specifications.

Front

ALKIA2678ZZ

Point

Portion

Mark

Dimension

A

Cowl top extension

Raised dimple

—

B

 Front roof position mark for alignment

Raised dimple

—

C

Rear roof position mark for alignment

Raised dimple

—

D

 Rear waist flange position mark for alignment

Raised dimple

—
