WT-4

< PRECAUTION >

PRECAUTIONS

• Do not apply oil to nut and bolt threads.

• When tightening the valve cap there is a risk of damaging the valve cap if a tool is used. Tighten by hand.

PREPARATION

WT-5

< PREPARATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

PREPARATION

PREPARATION

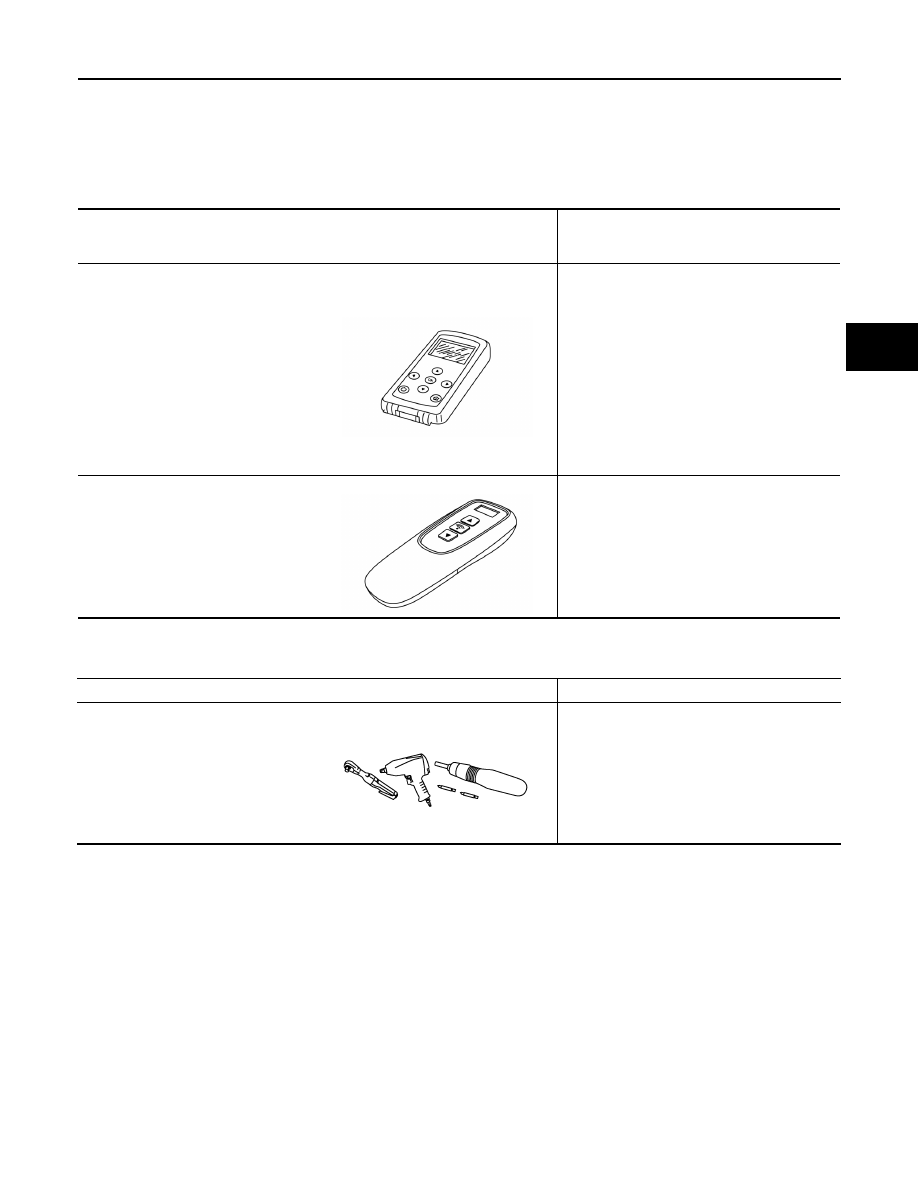

Special Service Tool

INFOID:0000000011280484

The actual shape of the tools may differ from those illustrated here.

Commercial Service Tool

INFOID:0000000011280485

Tool number
(TechMate No.)
Tool name

Description

—

(J-50190)
Signal Tech II

• Activate and display TPMS transmitter IDs
• Display tire pressure reported by the TPMS

transmitter

• Read TPMS DTCs
• Register TPMS transmitter IDs
• Test remote keyless entry keyfob relative

signal strength

• Check Intelligent Key relative signal

strength

• Confirm vehicle Intelligent Key antenna sig-

nal strength

• Compatible with future sensors
• Equipped with a display

KV48105501
(J-45295-A)
Transmitter activation tool

• Activate TPMS transmitter IDs
• Compatible with future sensors
• Equipped with a display (KV48105501 only)

ALEIA0131ZZ

ALEIA0183ZZ

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E

WT-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

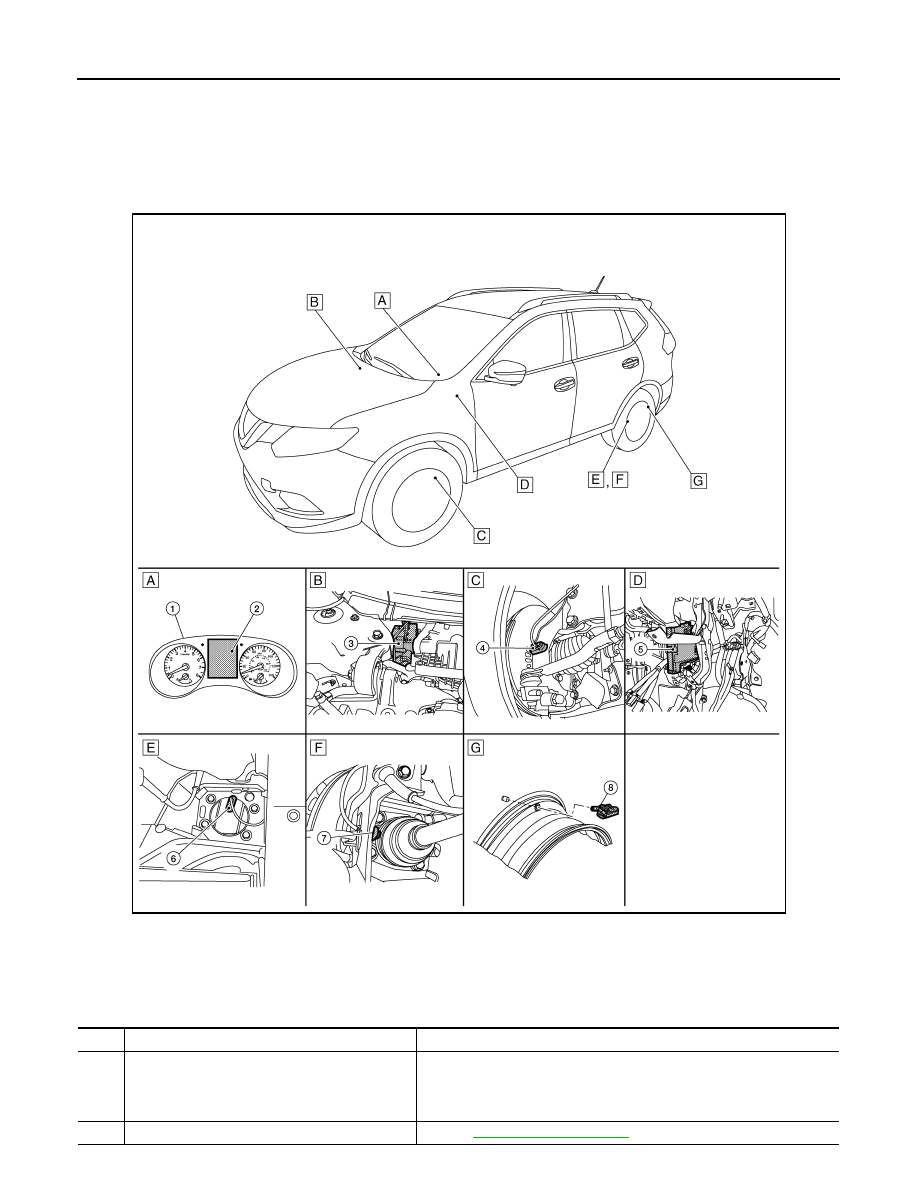

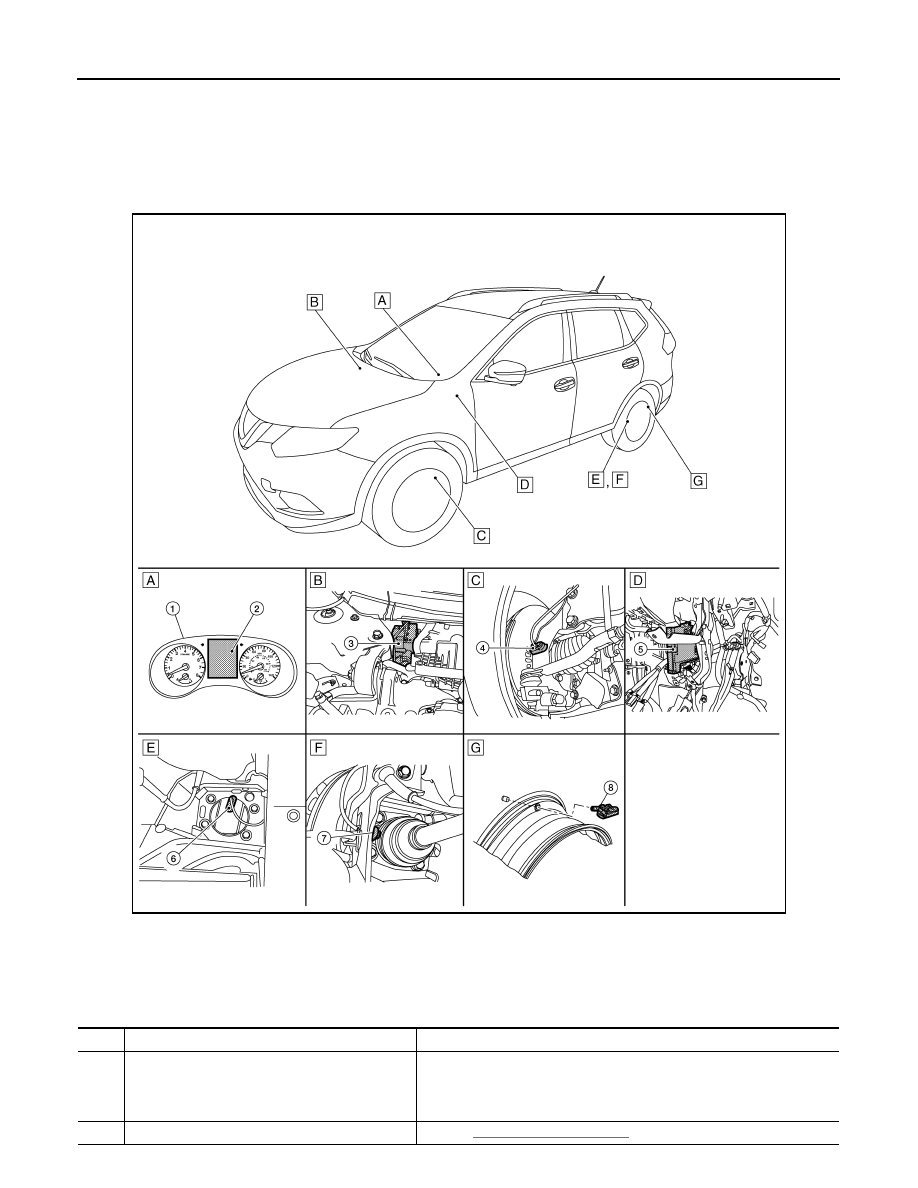

Component Parts Location

INFOID:0000000011280486

AWEIA0372ZZ

A.

Combination meter

B.

Engine room (RH)

C. Left front wheel assembly

D. Behind instrument panel (LH)

E.

Left rear wheel assembly
(FWD models)

F.

Left rear wheel assembly
(AWD models)

G.

Wheel

No.

Component parts

Function

1.

Combination meter

The combination meter receives tire pressure status from the BCM via
CAN communication. The combination meter will display the low tire pres-
sure warning lamp when a low tire pressure or system malfunction is de-
tected by the BCM.

2.

Information display (in combination meter)

Refer to

WT-7, "Information Display"

.

COMPONENT PARTS

WT-7

< SYSTEM DESCRIPTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

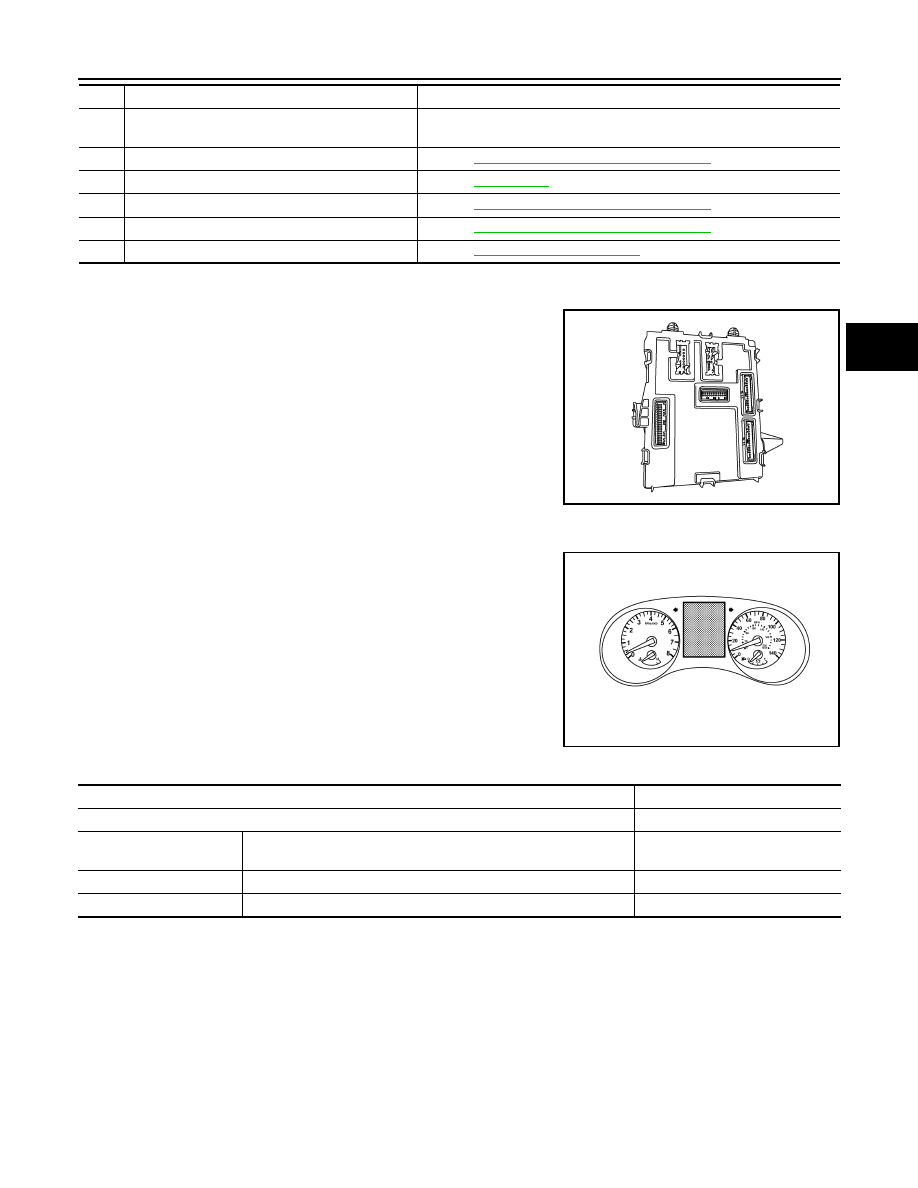

BCM

INFOID:0000000011280487

• Tire pressure receiver is integrated in BCM.

• The tire pressure receiver receives the tire pressure signal trans-

mitted by the tire pressure sensor in each wheel.

• The BCM reads the tire pressure signal received by tire pressure

receiver, and controls the low tire pressure warning lamp opera-

tions. It also has a judgment function to detect a system malfunc-

tion.

Information Display

INFOID:0000000011280488

A low tire pressure warning or flat tire warning is shown on the vehi-

cle information display when they are transmitted from the BCM to

combination meter via CAN communication.

3.

ABS actuator and electric unit (control unit)

Mainly transmits the following signals to BCM via CAN communication:
• Wheel sensor signal (ABS)

4.

Front wheel sensor LH (RH similar)

Refer to

BRC-9, "Wheel Sensor and Sensor Rotor"

.

5.

BCM

Refer to

WT-7, "BCM"

.

6.

Rear wheel sensor LH [FWD models (RH similar)] Refer to

BRC-9, "Wheel Sensor and Sensor Rotor"

.

7.

Rear wheel sensor LH [AWD models (RH similar)] Refer to

BRC-9, "Wheel Sensor and Sensor Rotor"

.

8.

Tire pressure sensor

Refer to

WT-8, "Tire Pressure Sensor"

.

No.

Component parts

Function

AWKIA2844ZZ

AWEIA0349ZZ

Condition

Vehicle information display

Ignition switch OFF

Not indicated

Ignition switch ON

Low tire pressure warning lamp remains ON after blinking for one
minute. Tire Pressure Monitoring System (TPMS) malfunction.

Not indicated

Ignition switch ON

Low tire pressure warning lamp remains ON (low tire pressure).

Indicated

Ignition switch ON

Flat tire warning.

Indicated
