RF-36

< DTC/CIRCUIT DIAGNOSIS >

DOOR SWITCH

3. Check continuity between door switch harness connector and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-75, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK DOOR SWITCH

Refer to

RF-36, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace malfunctioning door switch. Refer to

DLK-276, "Removal and Installation"

.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> Inspection End.

Component Inspection

INFOID:0000000011382845

1.

CHECK DOOR SWITCH

1. Turn ignition switch OFF.

2. Disconnect malfunctioning door switch connector.

3. Check continuity between door switch terminals.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace malfunctioning door switch. Refer to

DLK-276, "Removal and Installation"

.

WITHOUT INTELLIGENT KEY
Description

INFOID:0000000011382856

Detects door open/close condition.

Component Function Check

INFOID:0000000011382857

1.

CHECK FUNCTION

Door switch

BCM

Continuity

Connector

Terminal

Connector

Terminal

Front LH

B71

3

B16

57

Yes

Front RH

B141

53

Rear LH

B70

52

Rear RH

B142

50

Door switch

Ground

Continuity

Connector

Terminal

Front LH

B71

3

No

Front RH

B141

Rear LH

B70

Rear RH

B142

Door switch

Condition

Continuity

Terminal

3

Ground contact is part of the

switch.

Door switch

Pressed

No

Released

Yes

DOOR SWITCH

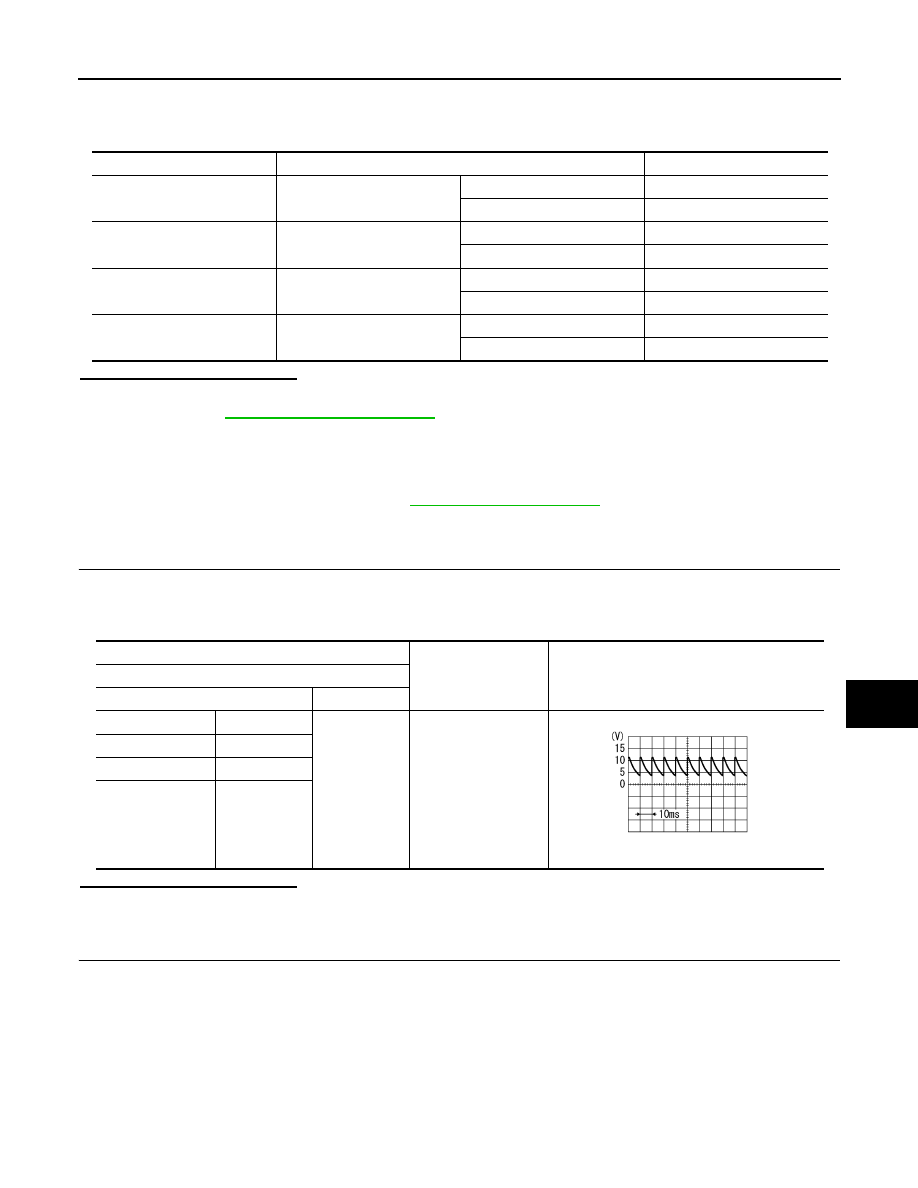

RF-37

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

1. Select “DOOR LOCK” of “BCM” using CONSULT.

2. Select “DOOR SW-DR”, “DOOR SW-AS”, “DOOR SW-RL”, “DOOR SW-RR”, in “Data Monitor”.

3. Check that the function operates normally according to the following conditions:

Is the inspection result normal?

YES

>> Door switch is OK.

NO

>> Refer to

RF-37, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000011382858

Regarding Wiring Diagram information, refer to

DLK-299, "Wiring Diagram"

.

1.

CHECK DOOR SWITCH INPUT SIGNAL

1. Turn ignition switch OFF.

2. Disconnect malfunctioning door switch connector.

3. Check signal between malfunctioning door switch harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK DOOR SWITCH CIRCUIT

1. Disconnect BCM connector.

2. Check continuity between door switch harness connector and BCM harness connector.

Monitor item

Condition

Status

DOOR SW-DR

Front door LH

Open

On

Closed

Off

DOOR SW-AS

Front door RH

Open

On

Closed

Off

DOOR SW-RL

Rear door LH

Open

On

Closed

Off

DOOR SW-RR

Rear door RH

Open

On

Closed

Off

(+)

(–)

Signal

(Reference value)

Door switch

Connector

Terminal

Front LH

B71

3

Ground

7.0 - 8.0 V

Front RH

B141

Rear LH

B70

Rear RH

B142

PKIB4960J

RF-38

< DTC/CIRCUIT DIAGNOSIS >

DOOR SWITCH

3. Check continuity between door switch harness connector and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK DOOR SWITCH

Refer to

RF-36, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace malfunctioning door switch. Refer to

DLK-396, "Removal and Installation"

.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> Inspection End.

Component Inspection

INFOID:0000000011382859

1.

CHECK DOOR SWITCH

1. Turn ignition switch OFF.

2. Disconnect door switch connector.

3. Check door switch.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace malfunctioning door switch. Refer to

DLK-396, "Removal and Installation"

.

Door switch

BCM

Continuity

Connector

Terminal

Connector

Terminal

Front LH

B71

3

B16

57

Yes

Front RH

B141

53

Rear LH

B70

52

Rear RH

B142

50

Door switch

Ground

Continuity

Connector

Terminal

Front LH

B71

3

No

Front RH

B141

Rear LH

B70

Rear RH

B142

Terminal

Door switch condition

Continuity

Door switch

3

Ground part of

door switch

Pressed

No

Released

Yes

MOONROOF DOES NOT OPERATE PROPERLY

RF-39

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SYMPTOM DIAGNOSIS

MOONROOF DOES NOT OPERATE PROPERLY

Diagnosis Procedure

INFOID:0000000011280152

1.

 CHECK BCM POWER SUPPLY AND GROUND CIRCUIT

Check BCM power supply and ground circuit.

Refer to

BCS-68, "Diagnosis Procedure"

 (with Intelligent Key System),

BCS-128, "Diagnosis Procedure"

 (with-

out Intelligent Key System)
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace malfunctioning parts.

2.

 CHECK MOONROOF MOTOR ASSEMBLY POWER SUPPLY AND GROUND CIRCUIT

Check moonroof motor assembly power supply and ground circuit.

Refer to

RF-39, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

NO

>> Repair or replace malfunctioning parts.
