RF-28

< DTC/CIRCUIT DIAGNOSIS >

POWER SUPPLY AND GROUND CIRCUIT

MOONROOF MOTOR ASSEMBLY

1.

 CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect the moonroof motor assembly connector.

3. Turn ignition switch ON.

4. Check voltage between moonroof motor assembly connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

 CHECK GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Check continuity between moonroof motor assembly connector and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace harness.

3.

CHECK HARNESS CONTINUITY

1. Turn ignition switch OFF.

2. Disconnect power window relay connector.

3. Check continuity between power window relay harness connector and moonroof motor assembly harness

connector.

4. Check continuity between power window relay harness connector and ground.

Is the inspection result normal?

YES

>> Refer to

PWC-49, "Diagnosis Procedure"

.

NO

>> Repair or replace harness.

4.

 CHECK MOONROOF SWITCH INPUT SIGNAL

1. Connect moonroof motor assembly.

2. Turn ignition switch ON.

3. Check voltage between the moonroof motor assembly connector and ground.

(+)

(–)

Voltage

(Approx.)

Moonroof motor assembly connector

Terminal

R4

3

Ground

Battery voltage

6

Moonroof motor assembly connector

Terminal

Ground

Continuity

R4

1

Yes

Power window relay

Moonroof motor assembly

Continuity

Connector

Terminal

Connector

Terminal

M58

3

R4

3

Yes

Power window relay

Ground

Continuity

Connector

Terminal

M58

3

No

Moonroof motor as-

sembly connector

Terminals

Condition

Voltage

(Approx.)

(+)

(–)

POWER SUPPLY AND GROUND CIRCUIT

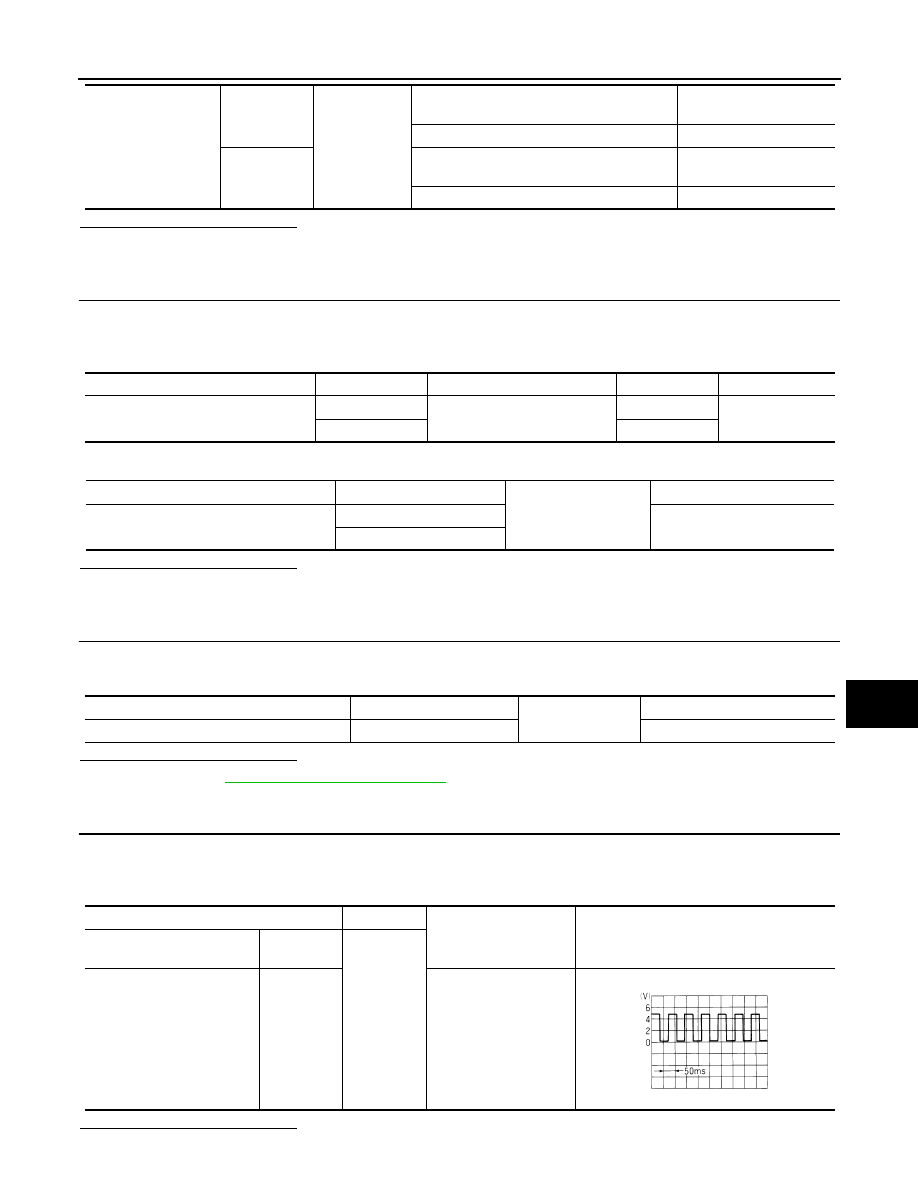

RF-29

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> GO TO 6.

5.

 CHECK MOONROOF SWITCH CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect the moonroof motor assembly and moonroof switch.

3. Check continuity between the moonroof motor assembly connector and moonroof switch connector.

4. Check continuity between the moonroof motor assembly connector and ground.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Repair or replace harness.

6.

 CHECK MOONROOF SWITCH GROUND CIRCUIT

1. Connect moonroof motor assembly.

2. Check continuity between the moonroof switch connector and ground.

Is the inspection result normal?

YES

>> Refer to

RF-33, "Component Inspection"

.

NO

>> Repair or replace harness.

7.

 CHECK COMBINATION METER SIGNAL

1. Connect the moonroof motor assembly connector.

2. Turn ignition switch ON.

3. Check the signal between the moonroof motor assembly connector and ground with oscilloscope.

Is the inspection result normal?

R4

5

Ground

Moonroof switch is operated
TILT DOWN or SLIDE OPEN

0

Other than above

Battery voltage

10

Moonroof switch is operated
TILT UP or SLIDE CLOSE

0

Other than above

Battery voltage

Moonroof motor assembly connector

Terminal

Moonroof switch connector

Terminal

Continuity

R4

5

R3

4

Yes

10

9

Moonroof motor assembly connector

Terminal

Ground

Continuity

R4

5

No

10

Moonroof switch connector

Terminal

Ground

Continuity

R3

1

Yes

(+)

(-)

Condition

 Signal

(Reference value)

 Moonroof motor assembly

connector

Terminal

Ground

R4

8

Speedometer operated

[When vehicle speed is

approx.40km/h

(25MPH)]

ELF1080D

RF-30

< DTC/CIRCUIT DIAGNOSIS >

POWER SUPPLY AND GROUND CIRCUIT

YES

>> Replace moonroof motor assembly. Refer to

RF-52, "Removal and Installation"

. After that, refer to

RF-25, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Require-

ment"

.

NO

>> GO TO 9.

8.

CHECK COMBINATION METER CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect combination meter.

3. Check continuity between the combination meter connector and the moonroof motor assembly connector.

4. Check continuity between the combination meter connector and ground.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

BCS-76, "Removal and Installation"

.

NO

>> Repair or replace harness.

MOONROOF MOTOR ASSEMBLY : Special Repair Requirement

INFOID:0000000011280138

1.

 PERFORM INITIALIZATION PROCEDURE

Perform the initialization procedure.

Refer to

RF-30, "MOONROOF MOTOR ASSEMBLY : Special Repair Requirement"

.

>> GO TO 2.

2.

 CHECK ANTI-PINCH OPERATION

Check the anti-pinch operation.

Refer to

RF-30, "MOONROOF MOTOR ASSEMBLY : Special Repair Requirement"

.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Check fitting adjustment.

SUNSHADE MOTOR ASSEMBLY
SUNSHADE MOTOR ASSEMBLY : Description

INFOID:0000000011280139

• BCM supplies the sunshade motor assembly with power.

• CPU is integrated in sunshade motor assembly.

• Slide open/close controlled by the moonroof switch operation.

SUNSHADE MOTOR ASSEMBLY : Component Function Check

INFOID:0000000011280140

1.

 CHECK SUNSHADE MOTOR FUNCTION

Does the slide open and close functions operate normally with the moonroof switch?
Is the inspection result normal?

YES

>> Sunshade motor assembly is OK.

NO

>> Refer to

RF-30, "SUNSHADE MOTOR ASSEMBLY : Diagnosis Procedure"

.

SUNSHADE MOTOR ASSEMBLY : Diagnosis Procedure

INFOID:0000000011280141

Regarding Wiring Diagram information, refer to

RF-17, "Wiring Diagram"

.

Combination meter connector

Terminal

Moonroof motor assembly connector

Terminal

Continuity

M76

39

R4

8

Yes

Combination meter connector

Terminal

Ground

Continuity

M76

39

No

POWER SUPPLY AND GROUND CIRCUIT

RF-31

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

1.

CHECK POWER SUPPLY

1. Turn ignition switch OFF.

2. Disconnect sunshade motor assembly connector.

3. Turn ignition switch ON.

4. Check voltage between sunshade motor assembly harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Check continuity between sunshade motor assembly harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace the harness.

3.

CHECK HARNESS CONTINUITY

1. Turn ignition switch OFF.

2. Disconnect power window relay connector.

3. Check continuity between power window relay harness connector and moonroof motor assembly harness

connector.

4. Check continuity between power window relay harness connector and ground.

Is the inspection result normal?

YES

>> Refer to

PWC-49, "Diagnosis Procedure"

.

NO

>> Repair or replace harness.

(+)

(–)

Voltage

(Approx.)

Sunshade motor assembly

 Connector

Terminal

R5

3

Ground

Battery voltage

Sunshade motor assembly

Ground

Continuity

 Connector

Terminal

R5

1

Yes

Power window relay

Moonroof motor assembly

Continuity

Connector

Terminal

Connector

Terminal

M58

3

R4

3

Yes

Power window relay

Ground

Continuity

Connector

Terminal

M58

3

No
