Nissan Maxima. Manual - part 213

AV-672

< REMOVAL AND INSTALLATION >

[COLOR DISPLAY - W/BOSE & NAVI]

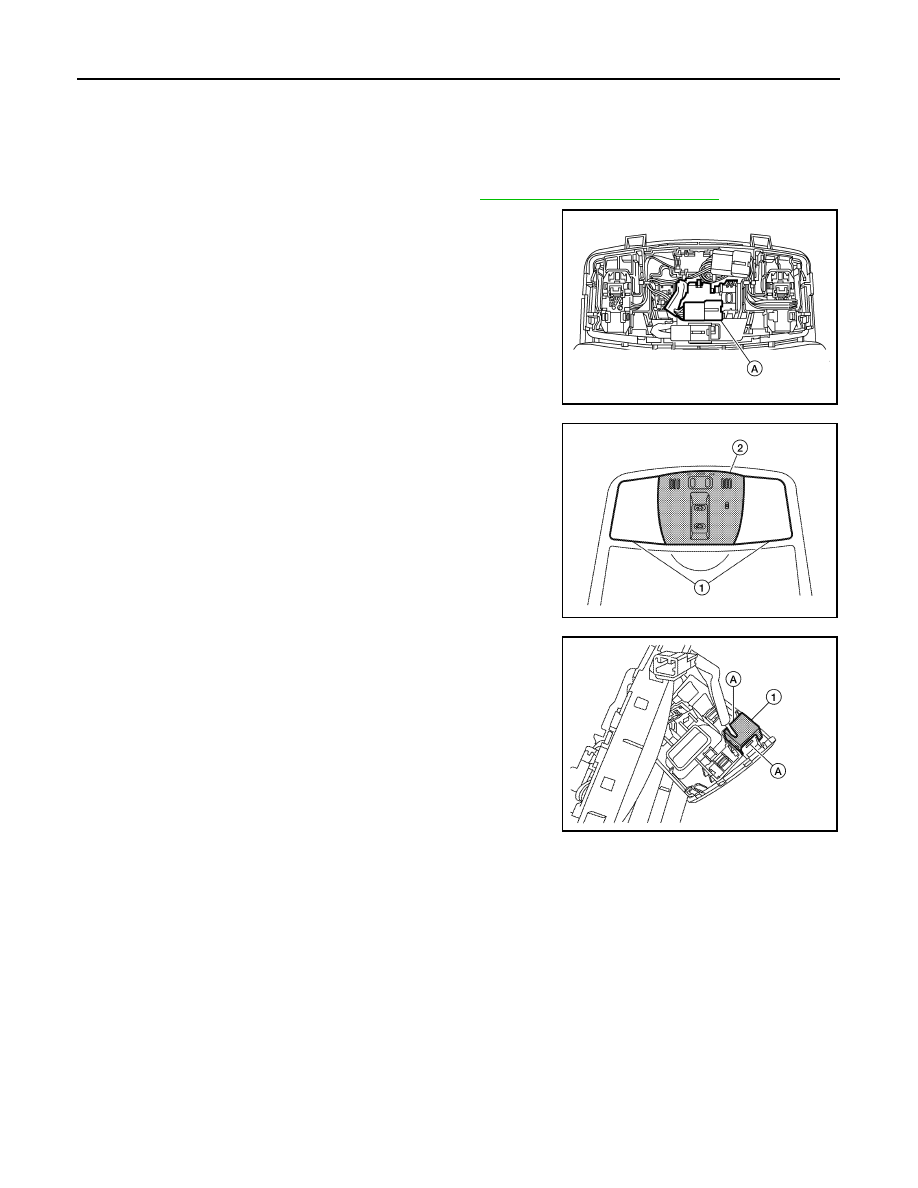

MICROPHONE

MICROPHONE

Removal and Installation

INFOID:0000000009471548

REMOVAL

1. Remove the front room/map lamp assembly. Refer to

INL-84, "Removal and Installation"

.

2. Detach the microphone connector (A).

3. Remove the front room/map lamp covers (1), then remove the

map lamp assembly cover (2).

4. Release the microphone tabs (A), then remove the microphone

(1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0928ZZ

ALNIA0929ZZ

ALNIA0930ZZ

AV

REAR VIEW CAMERA

AV-673

< REMOVAL AND INSTALLATION >

[COLOR DISPLAY - W/BOSE & NAVI]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

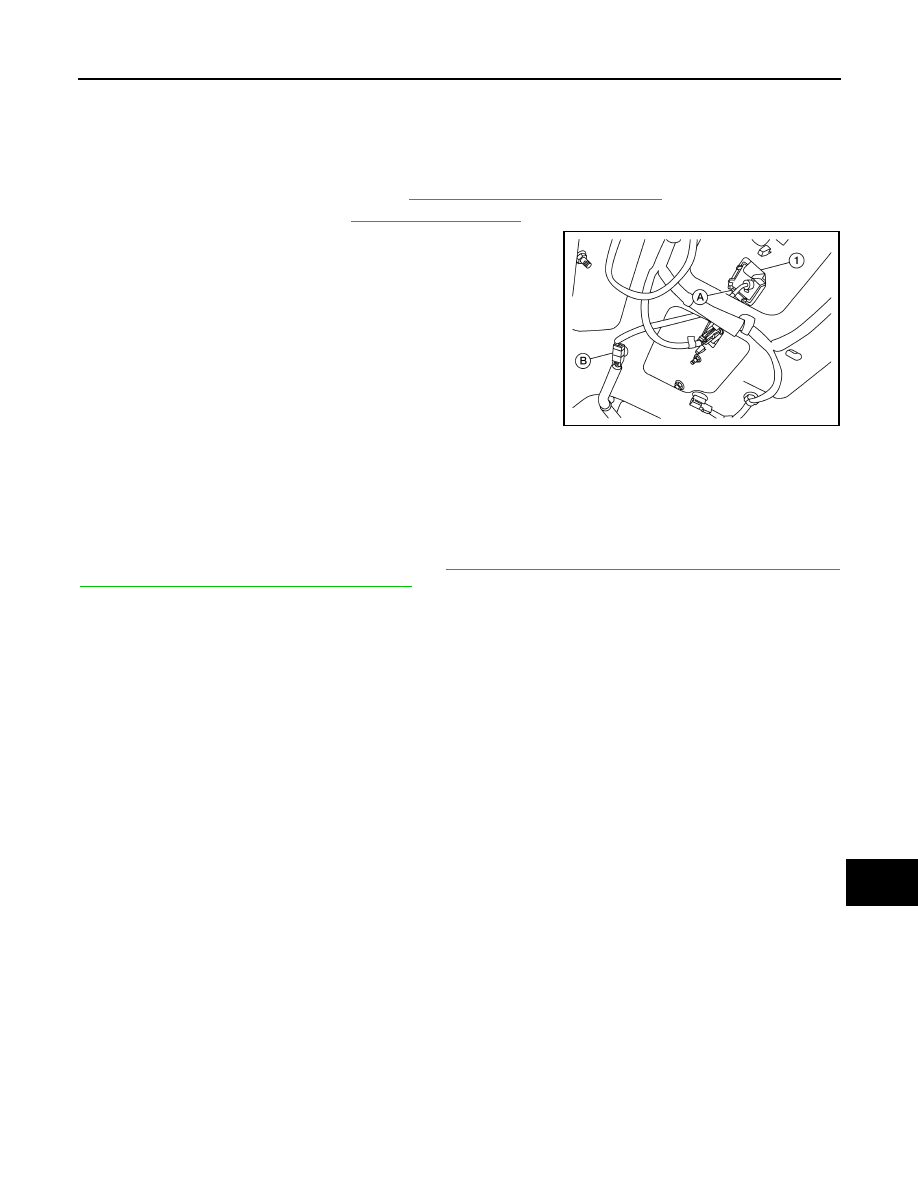

REAR VIEW CAMERA

Removal and Installation

INFOID:0000000009471549

REMOVAL

1. Remove the license plate finisher. Refer to

EXL-166, "Removal and Installation"

.

2. Remove trunk lid finisher. Refer to

INT-36, "Exploded View"

.

3. Disconnect the rear view camera connector (B), press the rear

view camera tab (A) and remove the rear view camera (1).

INSTALLATION

Installation is in the reverse order of removal.

Adjustment

INFOID:0000000009471550

REAR VIEW CAMERA

For adjustment on the rear view camera, refer to

DLK-12, "ADDITIONAL SERVICE WHEN REPLACING

CONTROL UNIT : Special Repair Requirement"

.

ALNIA1156ZZ

BCS

BCS-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

BCS

A

O

P

N

CONTENTS

BODY CONTROL SYSTEM

BCM

BASIC INSPECTION  ....................................

3

DIAGNOSIS AND REPAIR WORKFLOW  ..........

3

Work Flow  .................................................................

3

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT (BCM) ...............................................

5

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT (BCM) : Description .......................

5

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT (BCM) : Work Procedure ...............

5

CONFIGURATION (BCM)  ...........................................

6

CONFIGURATION (BCM) : Description ....................

6

CONFIGURATION (BCM) : Work Procedure ............

6

CONFIGURATION (BCM) : Configuration list ...........

7

SYSTEM DESCRIPTION  ..............................

8

BODY CONTROL SYSTEM ................................

8

System Description  ...................................................

8

Component Parts Location ........................................

9

COMBINATION SWITCH READING SYSTEM

....

10

System Diagram ......................................................

10

System Description  .................................................

10

SIGNAL BUFFER SYSTEM  ...............................

14

System Diagram ......................................................

14

System Description  .................................................

14

POWER CONSUMPTION CONTROL SYS-
TEM ....................................................................

15

System Diagram ......................................................

15

System Description  .................................................

15

Component Parts Location ......................................

17

DIAGNOSIS SYSTEM (BCM)  ............................

18

COMMON ITEM .........................................................

18

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM)  .....................................................

18

DOOR LOCK ..............................................................

18

DOOR LOCK : CONSULT Function (BCM -
DOOR LOCK) ..........................................................

19

REAR DEFOGGER ....................................................

19

REAR DEFOGGER : CONSULT Function (BCM -
REAR DEFOGGER) ................................................

19

BUZZER .....................................................................

20

BUZZER : CONSULT Function (BCM - BUZZER) ....

20

INT LAMP ...................................................................

20

INT LAMP : CONSULT Function (BCM - INT
LAMP) ......................................................................

20

HEADLAMP ...............................................................

21

HEADLAMP : CONSULT Function (BCM - HEAD
LAMP) ......................................................................

21

WIPER ........................................................................

22

WIPER : CONSULT Function (BCM - WIPER)  .......

23

FLASHER ...................................................................

23

FLASHER : CONSULT Function (BCM - FLASH-
ER) ..........................................................................

23

INTELLIGENT KEY ....................................................

24

INTELLIGENT KEY : CONSULT Function (BCM -
INTELLIGENT KEY)  ................................................

24

COMB SW ..................................................................

26

COMB SW : CONSULT Function (BCM-COMB
SW) ..........................................................................

27

BCM ...........................................................................

27

BCM : CONSULT Function (BCM - BCM)  ...............

27

IMMU ..........................................................................

27

IMMU : CONSULT Function (BCM - IMMU) ............

27

BATTERY SAVER  .....................................................

28

BCS-2

BATTERY SAVER : CONSULT Function (BCM -
BATTERY SAVER) .................................................

28

TRUNK ......................................................................

29

TRUNK : CONSULT Function (BCM - TRUNK)  .....

29

THEFT ALM  ..............................................................

29

THEFT ALM : CONSULT Function (BCM - THEFT
ALM) .......................................................................

29

RETAINED PWR  .......................................................

30

RETAINED PWR : CONSULT Function (BCM -
RETAINED PWR)  ...................................................

30

SIGNAL BUFFER ......................................................

30

SIGNAL BUFFER : CONSULT Function (BCM -
SIGNAL BUFFER) ..................................................

30

AIR PRESSURE MONITOR ......................................

30

AIR PRESSURE MONITOR : CONSULT Function
(BCM - AIR PRESSURE MONITOR) .....................

30

DTC/CIRCUIT DIAGNOSIS .........................

32

U1000 CAN COMM CIRCUIT  ............................

32

Description ..............................................................

32

DTC Logic ...............................................................

32

Diagnosis Procedure  ..............................................

32

U1010 CONTROL UNIT (CAN)  .........................

33

DTC Logic ...............................................................

33

Diagnosis Procedure  ..............................................

33

U0415 VEHICLE SPEED SIG ............................

34

Description ..............................................................

34

DTC Logic ...............................................................

34

Diagnosis Procedure  ..............................................

34

B2562 LOW VOLTAGE  .....................................

35

DTC Logic ...............................................................

35

Diagnosis Procedure  ..............................................

35

Special Repair Requirement ...................................

35

POWER SUPPLY AND GROUND CIRCUIT  .....

36

Diagnosis Procedure  ..............................................

36

Special Repair Requirement ...................................

36

COMBINATION SWITCH INPUT CIRCUIT .......

37

Diagnosis Procedure ...............................................

37

Special Repair Requirement  ...................................

38

COMBINATION SWITCH OUTPUT CIRCUIT ...

39

Diagnosis Procedure ...............................................

39

Special Repair Requirement  ...................................

40

ECU DIAGNOSIS INFORMATION .............

41

BCM (BODY CONTROL MODULE) ..................

41

Reference Value  .....................................................

41

Terminal Layout  ......................................................

46

Physical Values .......................................................

46

Fail Safe .................................................................

62

DTC Inspection Priority Chart ...............................

63

DTC Index ..............................................................

64

WIRING DIAGRAM  ....................................

67

BCM (BODY CONTROL MODULE) ..................

67

Wiring Diagram  .......................................................

67

SYMPTOM DIAGNOSIS  ............................

76

COMBINATION SWITCH SYSTEM SYMP-
TOMS .................................................................

76

Symptom Table .......................................................

76

PRECAUTION ............................................

77

PRECAUTIONS  .................................................

77

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

77

PREPARATION ..........................................

78

PREPARATION .................................................

78

Commercial Service Tools  ......................................

78

REMOVAL AND INSTALLATION ..............

79

BCM (BODY CONTROL MODULE) ..................

79

Removal and Installation .........................................

79
