The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIR BAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s)
with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly
causing serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution for Battery Service

INFOID:0000000005904849

Before disconnecting the battery, lower both the driver and passenger windows. This will prevent any interfer-
ence between the window edge and the vehicle when the door is opened/closed. During normal operation, the
window slightly raises and lowers automatically to prevent any window to vehicle interference. The automatic
window function will not work with the battery disconnected.

MWI-4

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

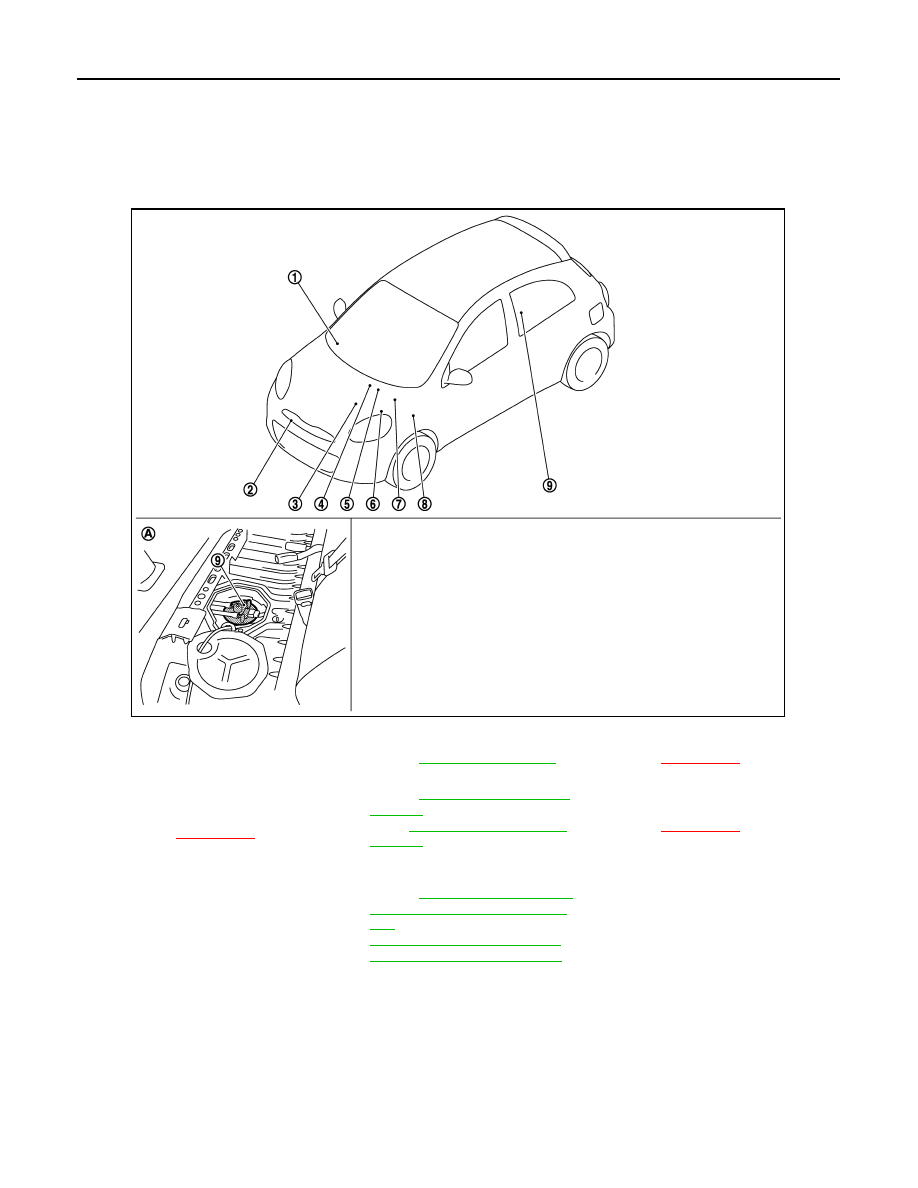

Component Parts Location

INFOID:0000000005883847

Combination meter

Oil pressure switch
Refer to

EM-85, "Exploded View"

Vehicle speed sensor
Refer to

XX-XX, "*****"

ABS actuator and electric unit (con-
trol unit)
Refer to

XX-XX, "*****"

IPDM E/R
Refer to

PCS-5, "Component Parts

Location"

(with intelligent key mod-

els) or

PCS-30, "Component Parts

Location"

(without intelligent key

models).

TCM
Refer to

XX-XX, "*****"

ECM
Refer to

Dummy cross-refer-

ence("XX-XX")

BCM
Refer to

BCS-5, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"

(with intelligent key models) or

BCS-60, "BODY CONTROL SYS-
TEM : Component Parts Location"

(without intelligent key models).

Fuel level sensor unit

Under of rear seat

JSNIA3078ZZ

MWI

COMPONENT PARTS

MWI-5

< SYSTEM DESCRIPTION >

Component Description

INFOID:0000000005883848

Unit

Description

Combination meter

Controls the following with the signals received from each unit via CAN communication and the sig-
nals from switches and sensors.
• Speedometer
• Tachometer
• Warning lamps
• Indicator lamps
• Meter illumination control
• Information display

ABS actuator and electric unit
(control unit) (Models with ABS)

Transmits the vehicle speed signal to the combination meter via CAN communication.

Vehicle speed sensor (M/T mod-
els)

Transmits the vehicle speed sensor signal to the combination meter.

TCM (A/T models)

• Transmits the shift position signal to the combination meter via CAN communication.
• Transmits the vehicle speed signal to the combination meter via CAN communication. (A/T mod-

els without ABS)

Fuel level sensor unit

Transmits the fuel level sensor signal to the combination meter.

ECM

Transmits the following signals to the combination meter via CAN communication.
• Engine speed signal
• Engine coolant temperature signal
• Fuel consumption monitor signal

IPDM E/R

IPDM E/R reads the ON/OFF signals of the oil pressure switch and transmits the oil pressure switch
signal to the BCM via CAN communication.

Oil pressure switch

Transmits the oil pressure switch signal to the IPDM E/R via CAN communication.

BCM

Transmits the following signals to the combination meter via CAN communication.
• Oil pressure switch signal
• Position light request signal
• Door switch signal
