EM-50

< REMOVAL AND INSTALLATION >

[HR12DE]

TIMING CHAIN

b.

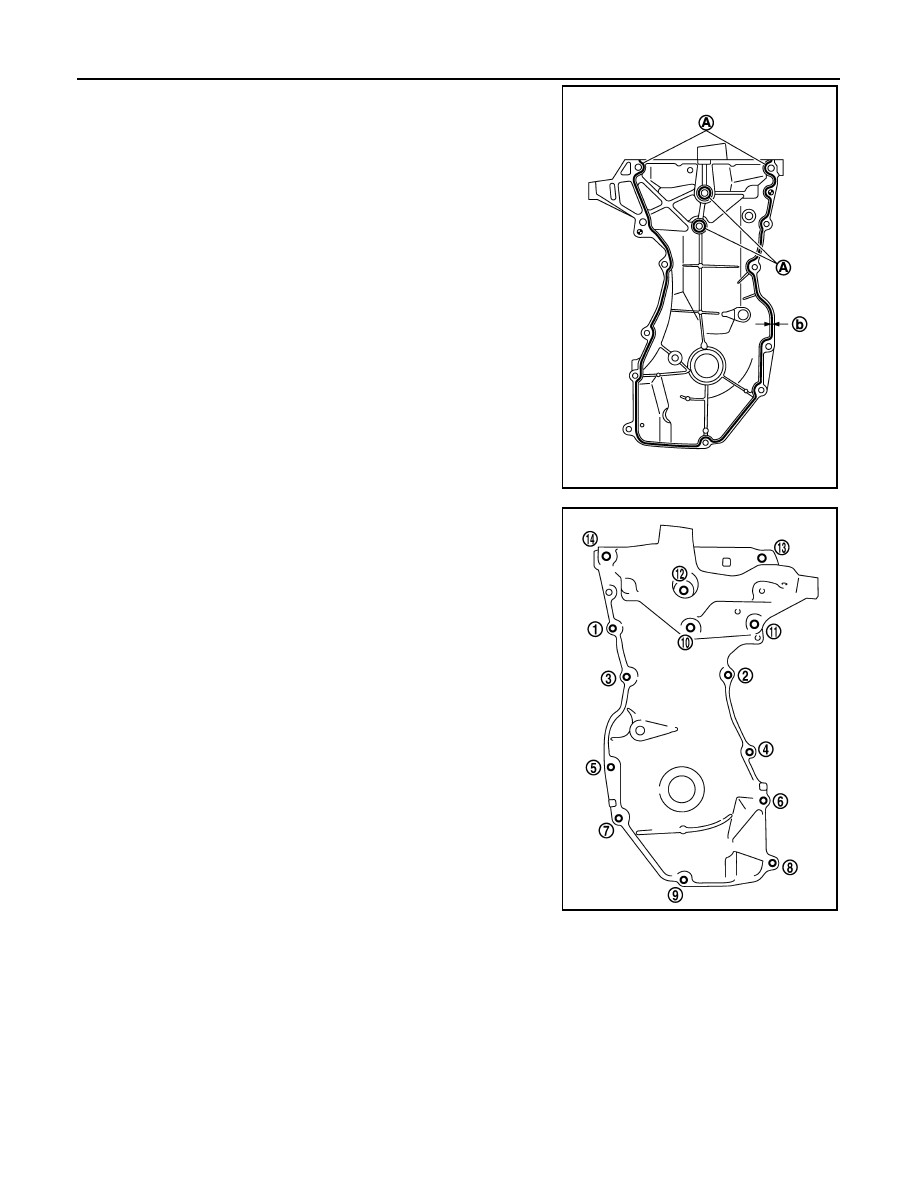

Apply a continuous bead of liquid gasket with tube presser
(commercial service tool) to front cover as shown in the figure.
Use Genuine Liquid Gasket or equivalent.

c.

Tighten bolts in the numerical order as shown in the figure.

d.

After all bolts are tightened, retighten them to specified torque in
numerical order as shown in the figure.

CAUTION:

Be sure to wipe off any excessive liquid gasket leaking to
surface.

8.

Insert crankshaft pulley by aligning with crankshaft key.
• When inserting crankshaft pulley with a plastic hammer, tap on its center portion (not circumference).

CAUTION:

Install protecting front oil seal lip section from any damage.

9.

Tighten crankshaft pulley bolt with the following procedure:
• Secure crankshaft pulley with a pulley holder (commercial service tool), and tighten crankshaft pulley

bolt.

a.

Apply new engine oil to thread and seat surfaces of crankshaft pulley bolt.

b.

Tighten crankshaft pulley bolt.

A

: Liquid gasket application area [

φ

3.0 - 4.0 mm (0.12 - 0.16 in)]

JPBIA3009ZZ

KBIA3429J

TIMING CHAIN

EM-51

< REMOVAL AND INSTALLATION >

[HR12DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

c.

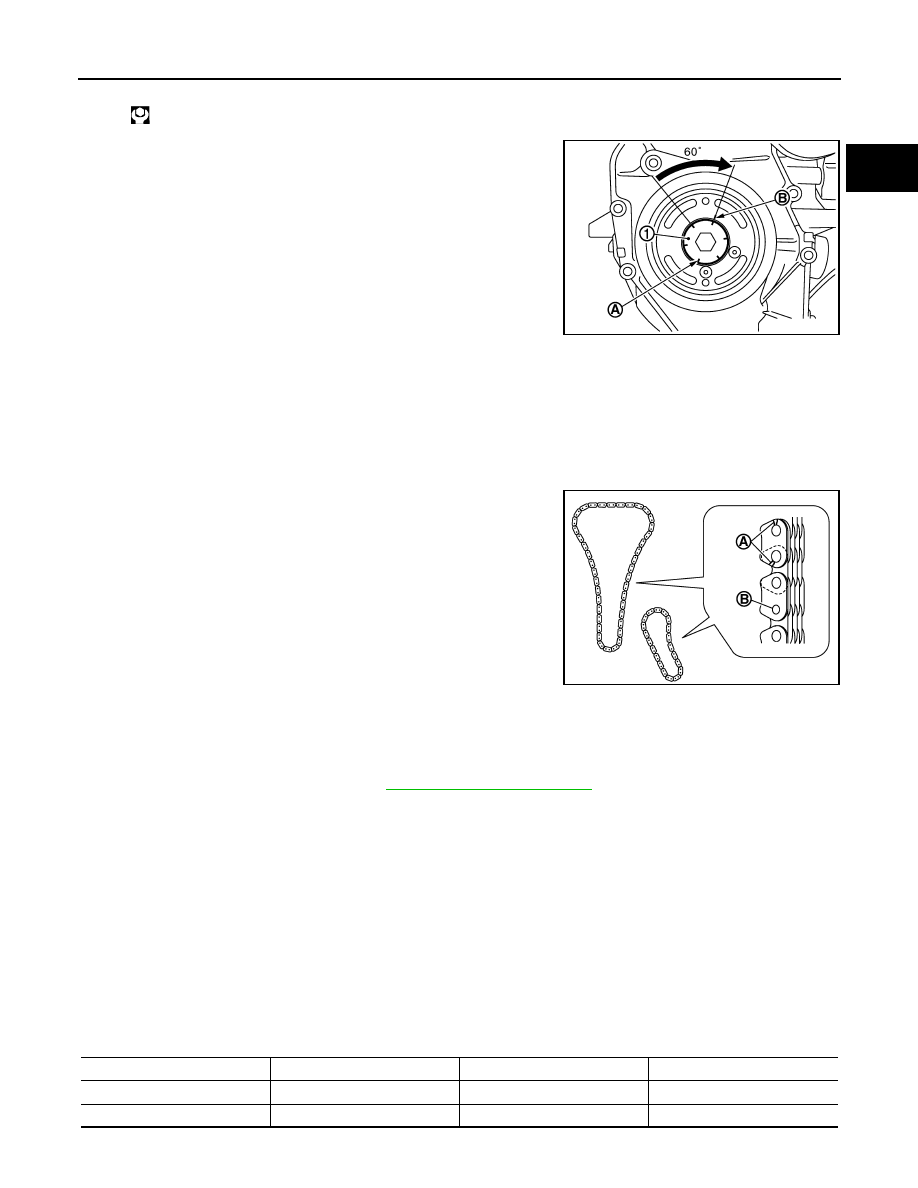

Put a paint mark (B) on crankshaft pulley, mating with any one of
six easy to recognize angle marks (A) on crankshaft bolt flange
(1).

d.

Turn another 60 degrees clockwise (angle tightening).
• Check the tightening angle with movement of one angle mark.

10. Check that crankshaft turns smoothly by rotating by hand clockwise.
11. Install in the reverse order of removal.

Inspection

INFOID:0000000005988194

INSPECTION AFTER REMOVAL

Timing Chain

Check for cracks (A) and any excessive wear (B) at link plates and
roller links of timing chain. Replace timing chain if necessary.

INSPECTION AFTER INSTALLATION

Inspection for Leakage

The following are procedures for checking fluids leakage, lubricates leakage, and exhaust gases leakage.
• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required

quantity, fill to the specified level. Refer to

MA-8, "Fluids and Lubricants"

.

• Use procedure below to check for fuel leakage.
- Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak-

age at connection points.

- Start engine. With engine speed increased, check again for fuel leakage at connection points.
• Run engine to check for unusual noise and vibration.

NOTE:
If hydraulic pressure inside chain tensioner drops after removal/installation, slack in guide may generate a
pounding noise during and just after the engine start. However, this does not indicate an unusualness. Noise
will stop after hydraulic pressure rises.

• Warm up engine thoroughly to check there is no leakage of fuel, or any oil/fluids including engine oil and

engine coolant.

• Bleed air from lines and hoses of applicable lines, such as in cooling system.
• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the

specified level, if necessary.

Summary of the inspection items:

: 35.0 N·m (3.6 kg-m, 26 ft-lb)

PBIC3726E

PBIC3169J

Items

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

EM-52

< REMOVAL AND INSTALLATION >

[HR12DE]

TIMING CHAIN

*: Transmission/transaxle/CVT fluid, power steering fluid, brake fluid, etc.

Other oils and fluid*

Level

Leakage

Level

Fuel

Leakage

Leakage

Leakage

CAMSHAFT

EM-53

< REMOVAL AND INSTALLATION >

[HR12DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

CAMSHAFT

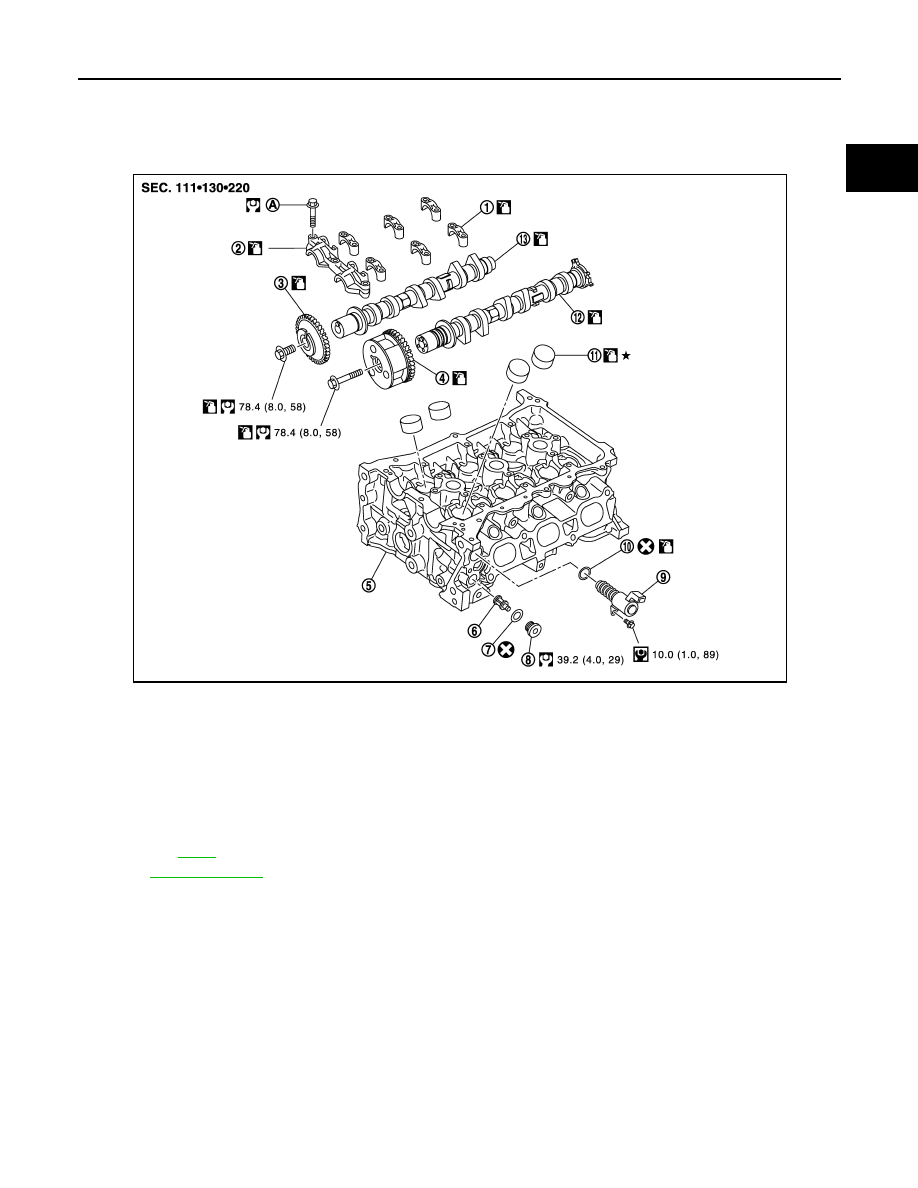

Exploded View

INFOID:0000000005988195

Removal and Installation

INFOID:0000000005988196

CAUTION:

The rotation direction indicated in the text indicates all directions seen from the engine front direction.

REMOVAL

NOTE:
This section describes the procedure for removal and installation of camshaft with front cover. If the front cover
is removed first, change the following procedure.

1.

Camshaft bracket (No. 2 to 4)

2.

Camshaft bracket (No. 1)

3.

Camshaft sprocket (EXH)

4.

Camshaft sprocket (INT)

5.

Cylinder head

6.

Oil filter (for intake valve timing con-
trol solenoid valve)

7.

Washer

8.

Plug

9.

Intake valve timing control solenoid
valve

10. O-ring

11.

Valve lifter

12. Camshaft (INT)

A.

Tightening must be done following
the installation procedure.
Refer to

EM-53

Refer to

GI-4, "Components"

 for symbols in the figure.

JPBIA3383GB

·Step 8

: After camshaft sprocket is removed, remove the camshaft brackets (No. 2 to 4).
