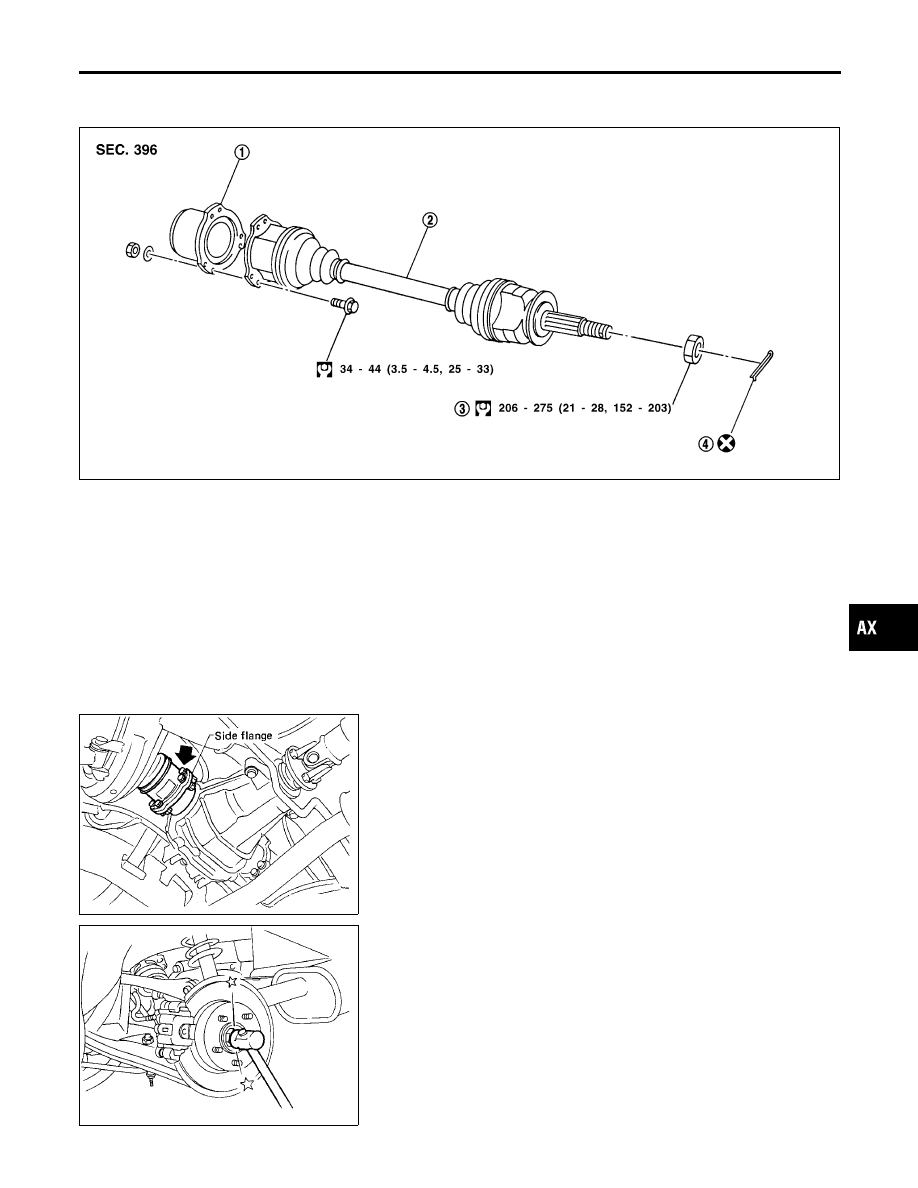

Drive Shaft

COMPONENTS

NMAX0041

SAX022

1.

Side flange

2.

Drive shaft

3.

Wheel bearing lock nut

4.

Cotter pin

SRA115A

REMOVAL

NMAX0042

When removing drive shaft, cover boots with shop towel to
prevent damage to them.

Final drive side

NMAX0042S01

Remove side flange mounting bolt and separate shaft.

SRA232A

Wheel Side

NMAX0042S02

Remove drive shaft by lightly tapping it with a copper hammer. If it
is hard to remove, use puller.
To avoid damaging threads of drive shaft, install a nut while
removing drive shaft.

INSTALLATION

NMAX0043

1.

Insert drive shaft from wheel hub and temporarily tighten wheel
bearing lock nut.

2.

Tighten side flange mounting bolts to specified torque.

3.

Tighten wheel bearing lock nut to specified torque.

GI

MA

EM

LC

EC

FE

CL

MT

AT

PD

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REAR AXLE

Drive Shaft

AX-15

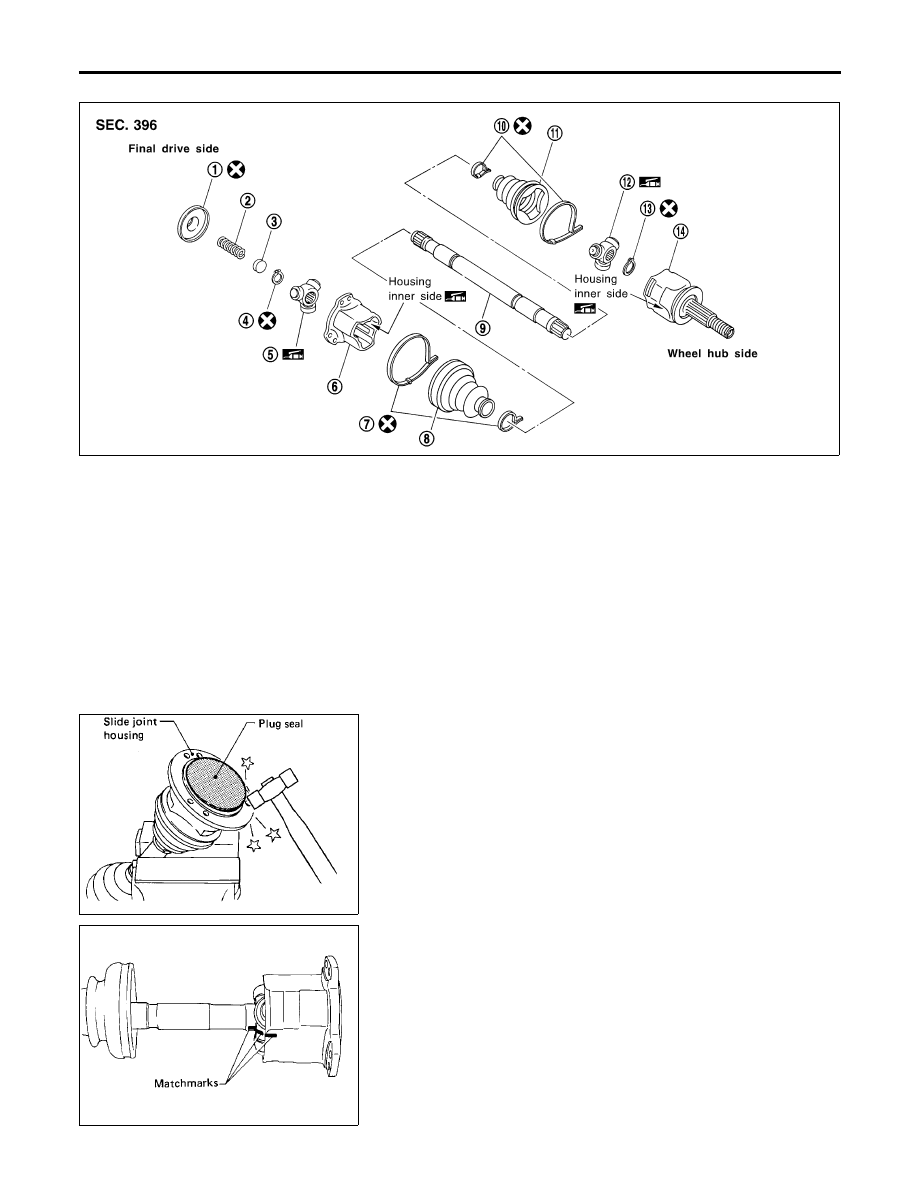

COMPONENTS

NMAX0044

SRA714A

1.

Plug seal

2.

Spring

3.

Spring cap

4.

Snap ring

5.

Spider assembly

6.

Slide joint housing

7.

Boot band

8.

Boot

9.

Drive shaft

10. Boot band

11. Boot
12. Spider assembly
13. Snap ring
14. Housing with shaft

SFA880

DISASSEMBLY

NMAX0045

Final Drive Side

NMAX0045S01

1.

Remove plug seal from slide joint housing by lightly tapping
around slide joint housing.

SRA118A

2.

Remove boot bands.

3.

Put matchmarks on slide joint housing and drive shaft before
separating joint assembly.

4.

Put matchmarks on spider assembly and drive shaft.

REAR AXLE

Drive Shaft (Cont’d)

AX-16

SRA119A

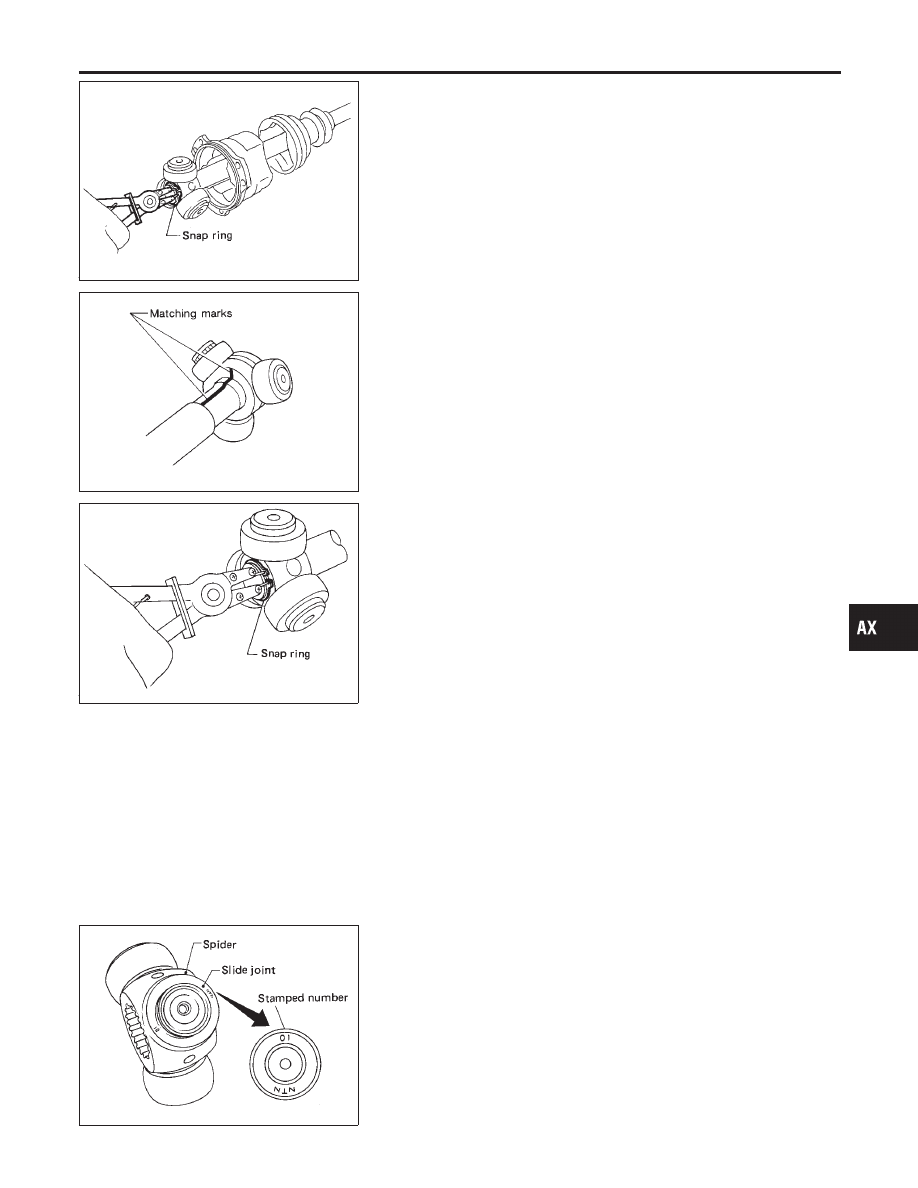

5.

Pry off snap ring, then remove spider assembly.

CAUTION:

Do not disassemble spider assembly.
6.

Draw out slide joint housing.

7.

Draw out boot.

Cover drive shaft serration with tape to prevent damage to the
boot.

SFA963

Wheel Side

NMAX0045S02

1.

Remove boot bands.

2.

Put matchmarks on housing together with shaft and drive shaft
before separating joint assembly.

3.

Put matchmarks on spider assembly and drive shaft.

SFA964

4.

Pry off snap ring, then remove spider assembly.

CAUTION:

Do not disassemble spider assembly.
5.

Draw out boot.

Cover drive shaft serration with tape to prevent damage to the
boot.

INSPECTION

NMAX0046

Thoroughly clean all parts in cleaning solvent, and dry with com-
pressed air. Check parts for deformation or other damage.

Drive Shaft

NMAX0046S01

Replace drive shaft if it is twisted or cracked.

Boot

NMAX0046S02

Check boot for fatigue, cracks, or wear. Replace boot with new boot
bands.

SRA121A

Joint Assembly

NMAX0046S03

I

Check spider assembly for bearing, roller and washer damage.
Replace spider assembly if necessary.

I

Check housing for any damage. Replace housing set and spi-
der assembly, if necessary.

I

When replacing only spider assembly, select a new spider
assembly from among those listed in table below. Ensure the
number stamped on sliding joint is the same as that stamped
on new part.

Housing alone cannot be replaced. It must be replaced
together with spider assembly.

GI

MA

EM

LC

EC

FE

CL

MT

AT

PD

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REAR AXLE

Drive Shaft (Cont’d)

AX-17

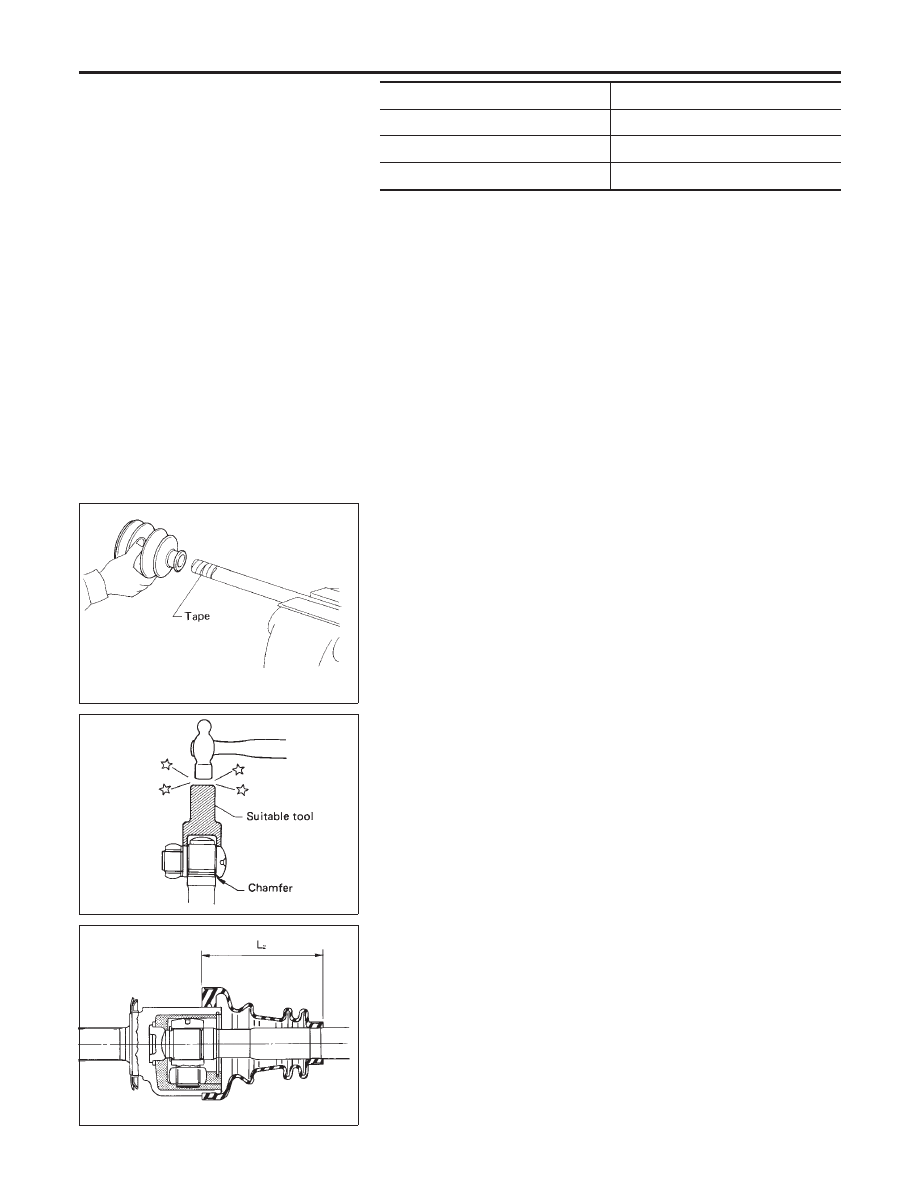

Stamped number

Part No.

00

39720 10V10

01

39720 10V11

02

39720 10V12

ASSEMBLY

NMAX0047

I

After drive shaft has been assembled, ensure it moves
smoothly over its entire range without binding.

I

Use NISSAN GENUINE GREASE or equivalent after every
overhaul.

SFA800

Wheel Side

NMAX0047S01

1.

Install new small boot band and boot on drive shaft.

Cover drive shaft serration with tape to prevent damage to
boot during installation.

SFA397

2.

Install spider assembly securely, making sure marks are prop-
erly aligned.

Press-fit with spider assembly serration chamfer facing shaft.
3.

Install new snap ring.

SRA125A

4.

Pack drive shaft with specified amount of grease.

Specified amount of grease:

102 - 112 g (3.60 - 3.95 oz)

5.

Install slide joint housing, then install new snap ring.

6.

Set boot so that it does not swell and deform when its length
is “L

2

”.

Length “L

2

”:

95 - 97 mm (3.74 - 3.82 in)

Make sure that boot is properly installed on the drive shaft
groove.

REAR AXLE

Drive Shaft (Cont’d)

AX-18
