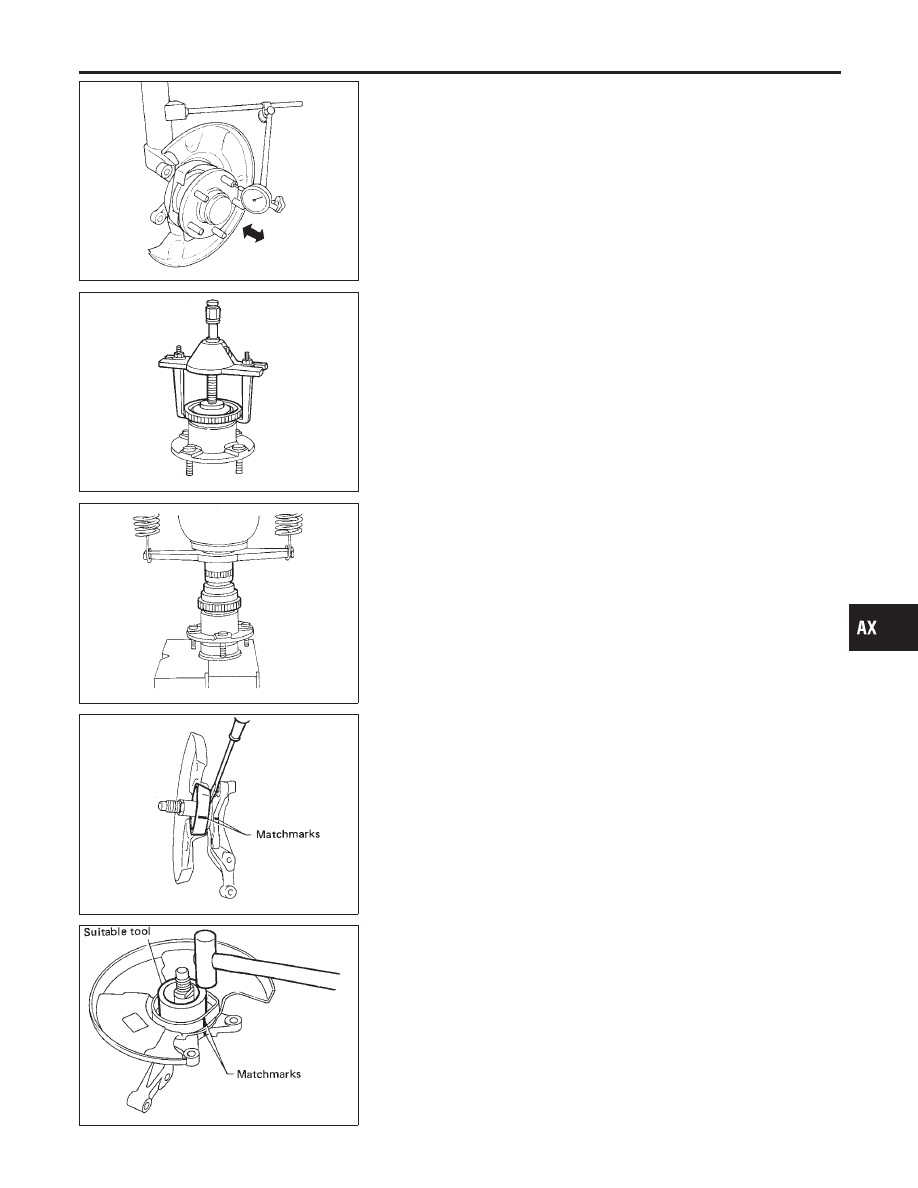

SFA325B 4. Check wheel bearing axial end play. Axial end play: 0.05 mm (0.0020 in) or less SFA595B ABS Sensor Rotor REMOVAL NMAX0034 Remove ABS sensor rotor (models equipped with ABS) or labyrinth SFA596B INSTALLATION NMAX0035 Press-fit ABS sensor rotor or labyrinth plate. SFA548A Baffle Plate REMOVAL NMAX0036 I Mark matchmarks on baffle plate before removing. I If baffle plate replacement requires removal of knuckle spindle, Be careful not to scratch knuckle spindle. SFA549A INSTALLATION NMAX0037 With matchmarks aligned, install baffle plate by tapping it with a GI MA EM LC EC FE CL MT AT PD SU BR ST RS BT HA SC EL IDX FRONT AXLE Wheel Hub and Knuckle (Cont’d) AX-7 |
