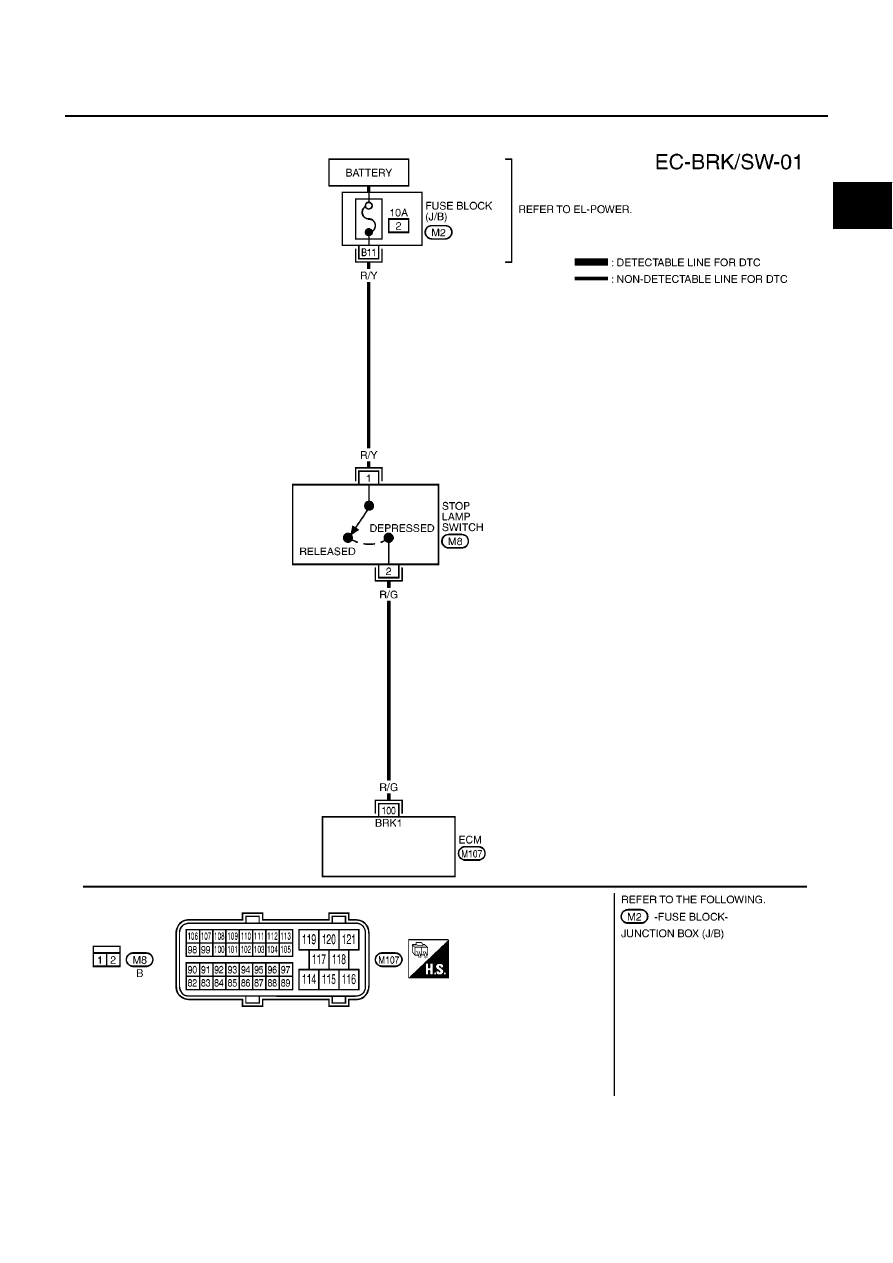

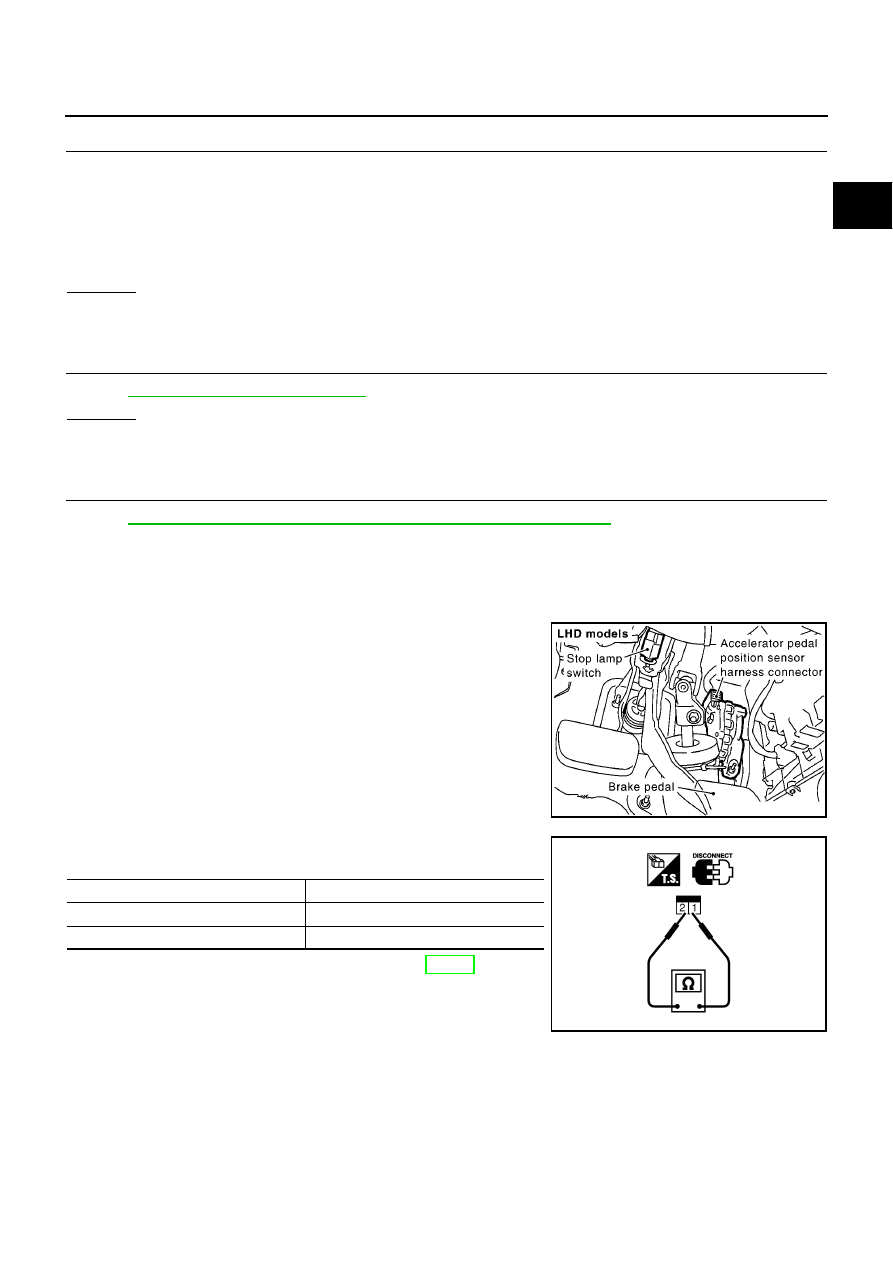

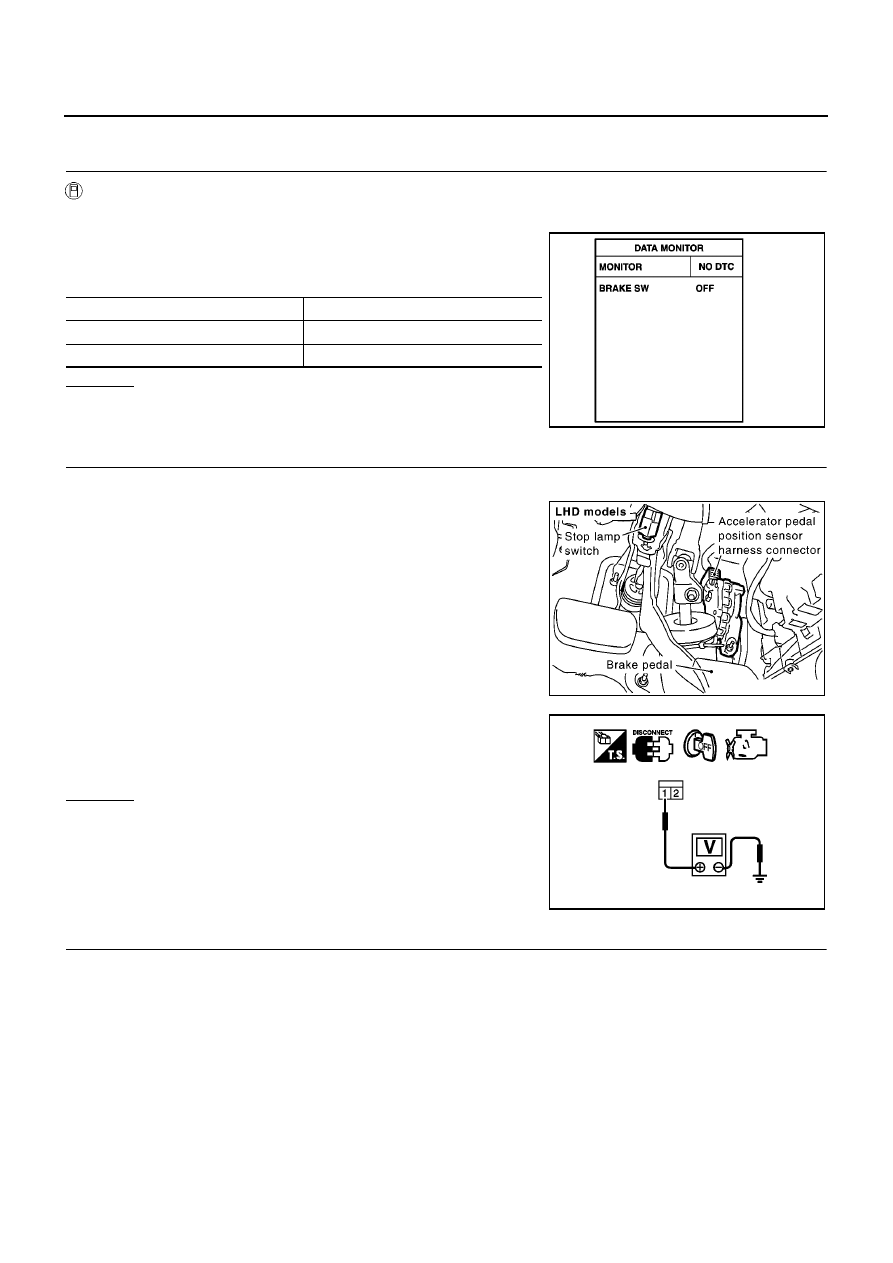

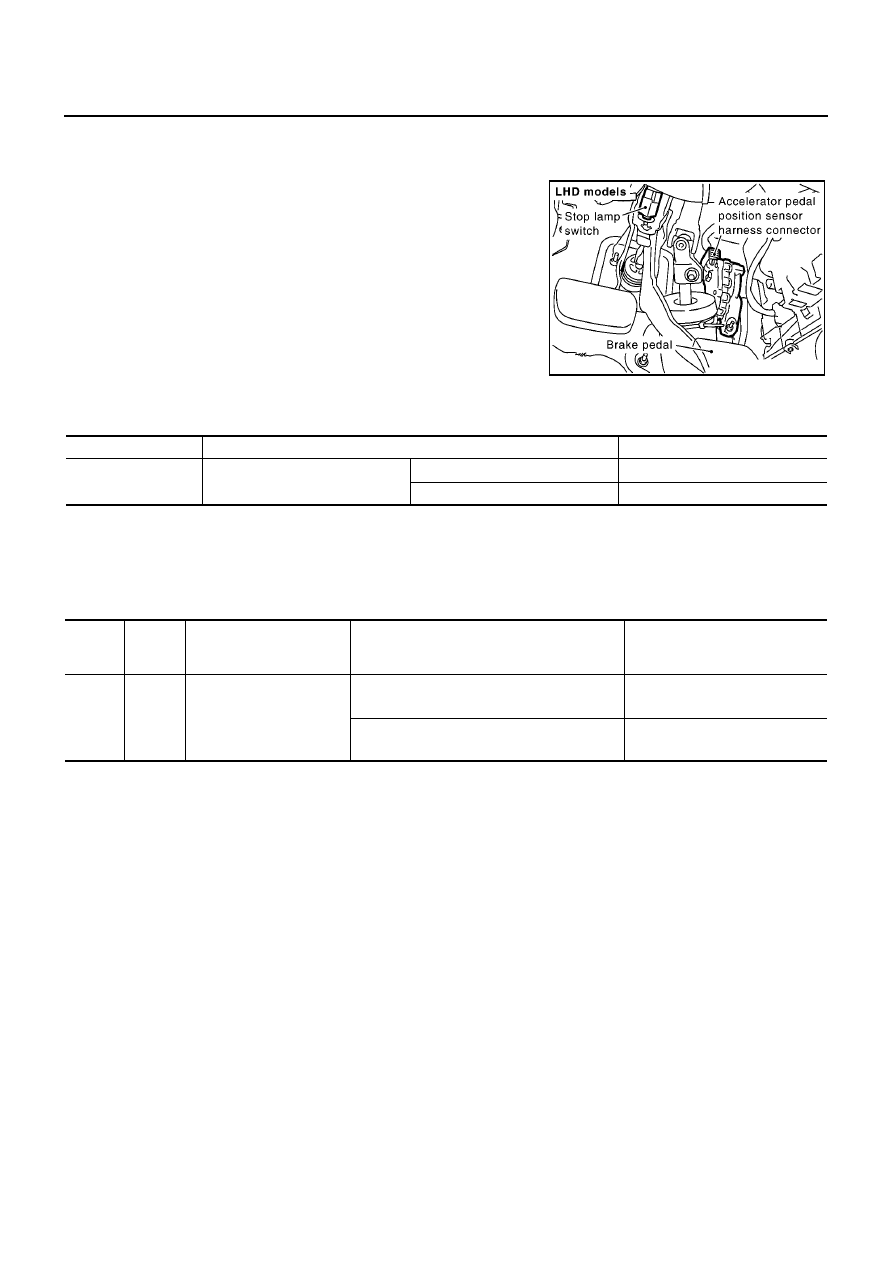

EC-1514 [YD (WITHOUT EURO-OBD)] BRAKE SWITCH BRAKE SWITCH PFP:25230 Description EBS0151O The stop lamp switch is installed to brake pedal bracket. The switch CONSULT-II Reference Value in Data Monitor Mode EBS0151P Specification data are reference values. ECM Terminals and Reference Value EBS0151Q Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam- MBIB0903E MONITOR ITEM CONDITION SPECIFICATION BRAKE SW ● Ignition switch: ON Brake pedal: Fully released OFF Brake pedal: Slightly depressed ON TERMI- NAL NO. WIRE COLOR ITEM CONDITION DATA (DC Voltage) 100 R/G Stop lamp switch [Ignition switch ON] ● Brake pedal: Fully released Approximately 0V [Ignition switch ON] ● Brake pedal: Depressed BATTERY VOLTAGE |
