Nissan Almera Tino V10. Manual - part 671





EC-1510

[YD (WITHOUT EURO-OBD)]

TC BOOST CONTROL SOLENOID VALVE

TC BOOST CONTROL SOLENOID VALVE

PFP:14956

Description

EBS0151I

The load from the turbocharger boost control solenoid valve controls
the actuator. By changing the variable nozzle vane opening through
the rods, the intake air volume is adjusted.

The turbocharger boost control solenoid valve is moved by ON/OFF
pulse from the ECM. The longer the ON pulse, the charge air pres-
sure rises.

ECM Terminals and Reference Value

EBS0151J

Specification data are reference valves, and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may damage the
ECM's transistor. Use a ground other than ECM terminals, such as the ground.

*: YD22DDTi engine models

MBIB0626E

MBIB0921E

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC voltage and Pulse signal)

6

L

Turbocharger boost control
solenoid valve*

[Ignition switch ON]

Warm-up condition

Idle speed

0 - 12.5V

[Ignition switch ON]

Warm-up condition

Engine speed is 2,000 rpm

0 - 12.5V

MBIB0889E

MBIB0890E

TC BOOST CONTROL SOLENOID VALVE

EC-1511

[YD (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

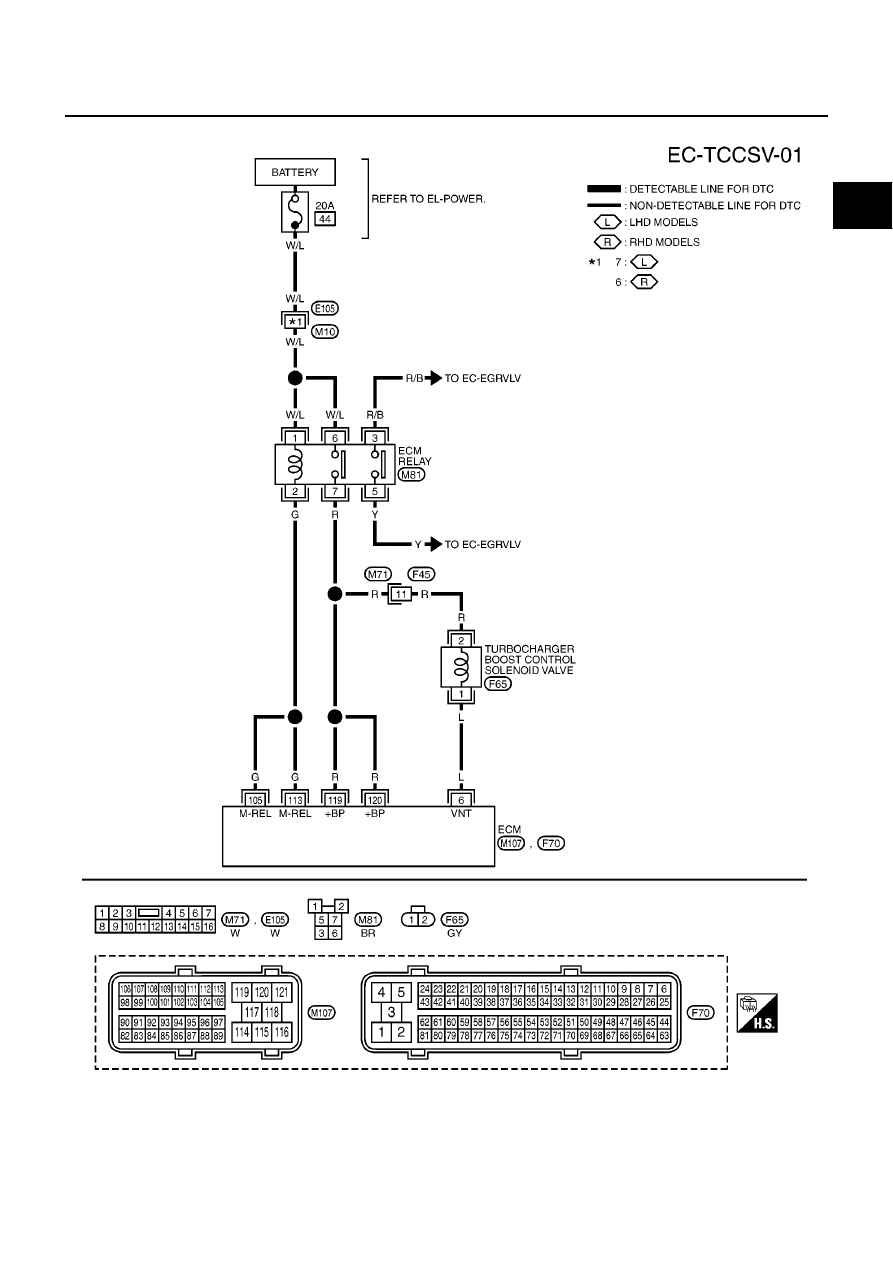

Wiring Diagram

EBS0151K

MBWA0624E

EC-1512

[YD (WITHOUT EURO-OBD)]

TC BOOST CONTROL SOLENOID VALVE

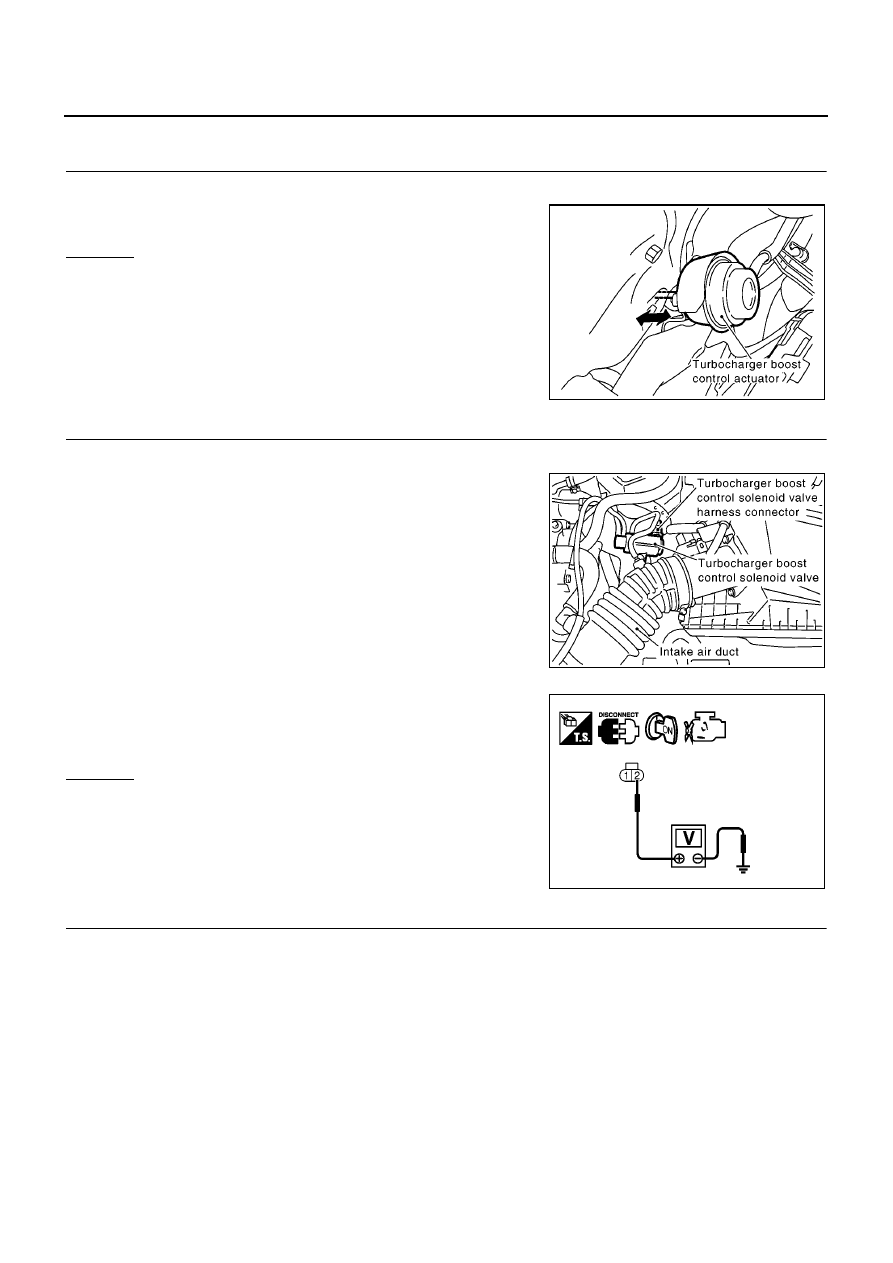

Diagnostic Procedure

EBS0151L

1.

CHECK OVERALL FUNCTION

1.

Start engine and let it idle.

2.

Make sure that turbocharger control actuator rod moves slightly
when engine is started.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.

2.

CHECK TURBOCHARGER BOOST CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect turbocharger boost control solenoid valve harness
connector.

3.

Turn ignition switch ON.

4.

Check voltage between turbocharger boost control solenoid
valve terminal 2 and ground with CONSULT-II or tester.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Check the following.

Harness connectors F45, M71

Harness for open or short between ECM relay and turbocharger boost control solenoid valve

Harness for open or short between ECM and turbocharger boost control solenoid valve

>> Repair open circuit or short to ground or short to power in harness or connectors.

PBIB1936E

MBIB0921E

Voltage: Battery voltage

MBIB0010E

TC BOOST CONTROL SOLENOID VALVE

EC-1513

[YD (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

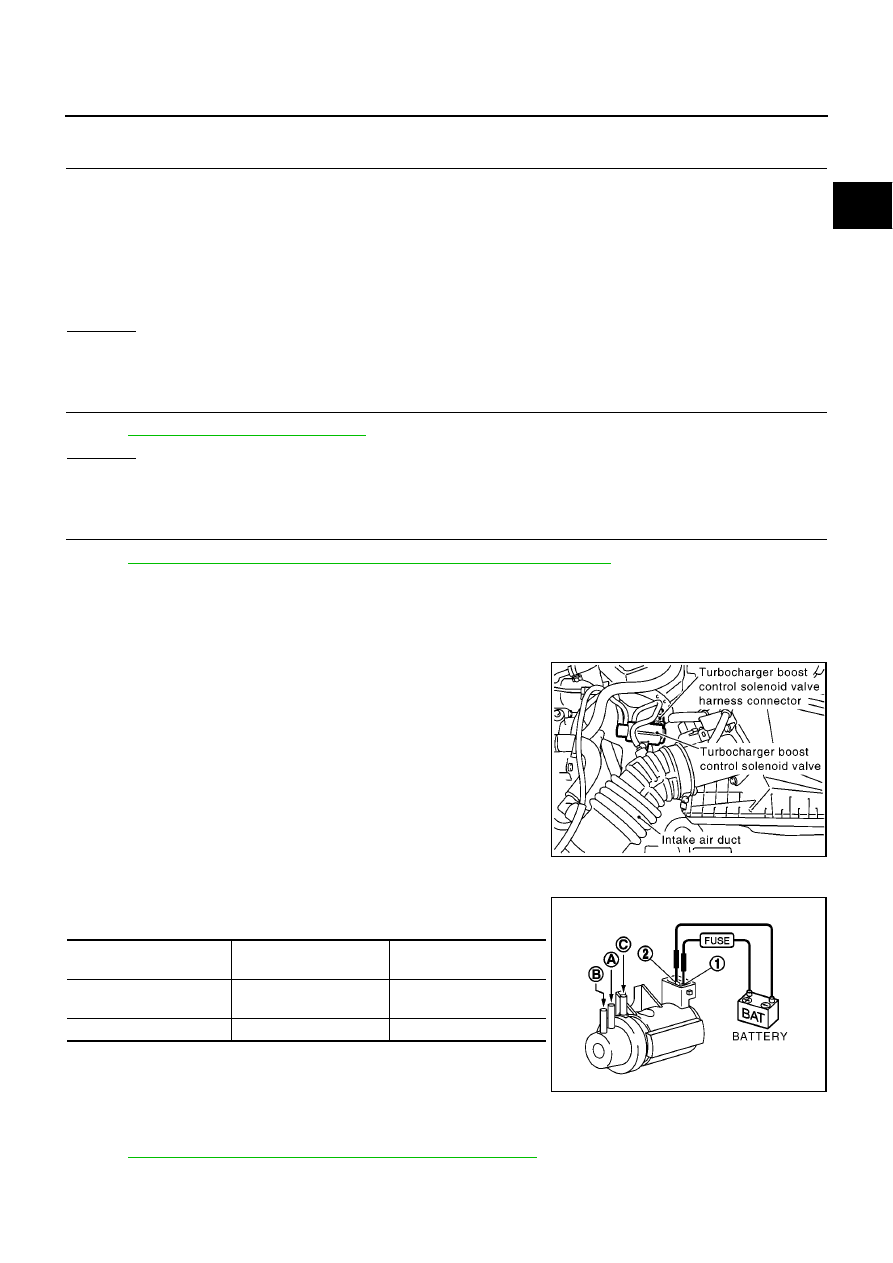

4.

CHECK TURBOCHARGER BOOST CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR

OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between ECM terminal 6 and turbocharger boost control solenoid valve terminal
1. Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 5.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK TURBOCHARGER BOOST CONTROL SOLENOID VALVE

Refer to

EC-1513, "Component Inspection"

.

OK or NG

OK

>> GO TO 6.

NG

>> Replace turbocharger boost control solenoid valve.

6.

CHECK INTERMITTENT INCIDENT

Refer to

EC-1309, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

.

>> INSPECTION END

Component Inspection

EBS0151M

TURBOCHARGER BOOST CONTROL SOLENOID VALVE

1.

Disconnect turbocharger boost control solenoid valve harness
connector.

2.

Apply 12V direct current between turbocharger boost control solenoid valve terminals.

3.

Check air passage continuity of turbocharger boost control sole-
noid valve under the following conditions.

Operation takes less than 1 second.

If NG, replace turbocharger boost control solenoid valve.

Removal and Installation

EBS0151N

TURBOCHARGER BOOST CONTROL SOLENOID VALVE

Refer to

EM-128, "EXHAUST MANIFOLD AND TURBOCHARGER"

.

Continuity should exist.

MBIB0921E

CONDITIONS

Air passage continuity

between and B

Air passage continuity

between and C

12V direct current supply
between terminals and 2

Yes

No

No supply

No

Yes

MBIB0996E
