FRONT TWEETER

Removal and Installation

INFOID:0000000009763254

REMOVAL

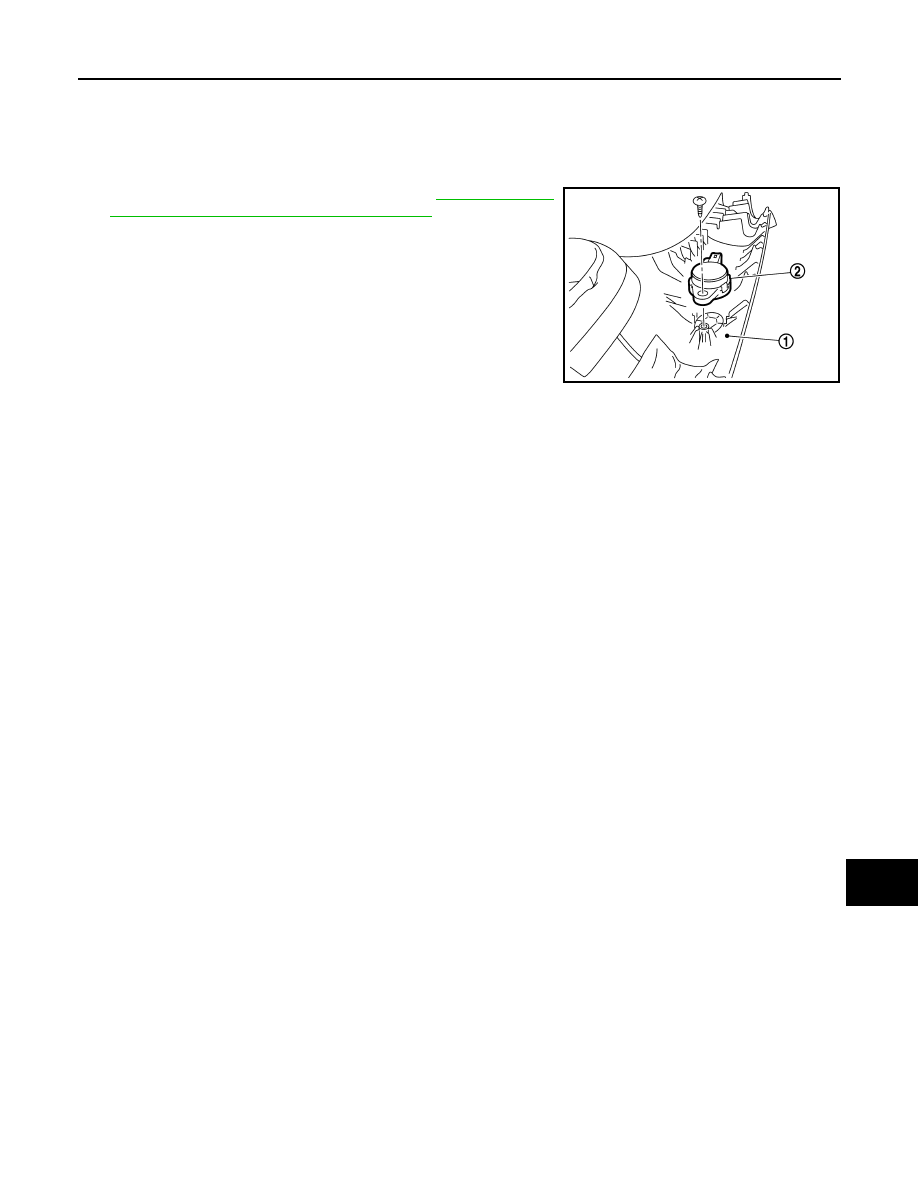

1. Remove the front pillar finisher (1). Refer to

INT-19, "FRONT

PILLAR FINISHER : Removal and Installation"

2. Remove the two screws and the front tweeter (2).

INSTALLATION

Installation is in the reverse order of removal.

JSNIA3786ZZ

AV-620

< REMOVAL AND INSTALLATION >

[PREMIUM AUDIO WITH NAVIGATION]

INSTRUMENT PANEL SPEAKER/TWEETER

INSTRUMENT PANEL SPEAKER/TWEETER

Removal and Installation

INFOID:0000000009763255

REMOVAL

1. Remove instrument panel tweeter grille. Refer to

IP-14, "Exploded View"

.

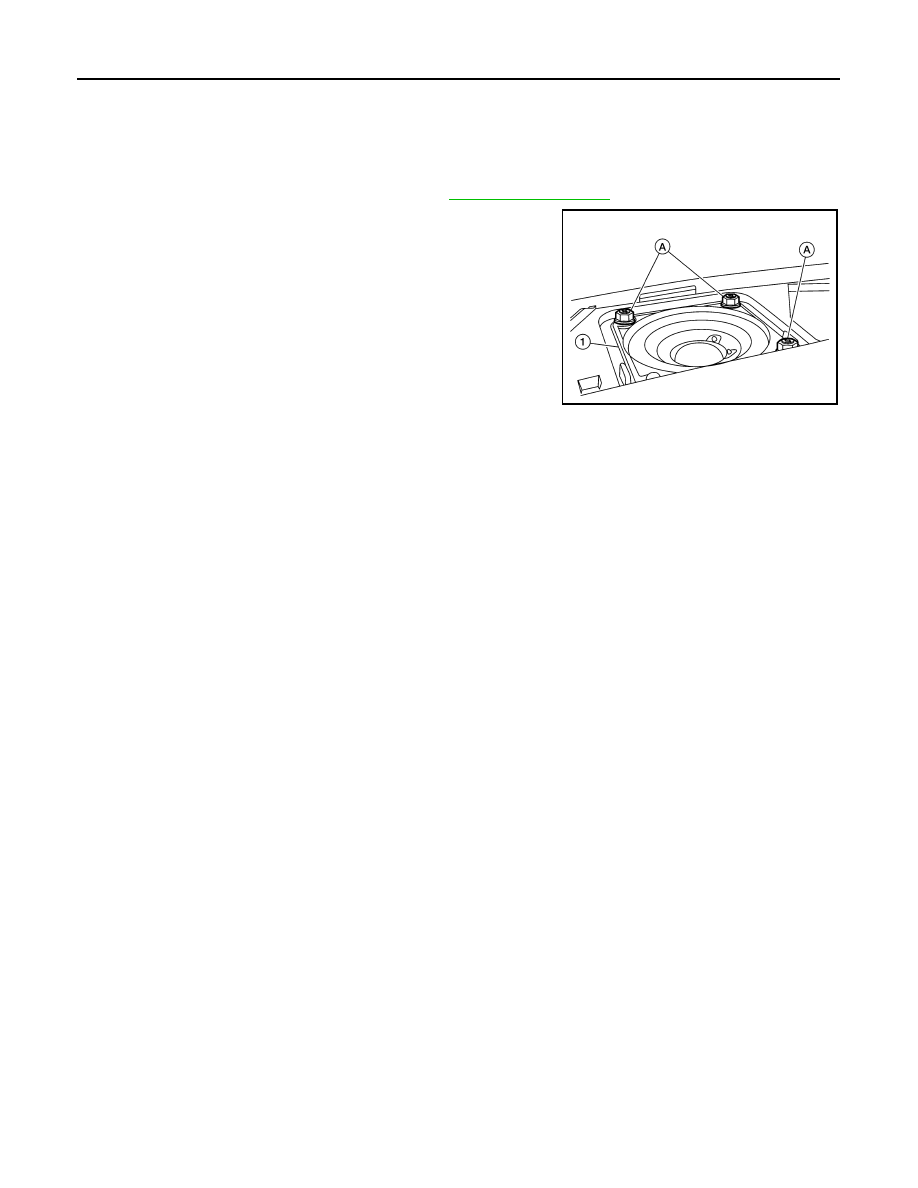

2. Remove the bolts (A), then pull out the instrument panel tweeter

(1).

3. Disconnect the harness connector from the instrument panel

tweeter (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1423ZZ

AV

CENTER SPEAKER

AV-621

< REMOVAL AND INSTALLATION >

[PREMIUM AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

CENTER SPEAKER

Removal and Installation

INFOID:0000000009763257

REMOVAL

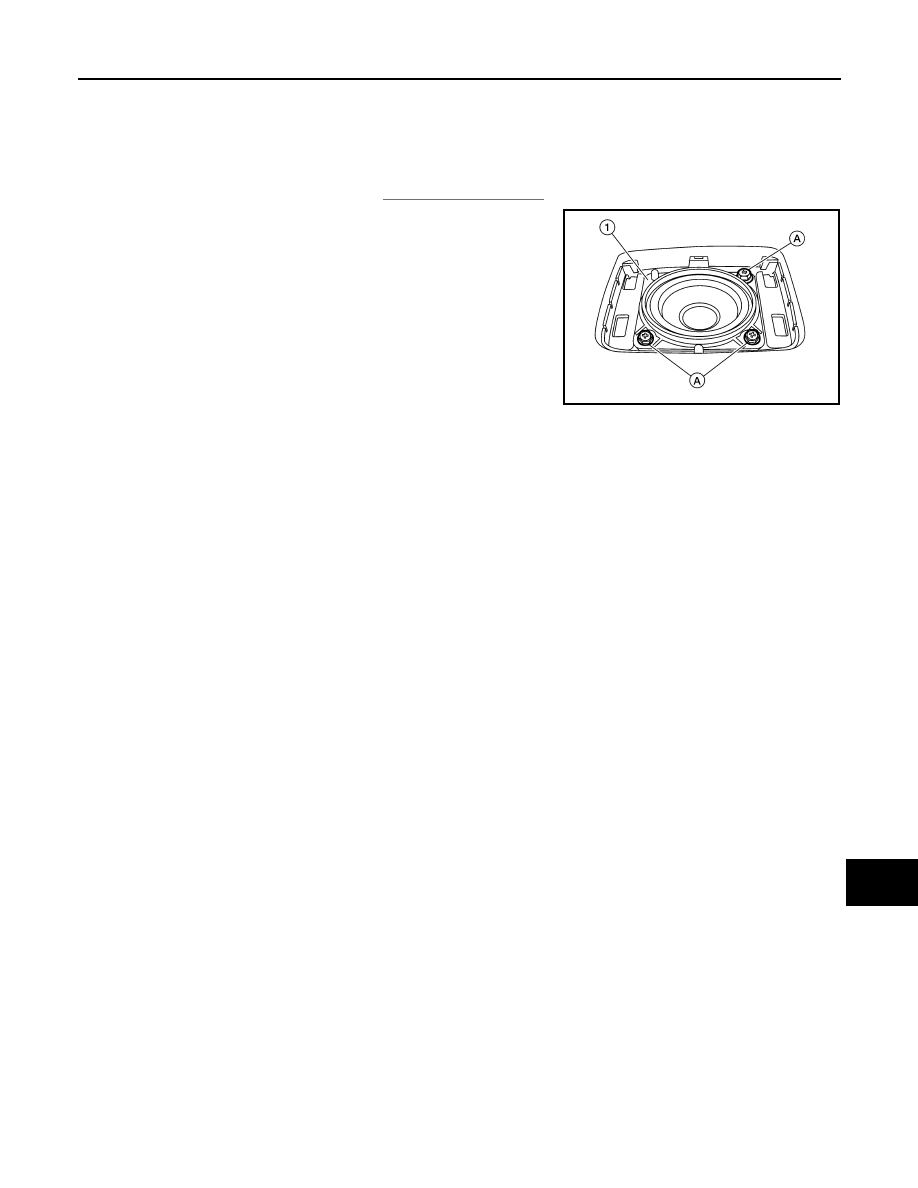

1. Remove center speaker grille. Refer to

IP-14, "Exploded View"

.

2. Remove the center speaker bolts (A).
3. Pull out the center speaker (1).
4. Disconnect the harness connector from the center speaker and

remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1196ZZ

AV-622

< REMOVAL AND INSTALLATION >

[PREMIUM AUDIO WITH NAVIGATION]

REAR DOOR SPEAKER

REAR DOOR SPEAKER

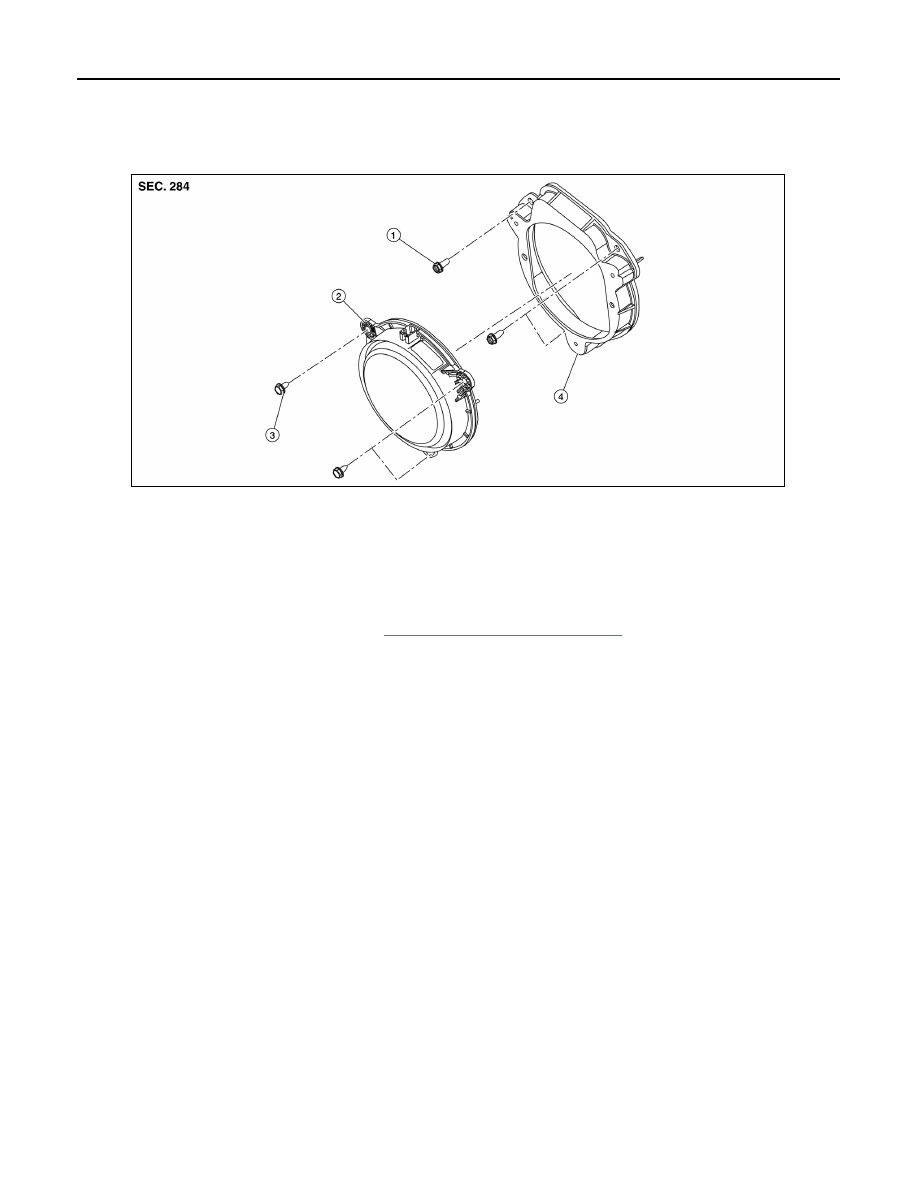

Exploded View

INFOID:0000000009763259

Removal and Installation

INFOID:0000000009763258

REMOVAL

1. Remove the rear door finisher. Refer to

INT-17, "Removal and Installation"

.

2. Remove the rear door speaker bolts.
3. Disconnect the harness connector from the rear door speaker and remove.
4. Remove the speaker bracket bolts and the speaker bracket from the rear door (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

1. Speaker bracket bolt

2. Rear door speaker

3. Speaker bolt

4. Speaker bracket

ALNIA1330ZZ
