• When replacing AV control unit, perform "WRITE CONFIGURATION". Refer to

AV-491, "CONFIGURA-

TION (AV CONTROL UNIT) : Configuration List"

.

AV-612

< REMOVAL AND INSTALLATION >

[PREMIUM AUDIO WITH NAVIGATION]

A/C AND AV SWITCH ASSEMBLY

A/C AND AV SWITCH ASSEMBLY

Removal and Installation

INFOID:0000000009763219

REMOVAL

1. Remove cluster lid C lower. Refer to

IP-22, "CLUSTER LID C LOWER : Removal and Installation"

.

2. Remove the A/C and AV switch assembly lower screws.
3. Release upper pawls and remove A/C and AV switch assembly.

INSTALLATION

Installation is in the reverse order of removal.

AV

STEERING SWITCH

AV-613

< REMOVAL AND INSTALLATION >

[PREMIUM AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

STEERING SWITCH

Exploded View

INFOID:0000000009174796

Removal and Installation

INFOID:0000000009174797

REMOVAL

NOTE:

The steering switches are serviced as an assembly.
1. Remove steering wheel. Refer to

ST-44, "Removal and Installation"

.

2. Release pawls and remove steering wheel rear finisher (1) from

steering wheel (2).

3. Remove steering switches screws.
4. Remove steering switches (1) from steering wheel (2).

INSTALLATION

Installation is in the reverse order of removal.

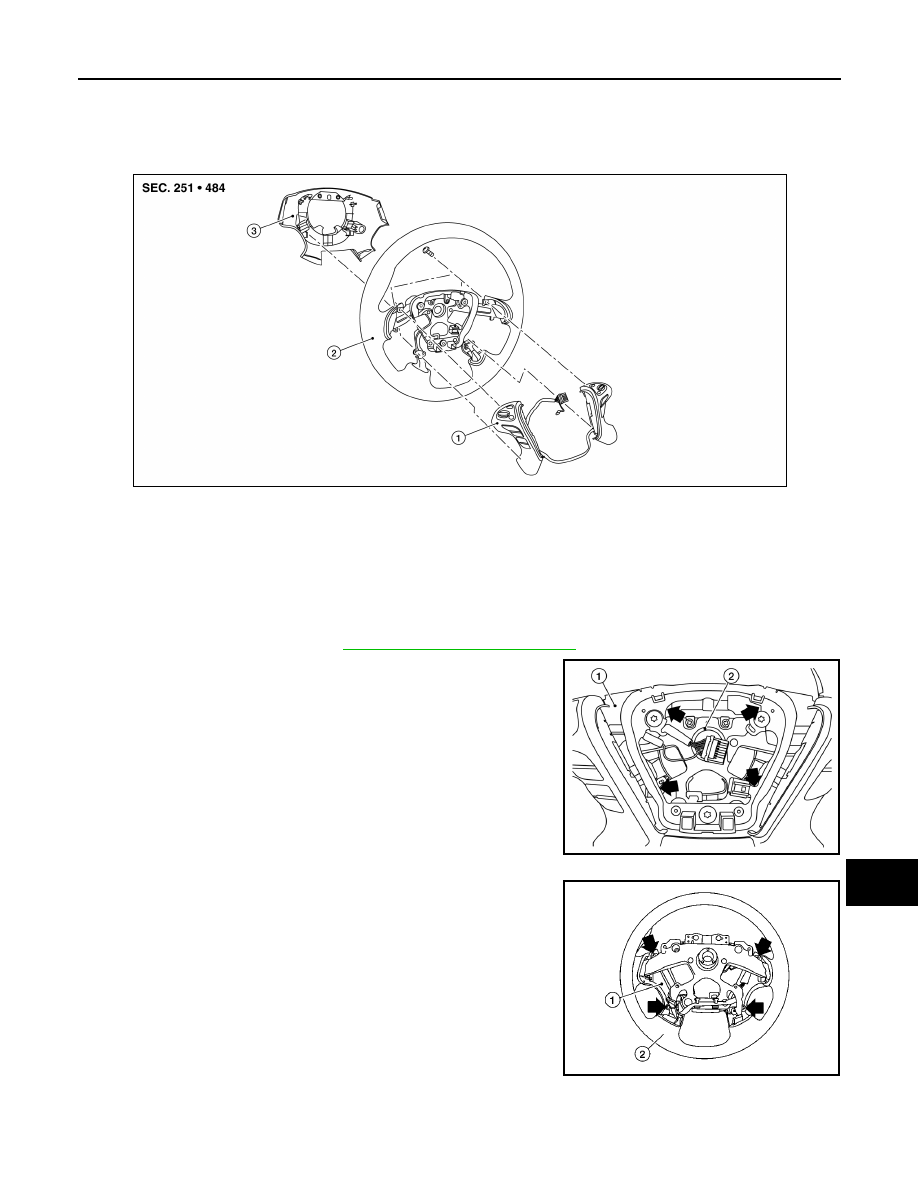

1.

Steering switches

2.

Steering wheel

3.

Steering wheel rear finisher

ALOIA0025ZZ

ALOIA0026ZZ

ALOIA0027ZZ

AV-614

< REMOVAL AND INSTALLATION >

[PREMIUM AUDIO WITH NAVIGATION]

DISPLAY UNIT

DISPLAY UNIT

Exploded View

INFOID:0000000009174798

Removal and Installation

INFOID:0000000009174799

REMOVAL

1. Remove the cluster lid D. Refer to

IP-24, "Removal and Installation"

.

2. Remove the display unit screws, then pull out the display unit and bracket.
3. Disconnect the harness connector from the display unit, then remove the display unit and bracket.
4. Remove the display unit brackets screws and the display unit from the display unit bracket.

INSTALLATION

Installation is in the reverse order of removal.

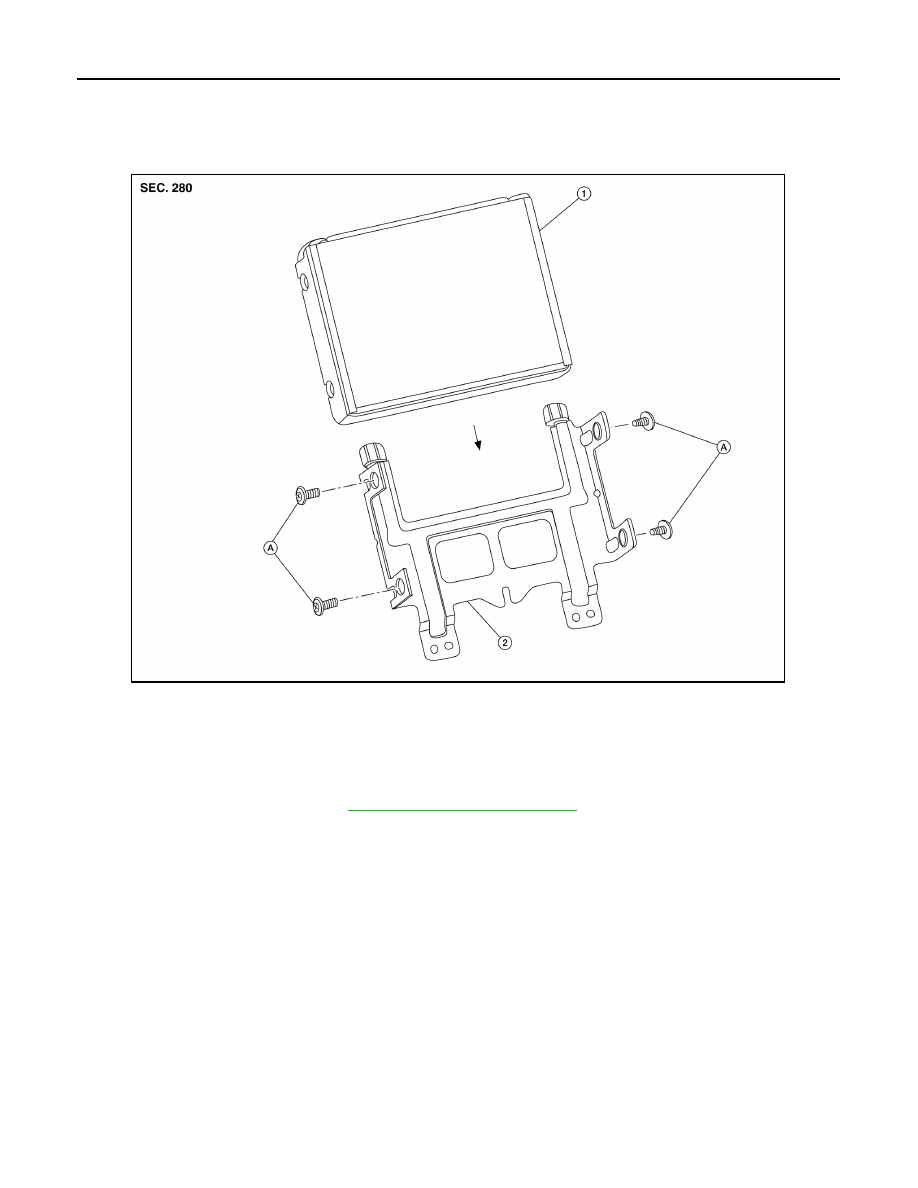

1.

Display unit

2.

Display unit bracket

A. Display unit bracket screws

ALNIA1429ZZ
