BACK-UP LAMP

EXL-191

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

BACK-UP LAMP

Exploded View

INFOID:0000000005515125

Removal and Installation

INFOID:0000000005515126

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the back door finisher inner. Refer to

INT-38, "Exploded View"

.

2.

Remove the back-up lamp mounting nuts and clip.

3.

Disconnect the back-up lamp connector. And then remove the back-up lamp.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Seal packing cannot be reused.

Replacement

INFOID:0000000005515127

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

BACK-UP LAMP BULB

1.

Remove the back-up lamp. Refer to

EXL-191, "Exploded View"

.

1.

Seal packing

2.

Back-up lamp

Refer to

GI-4, "Components"

 for symbols in the figure.

JPLIA0824ZZ

EXL-192

< REMOVAL AND INSTALLATION >

[XENON TYPE]

BACK-UP LAMP

2.

Disconnect the connector, rotate the back-up lamp bulb socket
(1) counterclockwise and unlock it.

3.

Remove the bulb (2) from the back-up lamp bulb socket.

JPLIA0825ZZ

LICENSE PLATE LAMP

EXL-193

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

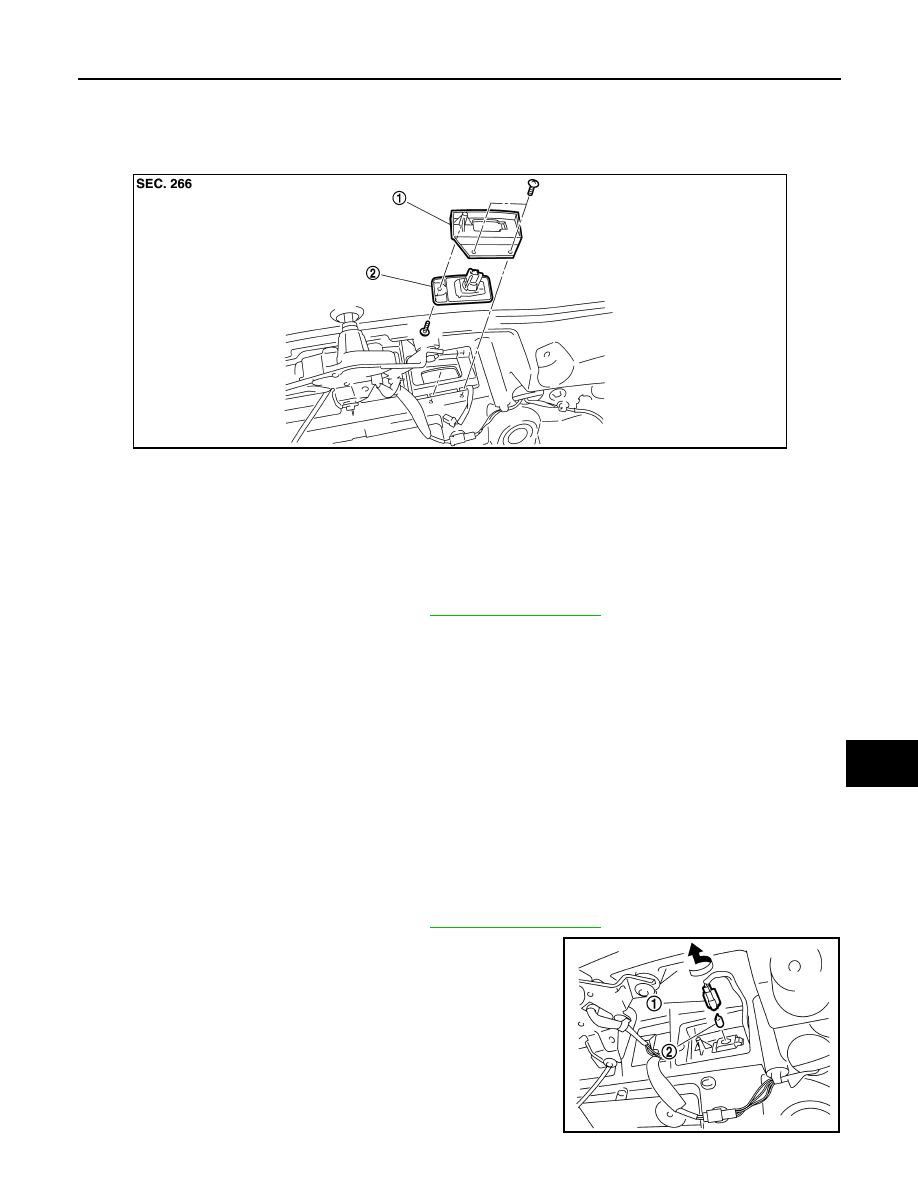

LICENSE PLATE LAMP

Exploded View

INFOID:0000000005515128

Removal and Installation

INFOID:0000000005515129

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the back door finisher inner. Refer to

INT-38, "Exploded View"

.

2.

Remove the screw. And then disconnect the license plate lamp connector.

3.

Remove the license plate lamp.

4.

Remove the screw. And then remove the license plate lamp bracket.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000005515130

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

LICENSE PLATE LAMP BULB

1.

Remove the back door finisher inner. Refer to

INT-38, "Exploded View"

.

2.

Turn the license plate lamp bulb socket (1) counterclockwise
and unlock it.

3.

Remove the bulb (2) from the license plate lamp bulb socket.

1.

License plate lamp bracket

2.

License plate lamp

JPLIA0826ZZ

JPLIA0827ZZ

EXL-194

< SERVICE DATA AND SPECIFICATIONS (SDS)

[XENON TYPE]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000005515131

Item

Type

Wattage (W)

Front combination lamp

Headlamp (HI/LO)

D2S (Xenon)

35

Front turn signal lamp

WY21W (Amber)

21

Parking lamp

W5W

5

Front side marker lamp

WY5W (Amber)

5

Front fog lamp

H8

35

Rear combination lamp

Stop lamp

LED

—

Tail lamp

LED

—

Rear turn signal lamp

W21W

21

Rear side marker lamp

W5W

5

Back-up lamp

W16W

16

License plate lamp

W5W

5

High-mounted stop lamp

LED

—
