HEADLAMP AIMING SWITCH

EXL-187

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HEADLAMP AIMING SWITCH

Exploded View

INFOID:0000000005515118

Removal and Installation

INFOID:0000000005515119

REMOVAL

1.

Remove the instrument driver lower panel. Refer to

IP-12, "Exploded View"

.

2.

Disengage the pawls. And remove the headlamp aiming switch.

INSTALLATION

Install in the reverse order of removal.

1.

Headlamp aiming switch

A.

Pawls

JPLIA0820ZZ

EXL-188

< REMOVAL AND INSTALLATION >

[XENON TYPE]

REAR COMBINATION LAMP

REAR COMBINATION LAMP

Exploded View

INFOID:0000000005515120

REMOVAL

DISASSEMBLY

Removal and Installation

INFOID:0000000005515121

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the rear combination lamp finisher.

2.

Remove the rear combination lamp mounting bolts.

1.

Seal packing

2.

Rear combination lamp

3.

Rear combination lamp finisher

Refer to

GI-4, "Components"

 for symbols in the figure.

JPLIA0821ZZ

1.

Rear turn signal lamp bulb

2.

Rear turn signal lamp bulb socket

3.

Rear side marker lamp bulb socket

4.

Rear side marker lamp bulb

JPLIA0822ZZ

REAR COMBINATION LAMP

EXL-189

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

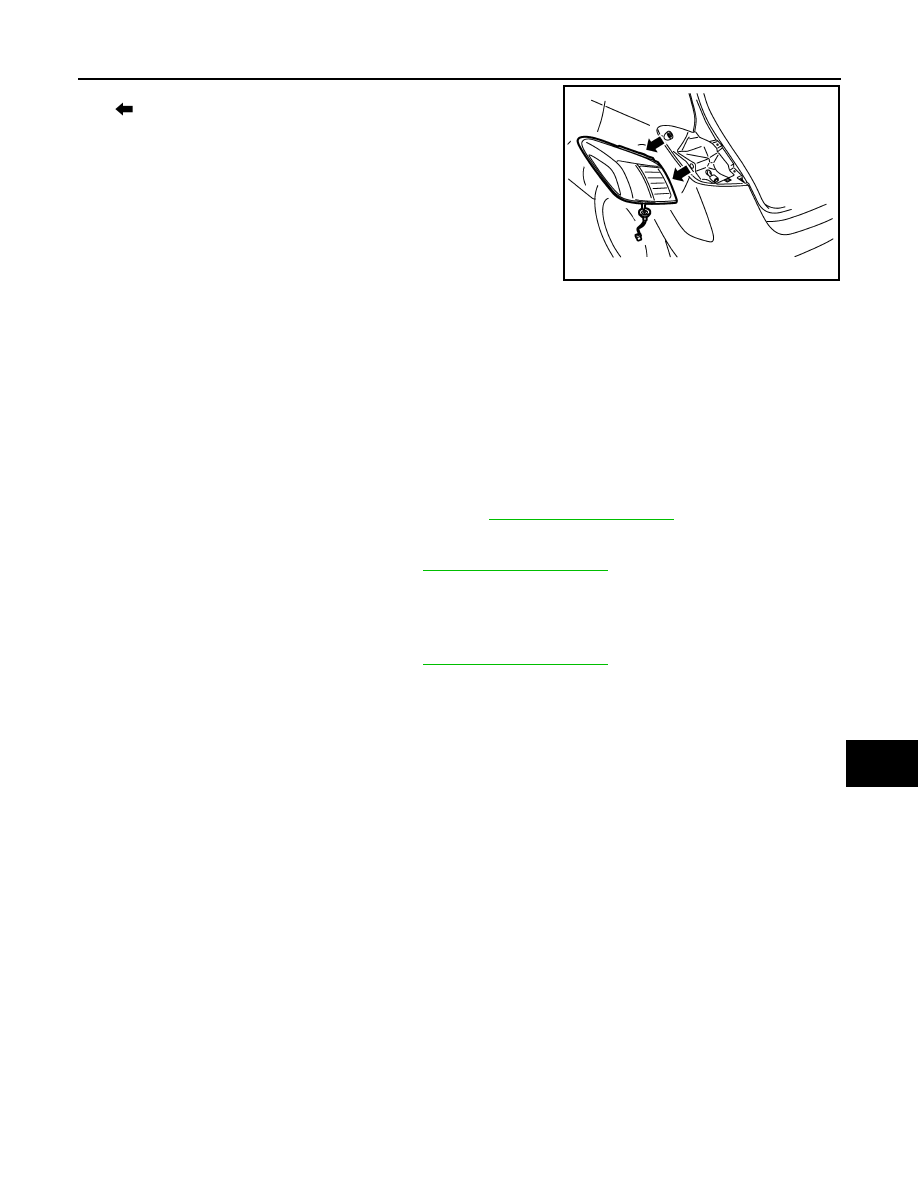

3.

Pull the rear combination lamp toward outside of the vehicle
(

). Remove the rear combination lamp.

4.

Disconnect the rear combination lamp connector.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000005515122

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

STOP/TAIL LAMP

Replacement integral with rear combination lamp. Refer to

EXL-188, "Exploded View"

.

REAR SIDE MARKER LAMP BULB

1.

Remove the rear combination lamp. Refer to

EXL-188, "Exploded View"

.

2.

Rotate the rear side marker lamp bulb socket counterclockwise, and unlock it.

3.

Remove the bulb from the rear side marker lamp bulb socket.

REAR TURN SIGNAL LAMP BULB

1.

Remove the rear combination lamp. Refer to

EXL-188, "Exploded View"

.

2.

Rotate the rear turn signal lamp bulb socket counterclockwise, and unlock it.

3.

Remove the bulb from the rear turn signal lamp bulb socket.

JPLIA1531ZZ

EXL-190

< REMOVAL AND INSTALLATION >

[XENON TYPE]

HIGH-MOUNTED STOP LAMP

HIGH-MOUNTED STOP LAMP

Exploded View

INFOID:0000000005515123

Removal and Installation

INFOID:0000000005515124

CAUTION:

Disconnect battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the back door plate. Refer to

INT-38, "Exploded View"

.

2.

Remove the high-mounted stop lamp mounting nuts and connector.

3.

Pull the high-mounted stop lamp toward rear of the vehicle. Remove the rear washer tube.

4.

Disconnect the high-mounted stop lamp connector.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Seal packing cannot be reused.

1.

Seal packing

2.

High-mounted stop lamp

Refer to

GI-4, "Components"

 for symbols in the figure.

JPLIA0823ZZ
