WW-134

< REMOVAL AND INSTALLATION >

FRONT WIPER DRIVE ASSEMBLY

FRONT WIPER DRIVE ASSEMBLY

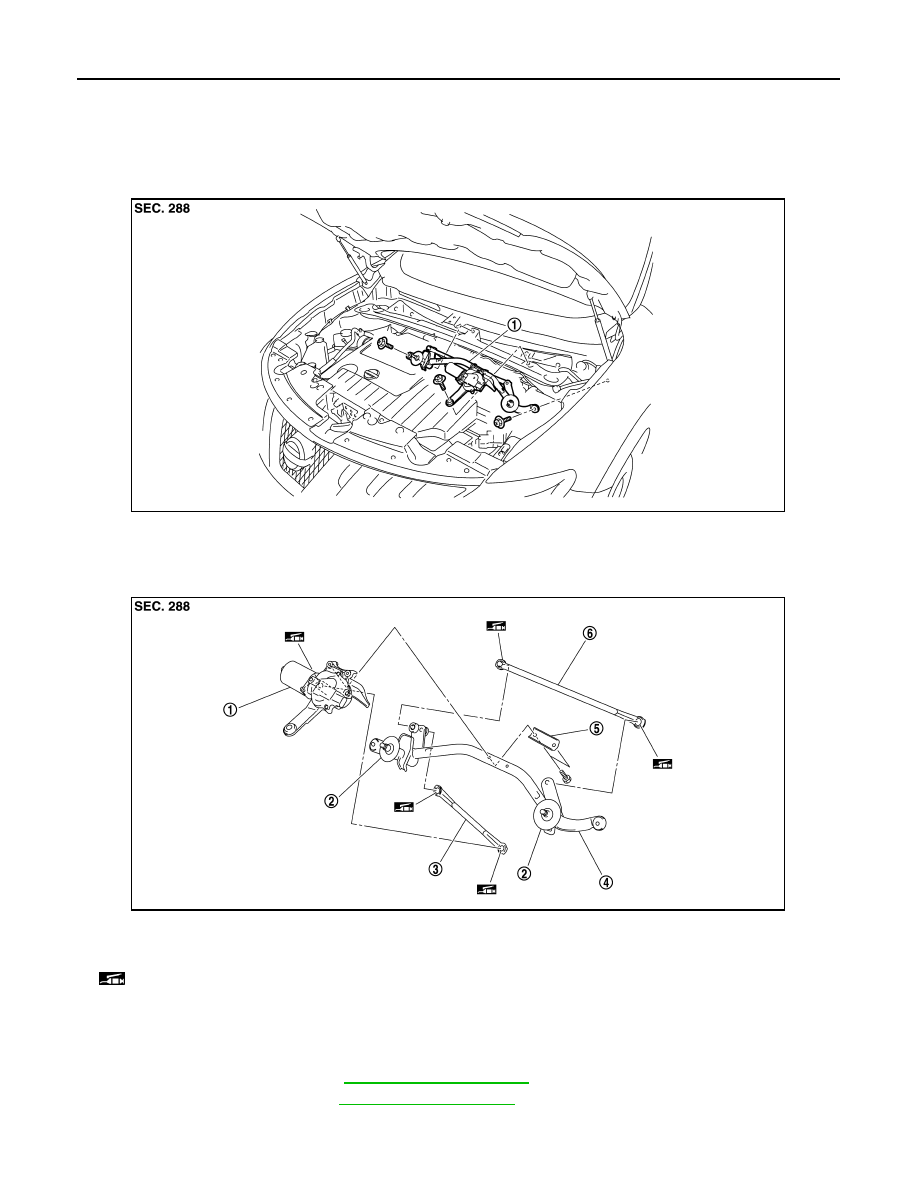

Exploded View

INFOID:0000000005516062

REMOVAL VIEW

DISASSEMBLY VIEW

Removal and Installation

INFOID:0000000005516063

REMOVAL

1.

Remove front wiper arm. Refer to

WW-130, "Exploded View"

.

2.

Remove cowl top cover. Refer to

EXT-21, "Exploded View"

.

3.

Remove bolts from the front wiper drive assembly.

1.

Front wiper drive assembly

JPLIA0875ZZ

1.

Front wiper motor

2.

Shaft seal

3.

Front wiper linkage 2

4.

Front wiper frame

5.

Bracket

6.

Front wiper linkage 1

: Multi

−

purpose grease or an equivalent

JPLIA0876ZZ

FRONT WIPER DRIVE ASSEMBLY

WW-135

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

4.

Disconnect the front wiper motor connector.

5.

Remove front wiper drive assembly from the vehicle.

INSTALLATION

1.

Install the front wiper drive assembly to the vehicle.

2.

Connect the front wiper motor connector.

3.

Operate the front wiper to move it to the auto stop position.

4.

Install the cowl top cover. Refer to

EXT-21, "Exploded View"

.

5.

Install front wiper arms. Refer to

WW-130, "Exploded View"

.

Disassembly and Assembly

INFOID:0000000005516064

DISASSEMBLY

1.

Remove the front wiper linkage 1 and 2 from the front wiper drive assembly.

CAUTION:

Never bend the linkage or damage the plastic part of the ball joint when removing the front wiper
linkage.

2.

Remove the front wiper motor mounting screws, and then remove the front wiper motor from the front
wiper frame.

ASSEMBLY

1.

Connect the front wiper motor connector.

2.

Operate the front wiper to move it to the auto stop position.

3.

Disconnect the front wiper motor connector.

4.

Install front wiper motor to front wiper frame.

5.

Install the front wiper linkage 2 to the front wiper motor and the front wiper frame.

6.

Install the front wiper linkage 1 to the front wiper frame.

CAUTION:

• Never drop front wiper motor or cause it to come into contact with other parts.
• Be careful for the grease condition at the front wiper motor and front wiper linkage joint

(retainer). Apply multi

−

purpose grease or an equivalent if necessary.

WW-136

< REMOVAL AND INSTALLATION >

RAIN SENSOR

RAIN SENSOR

Exploded View

INFOID:0000000005516065

CAUTION:

When the rain sensor is removed from windshield, the rain sensor cannot be re-used.

REMOVAL

Removal and Installation

INFOID:0000000005516066

REMOVAL

1.

Remove the inside mirror cover (upper and lower).

2.

Disengage the both sides of metal spring clips, and remove the rain sensor from the windshield.

3.

Disconnect rain sensor connector.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Surface of windshield should be cleaned.
• Never touch gel/adhesive of new part.
• Lock the metal spring clips and install the rain sensor securely.

1.

Rain sensor connector

2.

Inside mirror cover (upper)

3.

Inside mirror cover (lower)

4.

Rain sensor

A.

Metal spring clip

Refer to

GI-4, "Components"

 for symbols in the figure.

JPLIA0817ZZ

WIPER AND WASHER SWITCH

WW-137

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WIPER AND WASHER SWITCH

Exploded View

INFOID:0000000005516067

Refer to

BCS-96, "Exploded View"

.
