FRONT WIPER ARM

FRONT WIPER ARM

Exploded View

INFOID:0000000005516056

Removal and Installation

INFOID:0000000005516057

REMOVAL

1.

Operate the front wiper to move it to the auto stop position.

2.

Open the hood.

3.

Remove front wiper arm caps.

4.

Remove the front wiper arm mounting nuts.

5.

Raise front wiper arm, and remove front wiper arm from the vehicle.

INSTALLATION

1.

Clean wiper arm mount as shown in the figure to prevent nuts
from being loosened.

2.

Operate the front wiper motor to move the front wiper to the auto
stop position.

3.

Adjust the front wiper blade position. Refer to

WW-130, "Adjust-

ment"

.

4.

Install the front wiper arms by tightening the mounting nuts.

5.

Inject the washer fluid.

6.

Operate the front wiper to move it to the auto stop position.

7.

Check that the front wiper blades stop at the specified position.

8.

Install front wiper arm caps.

Adjustment

INFOID:0000000005516058

WIPER BLADE POSITION ADJUSTMENT

Clearance between the end of cowl top cover and the top of front wiper blade center

1.

Front wiper blade (RH)

2.

Front wiper arm (RH)

3.

Front wiper arm cap

4.

Front wiper arm (LH)

5.

Front wiper blade (LH)

Refer to

GI-4, "Components"

 for symbols in the figure.

JPLIA0874GB

ELH0717D

FRONT WIPER ARM

WW-131

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Standard clearance

R

: 51.0

±

7.5 mm (2.008

±

 0.295 in)

L

: 48.0

±

7.5 mm (1.890

±

 0.295 in)

JPLIA0082ZZ

WW-132

< REMOVAL AND INSTALLATION >

WIPER BLADE

WIPER BLADE

Exploded View

INFOID:0000000005516059

Removal and Installation

INFOID:0000000005516060

REMOVAL

Remove the wiper blade from the wiper arm.

INSTALLATION

Install the front wiper blade to the wiper arm.

Replacement

INFOID:0000000005516061

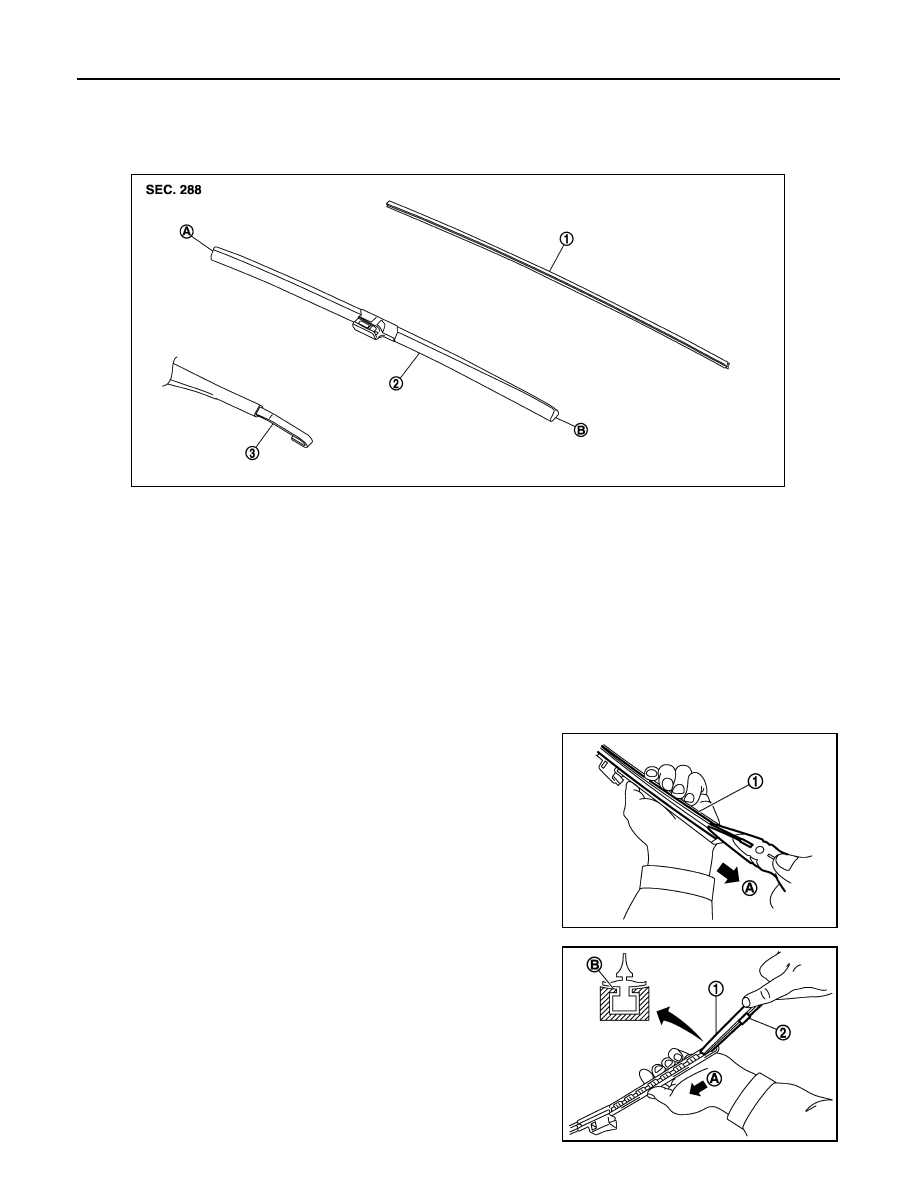

1.

Hold the rip of old wiper refill (1) at the rear end of the wiper
blade with long-nose pliers, and pull out the wiper refill to the
direction (A).

2.

Insert the tip of new wiper refill (1) into the rear end of wiper
blade. Slide the wiper refill to the direction (A) while pressing the
wiper refill onto the wiper blade rear end.
NOTE:
• Insert the wiper refill to be held securely by tab (B) of wiper

blade.

• After the wiper refill is fully inserted, remove the holder

*

 (2).

*

: Attached to service parts.

1.

Wiper refill

2.

Wiper blade

3.

Wiper arm

A.

Wiper blade end

B.

Wiper blade tip

JPLIA1587ZZ

JPLIA1583ZZ

JPLIA1584ZZ

WIPER BLADE

WW-133

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

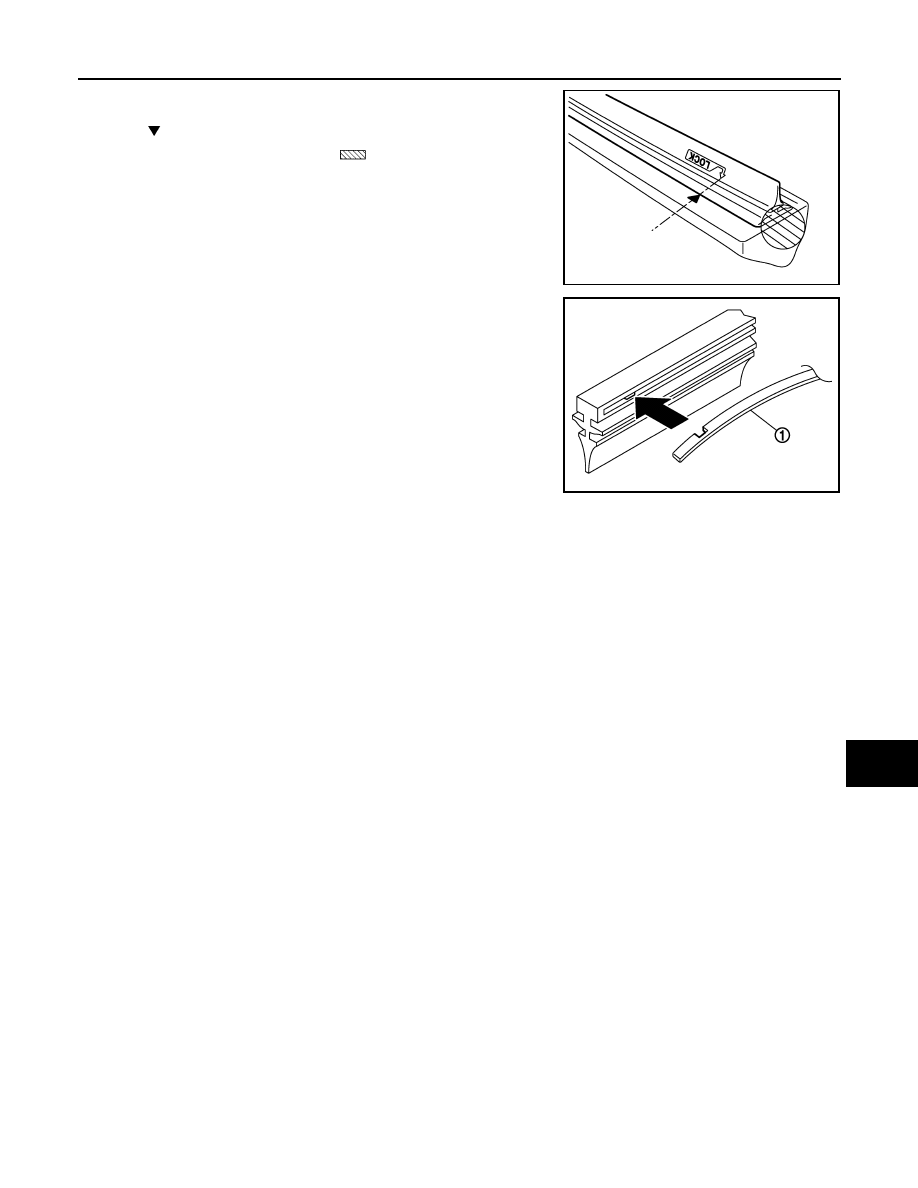

3.

Inert the wiper refill until the stopper at the rear end of wiper refill
fits in the tab. Check that “LOCK” mark on wiper refill is aligned
with “ ” mark on wiper blade.

4.

Untwist the twisted wiper refill (

) at the rear end of wiper

blade, if any.

5.

Check the following items after replacing wiper refill.
• Wiper refill is not twisted at all.
• Wiper refill thoroughly fits in the tab on wiper blade.
• Wiper refill is inserted from the proper direction.

NOTE:

When the vertebra is detached.

• Insert the vertebra (1) into the wiper blade to the same bending

direction.

• If a vertebra has a notch, fit it to a protrusion inside the wiper refill.

JPLIA1585ZZ

JPLIA1586ZZ
