SPIRAL CABLE

SR-41

< REMOVAL AND INSTALLATION >

[FOR MEXICO]

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

6.

Remove the spiral cable side pawls (A).

7.

Pull out forward the spiral cable.

CAUTION:

• Never impact the spiral cable.
• Never impact the spiral cable by dropping, etc. Replace the

spiral cable if it has been dropped or sustained an impact.

• Never disassemble the spiral cable.
• Never apply lubricant to the spiral cable.
• Never allow oil, grease, detergent, or water to come in contact with the spiral cable.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• The spiral cable may snap during steering operation if the

cable is installed in an improper position.
The neutral position is set as per the following.

• Turn carefully the spiral cable clockwise to the end position.

Then turn it counterclockwise (about 2 and a half turns) and
stop turning at the mark (B) on which the stopper insertion
holes are in the same position.

• The service part is installed in the neutral position by the

stopper and can be set without adjusting after the stopper is
removed.

• Never over turn the spiral cable or go beyond number of turns

required. (This will cause the cable to snap.)

• Adjust the spiral cable locating pin (A) to the steering wheel

locating pin hole (C).

JMHIA0508ZZ

JMHIA0009ZZ

JMHIA0013ZZ

SR-42

< REMOVAL AND INSTALLATION >

[FOR MEXICO]

SPIRAL CABLE

• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT-III. Refer to

SRC-17, "Diagnosis

Description"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

FRONT PASSENGER AIR BAG MODULE

SR-43

< REMOVAL AND INSTALLATION >

[FOR MEXICO]

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

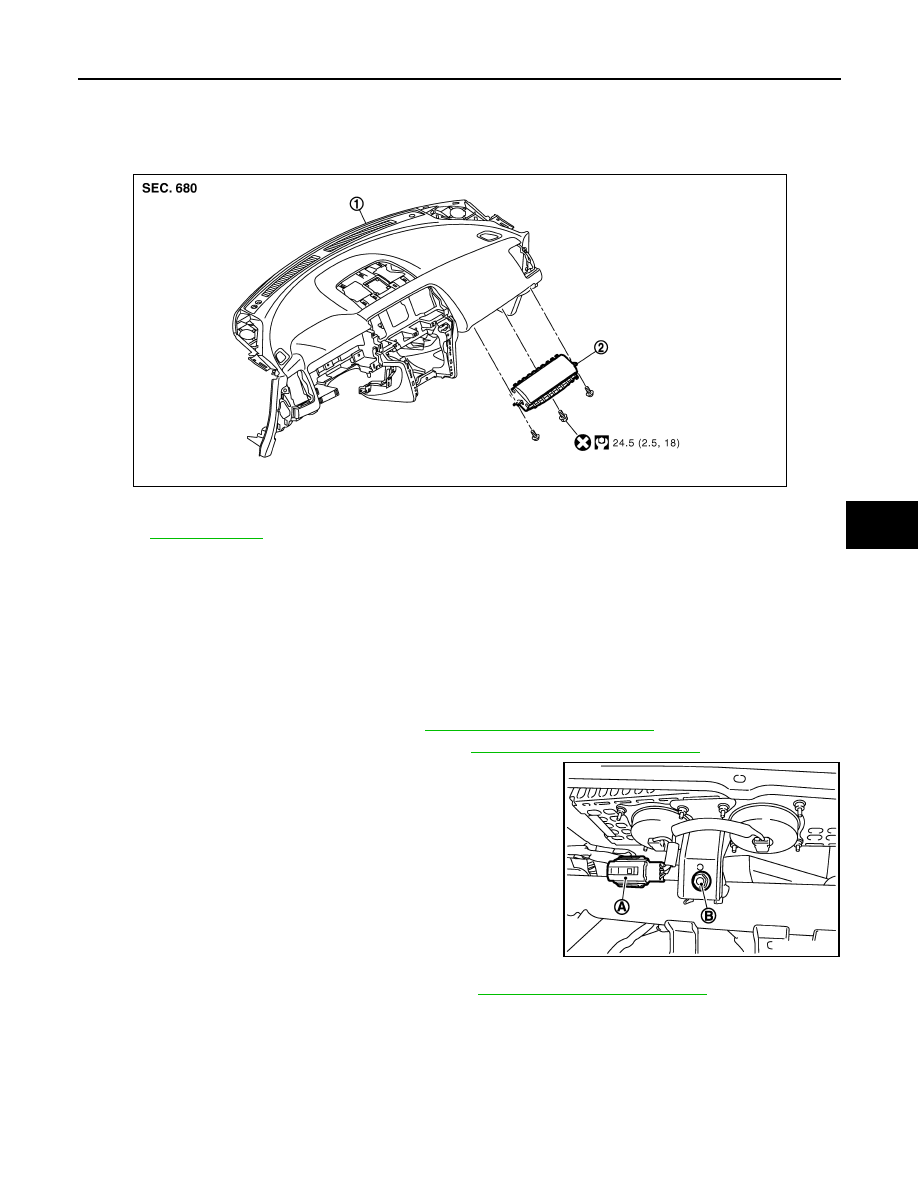

FRONT PASSENGER AIR BAG MODULE

Exploded View

INFOID:0000000005518926

Removal and Installation

INFOID:0000000005518927

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Always work from the side of air bag module. Never work in front of it.
• Never use the air tools or electric tools for servicing.

REMOVAL

1.

Remove the glove box lid assembly. Refer to

IP-13, "Removal and Installation"

.

2.

Remove the Instrument lower assist panel. Refer to

IP-13, "Removal and Installation"

.

3.

Disconnect the front passenger air bag harness connector (A).

4.

Remove the front passenger air bag module fixing bolt (B).
NOTE:
The figure shows the installed front passenger air bag module.
(Under view of the module installed without glove box cover.)

5.

Remove the instrument panel assembly (1). Refer to

IP-13, "Removal and Installation"

.

1.

Instrument panel assembly

2.

Front passenger air bag module

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA0509GB

JMHIA0510ZZ

SR-44

< REMOVAL AND INSTALLATION >

[FOR MEXICO]

FRONT PASSENGER AIR BAG MODULE

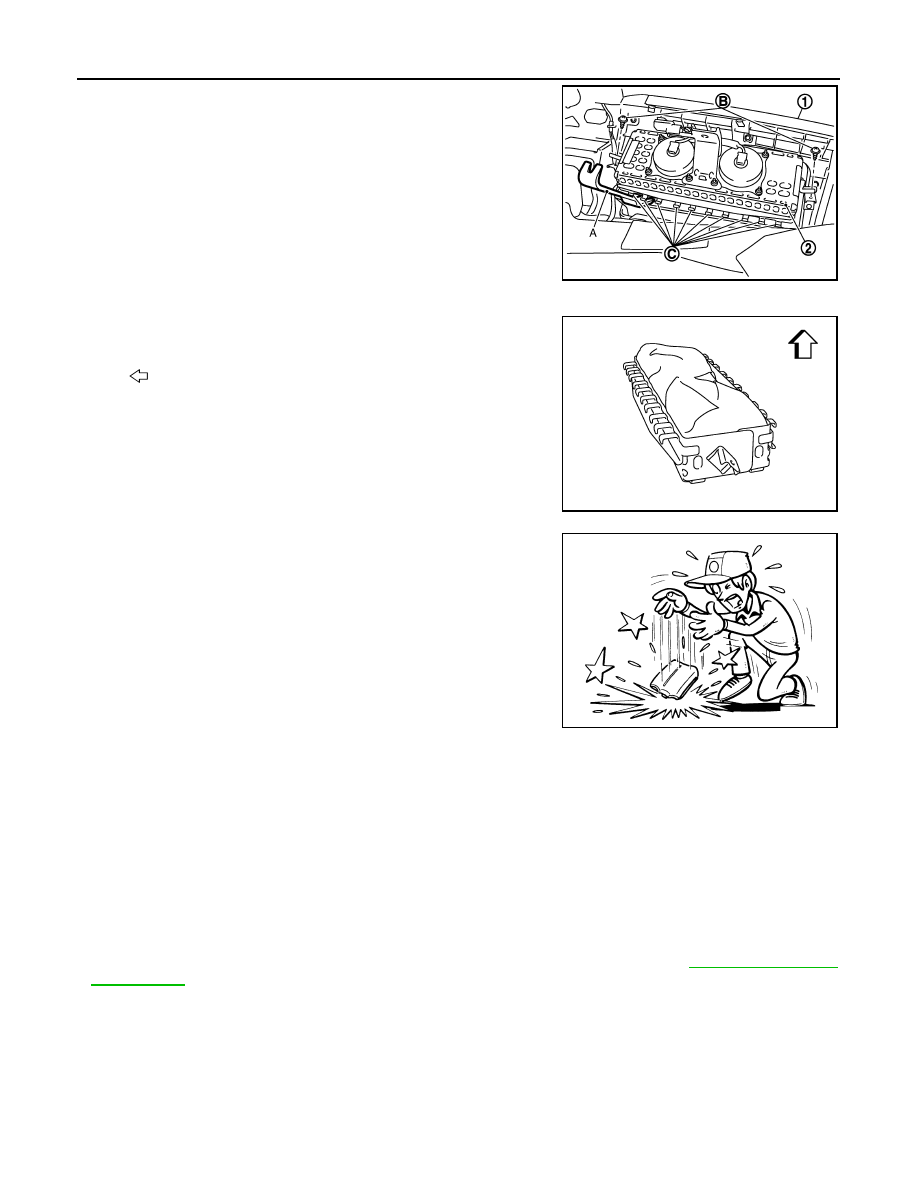

6.

Remove the front passenger air bag module fixing screws (B).

7.

Disconnect the pawls (C) by using remover tool (A), and then
remove the front passenger air bag module (2) from instrument
panel.

CAUTION:

• Always place the front passenger air bag module with pad

side facing upward.

• Never impact the passenger air bag module.
• Replace the front passenger air bag module if it has been

dropped or sustained an impact.

• Never insert any foreign objects (screwdriver, etc.) into front passenger air bag module.
• Never disassembly the front passenger air bag module.
• Never expose the front passenger air bag module to temperatures exceeding 90

°

C (194

°

F).

• Never allow oil, grease, detergent, or water to come in contact with the front passenger air bag mod-

ule.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Never use the old fixing bolts after removal, replace with the new bolts.
• Never damage the harness while installing.
• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT-III. Refer to

SRC-17, "Diagnosis

Description"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

JMHIA0511ZZ

: Upward

JMHIA0512ZZ

JMHIA0009ZZ
