COMPONENT PARTS

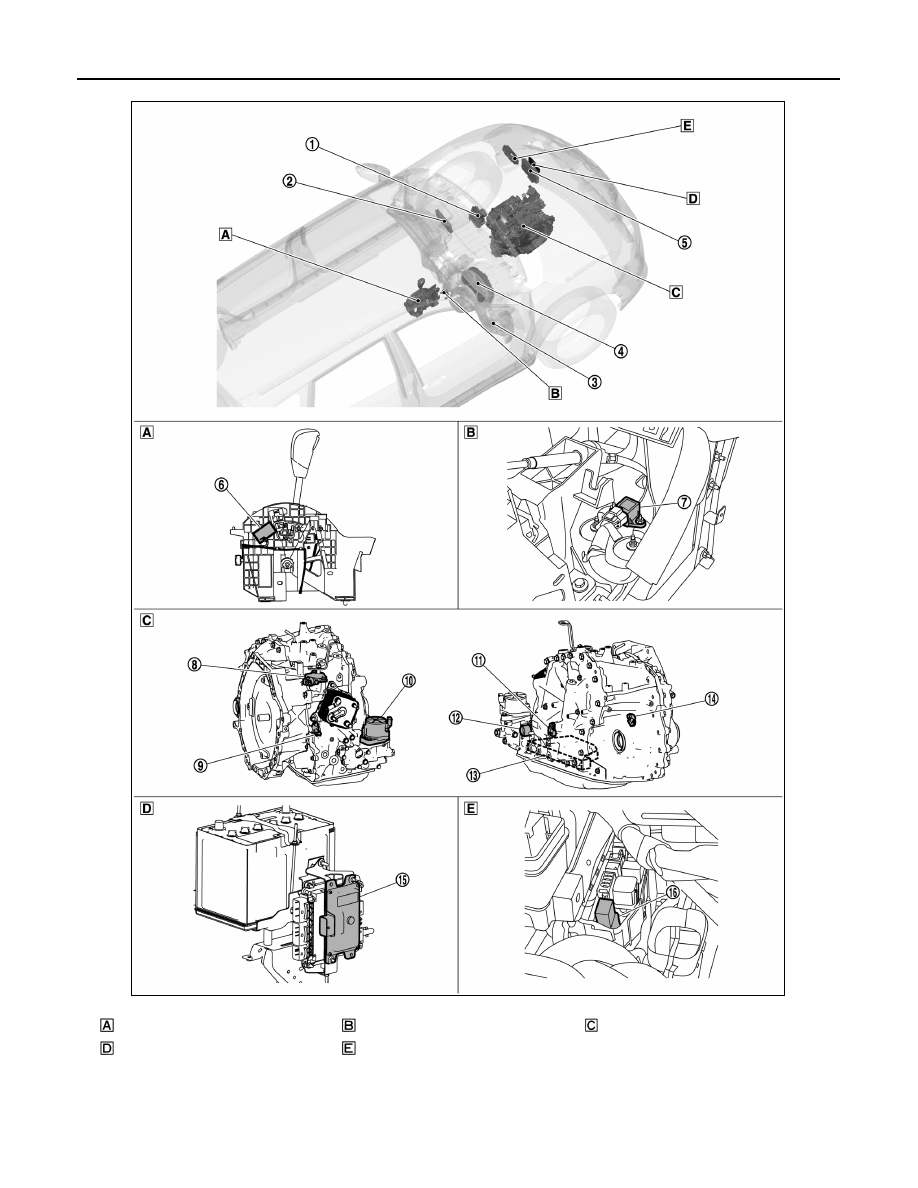

CVT shift selector assembly

CVT shift selector assembly, front

Transaxle assembly

Battery, front

Engine room, LH

JSDIA6397ZZ

COMPONENT PARTS

TM-471

< SYSTEM DESCRIPTION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

No.

Component

Function

ABS actuator and electric unit (control unit)

Mainly transmits the following signal to TCM via CAN communication.
• ABS operation signal
• TCS operation signal
• VDC operation signal
• ABS malfunction signal
• Vehicle speed signal
• Decel G signal
Refer to

BRC-14, "Component Parts Location"

 for detailed installation loca-

tion.

BCM

Mainly transmits the following signal to TCM via CAN communication.
• Stop lamp switch signal
Refer to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"



for detailed installation location.

Combination meter

Mainly transmits the following signal to TCM via CAN communication.
• Manual mode signal
• Non-manual mode signal
• Manual mode upshift signal
• Manual mode downshift signal
Mainly receives the following signals from TCM via CAN communication.
• Shift position signal
• Manual mode shift refusal signal
Refer to

MWI-7, "METER SYSTEM : Component Parts Location"

 for de-

tailed installation location.

ECO mode switch

DMS-6, "ECO Mode Switch"

ECM

Mainly transmits the following signal to TCM via CAN communication.
• Engine and CVT integrated control signal

NOTE:
General term for the communication (torque-down permission, torque-
down request, etc.) exchanged between the ECM and TCM.

• Engine speed signal
• Engine coolant temperature signal
• Accelerator pedal position signal
• Closed throttle position signal
Mainly receives the following signals from TCM via CAN communication.
• Malfunctioning indicator lamp signal
• Stop/start indicator lamp signal
Refer to

EC-812, "Component Parts Location"

 for detailed installation loca-

tion.

Manual mode switch

TM-478, "CVT CONTROL SYSTEM : Manual Mode Switch"

G sensor

TM-477, "CVT CONTROL SYSTEM : G Sensor"

Transmission range switch

TM-472, "CVT CONTROL SYSTEM : Transmission Range Switch"

Input speed sensor

TM-474, "CVT CONTROL SYSTEM : Input Speed Sensor"

Electric oil pump

TM-477, "CVT CONTROL SYSTEM : Electric Oil Pump"

Primary speed sensor

TM-472, "CVT CONTROL SYSTEM : Primary Speed Sensor"

CVT unit connector

—

Control
valve

CVT fluid temperature sensor*

TM-474, "CVT CONTROL SYSTEM : CVT Fluid Temperature Sensor"

Primary pressure sensor*

TM-475, "CVT CONTROL SYSTEM : Primary Pressure Sensor"

Secondary pressure sensor*

TM-475, "CVT CONTROL SYSTEM : Secondary Pressure Sensor"

Line pressure solenoid valve*

TM-477, "CVT CONTROL SYSTEM : Line Pressure Solenoid Valve"

Primary pressure solenoid valve*

TM-475, "CVT CONTROL SYSTEM : Primary Pressure Solenoid Valve"

Secondary pressure solenoid valve*

TM-476, "CVT CONTROL SYSTEM : Secondary Pressure Solenoid Valve"

Torque converter clutch solenoid
valve*

TM-476, "CVT CONTROL SYSTEM : Torque Converter Clutch Solenoid

Valve"

Select solenoid valve*

TM-476, "CVT CONTROL SYSTEM : Select Solenoid Valve"

TM-472

< SYSTEM DESCRIPTION >

[CVT: RE0F10G]

COMPONENT PARTS

*: These components are included in control valve assembly.

CVT CONTROL SYSTEM : TCM

INFOID:0000000010622706

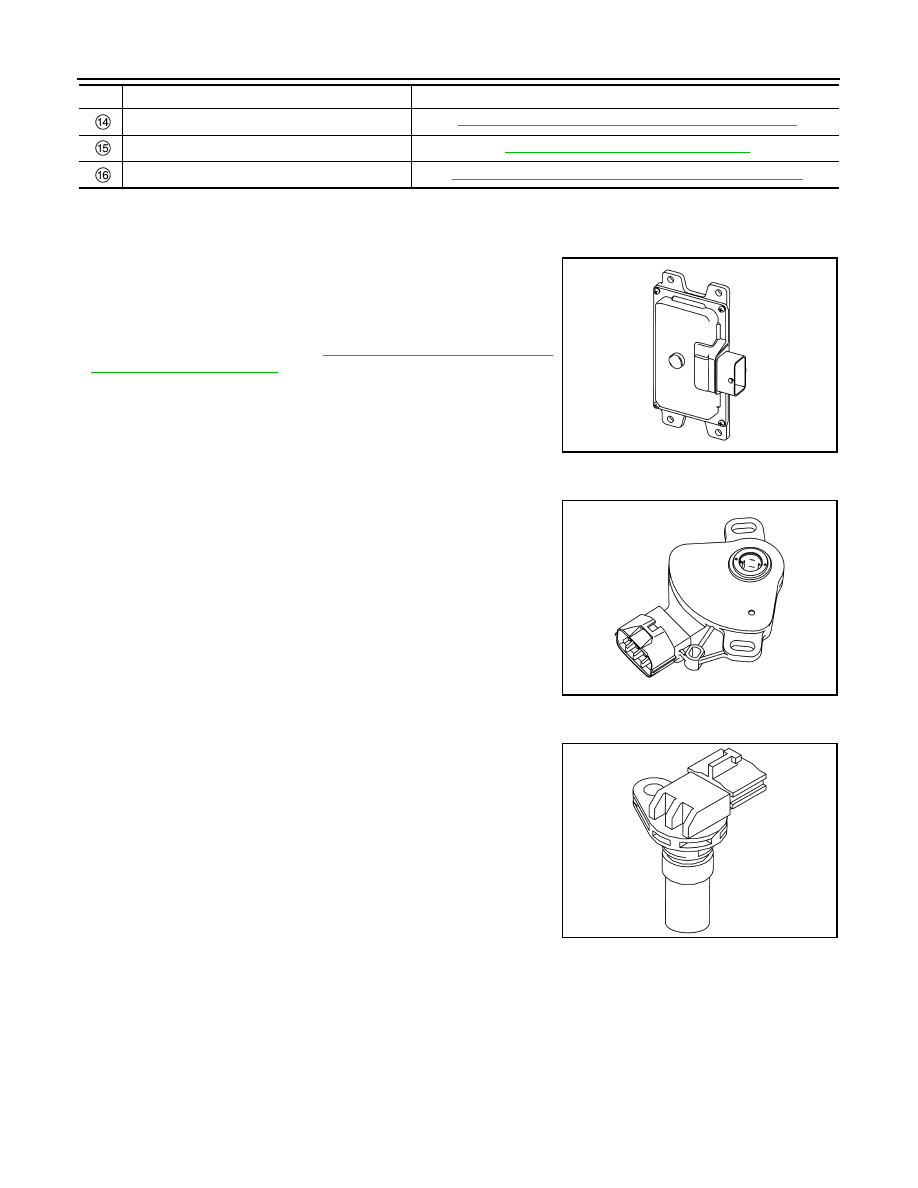

• The TCM consists of a microcomputer and connectors for signal

input and output and for power supply.

• The vehicle driving status is judged based on the signals from the

sensors, switches, and other control units, and the optimal tran-
saxle control is performed.

• For TCM control items, refer to

TM-490, "CVT CONTROL SYS-

TEM : System Description"

.

CVT CONTROL SYSTEM : Transmission Range Switch

INFOID:0000000010622707

• The transmission range switch is installed to upper part of tran-

saxle case.

• The transmission range switch detects the selector lever position.

CVT CONTROL SYSTEM : Primary Speed Sensor

INFOID:0000000010622708

• The primary speed sensor is installed to side cover of transaxle.
• The primary speed sensor detects primary pulley speed.

Output speed sensor

TM-473, "CVT CONTROL SYSTEM : Output Speed Sensor"

TCM

TM-472, "CVT CONTROL SYSTEM : TCM"

Electric oil pump relay

TM-478, "CVT CONTROL SYSTEM : Electric Oil Pump Relay"

No.

Component

Function

JSDIA4183ZZ

JSDIA4184ZZ

JSDIA3073ZZ

COMPONENT PARTS

TM-473

< SYSTEM DESCRIPTION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

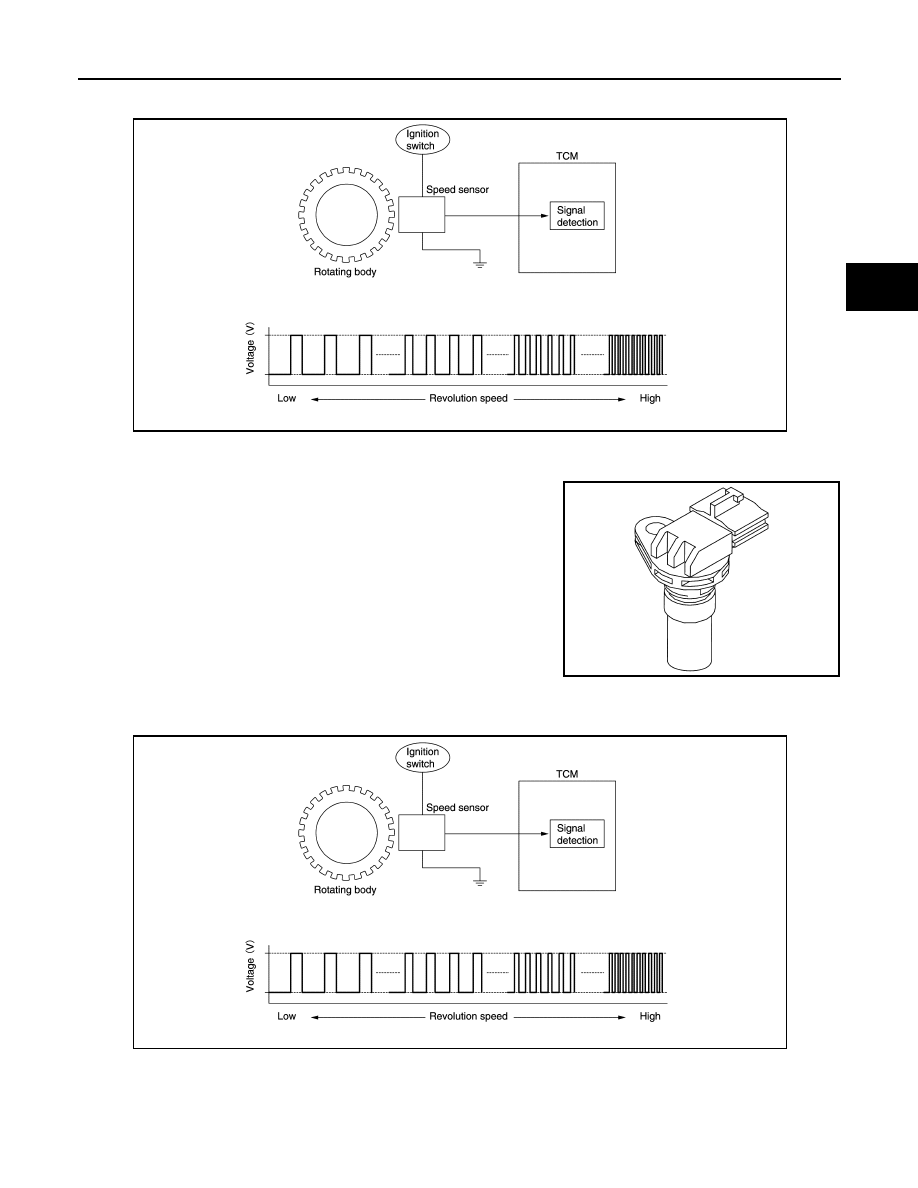

• The primary speed sensor generates an ON-OFF pulse signal according to the rotating body speed. TCM

judges the rotating body speed from the pulse signal.

CVT CONTROL SYSTEM : Output Speed Sensor

INFOID:0000000010622709

• The output speed sensor is installed to back side of transaxle.
• The output speed sensor detects final gear speed.

• The output speed sensor generates an ON-OFF pulse signal according to the rotating body speed. TCM

judges the rotating body speed from the pulse signal.

JSDIA1824GB

JSDIA3073ZZ

JSDIA1824GB
