< PRECAUTION >
[CVT: RE0F10G]
PRECAUTIONS
• Perform TCM input/output signal inspection and check
whether TCM functions normally or not before replacing TCM.
Refer to
• Perform “DTC (Diagnostic Trouble Code) CONFIRMATION
PROCEDURE”.
If the repair is completed DTC should not be displayed in the
“DTC CONFIRMATION PROCEDURE”.

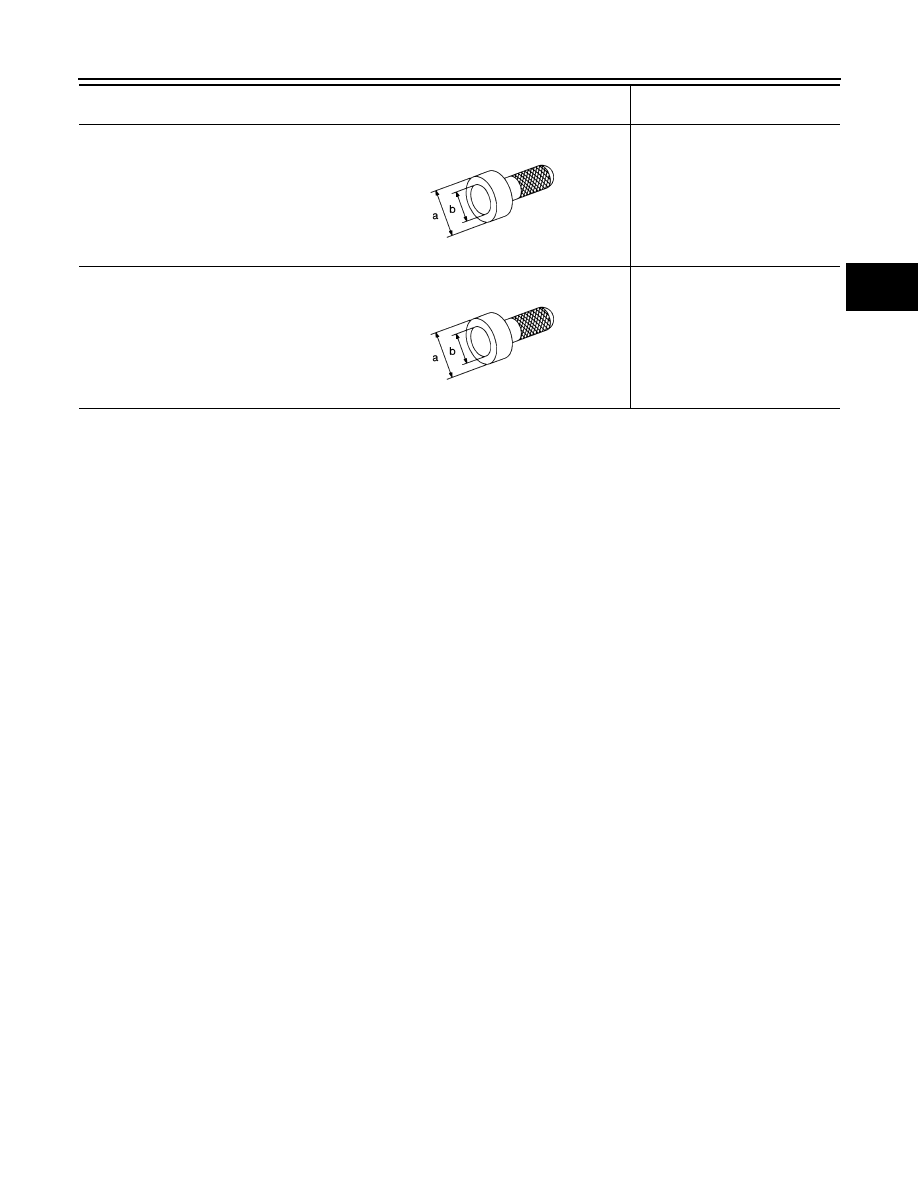

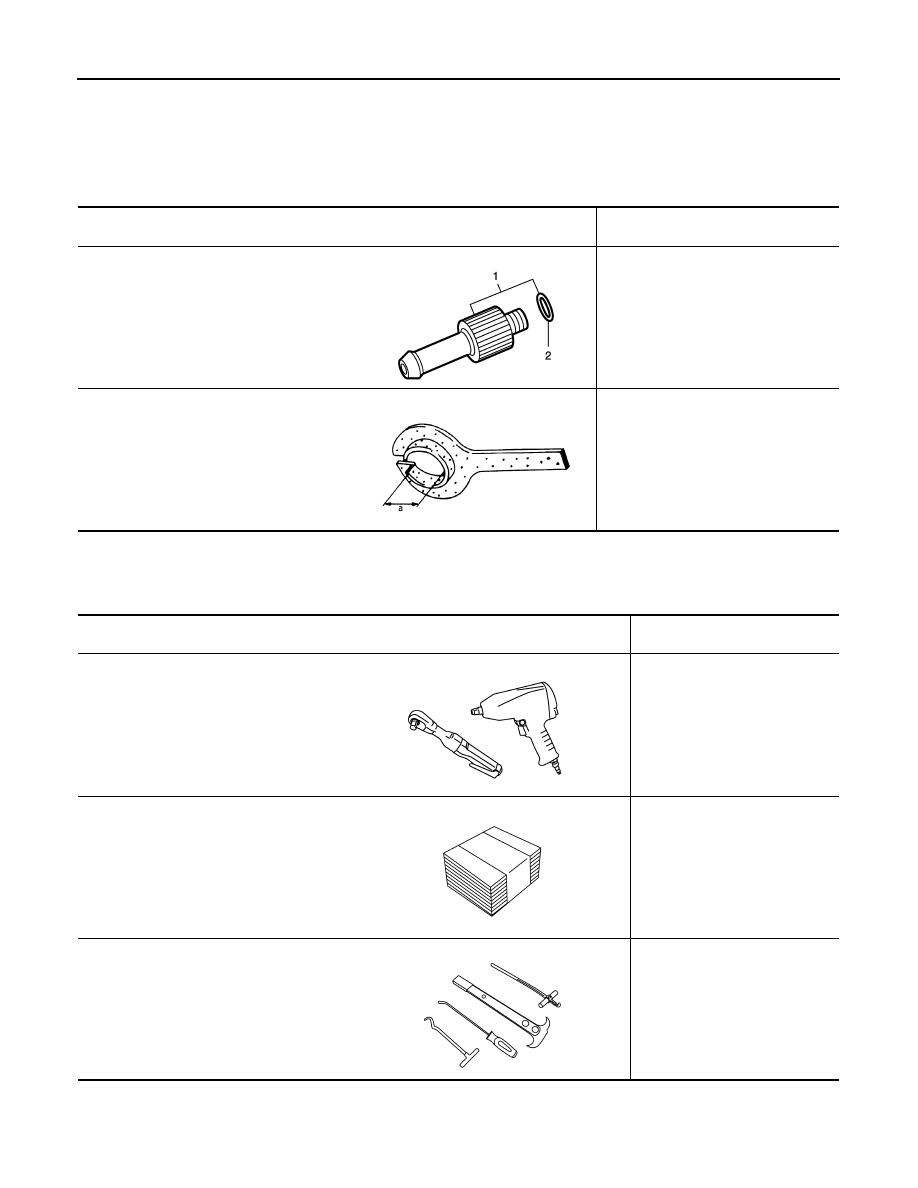

• Always use the specified brand of CVT fluid. Refer to
MA-23, "Fluids and Lubricants"
• Use lint-free paper not cloth rags during work.
• Dispose of the waste oil using the methods prescribed by law, ordinance, etc. after replacing the CVT fluid.
On Board Diagnosis (OBD) System of CVT and Engine
INFOID:0000000010622701
The TCM and ECM have an on board diagnostic system. It will light up the malfunction indicator lamp (MIL) to
warn the driver of a malfunction causing emission deterioration.
CAUTION:
• Be sure to turn the ignition switch OFF and disconnect the battery cable from the negative terminal
before any repair or inspection work. The open/short circuit of related switches, sensors, solenoid
valves, etc. will cause the MIL to light up.
• Be sure to connect and lock the connectors securely after work. A loose (unlocked) connector will
cause the MIL to light up due to an open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)
• Be sure to route and secure the harnesses properly after work. Interference of the harness with a
bracket, etc. may cause the MIL to light up due to a short circuit.
• Be sure to connect rubber tubes properly after work. A misconnected or disconnected rubber tube
may cause the MIL to light up due to a malfunction of the EGR system or fuel injection system, etc.
• Be sure to erase the unnecessary malfunction information (repairs completed) from the TCM and
ECM before returning the vehicle to the customer.

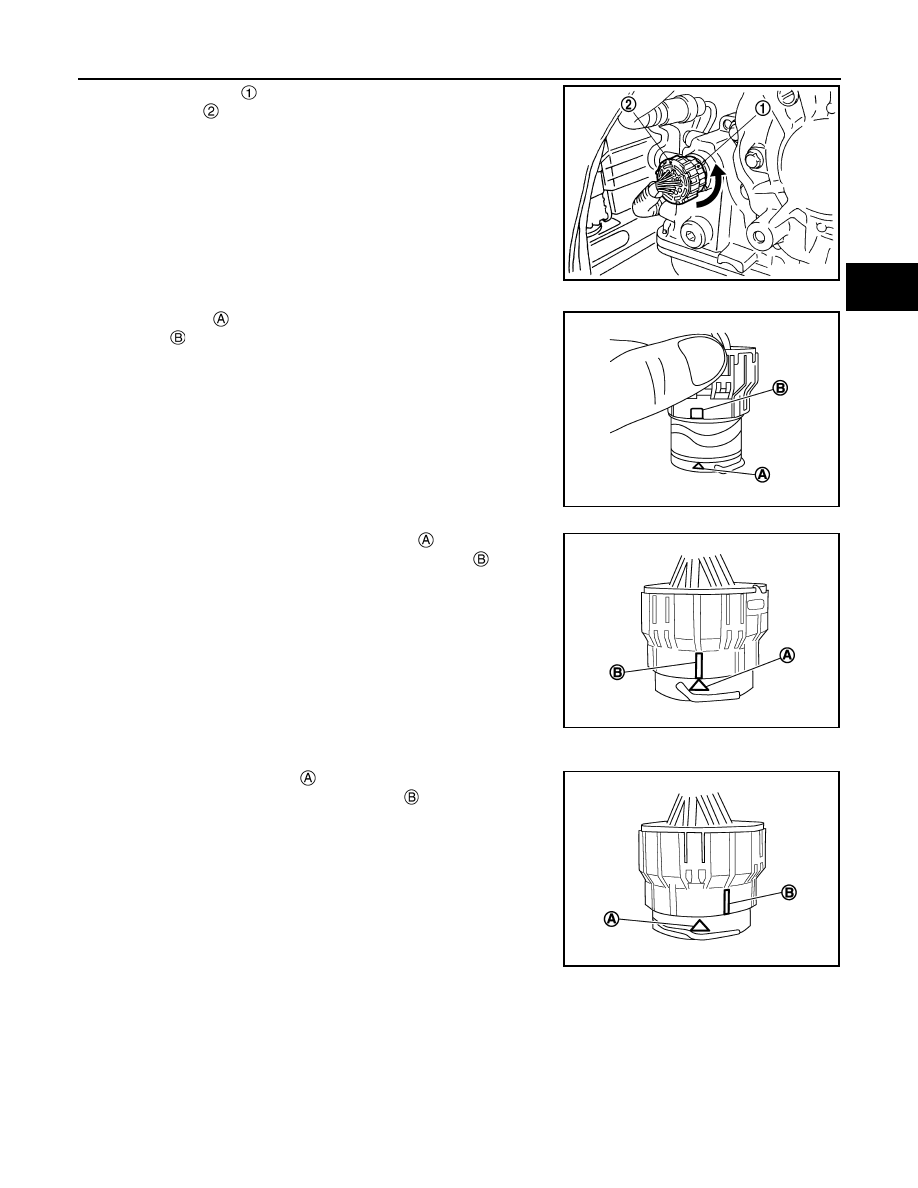

Removal and Installation Procedure for CVT Unit Connector
INFOID:0000000010622702
REMOVAL
MEF040DA
JSBIA1315ZZ
