DLN-100

< PRECAUTION >

[TRANSFER: TY30A]

PRECAUTIONS

• Before proceeding with disassembly, thoroughly clean the transfer. It is important to prevent the

internal parts from becoming contaminated by dirt or other foreign matter.

• Check for the correct installation status prior to removal or disassembly. If matching marks are

required, be certain they do not interfere with the function of the parts when applied.

• All parts should be carefully cleaned with a general purpose, non-flammable solvent before inspec-

tion or reassembly.

• Check appearance of the disassembled parts for damage, deformation, and unusual wear. Replace

them with a new one if necessary.

• Gaskets, seals, O-rings and lock nuts should be replaced any time when the transfer is disassem-

bled.

• In principle, tighten bolts or nuts gradually in several steps working diagonally from inside to out-

side. If tightening sequence is specified, use it.

• Observe the specified torque when assembling.
• Clean and flush the parts sufficiently and blow-dry them.
• Be careful not to damage sliding surfaces and mating surfaces.
• Use lint-free cloth or towels for wiping parts clean. Common shop rags can leave fibers that could

interfere with the operation of the transfer.

PREPARATION

DLN-101

< PREPARATION >

[TRANSFER: TY30A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

PREPARATION

PREPARATION

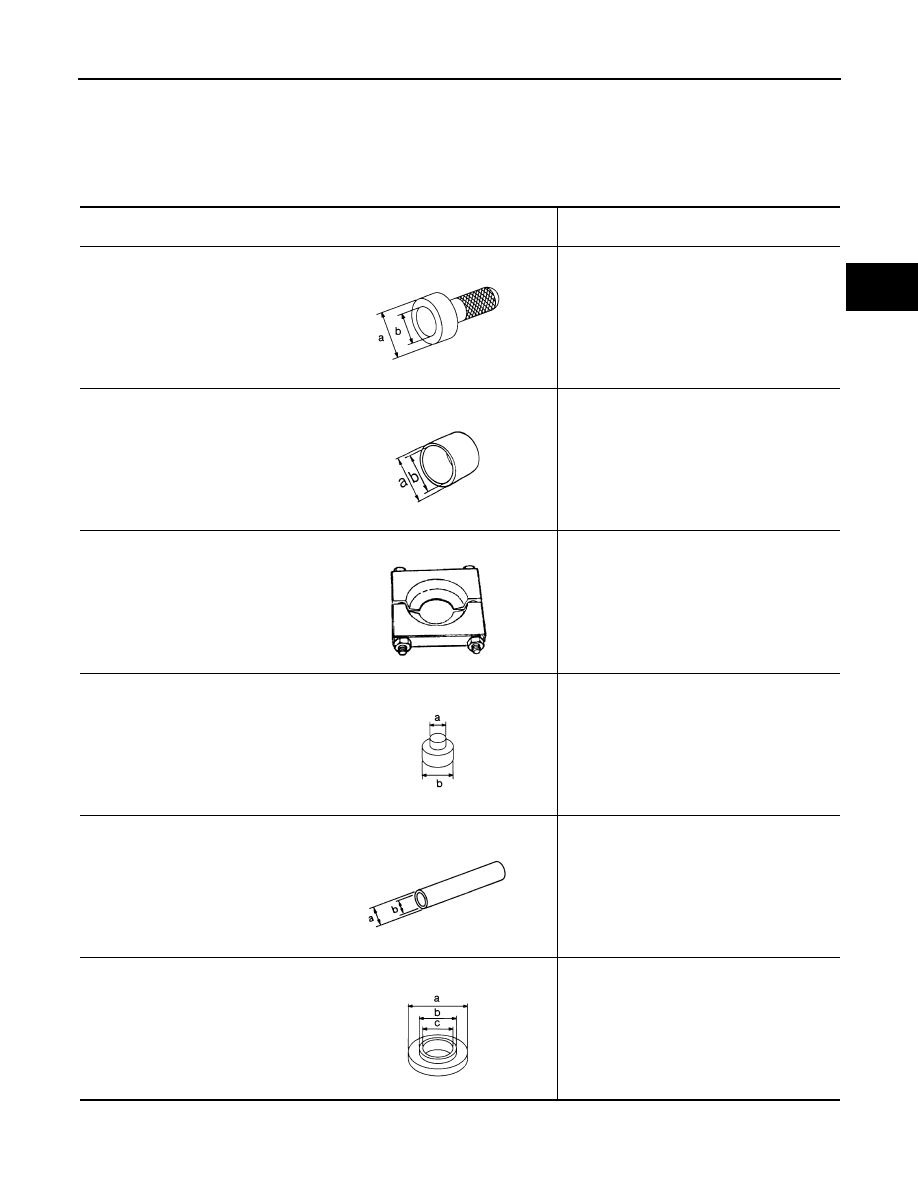

Special Service Tools

INFOID:0000000010288328

Tool number
Tool name

Description

ST30720000
Drift
a:

φ

77 mm (3.03 in) dia.

b:

φ

55.5 mm (2.185 in) dia.

• Installing adapter case oil seal (inner/outer)
• Installing drive pinion oil seal

ST27861000
Drift
a:

φ

62 mm (2.44 in) dia.

b:

φ

52 mm (2.05 in) dia.

• Installing adapter case oil seal (inner/outer)
• Installing drive pinion oil seal

ST22730000
Replacer

• Removing inner race of ring gear shaft bear-

ing (transfer case side)

• Removing inner race of drive pinion bearing

(front side)

ST33052000
Drift
a:

φ

22 mm (0.87 in) dia.

b:

φ

28 mm (1.10 in) dia.

• Removing ring gear
• Removing inner race of drive pinion bearing

(front side)

ST01530000
Drift
a:

φ

48 mm (1.89 in) dia.

b:

φ

41 mm (1.61 in) dia.

Installing ring gear

ST35272000
Drift
a:

φ

72 mm (2.83 in) dia.

b:

φ

40 mm (1.57 in) dia.

c:

φ

35.5 mm (1.398 in) dia.

• Installing ring gear
• Installing outer race of drive pinion bearing

(front side)

NT115

ZZA1003D

ZZA0700D

NT116

ZZA0534D

NT107

DLN-102

< PREPARATION >

[TRANSFER: TY30A]

PREPARATION

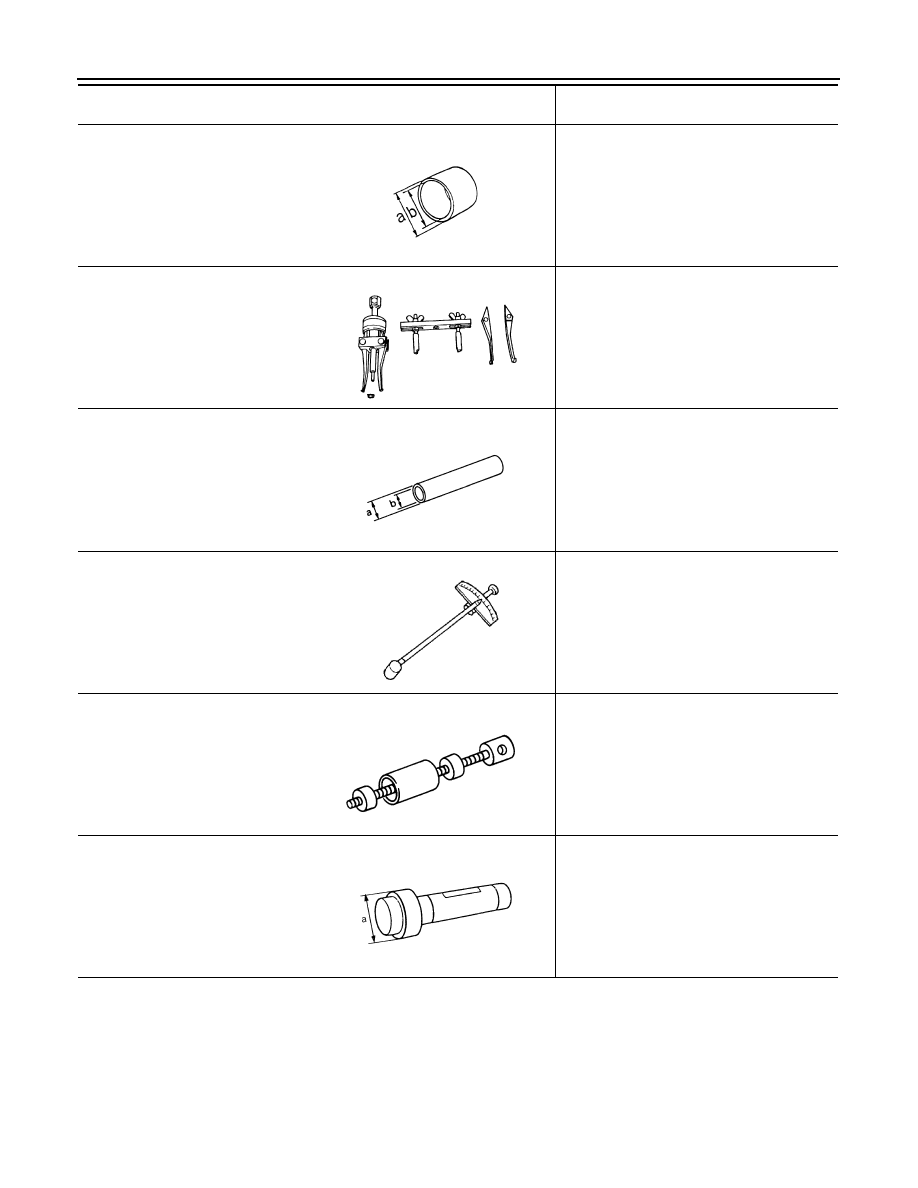

Commercial Service Tools

INFOID:0000000010288329

KV10111400
Drift
a:

φ

25 mm (0.98 in) dia.

b:

φ

20.8 mm (0.819 in) dia.

Installing inner race of ring gear shaft bearing
(transfer case side)

KV381054S0
Puller

Removing drive pinion oil seal

ST23860000
Drift
a:

φ

38 mm (1.50 in) dia.

b:

φ

33 mm (1.30 in) dia.

Installing inner race of drive pinion bearing
(front side)

ST3127S000
Preload gauge

Measuring preload torque

ST38280000
Bushing remover

Installing outer race of drive pinion bearing
(front side)

ST33230000
Drift
a:

φ

51 mm (2.01 in) dia.

Installing outer race of drive pinion bearing
(rear side)

Tool number
Tool name

Description

ZZA1003D

ZZA0601D

ZZA0534D

ZZA0503D

NT685

ZZA0938D

PREPARATION

DLN-103

< PREPARATION >

[TRANSFER: TY30A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

Tool name

Description

Drift
a:

φ

63 mm (2.48 in) dia.

b:

φ

58 mm (2.28 in) dia.

Installing adapter case oil seal (inner)

Drift
a:

φ

90 mm (3.54 in) dia.

b:

φ

88 mm (3.46 in) dia.

Installing adapter case oil seal (outer)

Drift
a:

φ

12 mm (0.47 in) dia.

b:

φ

18 mm (0.71 in) dia.

Removing inner race of ring gear shaft bear-
ing (transfer case side)

Drift
a:

φ

49 mm (1.93 in) dia.

b:

φ

67 mm (2.64 in) dia.

Removing inner race of ring gear shaft bear-
ing (adapter case side)

Drift
a:

φ

80 mm (3.15 in) dia.

b:

φ

50 mm (1.97 in) dia.

Installing outer race of ring gear shaft bearing
(adapter case side)

Drift
a:

φ

57 mm (2.24 in) dia.

b:

φ

47 mm (1.85 in) dia.

Installing inner race of ring gear shaft bearing
(adapter case side)

Drift
a:

φ

61 mm (2.40 in) dia.

b:

φ

48 mm (1.89 in) dia.

Installing outer race of drive pinion bearing
(front side)

ZZA1003D

ZZA1003D

ZZA1178D

NT660

ZZA1000D

ZZA1003D

ZZA1000D
