DLN-96

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21C]

TRANSFER CASE

2.

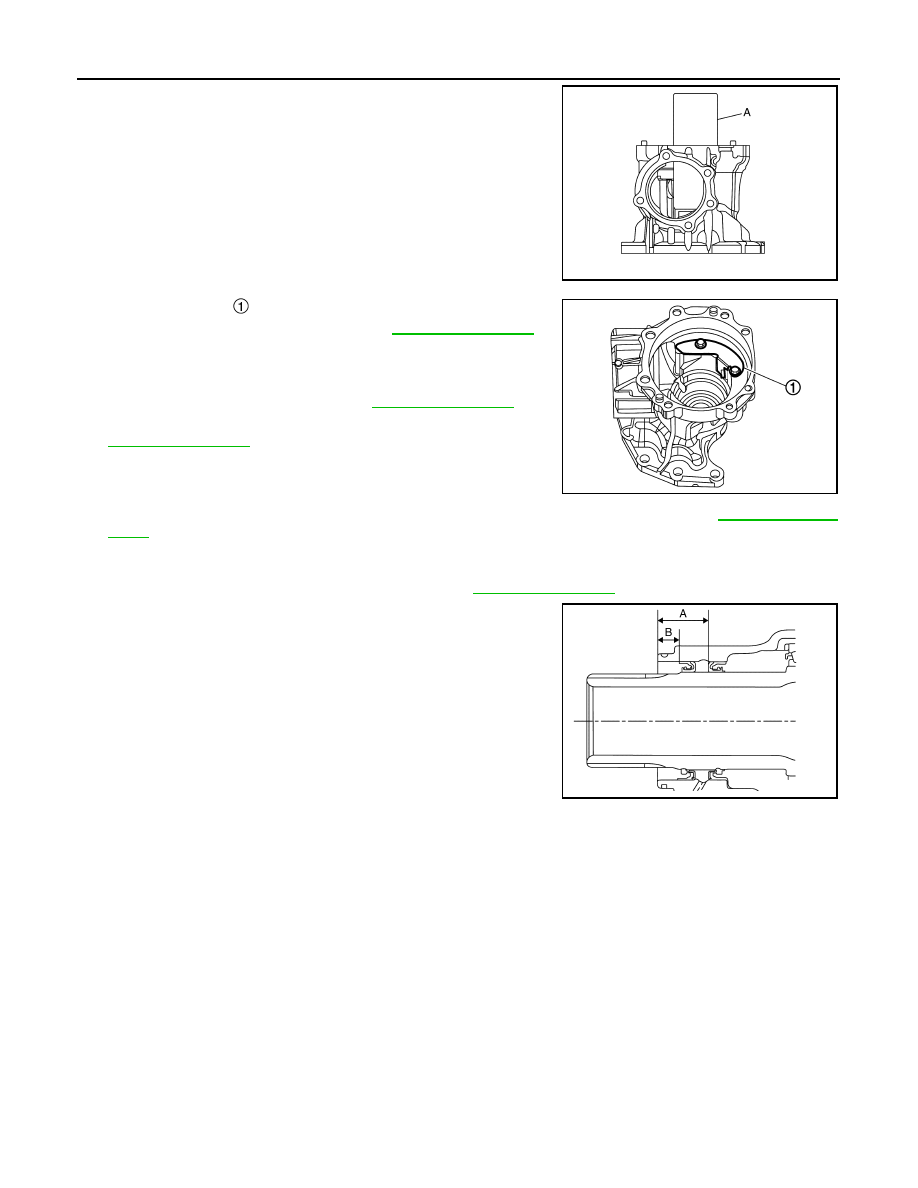

Install the selected ring gear bearing adjusting shim (transfer
case side) and ring gear bearing outer race (transfer case side)
using suitable tool (A).

CAUTION:

• Never reuse ring gear bearing.
• Apply transfer oil to the ring gear bearing.

3.

Install baffle plate

.

4.

Install ring gear shaft assembly. Refer to

DLN-84, "Assembly"

.

CAUTION:

Protect transfer case oil seals beforehand from being dam-
aged by the spline of ring gear shaft.

5.

Install drive pinion assembly. Refer to

DLN-87, "Assembly"

.

6.

Install transfer cover to check and adjust each part. Refer to

DLN-80, "Assembly"

.

NOTE:
At this timing, O-ring installing to transfer cover is not necessary.
Install O-ring after backlash and tooth contact are checked.

7.

Check backlash, tooth contact, total preload and companion flange runout. Refer to

DLN-88, "Adjust-

ment"

.

CAUTION:

Measure the total preload without oil seals of transfer cover and transfer case.

8.

Reinstall transfer cover for installing O-ring. Refer to

DLN-80, "Assembly"

.

9.

Install oil seals using suitable tool.

CAUTION:

• When checking the total preload torque, measure it with-

out the oil seal, then install the oil seal.

• Never reuse the oil seal.
• When installing, never incline oil seal.
• Apply multi-purpose grease onto oil seal lips, and transfer

oil onto the circumference of the oil seal.

• Never damage oil seals by spline of ring gear shaft.

10. After installing oil seals to transfer case, remove wrapped vinyl from the spline of ring gear shaft.

11. Apply multi-purpose grease lightly and evenly onto an O-ring, and install it to the transfer case.

CAUTION:

• Never reuse O-ring.
• When installing O-ring, never use a suitable tool.
• Never damage O-ring.

Inspection

INFOID:0000000010755210

INSPECTION AFTER DISASSEMBLY

Check items below. If necessary, replace them with new ones.

Case

Check the bearing mounting surface for wear, cracks and damages.

JSDIA3998ZZ

A

: 24.8 mm (0.976 in)

B

: 10.3 mm (0.406 in)

JSDIA3982ZZ

JSDIA4047ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

DLN-97

< SERVICE DATA AND SPECIFICATIONS (SDS)

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

INFOID:0000000010755212

Preload Torque

INFOID:0000000010755213

Unit: N·m (kg-m, in-lb)

Backlash

INFOID:0000000010755214

Unit: mm (in)

Companion Flange Runout

INFOID:0000000010755215

Unit: mm (in)

Applied model

Axle

4WD

Engine

MR20DD

Transaxle

CVT

Transfer model

TY21C

Gear ratio

0.404

Number of teeth

Ring gear

42

Drive pinion

17

Oil capacity

Refer to

MA-59, "Fluids and Lubricants"

.

Item

Standard

Pinion bearing preload (P

1

)

0.25 – 1.15 (0.03 – 0.11, 3.0 – 10.0)

Total preload

With all oil seals

P

1

 + 0.7 – 1.0 (0.08 – 0.1, 7.0 – 8.0)

Without oil seals (for transfer cover and
transfer case)

P

1

 + 0.5 – 0.8 (0.06 – 0.08, 5.0 – 7.0)

Item

Standard

Ring gear to drive pinion

0.16 – 0.21 (0.0063 – 0.0083)

Item

Standard

Companion flange face runout

0.15 (0.0059) or less

Inner side of the companion flange runout

0.1 (0.004) or less

DLN-98

< PRECAUTION >

[TRANSFER: TY30A]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precautions for Removing Battery Terminal

INFOID:0000000010508557

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

1.

Open the hood.

2.

Turn key switch to the OFF position with the driver side door opened.

3.

Get out of the vehicle and close the driver side door.

4.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

5.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

1.

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

2.

Open the driver side door.

3.

Open the hood.

4.

Close the driver side door.

5.

Wait at least 3 minutes.

SEF289H

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

PRECAUTIONS

DLN-99

< PRECAUTION >

[TRANSFER: TY30A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010505230

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000010505229

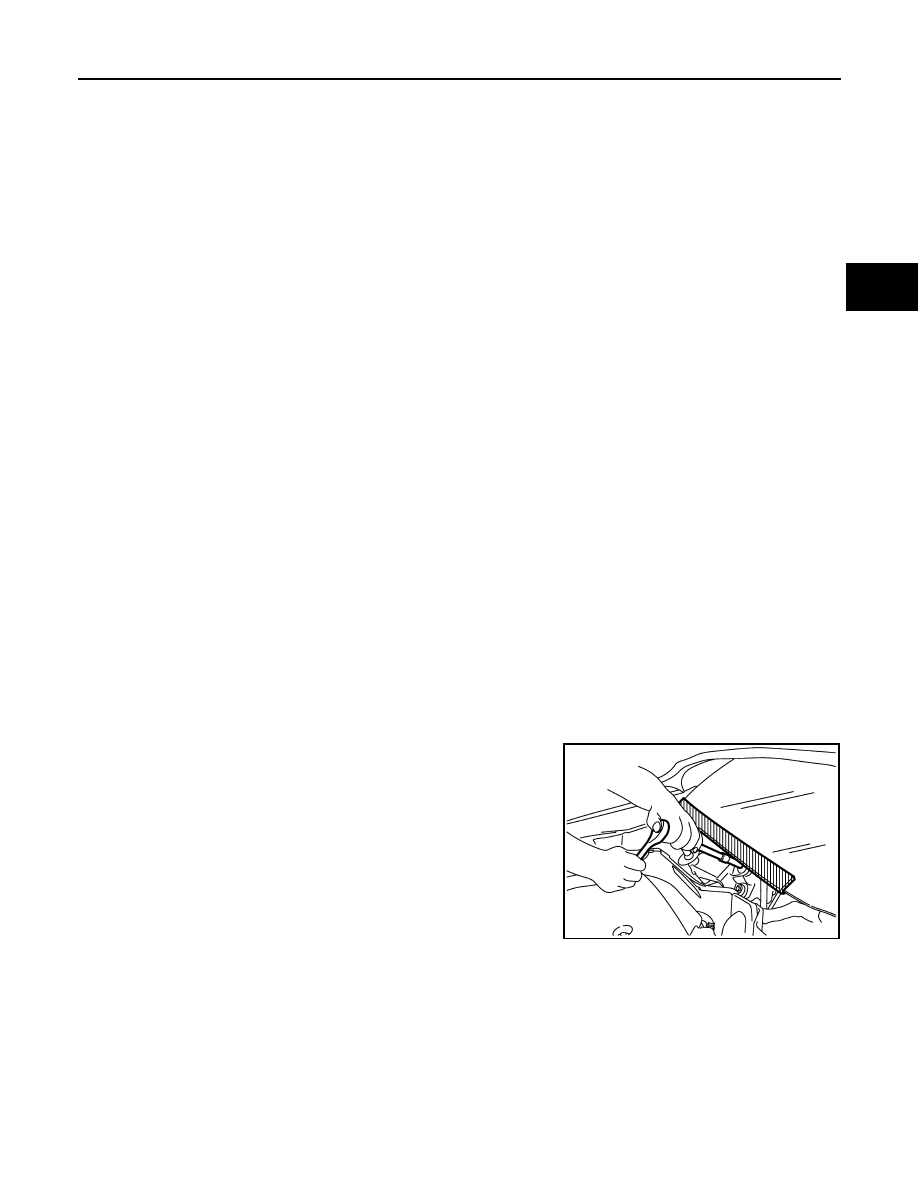

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc to prevent damage to
windshield.

Service Notice or Precautions for Transfer

INFOID:0000000010288327

CAUTION:

• After overhaul refill the transfer with new transfer oil.
• Check the oil level or replace the oil only with the vehicle parked on level surface.
• During removal or installation, keep inside of transfer clear of dust or dirt.
• Replace all tires at the same time. Always use tires of the proper size and the same brand and pat-

tern. Fitting improper size and unusual wear tires applies excessive force to vehicle mechanism and
can cause longitudinal vibration.

• Disassembly should be done in a clean work area.

PIIB3706J
