DIFFERENTIAL SIDE OIL SEAL

TM-639

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

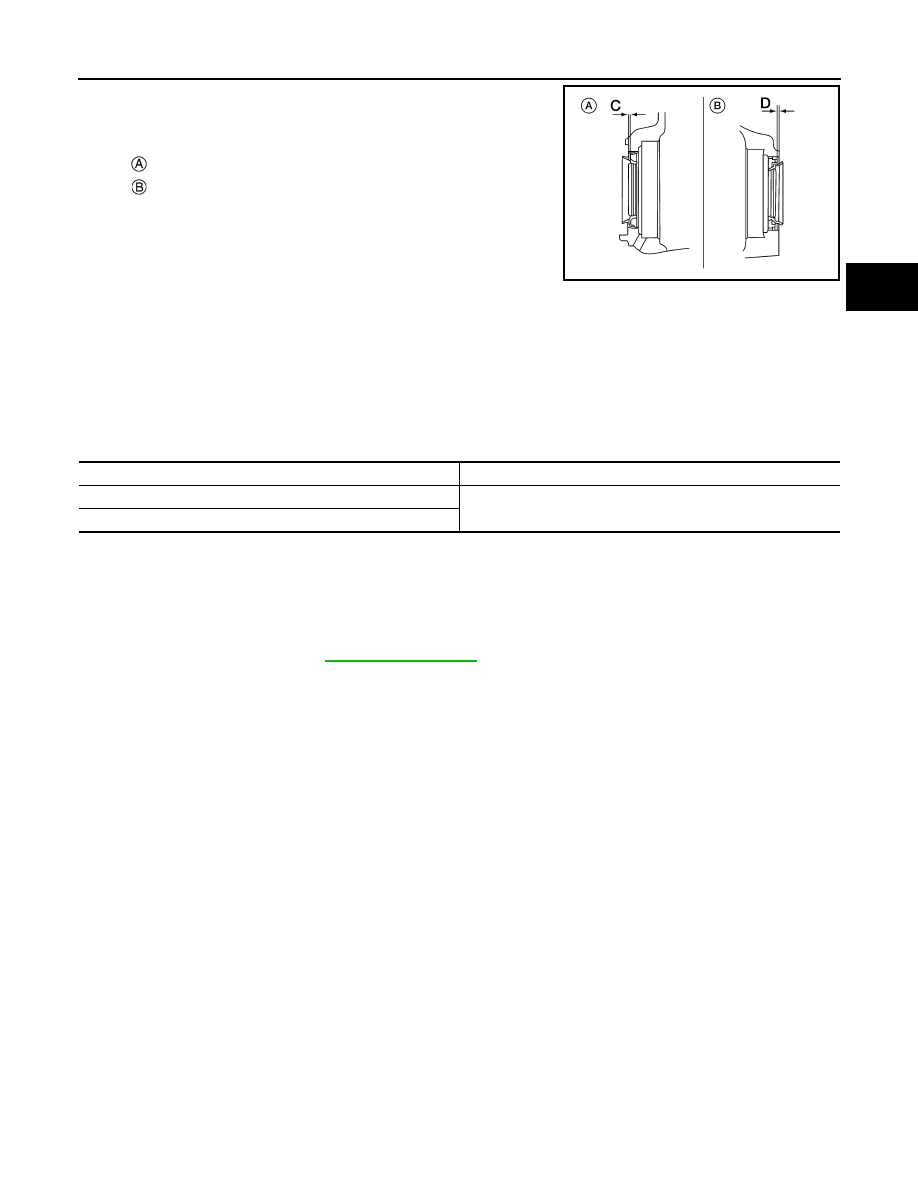

Install each differential side oil seal evenly using Tool so that differ-
ential side oil seal protrudes by the dimension (C) and (D) respect-
fully.

NOTE:

The reference is the installation direction of the differential side oil seal.

Drift to be used:

Inspection and Adjustment

INFOID:0000000010245701

INSPECTION AFTER INSTALLATION

Drive the vehicle and check visually that there is no leakage of CVT fluid.

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT fluid level. Refer to

TM-615, "Adjustment"

.

: Differential side oil seal (left side)

: Differential side oil seal (right side)

ALDIA0400ZZ

Dimension (C)

:Height difference from case end surface is within 1.8

±

 0.5 mm (0.071

±



0.020 in).

Dimension (D)

:Height difference from case end surface is within 2.2

±

 0.5 mm (0.087

±



0.020 in).

Location

Commercial Service Tools

Transaxle case side

Commercial service tool with outer dia. 56 mm (2.20 in) and in-
ner dia. 50 mm (1.97 in)

Converter housing side

TM-640

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

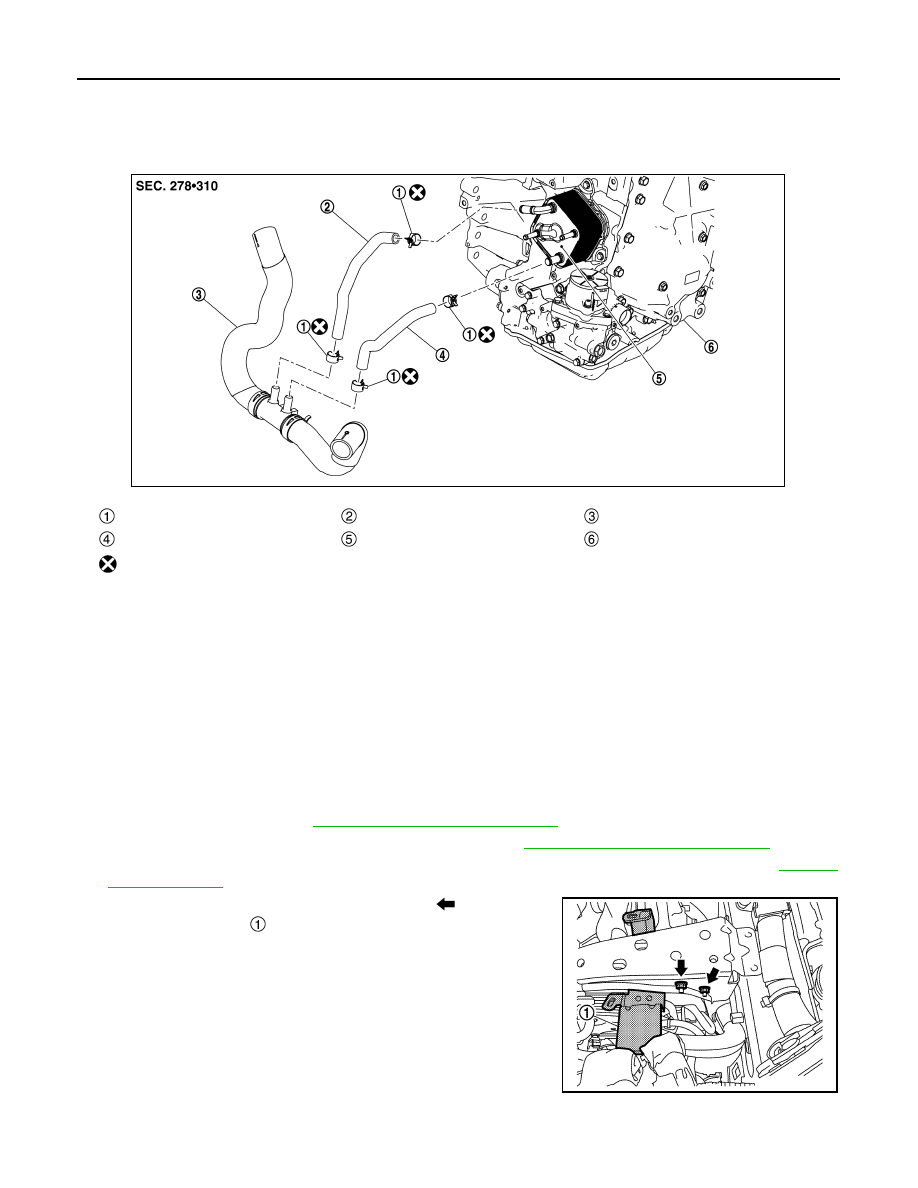

WATER HOSE

WATER HOSE

Exploded View

INFOID:0000000010248018

Removal and Installation

INFOID:0000000010248019

REMOVAL

WARNING:

Do not remove the radiator cap when the engine is hot. Serious burns could occur from high pressure
coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly turn it a quarter turn to
allow built-up pressure to escape. Carefully remove the cap by turning it all the way.

CAUTION:

Perform when the engine is cold.
NOTE:
When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-
ing.

1.

Remove the battery. Refer to

PG-155, "Removal and Installation"

.

2.

Remove the ECM (TCM) bracket and ECM (TCM). Refer to

TM-625, "Removal and Installation"

.

3.

Remove the battery mounting bracket assembly and battery mounting bracket. Refer to

PG-154,

"Exploded View"

.

4.

Remove the harness bracket mounting nuts (

) and remove

the harness bracket

 from the vehicle.

5.

Remove the engine undercover.

6.

Release hose clamps and remove CVT water hose.

CAUTION:

Do not reuse hose clamps.

INSTALLATION

Installation is in the reverse order of removal.

Hose clamp

Water hose A

Radiator hose assembly

Water hose B

CVT oil warmer

Transaxle assembly

: Always replace after every disassembly.

JSDIA5221ZZ

JSDIA5410ZZ

WATER HOSE

TM-641

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

CAUTION:

Do not reuse hose clamps.

•

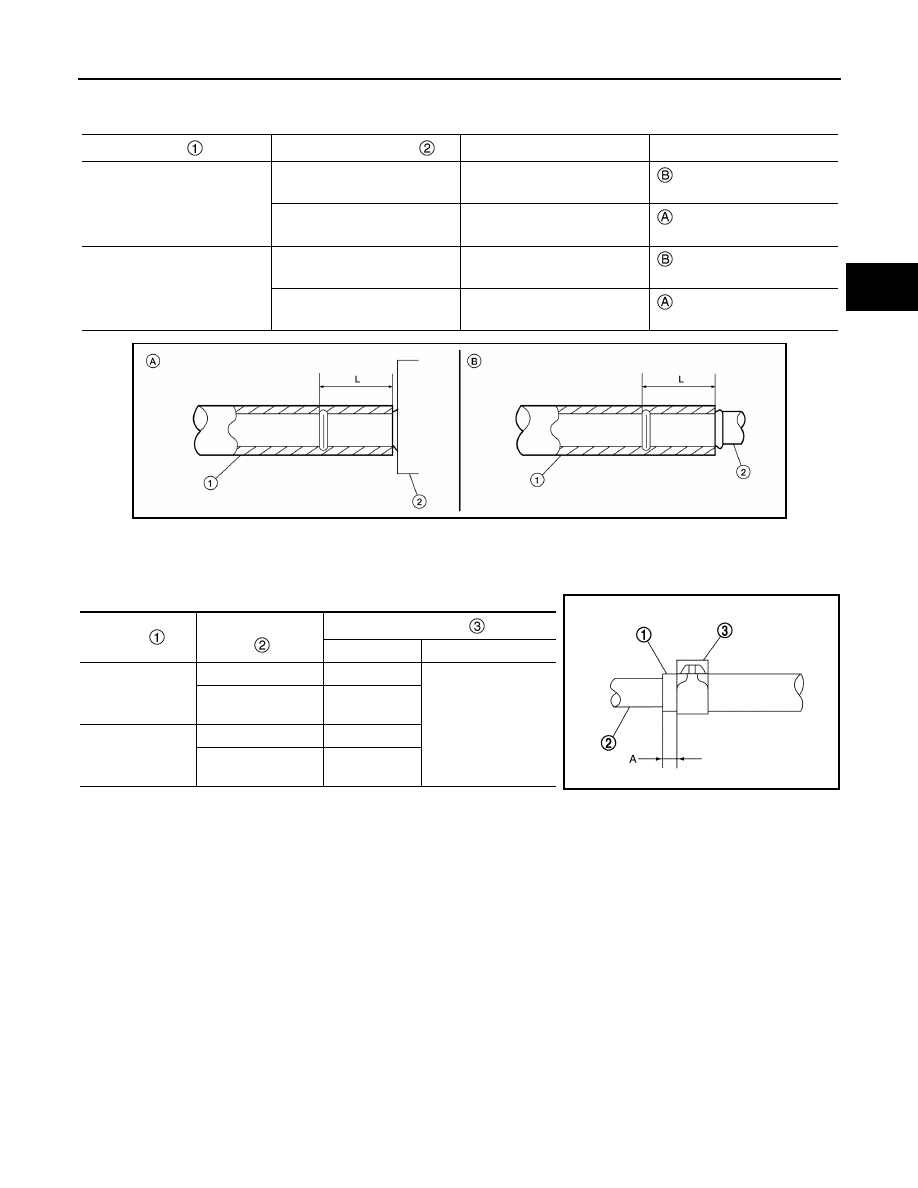

• Refer to the followings when installing hose clamp.

CAUTION:

• Hose clamp should not interfere with the bulge of tube.

Inspection

INFOID:0000000010248020

INSPECTION AFTER INSTALLATION

Start and warm up the engine. Visually check that there is no leakage of engine coolant and CVT fluid.

Hose

Installation side tube

Direction of paint mark

Hose insertion depth “L”

Water hose A

CVT oil warmer

Frontward

: End reaches the 2-stage

bulge.

Radiator hose assembly

Frontward

: Hose end reaches the end

of radiator hose assembly tube.

Water hose B

CVT oil warmer

Upward

: End reaches the 2-stage

bulge.

Radiator hose assembly

Frontward

: Hose end reaches the end

of radiator hose assembly tube.

ALDIA0475ZZ

Hose

Installation side tube

Hose clamp

Direction of tab

Clamping position

Water hose A

CVT oil warmer

Frontward

 5 – 7 mm (0.20 – 0.28
in) (A) from hose end

Radiator hose as-
sembly

Rearward

Water hose B

CVT oil warmer

Leftward

Radiator hose as-
sembly

Rearward

JSDIA2424ZZ

TM-642

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

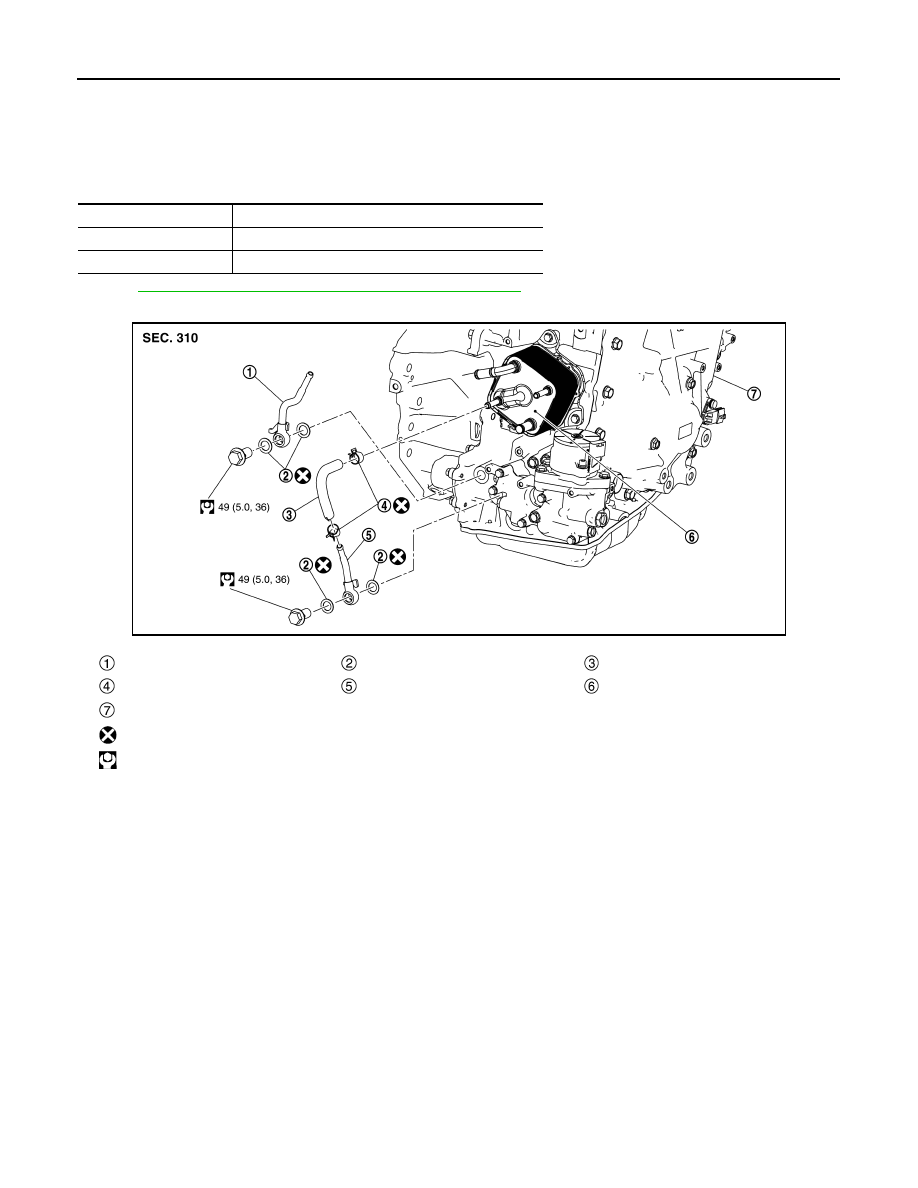

FLUID COOLER SYSTEM

FLUID COOLER SYSTEM

Exploded View

INFOID:0000000010248021

INFORMATION

Refer to

GI-24, "Information About Identification or Model Code"

 to identify a production plant.

Transaxle side

Service information

Destination

Type A

Except for Russia production models

Type B

Russia production models

JSDIA5222GB

CVT fluid cooler tube A

Copper washer

CVT fluid cooler hose A

Hose clamp

CVT fluid cooler tube B

CVT oil warmer

Transaxle assembly

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)
