ECH-270

< DTC/CIRCUIT DIAGNOSIS >

[HRA2DDT]

P1650 STARTER MOTOR RELAY 2

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK ENGINE RESTART RELAY POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect IPDM E/R harness connector.

3.

Check the continuity between engine restart relay harness connector and IPDM E/R harness connector.

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> Replace IPDM E/R.

NO

>> Repair or replace error-detected parts.

3.

CHECK ENGINE RESTART RELAY POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect starter relay.

3.

Check the continuity between engine restart relay harness connector and starter relay harness connector.

4.

Also check harness for short to ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Perform the trouble diagnosis for starter relay routing circuit.

4.

CHECK ENGINE RESTART RELAY CONTROL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between engine restart relay harness connector and ECM harness connector.

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace error-detected parts.

5.

CHECK ENGINE RESTART RELAY OUTPUT SIGNAL CIRCUIT

+

–

Voltage

Engine restart relay

Connector

terminal

F163

2

Ground

Battery voltage

+

–

Continuity

Engine restart relay

IPDM E/R

Connector

terminal

Connector

terminal

F163

2

E39

44

Existed

+

–

Continuity

Starter relay

Engine restart relay

Connector

terminal

Connector

terminal

F162

3

F163

5

Existed

+

–

Continuity

Engine restart relay

ECM

Connector

terminal

Connector

terminal

F163

1

F17

39

Existed

P1650 STARTER MOTOR RELAY 2

ECH-271

< DTC/CIRCUIT DIAGNOSIS >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

ECH

N

P

O

1.

Check the continuity between engine restart relay harness connector and IPDM E/R harness connector.

2.

Disconnect starter motor terminal.

3.

Check the continuity between engine restart relay and starter motor.

4.

Also check harness for short to ground.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace error-detected parts.

6.

CHECK ENGINE RESTART RELAY

Check engine restart relay. Refer to

ECH-271, "Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.

NO

>> Replace engine restart relay.

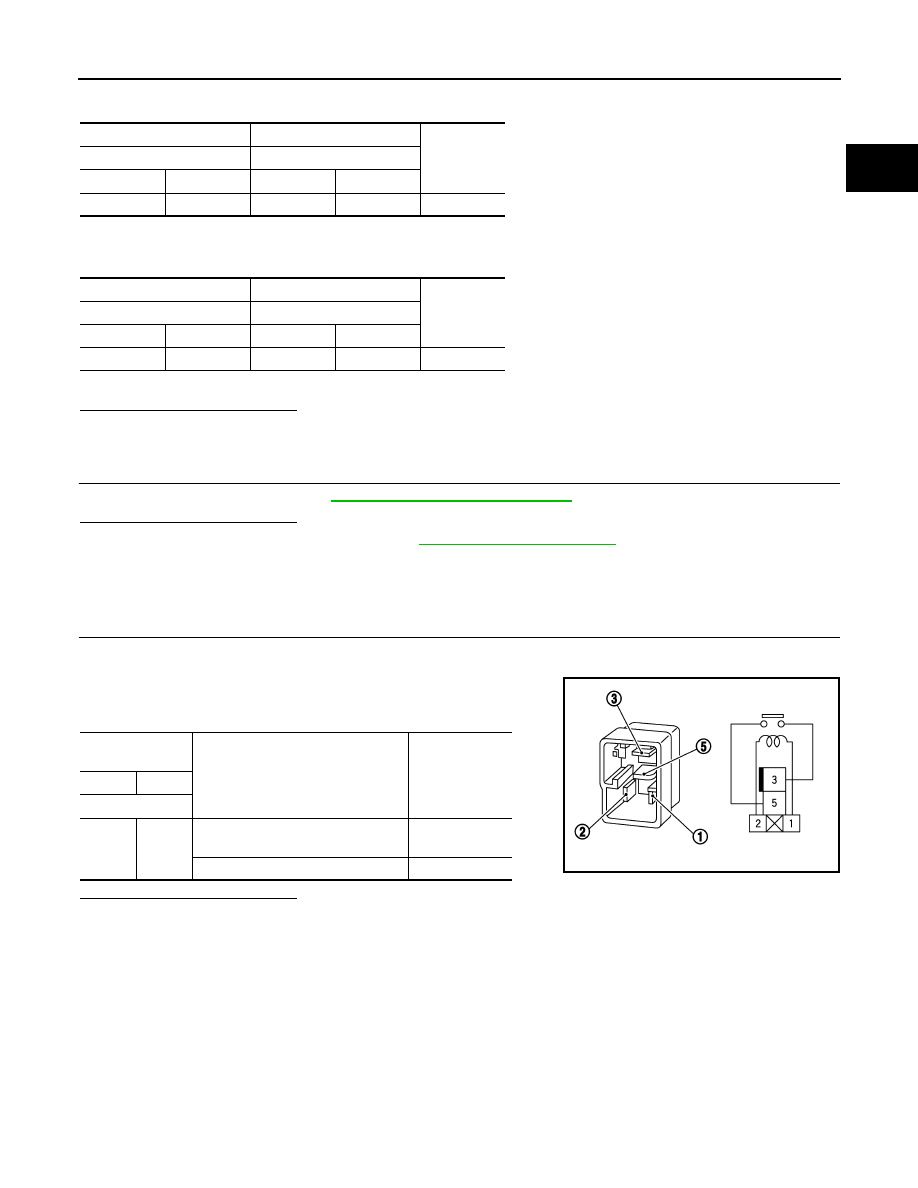

Component Inspection

INFOID:0000000010500727

1.

CHECK ENGINE RESTART RELAY

1.

Turn ignition switch OFF.

2.

Remove engine restart relay.

3.

Check the continuity between engine restart relay terminals as
per the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace engine restart relay.

+

–

Continuity

Engine restart relay

IPDM E/R

Connector

terminal

Connector

terminal

F163

3

F88

65

Existed

+

–

Continuity

Engine restart relay

Starter motor

Connector

terminal

Connector

terminal

F163

3

F104

1

Existed

Engine restart re-

lay

Condition

Continuity

+

–

terminal

3

5

12V direct current supply between
terminals 1 and 2

Existed

No supply

Not existed

PIIA2636J

ECH-272

< DTC/CIRCUIT DIAGNOSIS >

[HRA2DDT]

P1655 ENGINE RESTART BYPASS RELAY

P1655 ENGINE RESTART BYPASS RELAY

DTC Logic

INFOID:0000000010500732

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure
before conducting the next test.
1.

Turn ignition switch OFF and wait at least 12 minutes.

2.

Turn ignition switch ON.

3.

Turn ignition switch OFF and wait at least 12 minutes.

>> With consult: GO TO 2.
>> Without consult: GO TO 3.

2.

PERFORM DTC CONFIRMATION PROCEDURE-1

With CONSULT

1.

Start the engine and warm it up to normal operating temperature.

2.

Press start/stop OFF switch and check that the switch indicator is ON.

3.

Select “AUTO STOP START” in “ACTIVE TEST” mode of “ENGINE” using CONSULT.

4.

Touch “START” and operate stop/start system. (engine stop.)

5.

Touch “CANCEL” and restart the engine.

6.

Repeat Step 3 and Step 4 twice.

7.

Check “ENG RESTART B/R STK CNT” in “DATA MONITOR” mode of CONSULT to see if engagement
counts are counted.

Are engagement counts counted?

YES

>> Proceed to

ECH-272, "Diagnosis Procedure"

.

NO

>> INSPECTION END

3.

PERFORM DTC CONFIRMATION PROCEDURE-2

Without CONSULT

1.

Activate the stop/start system. Stop the engine. Restart the engine. Refer to

ECH-33, "STOP/START

SYSTEM : System Description"

.

2.

Repeat Step 1 four times.

CAUTION:

Always drive vehicle at a safe speed.

Is the DTC P1655 displayed again?

YES

>> Proceed to

ECH-272, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000010500733

1.

CHECK FUSE

1.

Turn ignition switch OFF.

2.

Check that there is no blowout in the following fuse.

DTC

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

Possible cause

P1655

—
—

At an engine restart by stop/start system,
the voltage drop is not allowable less than
Approx. 0.1 V when the engine restart by-
pass relay becomes closed from the open
status, and this condition is repeated three
times in a row.

• Harness or connectors

(Engine restart bypass relay circuit is open
or shorted.)
(Engine restart bypass control relay circuit
is open or shorted.)

• Engine restart bypass relay
• Engine restart bypass control relay

P1655 ENGINE RESTART BYPASS RELAY

ECH-273

< DTC/CIRCUIT DIAGNOSIS >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

ECH

N

P

O

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace the fuse after repairing the applicable circuit.

2.

CHECK ENGINE RESTART BYPASS CONTROL RELAY POWER SUPPLY

1.

Turn ignition switch OFF.

2.

Remove engine restart bypass control relay.

3.

Turn ignition switch ON.

4.

Check the voltage between engine restart bypass control relay harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Perform the trouble diagnosis for power supply circuit.

3.

CHECK ENGINE RESTART BYPASS CONTROL RELAY CIRCUIT-1

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between engine restart bypass control relay harness connector and ECM harness
connector.

4.

Also check harness for short to ground and to power.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace error-detected parts.

4.

CHECK ENGINE RESTART BYPASS CONTROL RELAY CIRCUIT-2

1.

Disconnect engine restart bypass relay harness connector.

2.

Check the continuity between engine restart bypass control relay harness connector and engine restart
bypass relay harness connector.

3.

Also check harness for short to ground and to power.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace error-detected parts.

Location

Fuse No.

Capacity

Fuse block (J/B)

7

20A

+

−

Voltage

Engine restart bypass control relay

Connector

Terminal

F98

1

Ground

Battery voltage

5

+

−

Continuity

Engine restart bypass con-

trol relay

ECM

Connector

Terminal

Connector

Terminal

F98

2

F17

83

Existed

+

−

Continuity

Engine restart bypass con-

trol relay

Engine restart bypass relay

Connector

Terminal

Connector

Terminal

E98

3

F146

1

Existed
