REAR VIEW CAMERA

Removal and Installation

INFOID:0000000010435630

REMOVAL

1.

Remove the back door outer finisher. Refer to

EXT-45, "Exploded View"

.

2.

Release pawl, disconnect harness connector from rear view camera and remove.

INSTALLATION

Installation is in the reverse order of removal.

AV-122

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

AUDIO ANTENNA

AUDIO ANTENNA

Removal and Installation

INFOID:0000000010435631

REMOVAL

1.

Remove the luggage side upper finisher (RH). Refer to

INT-28, "Exploded View"

.

2.

Partially lower headlining (rear). Refer to

INT-24, "Exploded View"

.

3.

Disconnect harness connectors from antenna feeder.

4.

Remove nut from audio antenna and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

If the audio antenna nut is not properly tightened, lower sensitivity of the antenna may be experi-
enced. If the nut is over tightened, this will deform the roof panel.

Audio antenna nut

: 6.5 N·m (0.66 kg-m, 58 in-lb)

AV

ANTENNA FEEDER

AV-123

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ANTENNA FEEDER

Feeder Layout

INFOID:0000000010435632

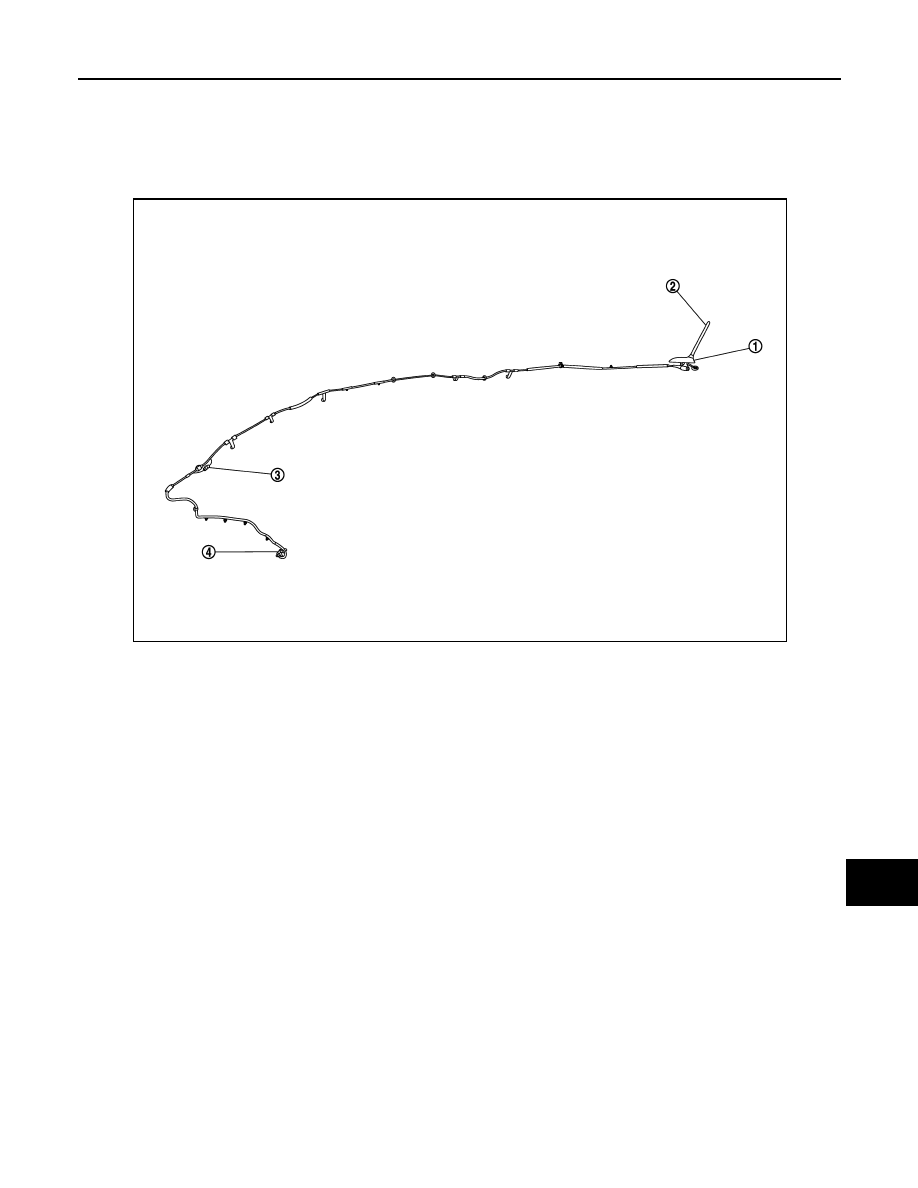

ANTENNA FEEDER LAYOUT

1.

Antenna base (antenna amp. and
satellite antenna)

2.

Rod Antenna

3.

M394

4.

M385

E1NIA0073ZZ

AV-124

< PRECAUTION >

[NAVIGATION]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010519312

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precautions for Removing Battery Terminal

INFOID:0000000010519319

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

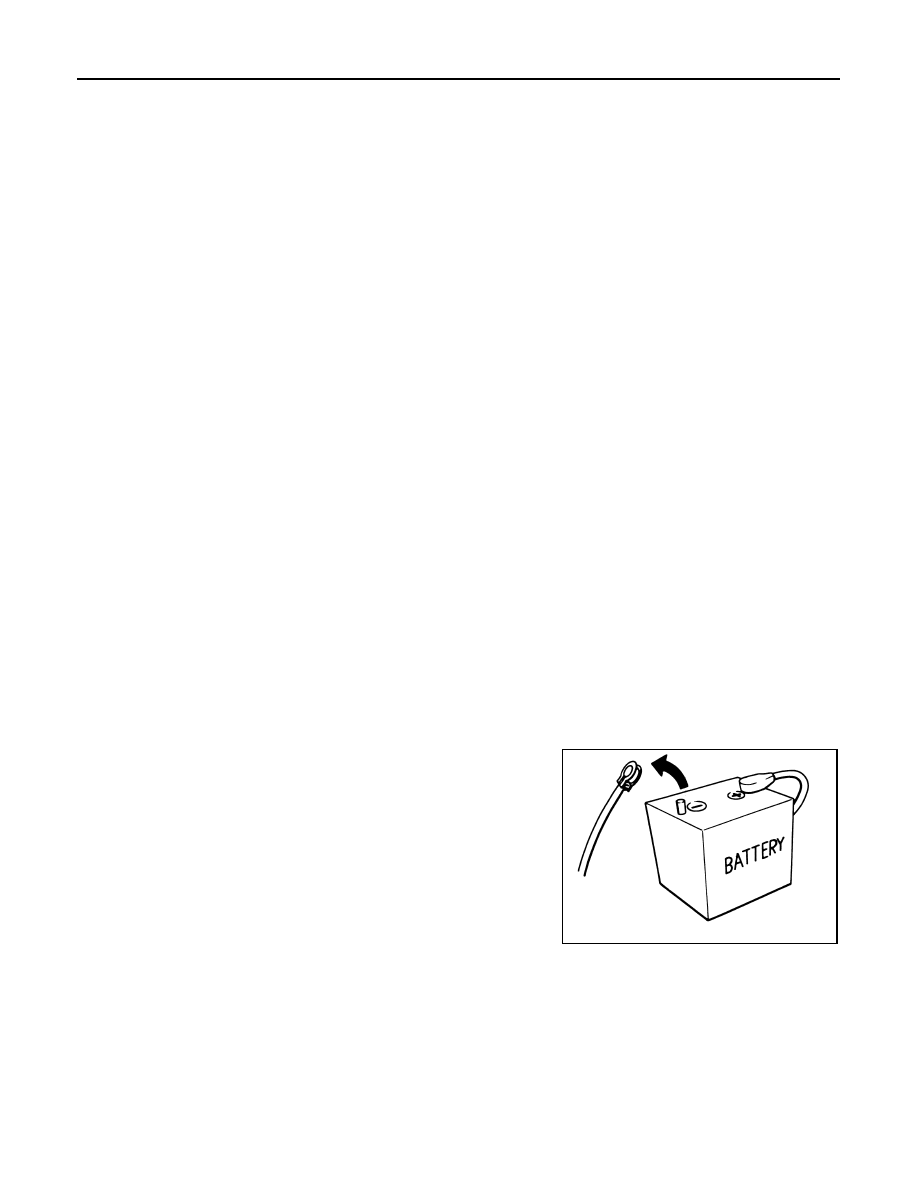

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

1.

Open the hood.

2.

Turn key switch to the OFF position with the driver side door opened.

3.

Get out of the vehicle and close the driver side door.

4.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

SEF289H
