Nissan Qashqai J11. Manual - part 2107

AV

FRONT DOOR SPEAKER

AV-117

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

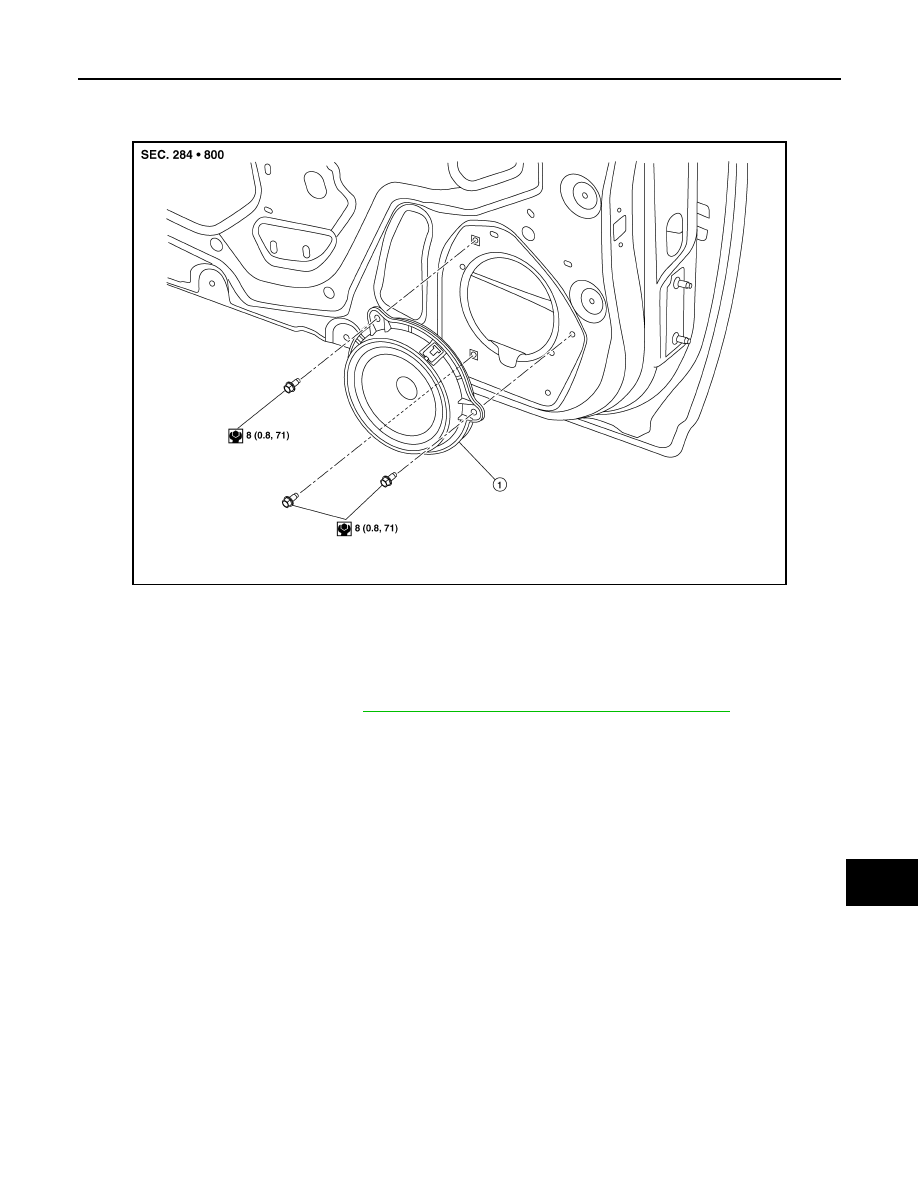

FRONT DOOR SPEAKER

Exploded View

INFOID:0000000010435624

Removal and Installation

INFOID:0000000010435625

REMOVAL

1.

Remove front door finisher. Refer to

INT-12, "FRONT DOOR FINISHER : Exploded View"

.

2.

Remove front door speaker bolts, then pull out front door speaker.

3.

Disconnect the harness connector from front door speaker and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1580ZZ

1.

Front door speaker

AV-118

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

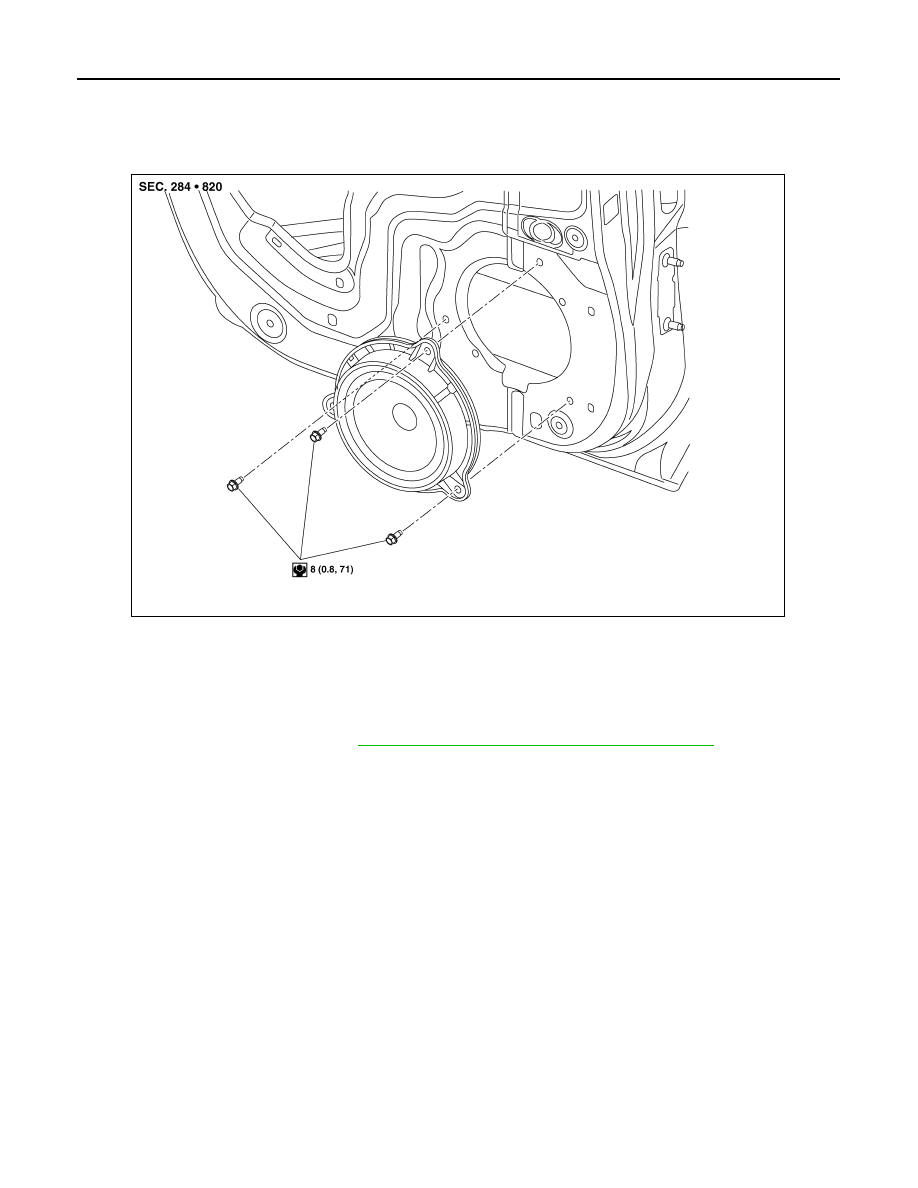

REAR DOOR SPEAKER

REAR DOOR SPEAKER

Exploded View

INFOID:0000000010435626

Removal and Installation

INFOID:0000000010435627

REMOVAL

1.

Remove rear door finisher. Refer to

INT-15, "REAR DOOR FINISHER : Exploded View"

.

2.

Remove rear door speaker bolts, then pull out rear door speaker.

3.

Disconnect the harness connector from the rear door speaker and remove.

INSTALLATION

Installation is in the reverse order of removal.

1.

Rear door speaker

ALNIA1581ZZ

AV

USB INTERFACE AND AUX IN JACK

AV-119

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

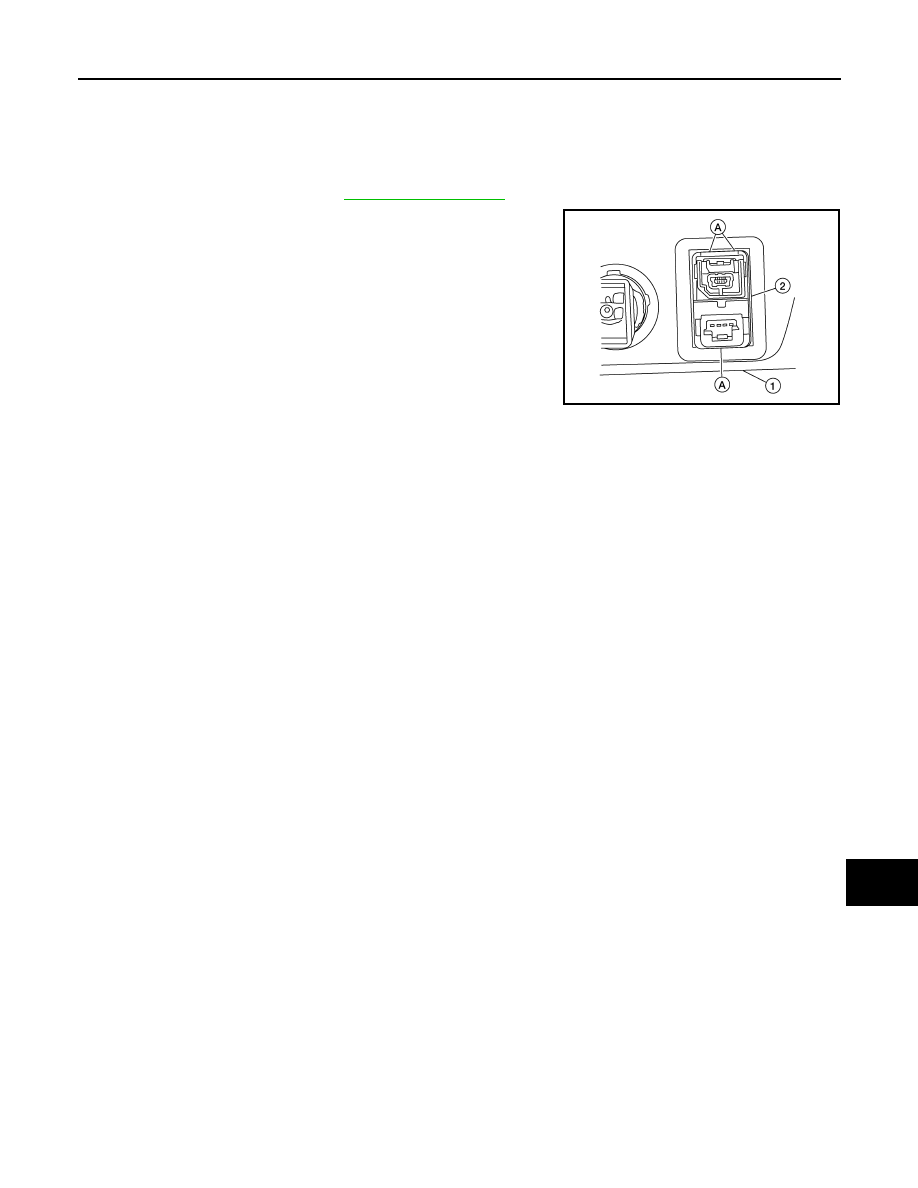

USB INTERFACE AND AUX IN JACK

Removal and Installation

INFOID:0000000010435628

REMOVAL

1.

Remove center console. Refer to

IP-18, "Exploded View"

.

2.

Release the pawls (A) on the back of USB interface and AUX in
jack (2).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1582ZZ

AV-120

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

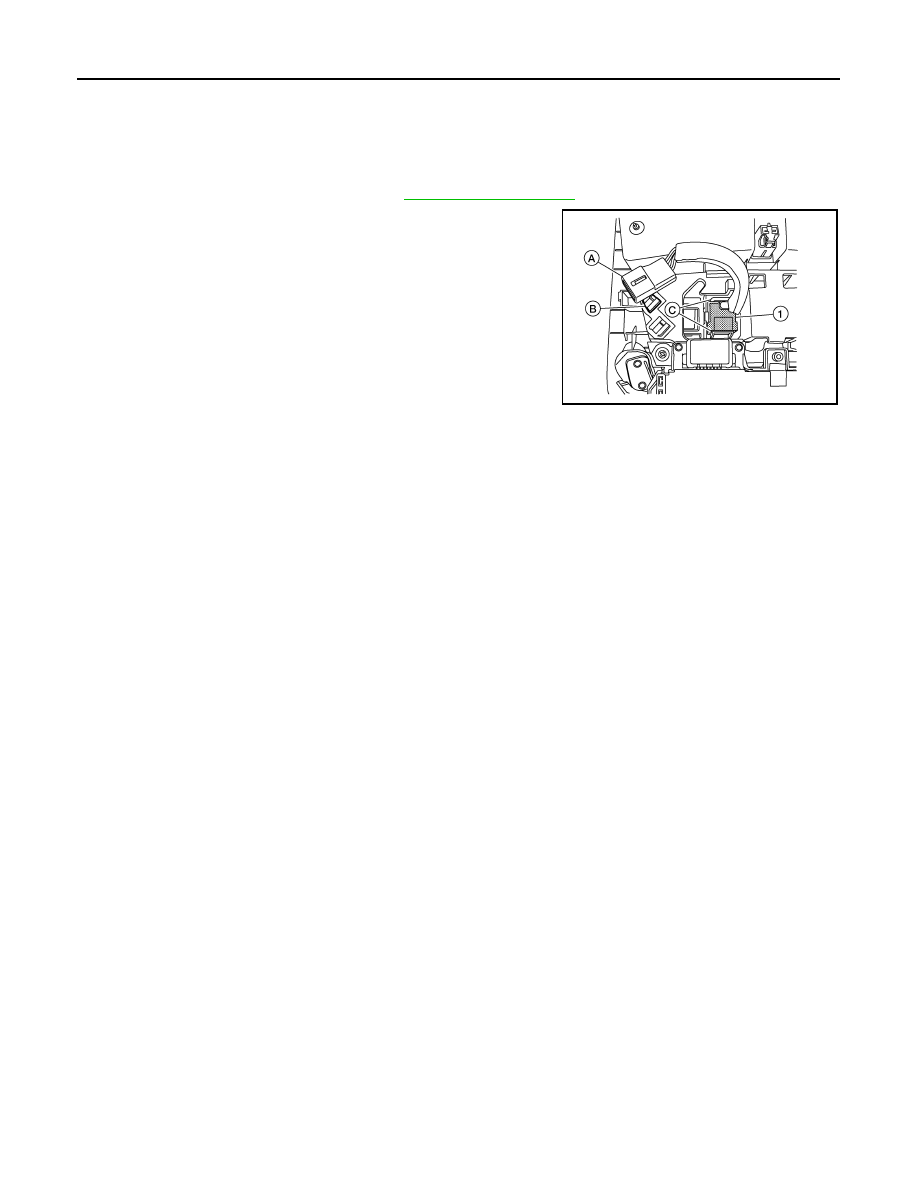

MICROPHONE

MICROPHONE

Removal and Installation

INFOID:0000000010435629

REMOVAL

1.

Remove the map lamp assembly. Refer to

INT-24, "Exploded View"

.

2.

Release harness connector (A) by sliding rearward to remove
from the pawl (B).

3.

Release pawls (C) and remove the microphone (1) from the
front room/map lamp assembly.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1583ZZ
