WW-94

< REMOVAL AND INSTALLATION >

WIPER AND WASHER SWITCH

WIPER AND WASHER SWITCH

Removal and Installation

INFOID:0000000010479849

Wiper and washer switch is integrated in the combination switch. Refer to

BCS-133, "Removal and Installa-

tion"

.

HEADLAMP WASHER SWITCH

WW-95

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

HEADLAMP WASHER SWITCH

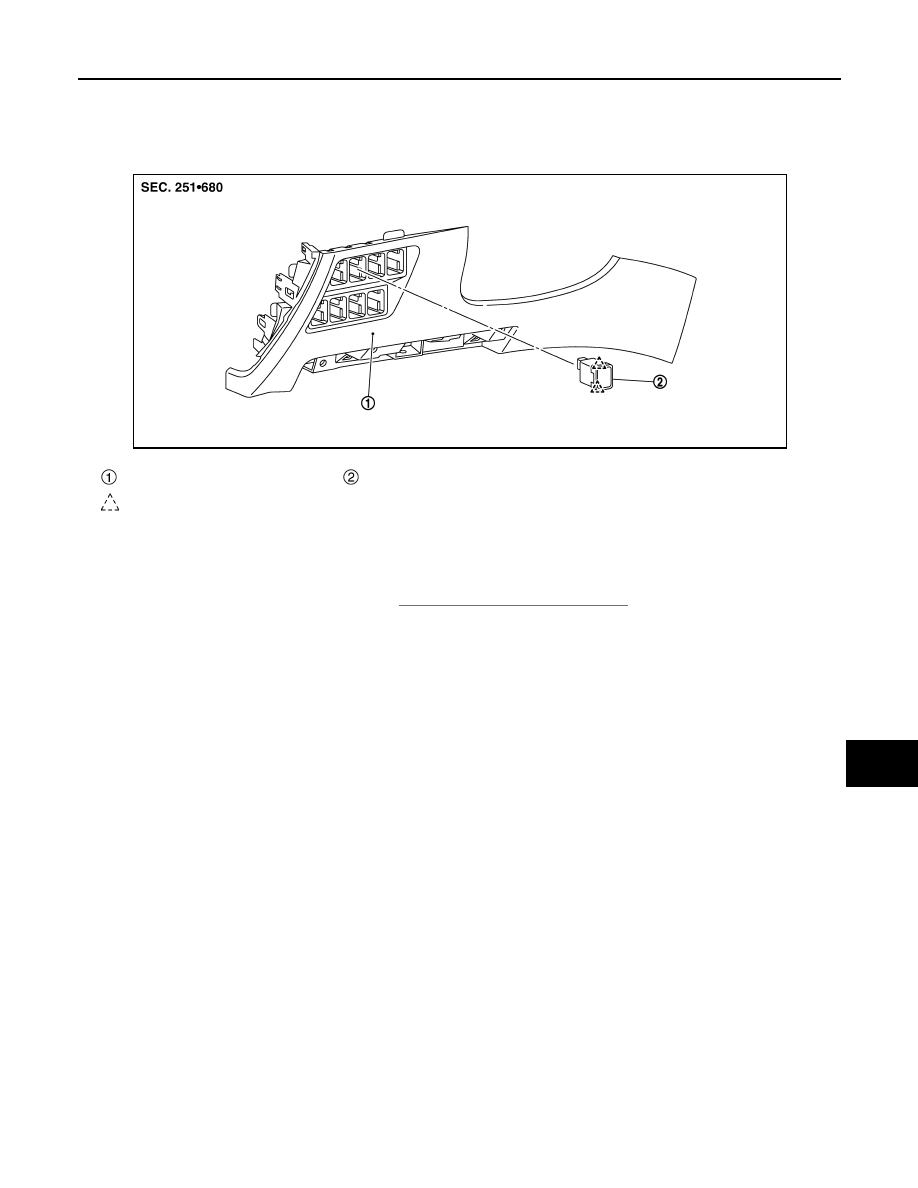

Exploded View

INFOID:0000000010721630

Removal and Installation

INFOID:0000000010721631

REMOVAL

1.

Remove instrument lower panel. Refer to

IP-13, "Removal and Installation"

.

2.

Disengage headlamp washer switch fixing pawls, and then remove headlamp washer switch.

INSTALLATION

Install in the reverse order of removal.

Instrument lower panel

Headlamp washer switch

: Pawl

JMLIA5393ZZ

DEF-1

DRIVER CONTROLS

C

D

E

F

G

H

I

J

K

M

SECTION

DEF

A

B

DEF

N

O

P

CONTENTS

DEFOGGER

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

3

Precautions for Removing Battery Terminal  .............

3

SYSTEM DESCRIPTION  ..............................

5

COMPONENT PARTS  ........................................

5

Component Parts Location ........................................

5

Rear Window Defogger  .............................................

6

Door Mirror Defogger  ................................................

6

Front Window Defogger  ............................................

6

SYSTEM ..............................................................

7

System Description  ...................................................

7

DIAGNOSIS SYSTEM (BCM)  .............................

9

COMMON ITEM  ...........................................................

9

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM) .......................................................

9

REAR WINDOW DEFOGGER ...................................

10

REAR WINDOW DEFOGGER : CONSULT Func-
tion (BCM - REAR DEFOGGER)  ............................

10

ECU DIAGNOSIS INFORMATION  ..............

12

BCM ....................................................................

12

List of ECU Reference  ............................................

12

WIRING DIAGRAM  ......................................

13

REAR WINDOW DEFOGGER SYSTEM ............

13

Wiring Diagram  .......................................................

13

BASIC INSPECTION  ...................................

22

DIAGNOSIS AND REPAIR WORK FLOW  ........

22

Work Flow  ...............................................................

22

DTC/CIRCUIT DIAGNOSIS  .........................

23

REAR WINDOW DEFOGGER SWITCH  ...........

23

Component Function Check  ....................................

23

Diagnosis Procedure  ...............................................

23

REAR WINDOW DEFOGGER RELAY  .............

25

Component Function Check  ....................................

25

Diagnosis Procedure  ...............................................

25

Component Inspection .............................................

26

REAR WINDOW DEFOGGER  ..........................

27

Component Function Check  ....................................

27

Diagnosis Procedure  ...............................................

27

DOOR MIRROR DEFOGGER ...........................

29

Component Function Check  ....................................

29

Diagnosis Procedure  ...............................................

29

DRIVER SIDE DOOR MIRROR DEFOGGER ...

30

Component Function Check  ....................................

30

Diagnosis Procedure  ...............................................

30

PASSENGER SIDE DOOR MIRROR DEFOG-
GER ...................................................................

32

Component Function Check  ....................................

32

Diagnosis Procedure  ...............................................

32

FRONT WINDOW DEFOGGER RELAY  ...........

34

Diagnosis Procedure  ...............................................

34

Component Inspection .............................................

35

FRONT WINDOW DEFOGGER  ........................

36

Diagnosis Procedure  ...............................................

36

SYMPTOM DIAGNOSIS  ..............................

37

REAR WINDOW DEFOGGER AND DOOR
MIRROR DEFOGGERS DO NOT OPERATE. ...

37

Diagnosis Procedure  ...............................................

37

DEF-2

REAR WINDOW DEFOGGER DOES NOT
OPERATE BUT BOTH DOOR MIRROR DE-
FOGGERS OPERATE  .......................................

38

Diagnosis Procedure  ..............................................

38

DOOR MIRROR DEFOGGER DOES NOT OP-
ERATE BUT REAR WINDOW DEFOGGER
OPERATE ..........................................................

39

BOTH SIDES .............................................................

39

BOTH SIDES : Diagnosis Procedure  .....................

39

DRIVER SIDE ............................................................

39

DRIVER SIDE : Diagnosis Procedure  ....................

39

PASSENGER SIDE  ...................................................

39

PASSENGER SIDE : Diagnosis Procedure ............

39

REAR WINDOW DEFOGGER INDICATOR
DOES NOT ILLUMINATE ..................................

40

Diagnosis Procedure ...............................................

40

FRONT WINDOW DEFOGGER DOES NOT
OPERATE ..........................................................

41

Diagnosis Procedure ...............................................

41

REMOVAL AND INSTALLATION ..............

42

FILAMENT .........................................................

42

Inspection and Repair  .............................................

42
