WW-90

< REMOVAL AND INSTALLATION >

HEADLAMP WASHER

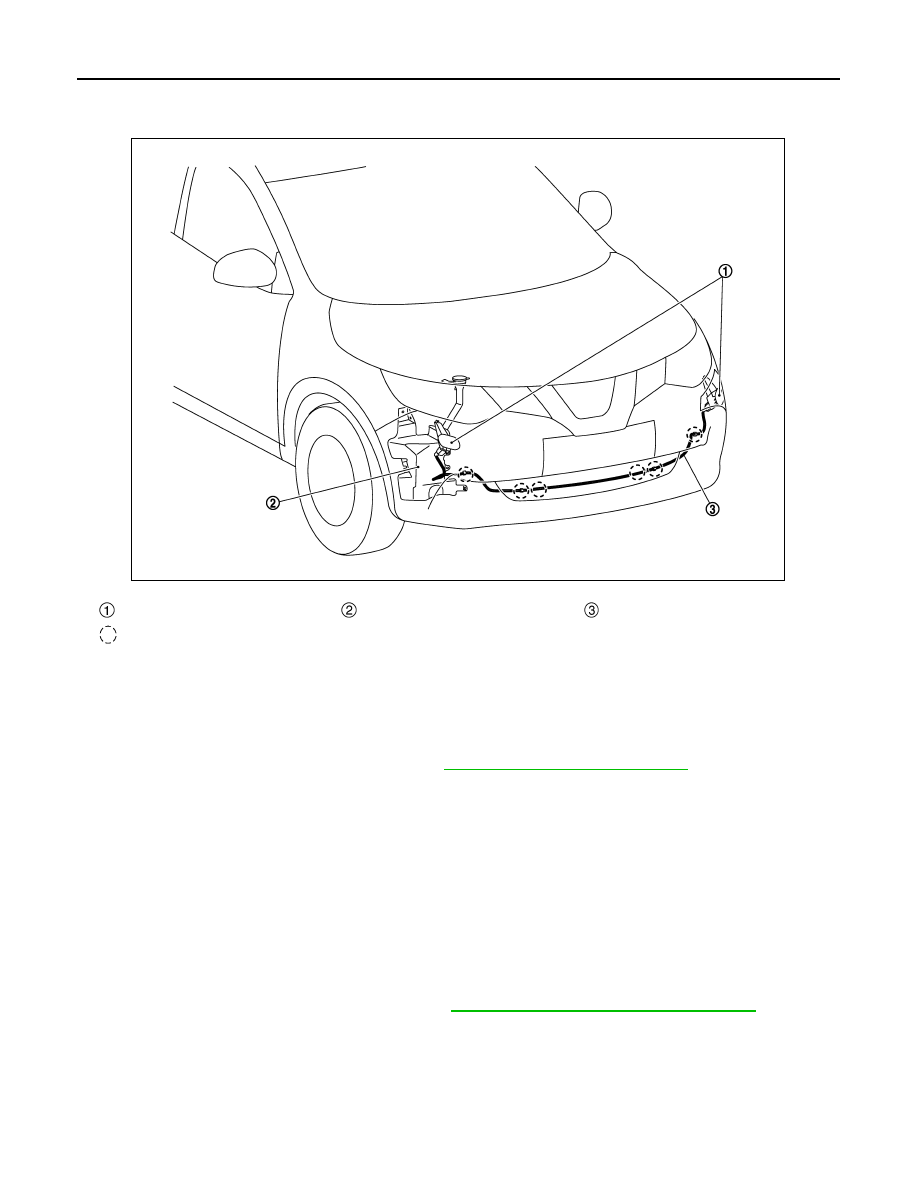

Hydraulic Layout

INFOID:0000000010479841

WASHER NOZZLE

WASHER NOZZLE : Removal and Installation

INFOID:0000000010479842

REMOVAL

1.

Remove front bumper fascia assembly. Refer to

EXT-19, "Removal and Installation"

.

2.

Disengage headlamp washer cover fixing pawls while pull out headlamp washer nozzle from front bumper
fascia assembly, and then remove headlamp washer cover.

3.

Remove headlamp washer nozzle.

a.

Pull out washer tube from washer nozzle.

b.

Disengage headlamp washer bracket fixing pawl, and then remove headlamp washer bracket from front
bumper fascia assembly.

c.

Separate headlamp washer bracket and headlamp washer nozzle.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• After installation, check that there is no leakage at operated washer.
• After installation, check spray position. Refer to

WW-90, "WASHER NOZZLE : Inspection"

.

WASHER NOZZLE : Inspection

INFOID:0000000010479843

HEADLAMP WASHER NOZZLE SPRAY POSITION INSPECTION

Check that washer fluid is sprayed on the luminescent surface of lamp.

CAUTION:

Headlamp washer nozzle

Washer tank

Washer tank

: Fixing portion

JMLIA5166ZZ

HEADLAMP WASHER

WW-91

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Replace headlamp washer nozzle assembly with a new part if headlamp washer jet position is outside
the headlamp illumination area.

WASHER TUBE

WASHER TUBE : Removal and Installation

INFOID:0000000010479844

REMOVAL

1.

Remove front bumper fascia assembly. Refer to

EXT-19, "Removal and Installation"

.

2.

Pull out washer tube from headlamp washer nozzle.

3.

Disengage headlamp washer tube fixing portion, and then remove headlamp washer tube.

INSTALLATION

Note the following item, and then Install in the reverse order of removal.

CAUTION:

After installation, check that there is no leakage at operated washer.

WASHER PUMP

WASHER PUMP : Removal and Installation

INFOID:0000000010479845

REMOVAL

CAUTION:

When the washer tube and washer pump is removed, washer fluid may come out so prepare a con-
tainer to receive the fluid and never allow fluid to be sprinkled.

1.

Remove front fender protector. Refer to

EXT-32, "Removal and Installation"

.

2.

Pull out washer tube from washer pump.

3.

Disconnect washer pump harness connector, pull out washer pump, and then remove washer pump.

4.

Remove packing.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Check that packing is inserted fully. (This may be the cause of washer fluid leakage and washer

pump looseness.)

• Add washer liquid up to the top of the washer tank inlet after installing. Check that there is no leak-

age.

• After installation, check that there is no leakage at operated washer.

WW-92

< REMOVAL AND INSTALLATION >

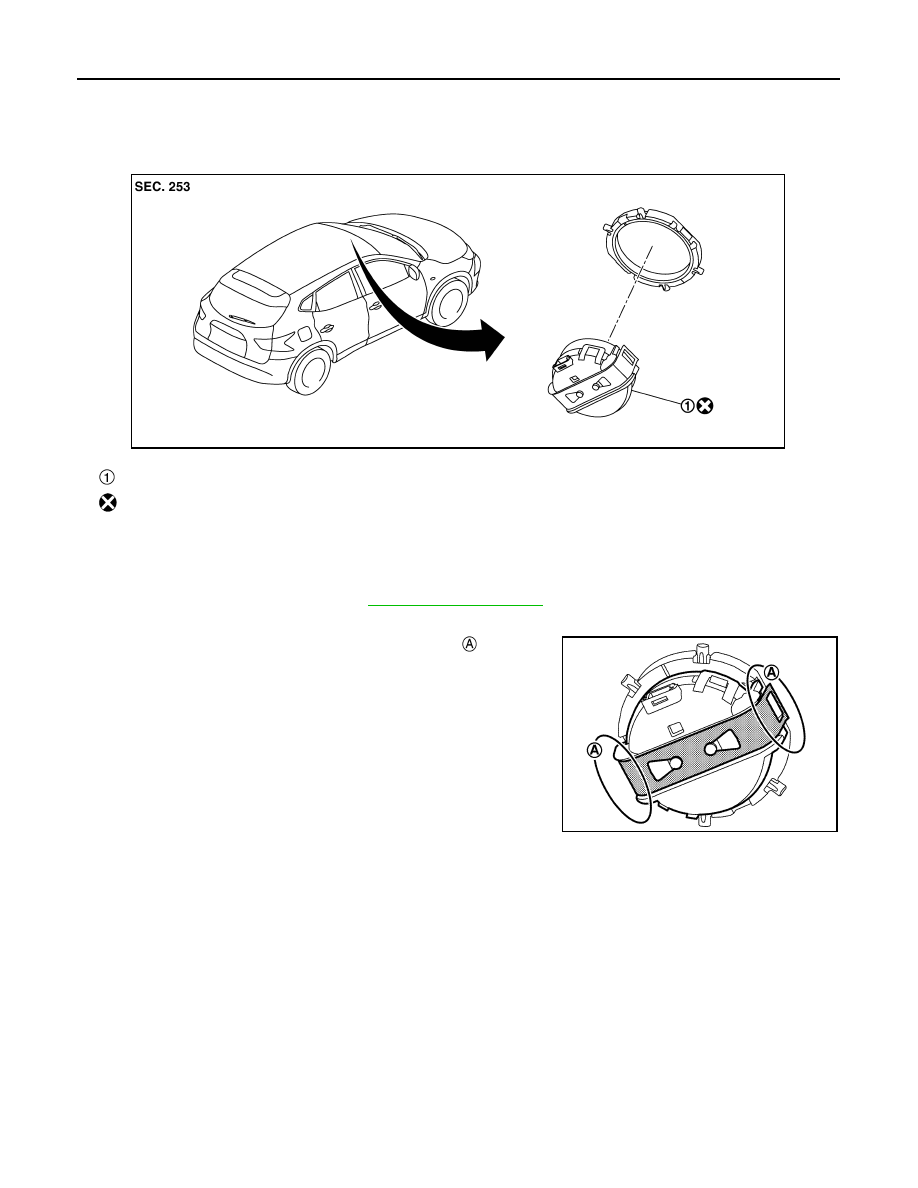

RAIN SENSOR

RAIN SENSOR

Exploded View

INFOID:0000000010479846

Removal and Installation

INFOID:0000000010479847

REMOVAL

1.

Remove inside mirror cover. Refer to

MIR-29, "Exploded View"

.

2.

Disconnect rain sensor harness connector.

3.

Disengage rain sensor fixing lock spring portion

, and then

Peel off rain sensor.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Replace rain sensor with a new part after removal. Never reuse rain sensor.
• Clean the sensor installation portion of the windshield.
• When the sensor is removed, wipe off the silicon pad remaining on the windshield surface.

Rain sensor

: Always replace after every disassembly.

JMLIA5167ZZ

JMLIA4203ZZ

RAIN SENSOR

WW-93

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

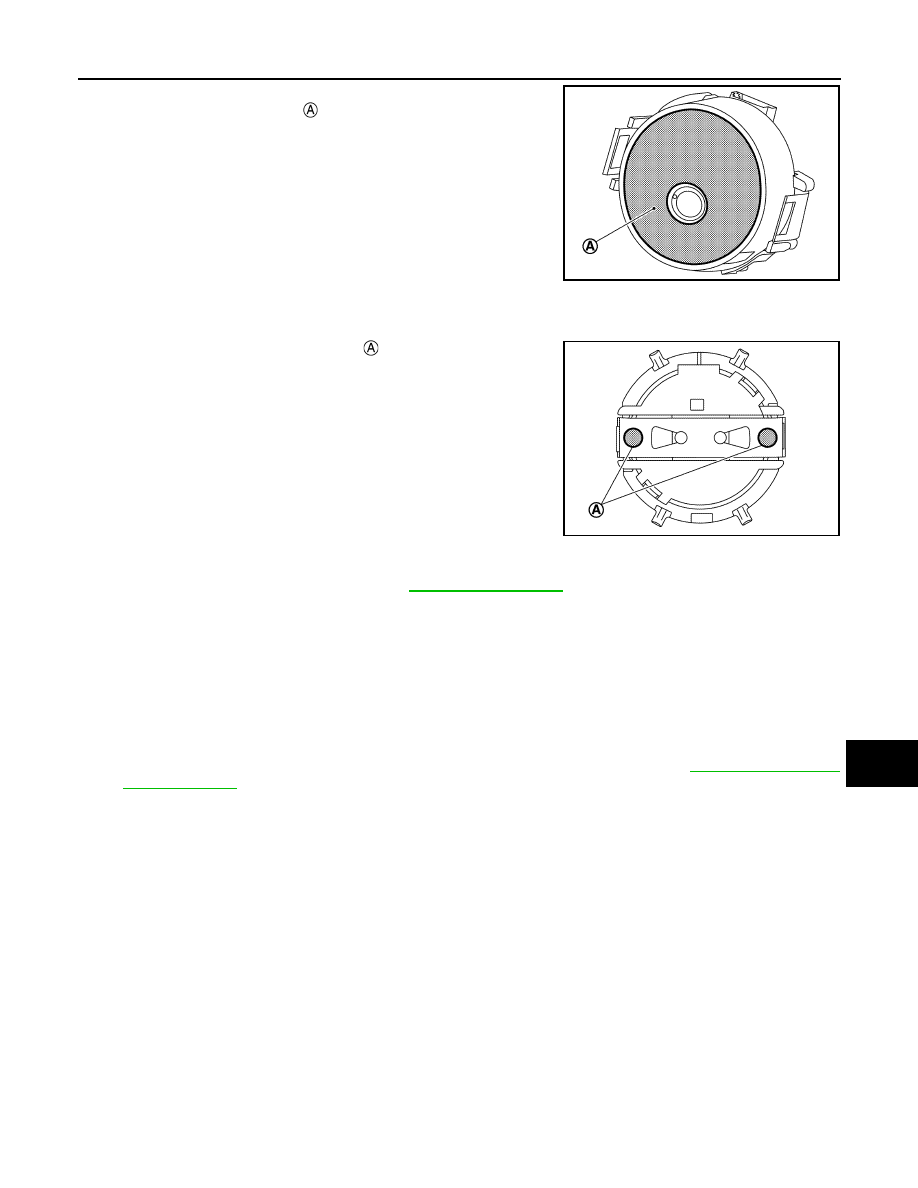

• Remove the sensor protective cover just before installation.

Never touch the silicon pad

 after removal of sensor protec-

tive cover.

• Install the rain sensor so that the connector faces vehicle upward.
• When installing, never allow silicon pad to touch the sensor bracket and other parts.
• Compress the lock spring portion

 vertically to the glass

surface and fully engage both ends of lock spring.

• Never use a sensor that is dropped.
• Perform check after replacement. Refer to

WW-93, "Inspection"

.

Inspection

INFOID:0000000010479848

CAUTION:

Clean the windshield glass and wiper refill so that the windshield glass may not be damaged by dust,
etc.

1.

Push the ignition switch to the ON position, and set the combination switch to AUTO.

2.

Spray water mist toward the sensor.

3.

Check that wiper operates.
• If the wiper does not operate, check the connection of the connector. Refer to

WW-54, "Component

Function Check"

.

• If there is no malfunction in the connection, replace the sensor.

JMLIA4204ZZ

JMLIA4205ZZ
