BACK DOOR WINDOW GLASS

Inspection

INFOID:0000000010478442

REPAIRING WATER LEAKAGE FOR BACK DOOR WINDOW GLASS

Leakage can be repaired without removing the glass.
Determine the extent of leakage if water is leaking between the urethane adhesive material and body or glass.
This can be done by applying water to the back door window glass area while pushing glass outward.
Apply primer (if necessary) and then urethane adhesive to the leakage point to stop the leakage.

1.

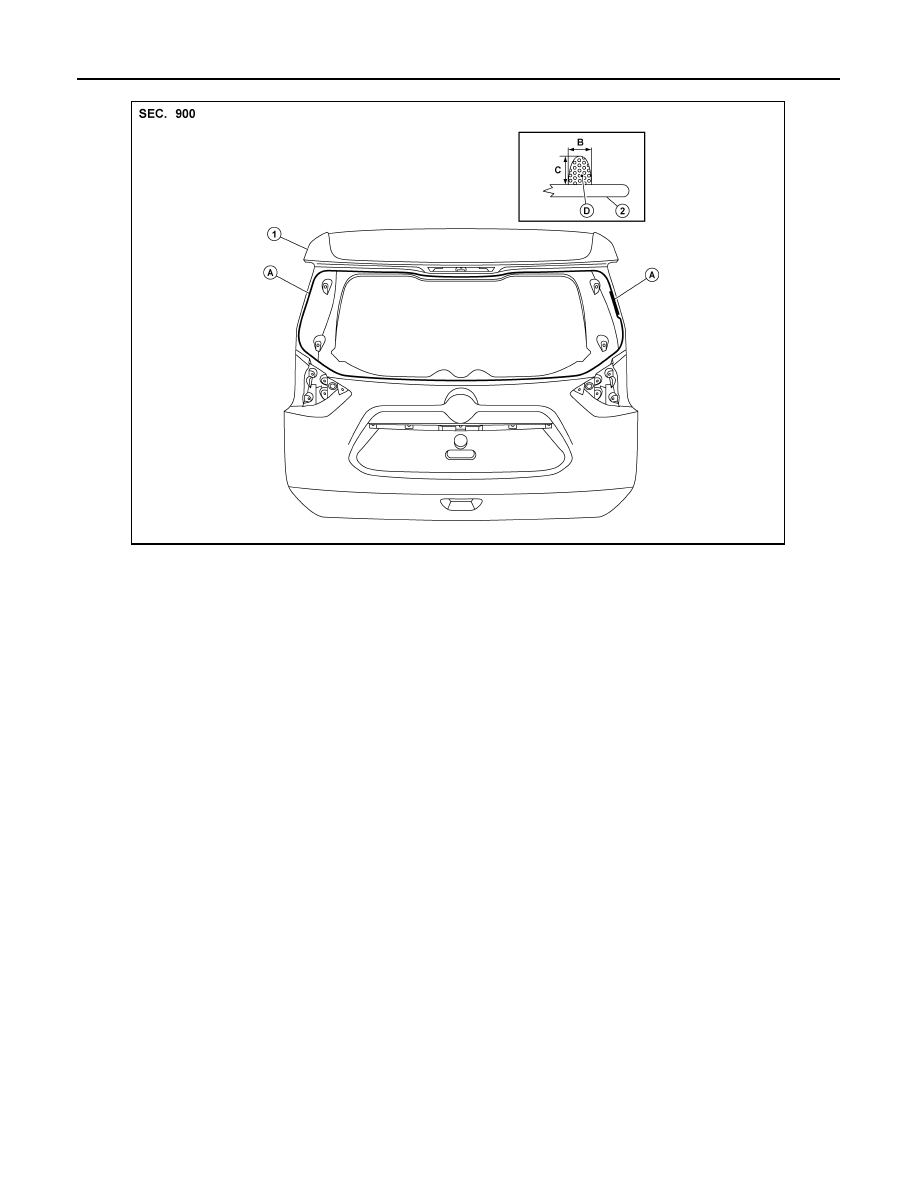

Back door

2.

Back door window glass

A.

Primer and adhesive aera

B.

7.0 mm (0.28 in)

C.

12.0 mm (0.47 in)

D.

Adhesive

ALKIA3509ZZ

FRONT DOOR GLASS

GW-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

FRONT DOOR GLASS

Exploded View

INFOID:0000000010478426

Removal and Installation

INFOID:0000000010478427

REMOVAL

1.

Remove the front door finisher. Refer to

INT-12, "FRONT DOOR FINISHER : Removal and Installation"

 .

2.

Remove the vapor barrier (1).

3.

Temporarily reconnect the main power window and door lock/unlock switch (LH door) or power window
and door lock/unlock switch RH (RH door).

4.

Operate the main power window and door lock/unlock switch (LH door) or front door power window motor
and door lock/unlock switch RH (RH door) to raise/lower the front door glass until the front door regulator
to front door glass bolts can be seen.

5.

Remove the front door glass regulator to front door glass bolts.

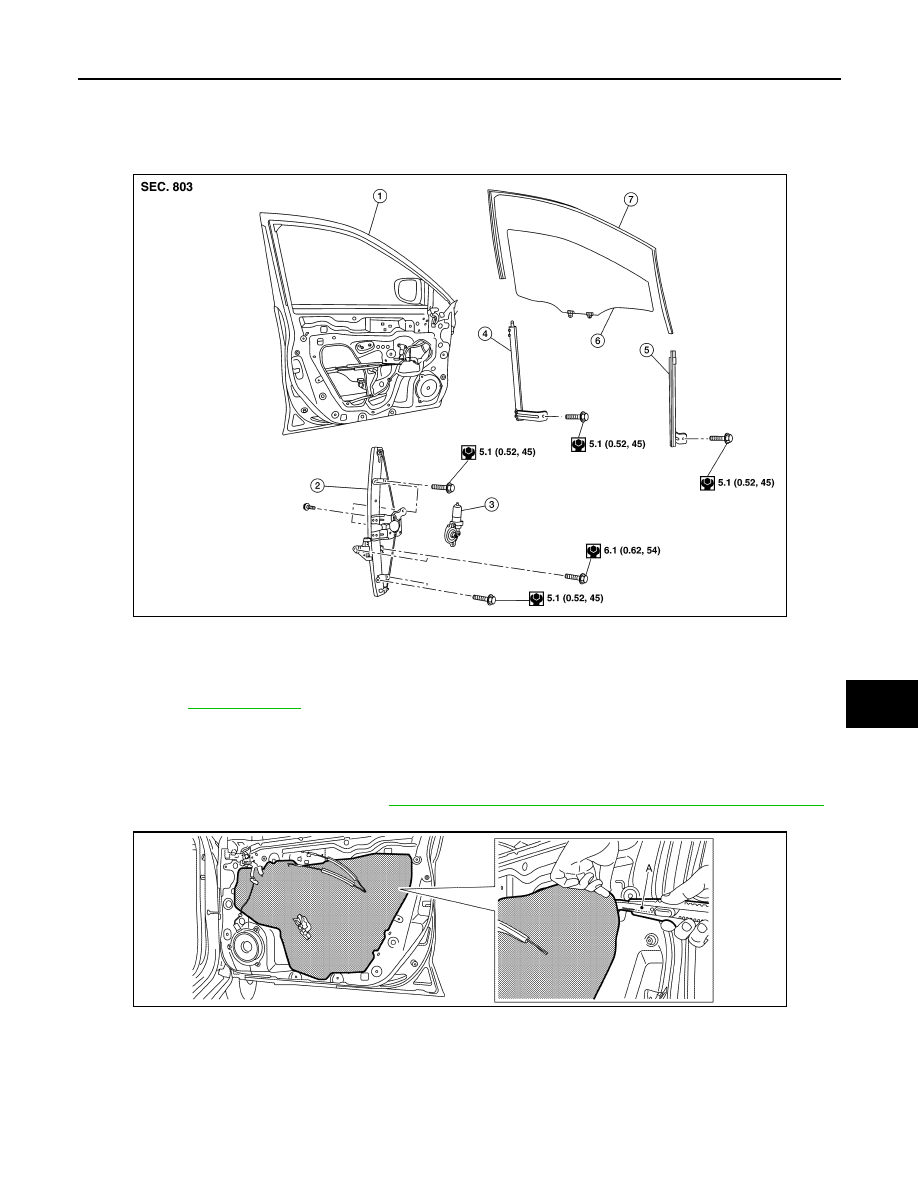

1.    Front door

2.

Front regulator

3.

Front power window motor

4.

Front door glass rear run

5.

Front door glass front run

6.

Front door glass

7.

Front door glass rubber run

Refer to

GI-4, "Components"

 for symbols in the figure.

AWKIA2912ZZ

JMKIB3130ZZ

GW-24

< REMOVAL AND INSTALLATION >

FRONT DOOR GLASS

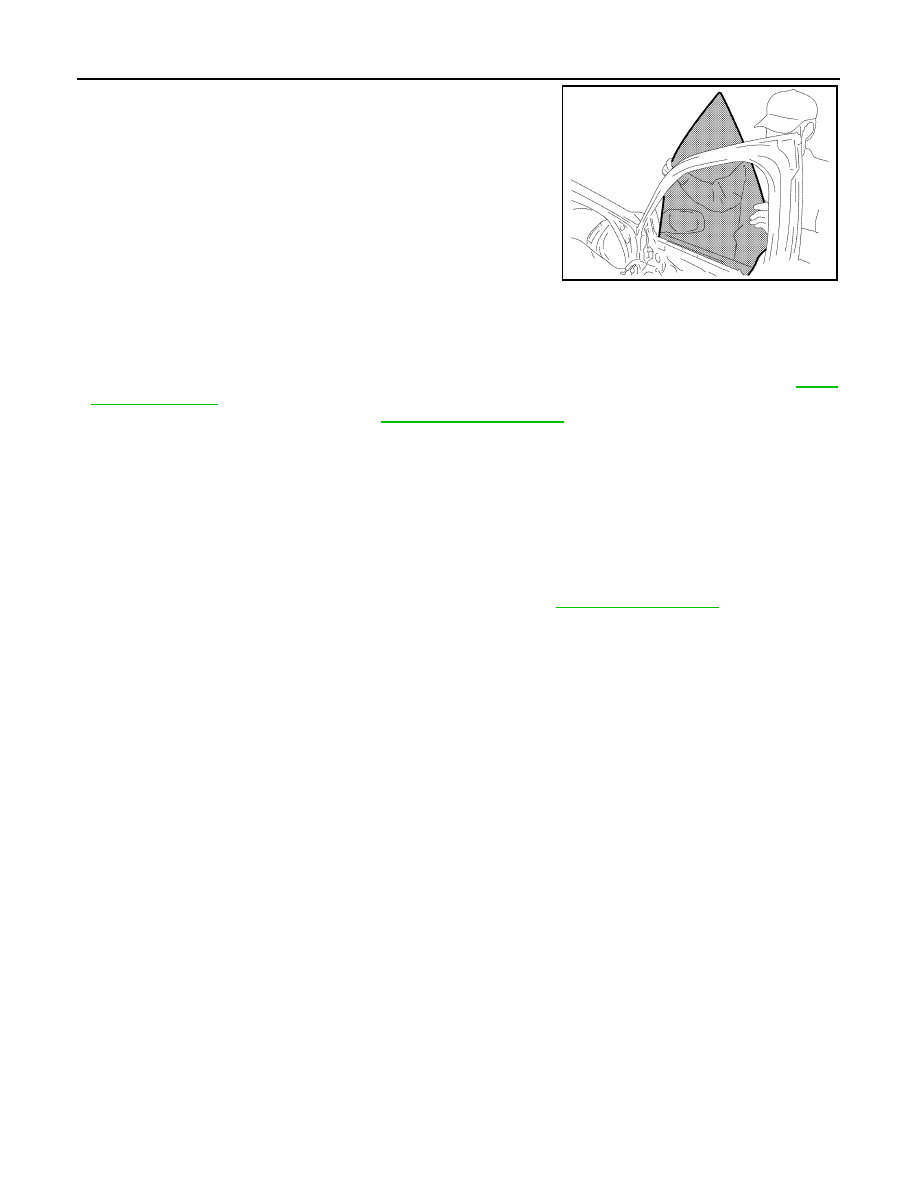

6.

While holding the front door glass, raise it at the rear end and
pull the front door glass out of the sash toward the outside of the
door.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• When the main power window and door lock/unlock switch or front power window and door lock/

unlock switch RH is removed it is necessary to perform the initialization procedure. Refer to

PWC-

31, "Description"

.

• Tighten bolts to specification. Refer to

GW-23, "Exploded View"

.

FITTING INSPECTION

• Check that the front door glass is fit securely into the glass run groove.
• Lower the front door glass slightly [approximately 10 to 20 mm (0.39 to 0.79) and check that the clearance to

the sash is parallel.If the clearance between the glass and sash is not parallel, loosen the front door glass
regulator bolts, front door glass run channel bolts, and glass and run rail bolts to correct the glass position.

Inspection and Adjustment

INFOID:0000000010502007

SYSTEM INITIALIZATION

Initialize the system if any of the following work is complete. Refer to

PCS-107, "Description"

.

FITTING INSPECTION

• Check that the glass is fit securely into the sash groove.
• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the

sash is parallel. Loosen the regulator mounting bolts, guide rail mounting bolts, and glass and guide rail
mounting bolts to correct the glass position if the clearance between the glass and sash is not parallel.

JMKIB1956ZZ

FRONT REGULATOR

GW-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

FRONT REGULATOR

Exploded View

INFOID:0000000010478428

Removal and Installation

INFOID:0000000010478429

REMOVAL

1.

Remove the front door finisher. Refer to

INT-12, "FRONT DOOR FINISHER : Removal and Installation"

.

2.

Partially remove vapor barrier.

3.

Temporarily reconnect the main power window and door lock/unlock switch (LH door) or power window
door lock/unlock switch RH (RH door).

4.

Operate the power window and door lock/unlock switch (LH door) or front door power window motor and
door lock/unlock switch RH (RH door) to raise/lower the front door glass until the front door regulator to
front door glass bolts can be seen.

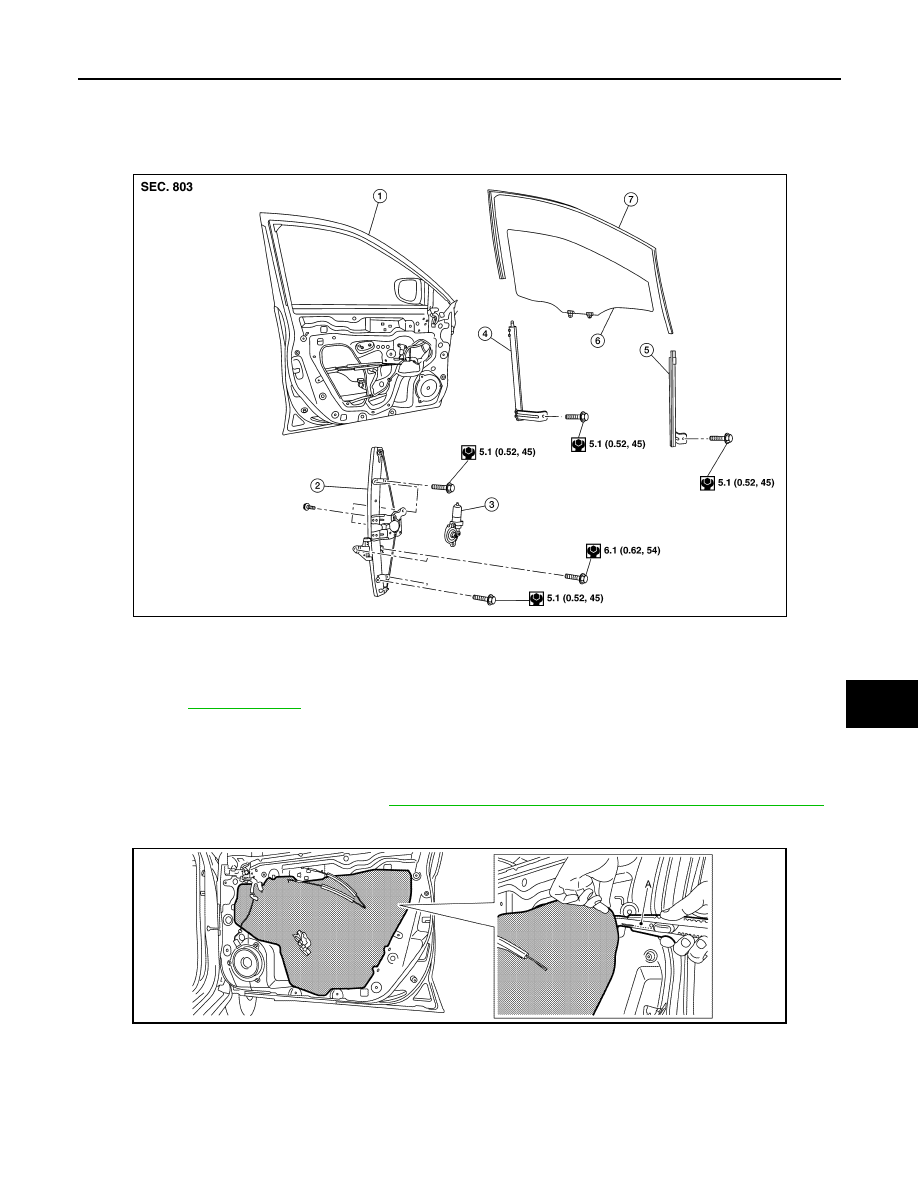

1.    Front door panel

2.

Front door regulator

3.

Front door power window motor

4.

Front door glass run rear

5.

Front door glass run front

6.

Front door glass

7.

Front door glass rubber run

Refer to

GI-4, "Components"

 for symbols in the figure.

AWKIA2912ZZ

JMKIB3130ZZ
