ENGINE OIL

CAUTION:

• Do not reuse drain plug washer.
• Be sure to clean drain plug and install with new drain plug washer.

2.

Refill with new engine oil.
Engine oil specification and viscosity: Refer to

MA-59, "Fluids and Lubricants"

.

CAUTION:

• The refill capacity depends on the engine oil temperature and drain time. Use these specifica-

tions for reference only.

• Always use oil level gauge to determine the proper amount of engine oil in the engine.

3.

Warm up engine and check area around drain plug and oil filter for engine oil leakage.

4.

Stop engine and wait for 10 minutes.

5.

Check the engine oil level. Refer to

LU-22, "Inspection"

.

Tightening torque

: Refer to

EM-156, "Exploded View"

.

Engine oil capacity

: Refer to

LU-30, "Periodical Maintenance Specification"

.

OIL FILTER

LU-25

< PERIODIC MAINTENANCE >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

OIL FILTER

Removal and Installation

INFOID:0000000010624157

REMOVAL

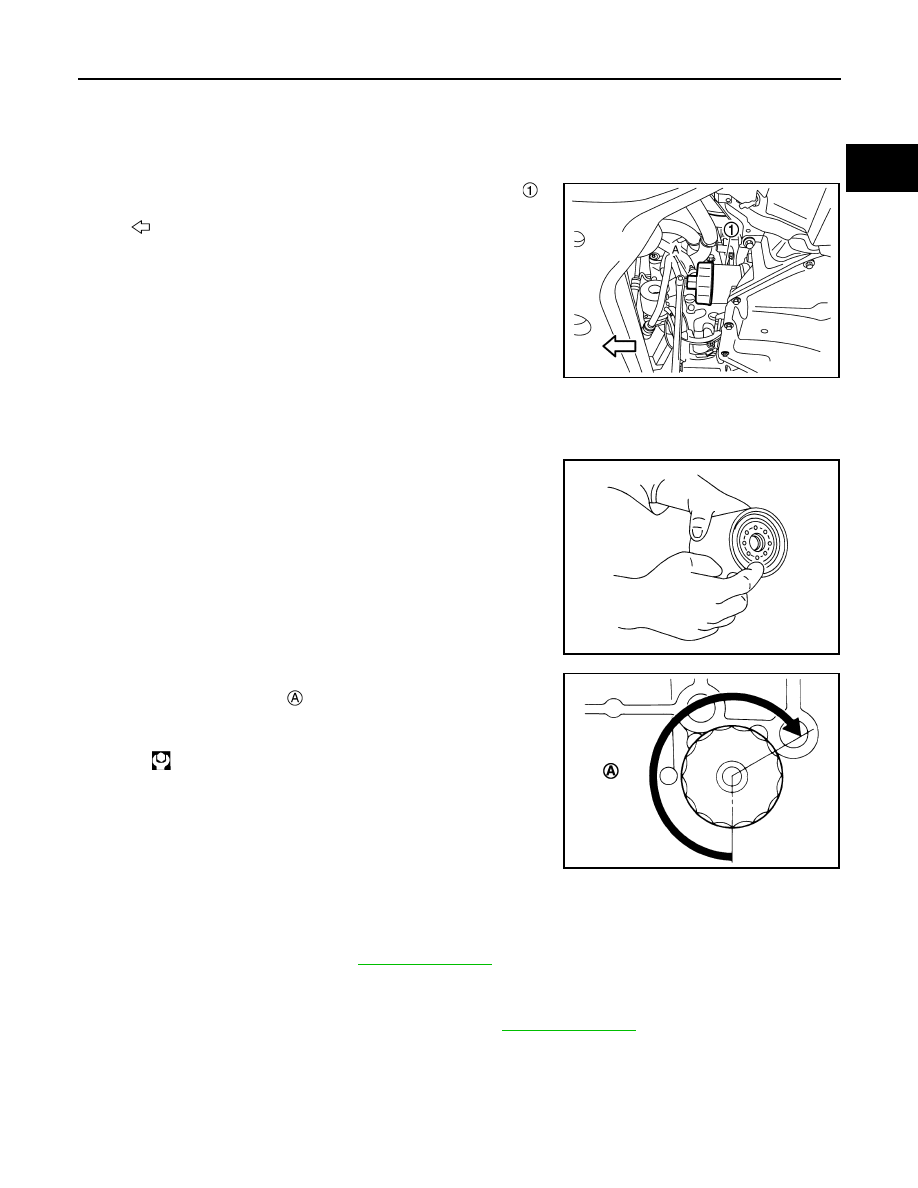

• Using oil filter wrench [SST: KV10115801](A), remove oil filter

.

CAUTION:

• Oil filter is provided with relief valve. Use Genuine NISSAN

Oil Filter or equivalent.

• Be careful not to get burned when engine and engine oil

may be hot.

• When removing, prepare a shop cloth to absorb any engine

oil leakage or spillage.

• Completely wipe off any engine oil that adheres to engine

and vehicle.

INSTALLATION

1.

Remove foreign materials adhering to the oil filter installation surface.

2.

Apply new engine oil to the oil seal contact surface of new oil fil-
ter.

3.

Screw oil filter manually until it touches the installation surface,
then tighten it by 2/3 turn

. Or tighten to specification.

Inspection

INFOID:0000000010624158

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level. Refer to

LU-22, "Inspection"

.

2.

Start the engine, and check there is no leakage of engine oil.

3.

Stop the engine and wait for 10 minutes.

4.

Check the engine oil level, and adjust the level. Refer to

LU-22, "Inspection"

.

: Engine front

JSBIA4402ZZ

SMA010

Oil filter:

: 17.7 N·m (1.8 kg-m, 13 ft-lb)

JPBIA0077ZZ

LU-26

< REMOVAL AND INSTALLATION >

[MR20DD]

OIL COOLER

REMOVAL AND INSTALLATION

OIL COOLER

Exploded View

INFOID:0000000010624159

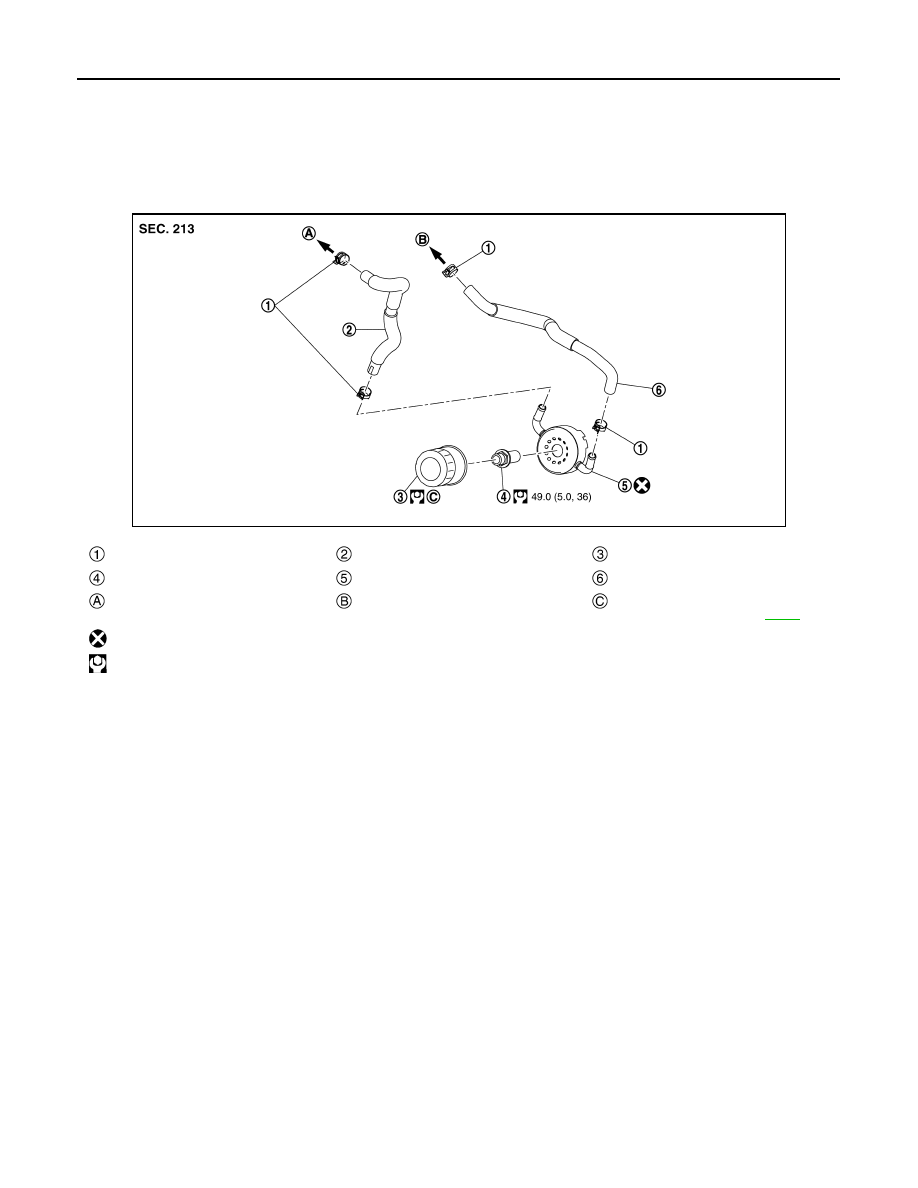

M/T models

JPBIA6894GB

Clamp

Water hose

Oil filter

Connector bolt

Oil cooler

Water hose

To thermostat housing

To thermostat housing

Comply with the assembly procedure
when tightening. Refer to

LU-25

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

OIL COOLER

LU-27

< REMOVAL AND INSTALLATION >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

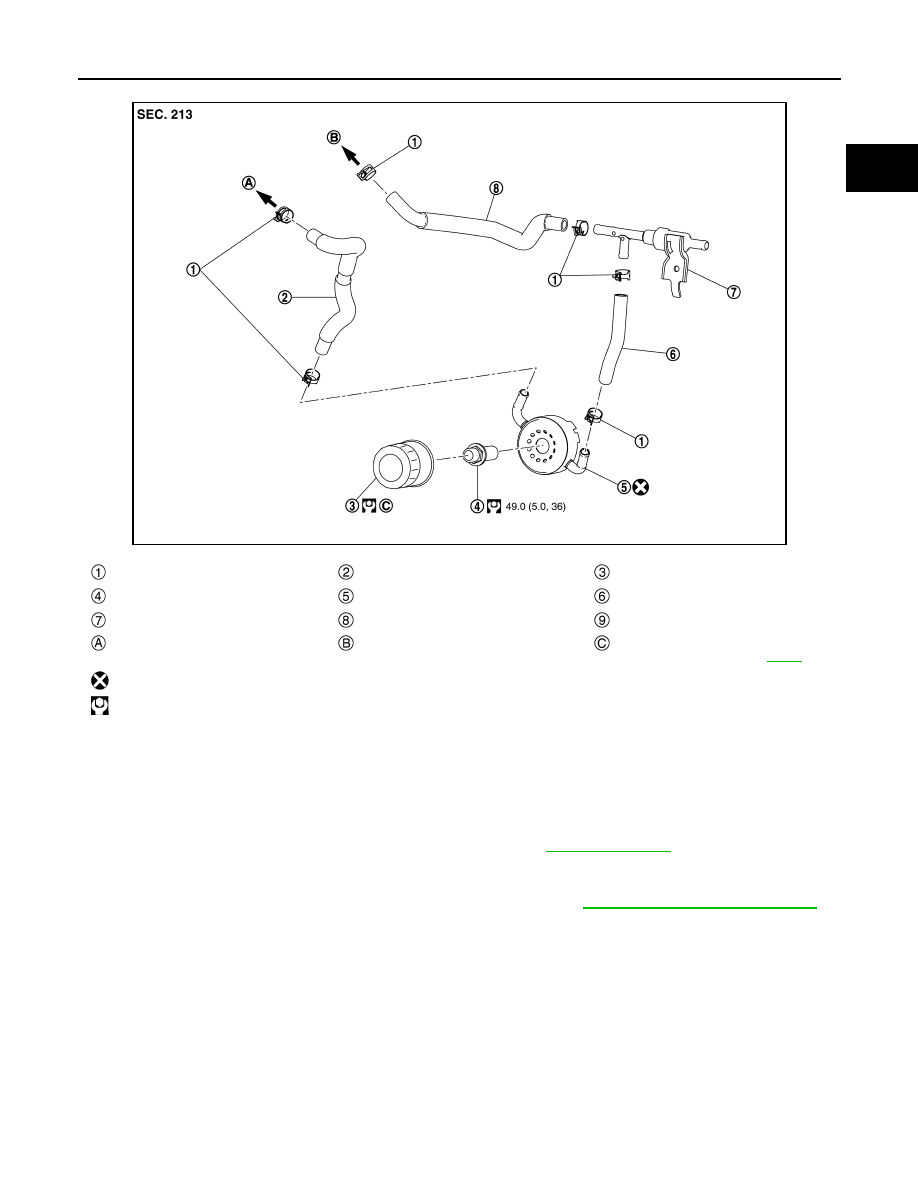

CVT models

Removal and Installation

INFOID:0000000010624160

REMOVAL

WARNING:

Be careful not to get burn yourself, as engine oil and engine coolant may be hot.

1.

Drain engine coolant from radiator and cylinder block. Refer to

CO-38, "Draining"

.

NOTE:
Perform this step when removing water hoses.

2.

Using oil filter wrench [SST: KV10115801], remove oil filter. Refer to

LU-25, "Removal and Installation"

.

3.

Disconnect water hoses from oil cooler.
• When removing oil cooler only, pinching water hoses near oil cooler to prevent engine coolant from spill-

ing out.

• Remaining engine coolant in piping will come out. Use a tray to collect it.

CAUTION:

Perform this step when the engine is cold.

4.

Remove connector bolt, and remove oil cooler.

INSTALLATION

Installation is the reverse order of removal.

JPBIA6895GB

Clamp

Water hose

Oil filter

Connector bolt

Oil cooler

Water hose

Heater thermostat

Water hose

To thermostat housing

To thermostat housing

Comply with the assembly procedure
when tightening. Refer to

LU-25

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)
