AC103246

ZC6004620000

Operation check

Stop position check

(2)

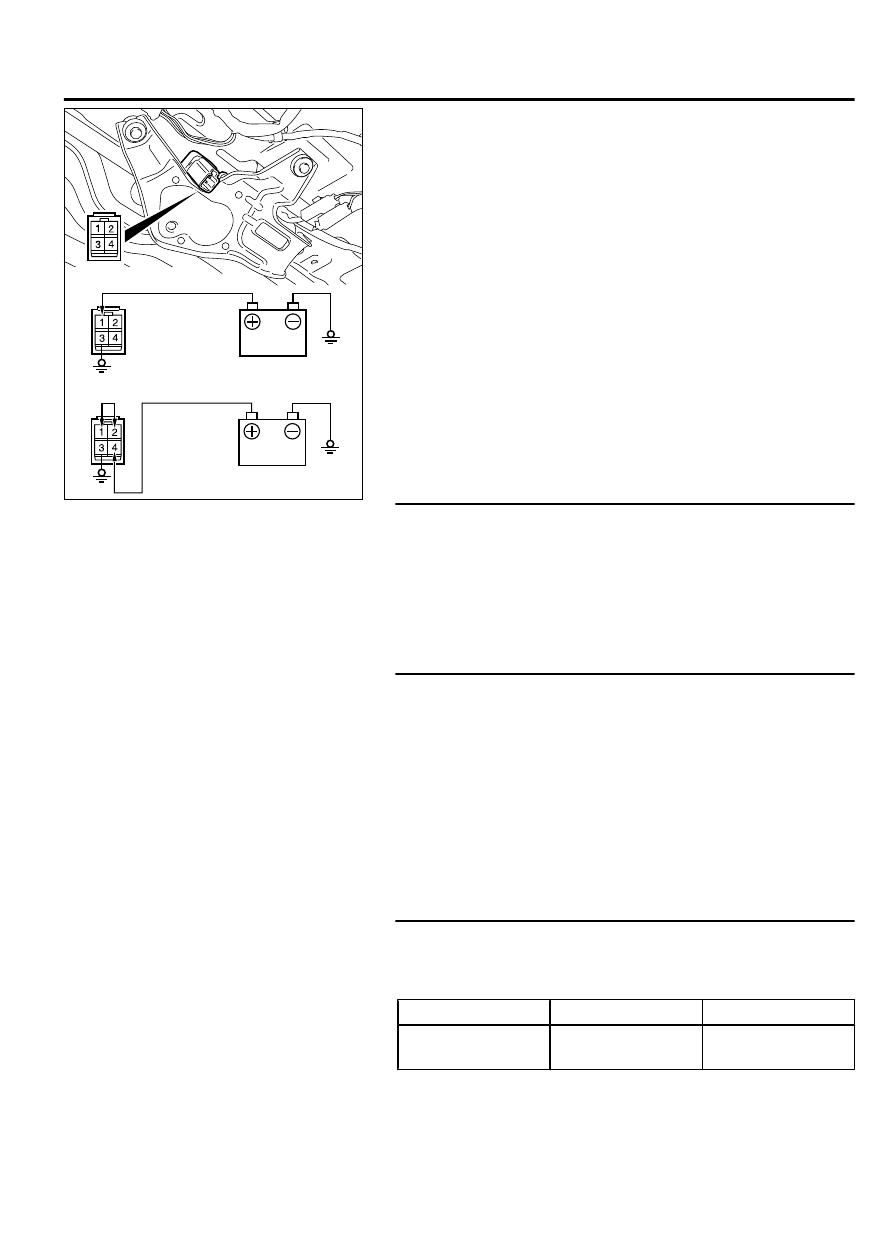

Connect the vehicle battery to the rear wiper motor connector
as shown, and operate the rear wiper. While the rear wiper
is working, disconnect the battery at positions other than the
specified park position to stop the rear wiper motor.

(3)

When the battery is connected as shown, the motor should
run and then stop at the specified park position.

Q:Does the rear wiper motor operate normally?

YES:

 Go to Step 3.

NO:

 Replace the rear wiper motor. The rear wiper should

now stop at the specified park position.

STEP 3. Check rear wiper motor connector F-04 and ETACS-
ECU connector C-311 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.

Q:Is  rear  wiper  motor  connector  F-04  and  ETACS-ECU

connector C-311 in good condition?

YES:

 Go to Step 4.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

STEP 4. Check the wiring harness between rear wiper motor
connector F-04 (terminals 2,4) and ETACS-ECU connector
C-311 (terminals 4, 8).

NOTE:

Also check intermediate connector D-12 for loose,

corroded or damaged terminals, or terminals pushed back in
the connector.

Q:Is the wiring harness between rear wiper motor connector

F-04  (terminals  2,4)  and  ETACS-ECU  connector  C-311

(terminals 4, 8) in good condition?

YES:

 Go to Step 5.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Cables and wire check P.00E-13.

STEP 5. Check the input signal related to the rear wiper
operation.

｠

Ignition switch: ACC or ON

｠

Rear wiper: In operation

Item No.

Item name

Normal condition

Item 292

Rear  wiper  auto-
stop switch

ON

NOTE:

Confirm that the scan tool displays ON to OFF when

rear wiper stops at the specified park position.

WIPER AND WASHER

51B-41

DIAGNOSIS

OK: Normal condition is displayed.

Q:Is the check result normal?

YES:

 Intermittent malfunction. Refer to GROUP 00, How to

cope with intermittent malfunction P.00-15.

NO:

 Replace the ETACS-ECU.

INSPECTION PROCEDURE 10: When the selector lever is moved to "R" position during
the rear wiper operation, the rear wiper does not operate at the continuous mode.

M15102100017USA0000010001

ZC603312

"R" Position During Wiper Operation Circuit

ETACS-ECU

· IGNITION SWITCH (IG1)
· REAR WIPER SWITCH

TCM

CAN COMMUNICATION LINE
(CAN_L LINE)

CAN COMMUNICATION LINE
(CAN_H LINE)

INPUT SIGNAL

INPUT SIGNAL

INHIBITOR SWITCH ("R" POSITION)

0000

CIRCUIT OPERATION
The  ETACS-ECU  operates  the  rear  wiper
consecutively when the selector lever is moved to "R"
position while the rear wiper is turned on.

TECHNICAL DESCRIPTION (COMMENT)
If  the  rear  wiper  does  not  work  consecutively,  the
transmission  range  switch  ("R"  position)  or  the
ETACS-ECU may be defective.

TROUBLESHOOTING HINTS

｠

The back-up light switch may be defective

｠

The ETACS-ECU may be defective

｠

The  wiring  harness  may  be  damaged  or  the
connectors may have loose, corroded or damaged
terminals, pushed back in the connector

DIAGNOSIS

Required Special Tools:

｠

MB991223: Harness Set

｠

MB992006: Extra Fine Probe

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicles communication interface (V.C.I.)

｠

MB991827: M.U.T.-III USB cable

｠

MB991911: M.U.T.-III Main harness B

STEP 1. Verify the rear wiper.
Check that the rear wiper system works normally by operating
the rear wiper switch.

51B-42

WIPER AND WASHER

DIAGNOSIS

Q:Does the rear wiper operate?

YES:

 Go to Step 2.

NO <Rear wiper does not work.>:

 Refer to Inspection

Procedure 1 "Rear wiper does not work at all P.51B-34."

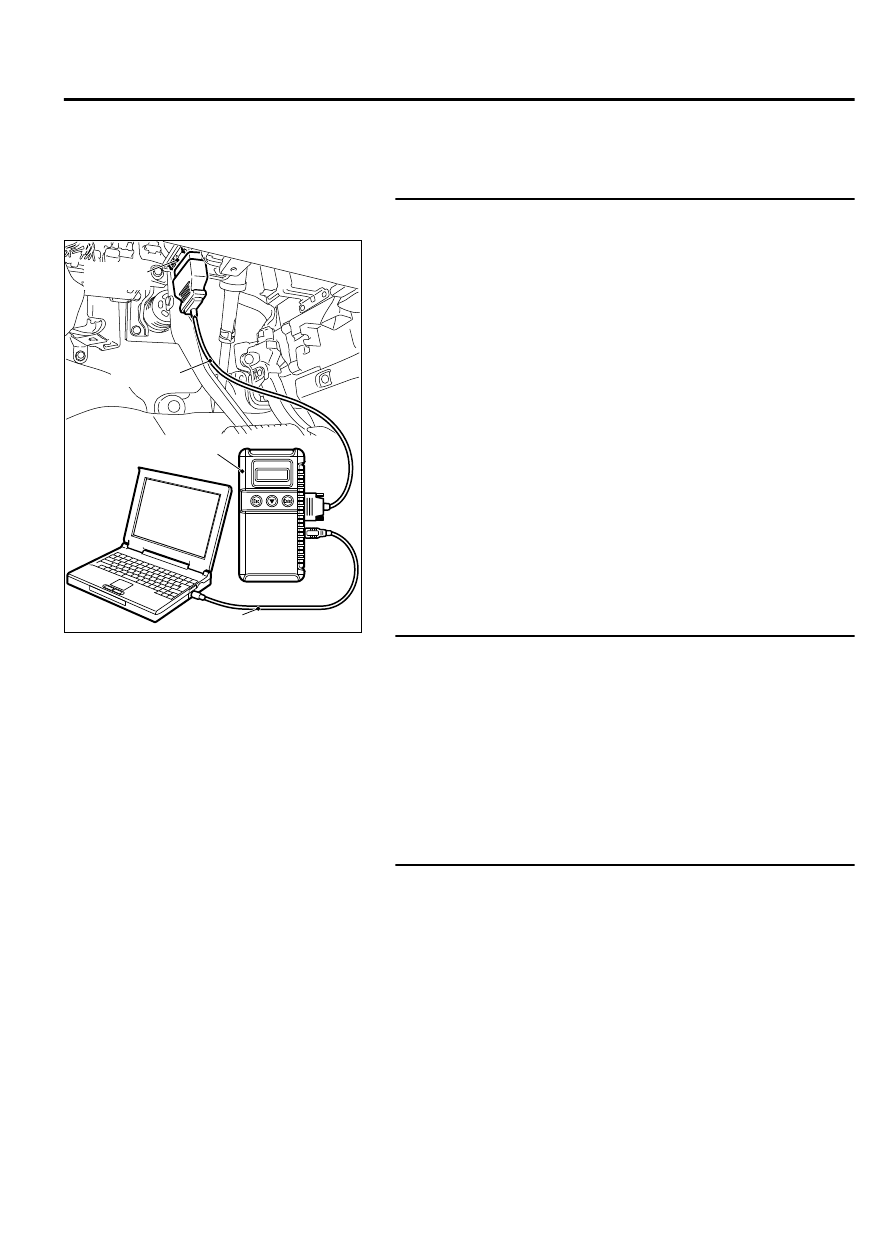

STEP 2. Use the scan tool MB991958 to diagnose the CAN
bus lines.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

Connect  the  scan  tool.  Refer  to  GROUP  54Ad  ETACS,
"Diagnostic function P.54Ad-5."

Q:Is the check result normal?

YES:

 Go to Step 3.

NO:

 Repair the CAN bus line (Refer to GROUP 54D - CAN bus

diagnosis chart P.54D-17).

STEP 3. Use the scan tool MB991958 to diagnose other
system diagnostic trouble code
Connect  the  scan  tool.  Refer  to  GROUP  54Ad  ETACS,
"Diagnostic function P.54Ad-5."
Check that the TCM sets a bus-off diagnostic trouble code.

Q:Is the diagnostic trouble code set?

YES:

 A poor connection, open circuit or other

intermittent malfunction is present in the CAN bus lines
between the TCM and the ETACS-ECU (Refer to GROUP 00, How
to cope with intermittent malfunction P.00-15.

NO:

 Go to Step 4.

STEP 4. Retest the system.
Check  that  the  rear  wiper  operates  continuously  when  the
selector lever is moved to the R position during the rear wiper
operation.

Q:Is the check result normal?

YES:

 Intermittent malfunction. Refer to GROUP 00, How to

cope with intermittent malfunction P.00-15.

NO:

 Replace the ETACS-ECU.

WIPER AND WASHER

51B-43

DIAGNOSIS

INSPECTION PROCEDURE 11: Rear washer does not operate.

M15102100018USA0000010001

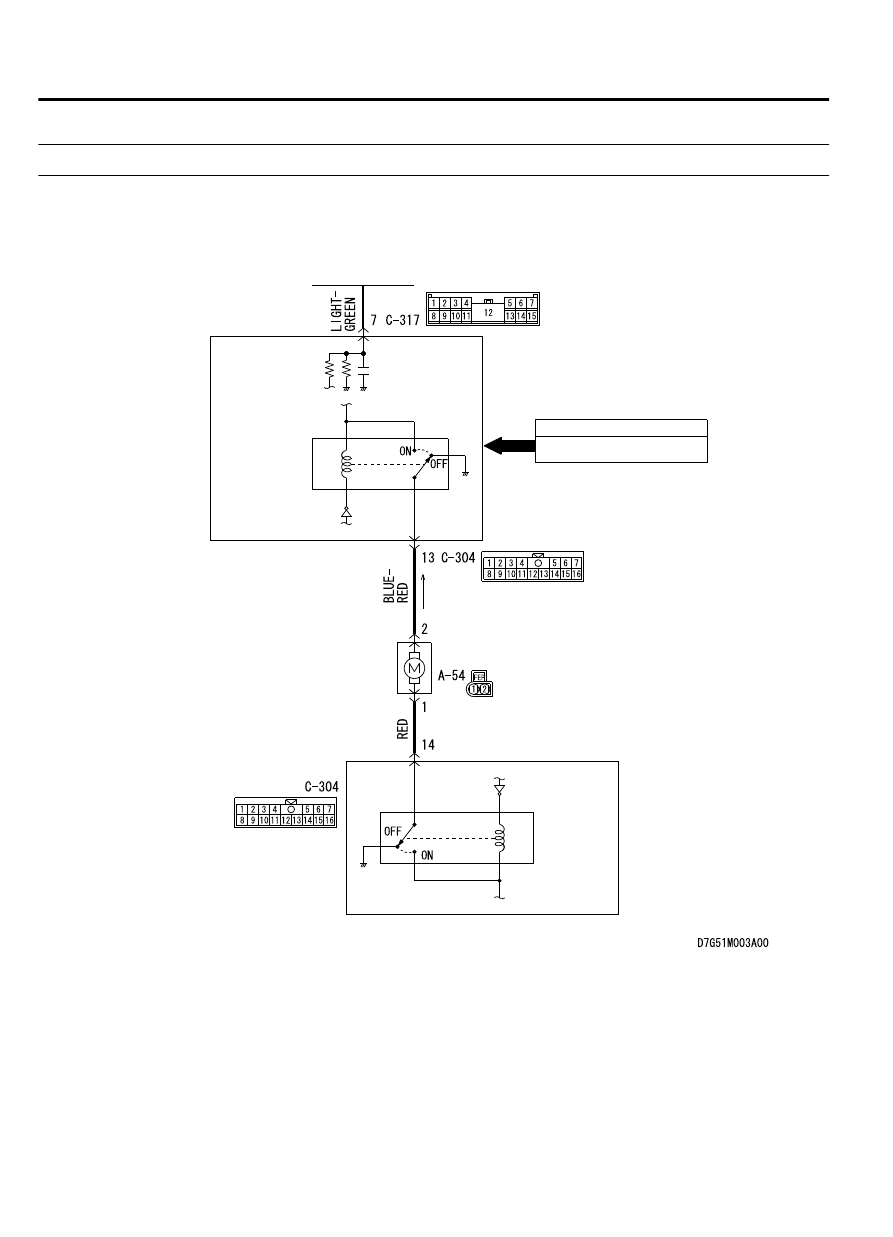

Rear Washer Motor Power Supply Circuit

WINDSHIELD
WASHER
RELAY

WASHER
MOTOR

ETACS-ECU

ETACS-ECU

IGNITION
SWITCH (ACC)

REAR
WINDOW
WASHER
RELAY

REAR WASHER SWITCH

INPUT SIGNAL

51B-44

WIPER AND WASHER

DIAGNOSIS
