Mitsubishi Outlander XL. Manual - part 850

ZC6002830000

Front washer
hose

(3)

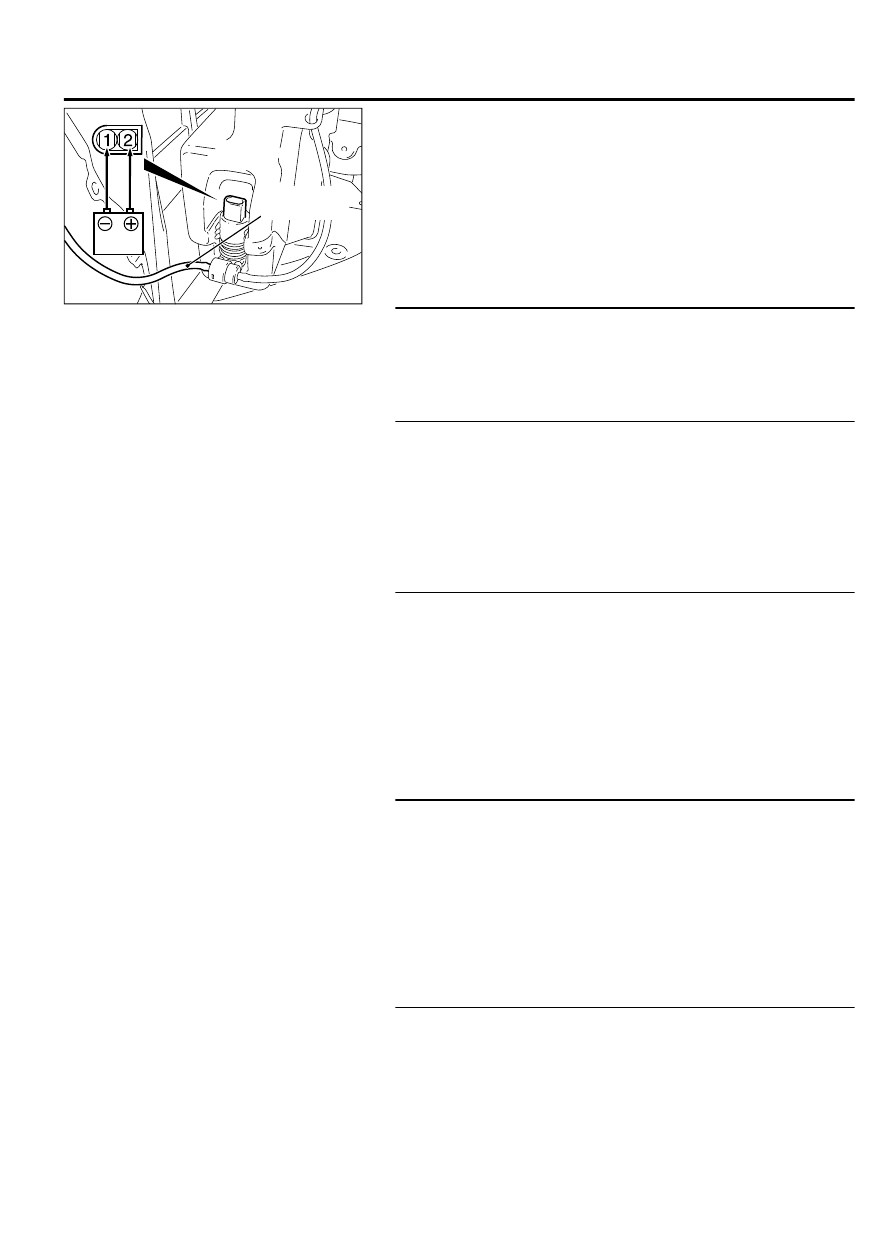

When battery voltage is applied between terminals 1 and 2,
washer fluid should spray out.

Q:Does the washer motor operate normally?

YES:

 Go to Step 6.

NO:

 Replace the washer motor. Verify that the windshield

washer works normally.

STEP 6. Check the operation of rear washer.
Check that rear washer works.

Q:Does the rear washer operate normally?

YES:

 Go to Step 7.

NO:

 Replace the ETACS-ECU.

STEP 7. Check ETACS-ECU connector C-304 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is ETACS-ECU connector C-304 in good condition?

YES:

 Go to Step 8.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. Verify
that the windshield washer works normally.

STEP 8. Check the wiring harness between windshield
washer motor connector A-54 (terminal 2) and ETACS-ECU
connector C-304 (terminal 13).

｠

Check the input lines for open or short ciruit.

Q:Is the wiring harness between windshield washer motor

connector A-54 (terminal 2) and ETACS-ECU connector

C-304 (terminal 13)in good condition?

YES:

 Go to Step 9.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Cables and wire check P.00E-13.

STEP 9. Check the wiring harness between windshield
washer motor connector A-54 (terminal 1) and ETACS-ECU
connector C-304 (terminal 14).

｠

Check the input lines for open or short ciruit.

Q:Is the wiring harness between windshield washer motor

connector A-54 (terminal 1) and ETACS-ECU connector

C-304 (terminal 14)in good condition?

YES:

 Go to Step 10.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Cables and wire check P.00E-13.

STEP 10. Retest the system.
Check that the windshield washers work normally.

Q:Is the check result normal?

YES:

 Intermittent malfunction. Refer to GROUP 00, How to

cope with intermittent malfunction P.00-15.

WIPER AND WASHER

51B-33

DIAGNOSIS

NO:

 Replace the ETACS-ECU.

INSPECTION PROCEDURE 8: Rear wiper does not work at all.

M15102100015USA0000010001

ACC
RELAY3

REAR
WIPER
RELAY

REAR
WIPER
MOTOR

ETACS-ECU

VIOLET

SKY

BLUE

BLUE

VIOLET

BLA

CK

SKY

BLUE

BLUE

C-311

ZC603311

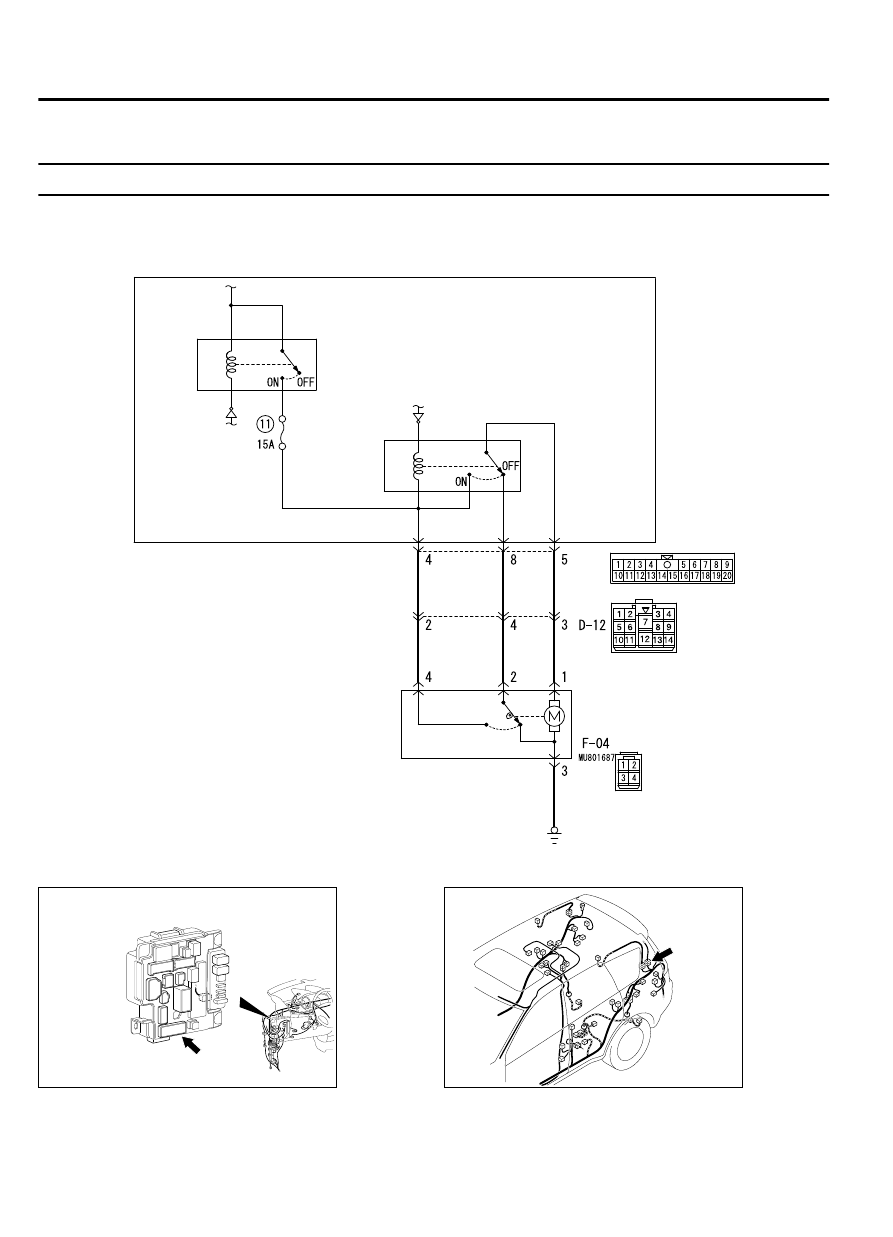

Rear Wiper Motor Circuit

0000

ZC6008780025

Connector: C-311

ZC6008800010

Connector: D-12



51B-34

WIPER AND WASHER

DIAGNOSIS

ZC6008820005

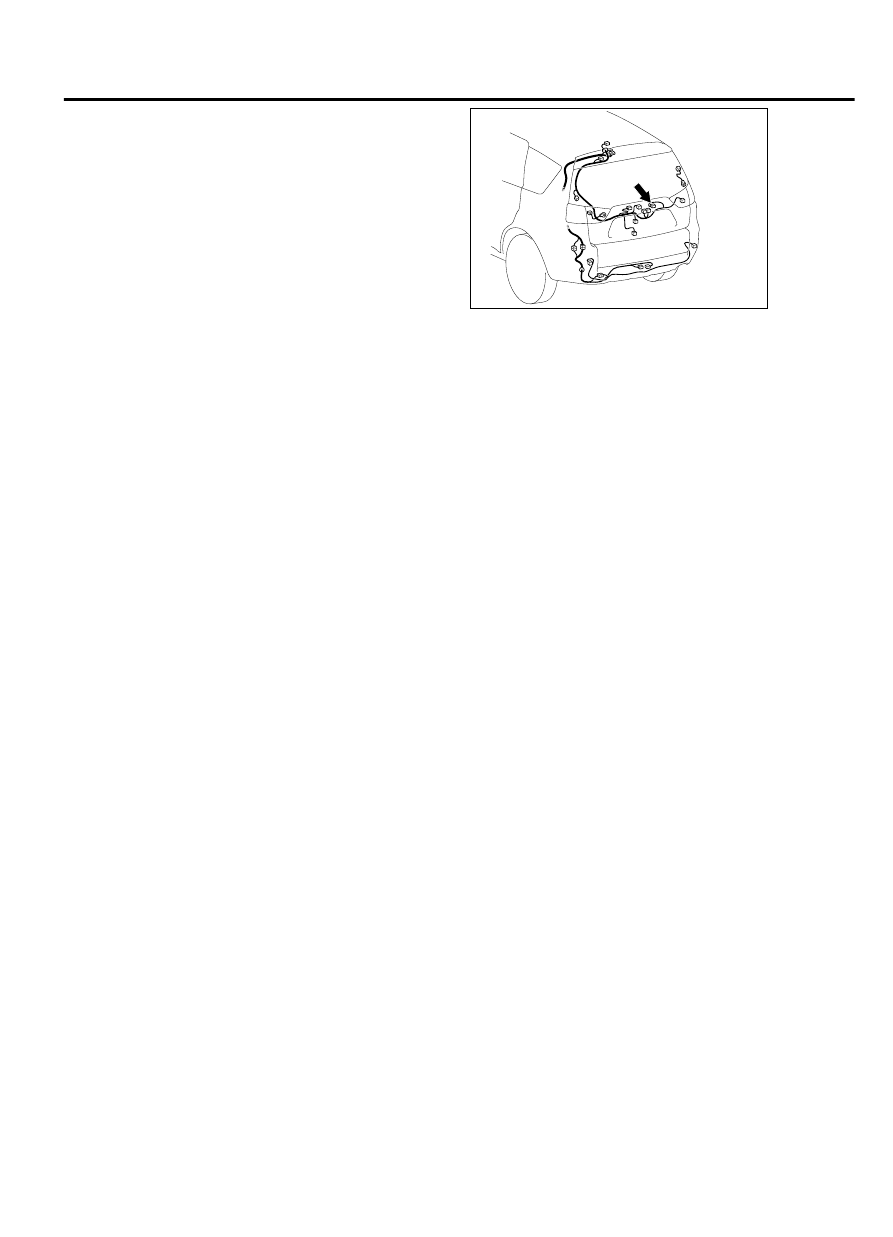

Connector: F-04



CIRCUIT OPERATION

｠

The rear wiper switch sends a signal through the
column-ECU (incorporated in the column switch) to
the ETACS-ECU. If the column-ECU sends a rear
wiper switch "ON" signal to the ETACS-ECU, the
ETACS-ECU turns on the relay (incorporated in the
ETACS-ECU), thus causing the rear wiper motor to
be turned on.

｠

The ETACS-ECU operates the rear wiper according
to the following switches:

｠

Ignition switch (ACC)

｠

Rear wiper switch

TECHNICAL DESCRIPTION (COMMENT)
If  the  rear  wiper  does  not  work  normally,  the  input
circuit system from the switches, the rear wiper motor,

the column switch (windshield wiper and windshield
washer switch) or the ETACS-ECU may be defective.

TROUBLESHOOTING HINTS

｠

The rear wiper motor may be defective

｠

The  column  switch  (windshield  wiper  and  washer
switch) may be defective

｠

The ETACS-ECU may be defective

｠

The  wiring  harness  may  be  damaged  or  the
connectors may have loose, corroded or damaged
terminals, pushed back in the connector

DIAGNOSIS

Required Special Tools:

｠

MB991223: Harness Set

｠

MB992006: Extra Fine Probe

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicles communication interface (V.C.I.)

｠

MB991827: M.U.T.-III USB cable

｠

MB991911: M.U.T.-III Main harness B

WIPER AND WASHER

51B-35

DIAGNOSIS

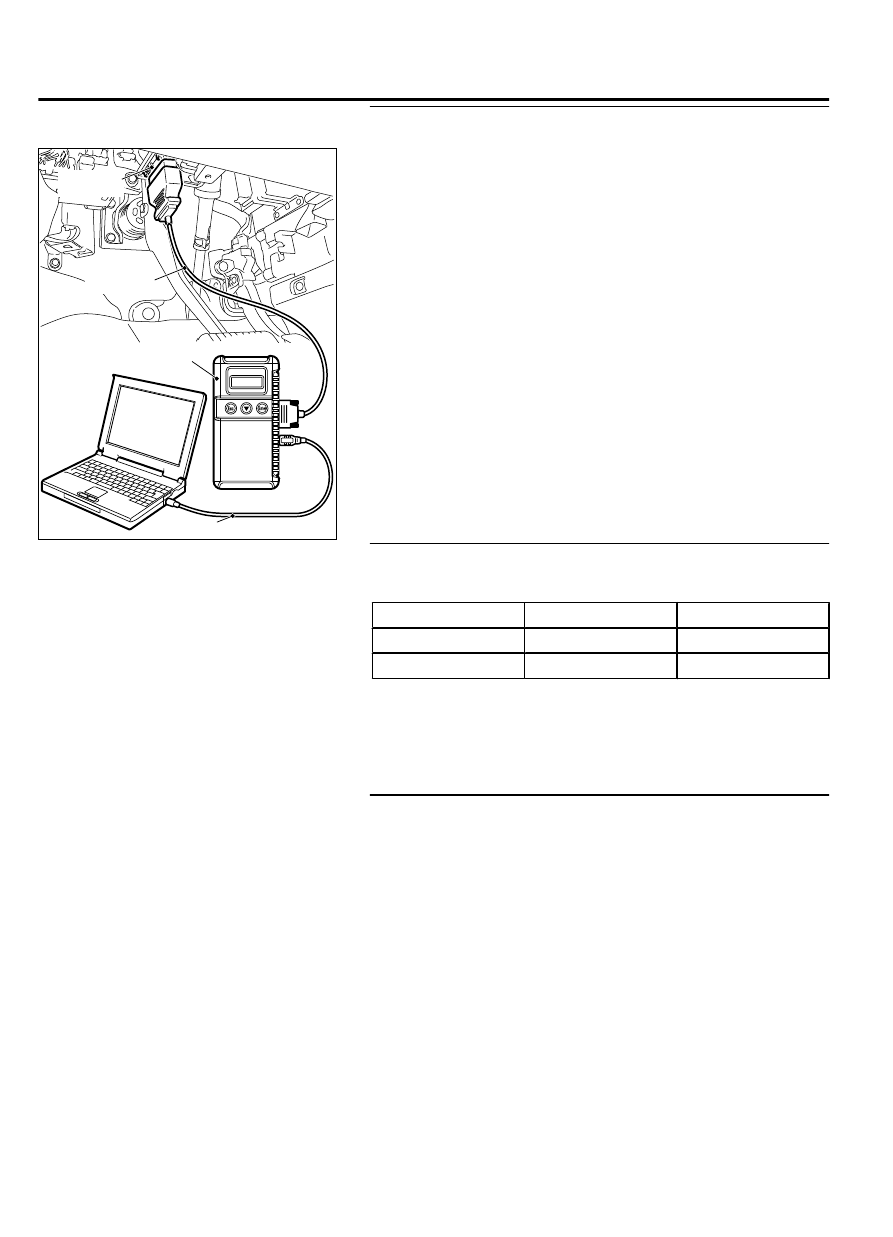

STEP 1. Use the scan tool MB991958 to check if an ETACS-
related diagnostic trouble code is set.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

Connect  the  scan  tool.  Refer  to  GROUP  54Ad  ETACS,
"Diagnostic function P.54Ad-5."

Q:Is the diagnostic trouble code set?

YES:

 Diagnose the ETACS-ECU. Refer to GROUP 54Ad ETACS,

"Diagnostic trouble code chart P.54Ad-8."

NO:

 Go to Step 2.

STEP 2. Check the input signal related to the rear wiper
operation.

｠

Ignition switch: ACC

Item No.

Item name

Normal condition

Item 239

Rear wiper

ON

Item 288

ACC switch

ON

OK: Normal condition is displayed.

Q:Is the check result normal?

NO:

 Go to Step 3.

YES:

 Refer to GROUP 54Ad - ETACS, Input signal

procedures P.54Ad-61.

STEP 3. Check the rear wiper motor connector F-04 for
loose, corroded or damaged terminals, or terminals pushed
back in the connector.

Q:Is rear wiper motor connector F-04 in good condition?

YES:

 Go to Step 4.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. Verify
that the rear wiper works normally.

51B-36

WIPER AND WASHER

DIAGNOSIS
