STEP 3. Check windshield wiper motor connector A-08 for
loose, corroded or damaged terminals, or terminals pushed
back in the connector.

Q:Is  windshield  wiper  motor  connector  A-08  in  good

condition?

YES:

 Go to Step 4.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. Verify
that the windshield wiper operates normally when the
windshield wiper switch is moved to each position.

STEP 4. Check the windshield wiper motor.

(1)

Disconnect windshield wiper motor connector A-08.

4

5

3

1 2

4

5

3

1 2

4

5

3

1 2

ZC6002730000

Operation check

Low speed

High speed

(2)

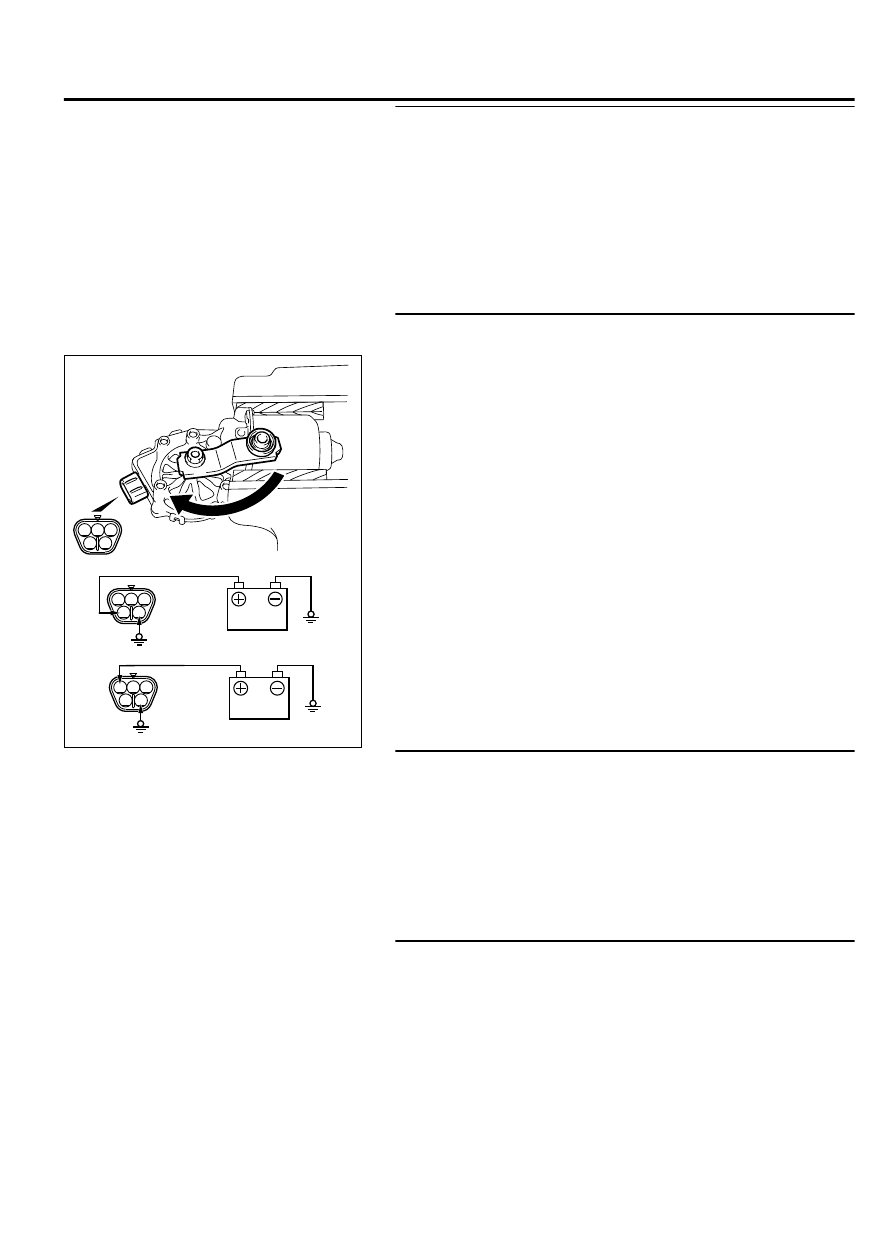

Connect a battery to the windshield wiper motor as shown.
Then check if the windshield wiper motor operates normally
at high and low speeds.

Q:Does the windshield wiper motor operate normally?

YES:

 Go to Step 5.

NO:

 Replace the windshield wiper motor. Verify that the

windshield wiper operates normally when the windshield
wiper switch is moved to each position.

STEP 5. Check ETACS-ECU connector C-304 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is ETACS-ECU connector C-304 in good condition?

YES:

 Go to Step 6.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. Verify
that the windshield wiper operates normally when the
windshield wiper switch is moved to each position.

STEP 6. Check the wiring harness between windshield
wiper motor connector A-08 (terminals 1 and 4) and ETACS-
ECU connector C-304 (terminals 5 and 6).

Q:Is  the  wiring  harness  between  windshield  wiper  motor

connector  A-08  (terminals  1  and  4)  and  ETACS-ECU

connector C-304 (terminals 5 and 6) in good condition?

YES:

 No action is necessary and testing is complete.

WIPER AND WASHER

51B-25

DIAGNOSIS

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary. Verify that the windshield wiper
operates normally when the windshield wiper switch is
moved to each position.

INSPECTION PROCEDURE 5: The windshield intermittent wiper interval cannot be
adjusted by operating the windshield intermittent wiper volume control switch.

M15102100012USA0000010001

Windshield Intermittent Wiper Control Circuit

ETACS-ECU

LIN
COMMUNICATION
LINE

COLUMN-ECU

INPUT SIGNAL

WINDSHIELD INTERMITTENT
WIPER INTERVAL
ADJUSTING KNOB

CAN COMMUNICATION
LINE (CAN_H LINE)

CAN COMMUNICATION
LINE (CAN_L LINE)

TCM

INPUT SIGNAL

ZC603309

VEHICLE SPEED

0000

TECHNICAL DESCRIPTION (COMMENT)
If  the  windshield  intermittent  wiper  interval  is  not
changed  by  operating  the  windshield  intermittent
wiper  interval  adjusting  knob  or  according  to  the
vehicle speed, the column switch or the ETACS-ECU
may be defective.

TROUBLESHOOTING HINTS

｠

Trouble in input signal system

｠

The wiring harness or connectors may have loose,
corroded,  or  damaged  terminals,  or  terminals
pushed back in the connector

｠

The ETACS-ECU may be defective

DIAGNOSIS

Required Special Tools:

｠

MB991223: Harness Set

｠

MB992006: Extra Fine Probe

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A

51B-26

WIPER AND WASHER

DIAGNOSIS

STEP 1. Use the scan tool MB991958 to check if an ETACS-
related diagnostic trouble code is set.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

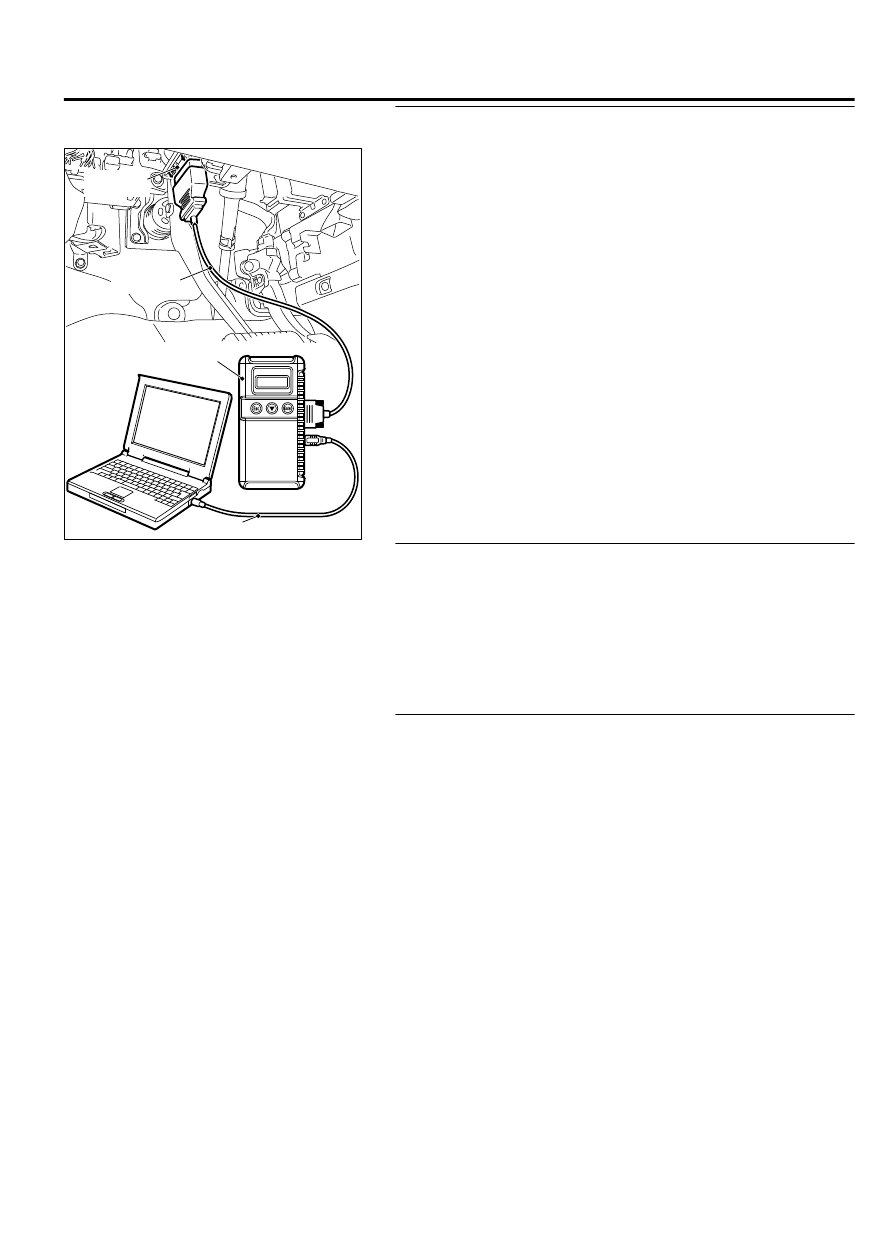

Connect  the  scan  tool.  Refer  to  GROUP  54Ad  ETACS,
"Diagnostic function P.54Ad-5."

Q:Is the diagnostic trouble code set?

YES:

 Diagnose the ETACS-ECU. Refer to GROUP 54Ad ETACS,

"Diagnostic trouble code chart P.54Ad-8."

NO:

 Go to Step 2.

STEP 2. Check the ETACS configuration function.
Use the ETACS configuration function to check that "Front wiper
operation" is set to "variable INT" or "vehicle speed dependent".

Q:Is the check result normal?

YES:

 Go to Step 3.

NO:

 Use the ETACS configuration function to set "Front

wiper operation" to "variable INT" or "vehicle speed
dependent". Refer to P.51B-48.

STEP 3. Retest the system.
Check  that  the  windshield  wiper  interval  changes  when  the
windshield wiper volume control is rotated.

Q:Is the check result normal?

YES:

 Intermittent malfunction. Refer to GROUP 00, How to

cope with intermittent malfunction P.00-15.

NO:

 Replace the ETACS-ECU.

WIPER AND WASHER

51B-27

DIAGNOSIS

INSPECTION PROCEDURE 6: The windshield intermittent wiper interval is not changed
according to the vehicle speed.

M15102100013USA0000010001

Windshield Intermittent Wiper Control Circuit

ETACS-ECU

LIN
COMMUNICATION
LINE

COLUMN-ECU

INPUT SIGNAL

WINDSHIELD INTERMITTENT
WIPER INTERVAL
ADJUSTING KNOB

CAN COMMUNICATION
LINE (CAN_H LINE)

CAN COMMUNICATION
LINE (CAN_L LINE)

TCM

INPUT SIGNAL

ZC603309

VEHICLE SPEED

0000

TECHNICAL DESCRIPTION (COMMENT)
If the intermittent wiper interval does not depend on
the  vehicle  speed,  the  input  circuit  of  the  vehicle
speed signal and the ETACS-ECU may be defective.
Alternatively, the vehicle speed-dependent wiper may
be  set  to  "disabled"  by  using  the  configuration
function.

TROUBLESHOOTING HINTS

｠

The wiring harness or connectors may have loose,
corroded,  or  damaged  terminals,  or  terminals
pushed back in the connector

｠

The CAN bus line may be defective

｠

The ETACS-ECU may be defective

DIAGNOSIS

Required Special Tools:

｠

MB991223: Harness Set

｠

MB992006: Extra Fine Probe

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A

STEP 1. Retest the system.
Check  that  the  windshield  intermittent  wiper  interval  can  be
adjusted by operating the windshield intermittent wiper volume
control switch.

Q:Is the check result normal?

YES:

 Go to Step 2.

NO:

 Refer to Inspection Procedure 5 "The windshield

intermittent wiper interval cannot be adjusted by
operating the windshield intermittent wiper volume
control switch" P.51B-26.

51B-28

WIPER AND WASHER
