INSTALLATION SERVICE POINTS

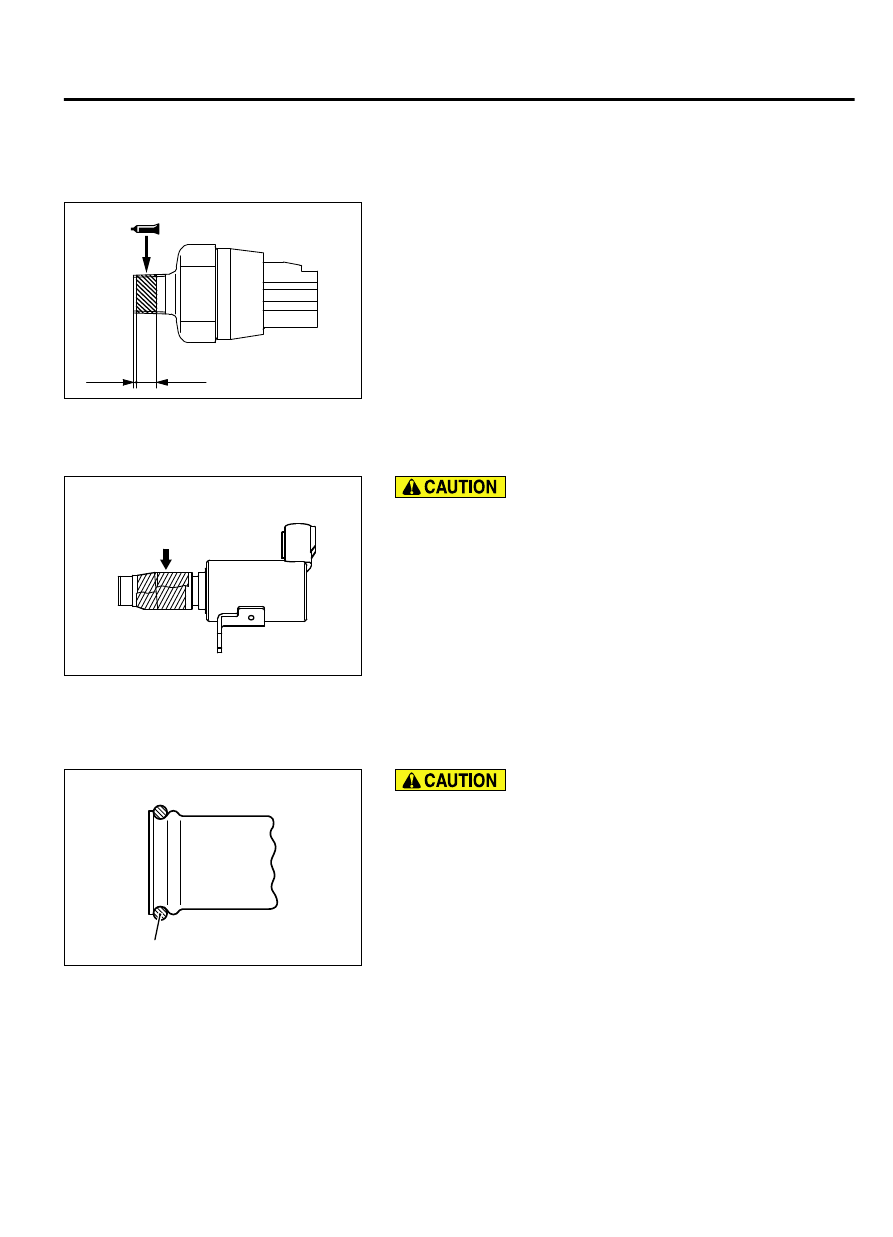

>>A<< ENGINE OIL PRESSURE SWITCH INSTALLATION

ZK602044

5 mm
(0.20 in)

1 mm
(0.04 in)

0000

1.

Apply  sealant  (Three  bond  1104  [0110207],  1215
[MZ100077], 1212 [MZ100080] or equivalent) to the threads
of the engine oil pressure switch.

2.

Install the engine oil pressure switch to the oil control valve
housing.



>>B<< ENGINE OIL CONTROL VALVE INSTALLATION

ZK6020450000

Tape

｠

Never re-use the O-ring.

｠

Before installing O-ring, wind sealing tape around the oil
passages  cut-out  area  of  engine  oil  control  valve,  to
prevent damage. If the O-ring is damaged, it can cause an
oil leak.

1.

Apply a small amount of engine oil to the O-ring and then install
it to the engine oil control valve.

2.

Install the engine oil control valve to the cylinder head.

3.

Tighten the engine oil control valve.

Tightening torque: 11 ± 1 N·m (98 ± 8 in-lb)



>>C<< WATER PIPE / O-RING INSTALLATION

ZK6020460000

O-ring

Keep the O-ring free of oil or grease.

1.

Wet the O-ring (with water) to ease assembly.

2.

Install the water pipe into the thermostat housing.



ENGINE OVERHAUL

11B-31

WATER HOSE AND PIPE

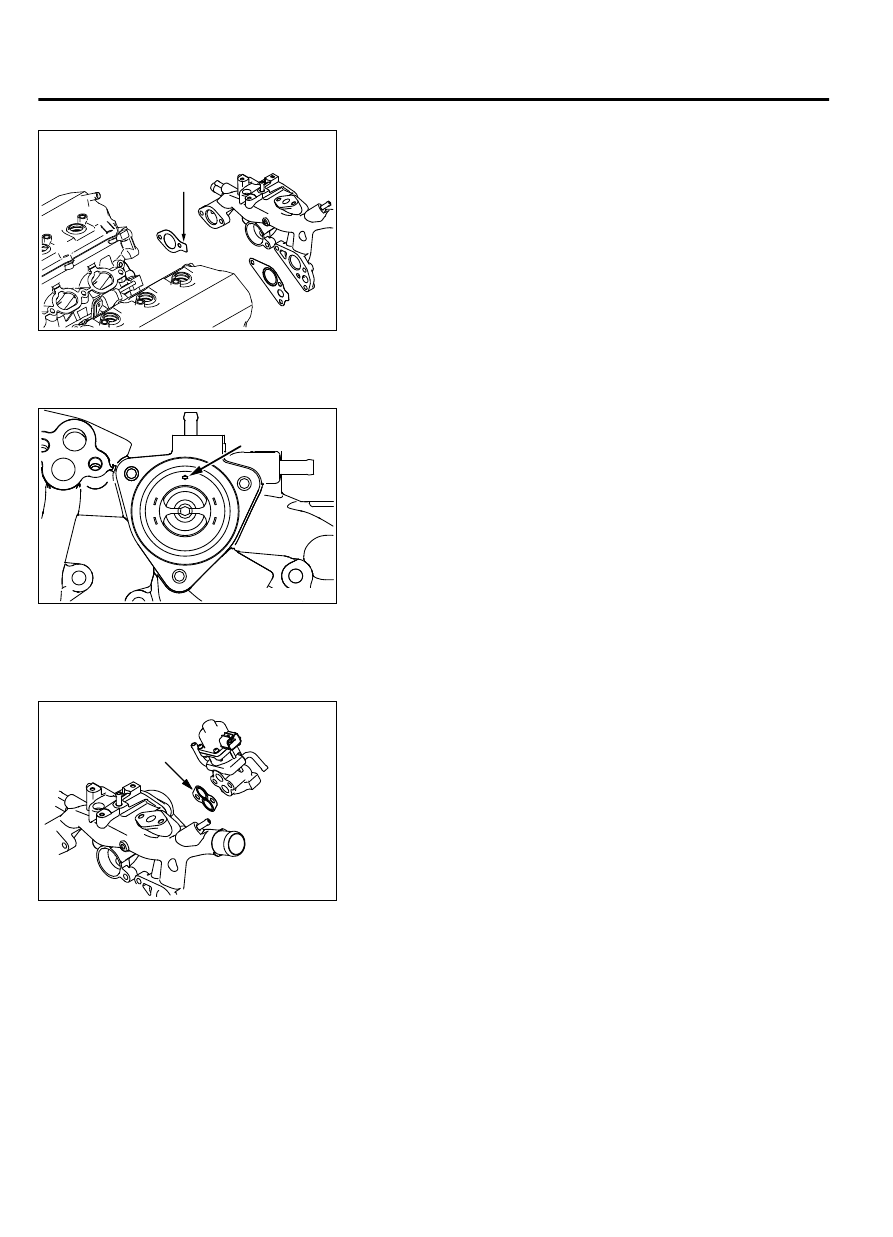

>>D<< THERMOSTAT HOUSING GASKET INSTALLATION

ZK6019130000

Tab

Install the thermostat housing gasket so that the tab is positioned
as shown in the illustration.



>>E<< THERMOSTAT INSTALLATION

ZK6020470000

Jiggle valve

Install  the  thermostat  in  the  thermostat  housing  with  its  jiggle
valve located at the top position.



>>F<< EXHAUST GAS RECIRCULATION VALVE GASKET
INSTALLATION

ZK6018990000

Tab

Install the exhaust gas recirculation valve gasket so that the tab
is positioned as shown in the illustration.



11B-32

ENGINE OVERHAUL

WATER HOSE AND PIPE

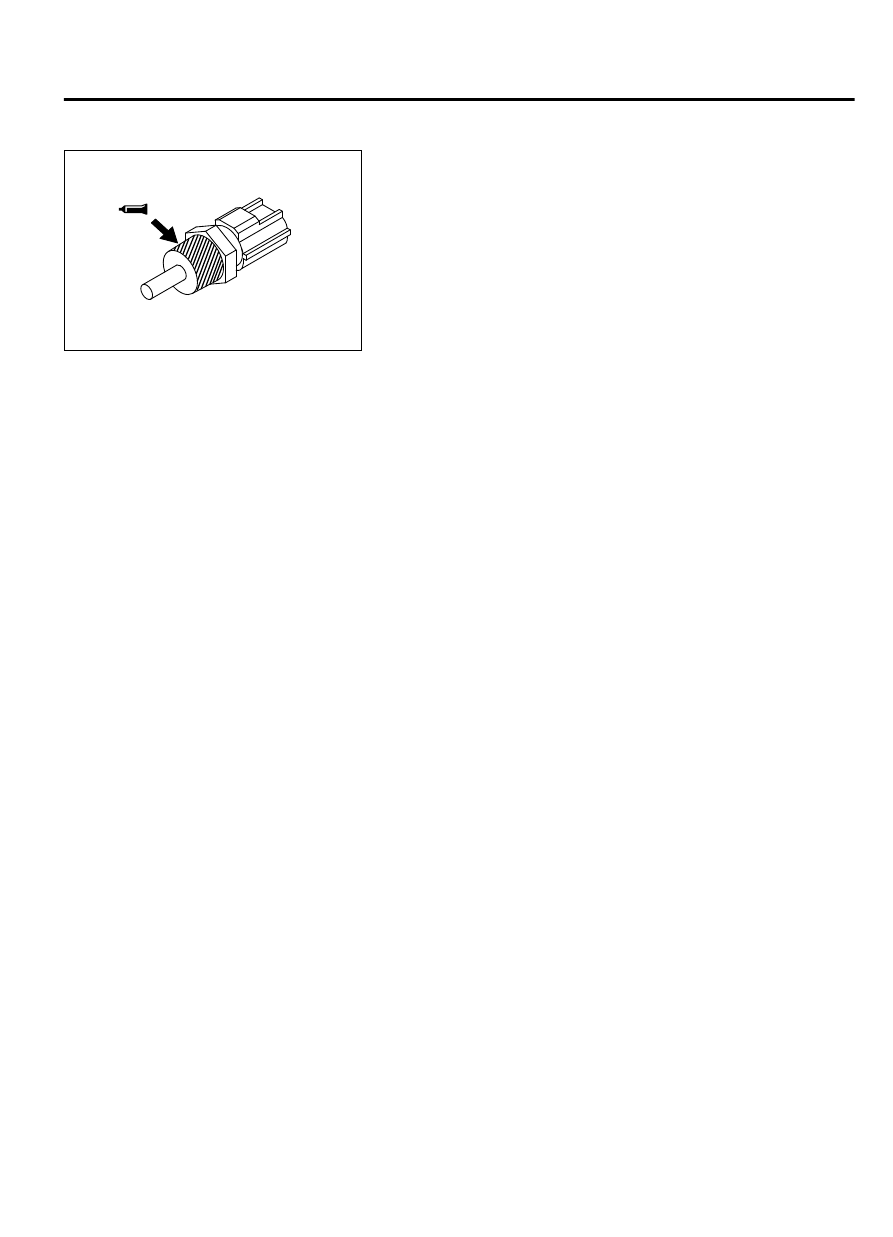

>>G<< ENGINE COOLANT TEMPERATURE SENSOR
INSTALLATION

ZK500285AA00

Apply sealant (Three bond 1324, Loctite 262 or equivalent) to
the engine coolant temperature sensor.

EXHAUST MANIFOLD

REMOVAL AND INSTALLATION

M11103000049USA0000010000

ENGINE OVERHAUL

11B-33

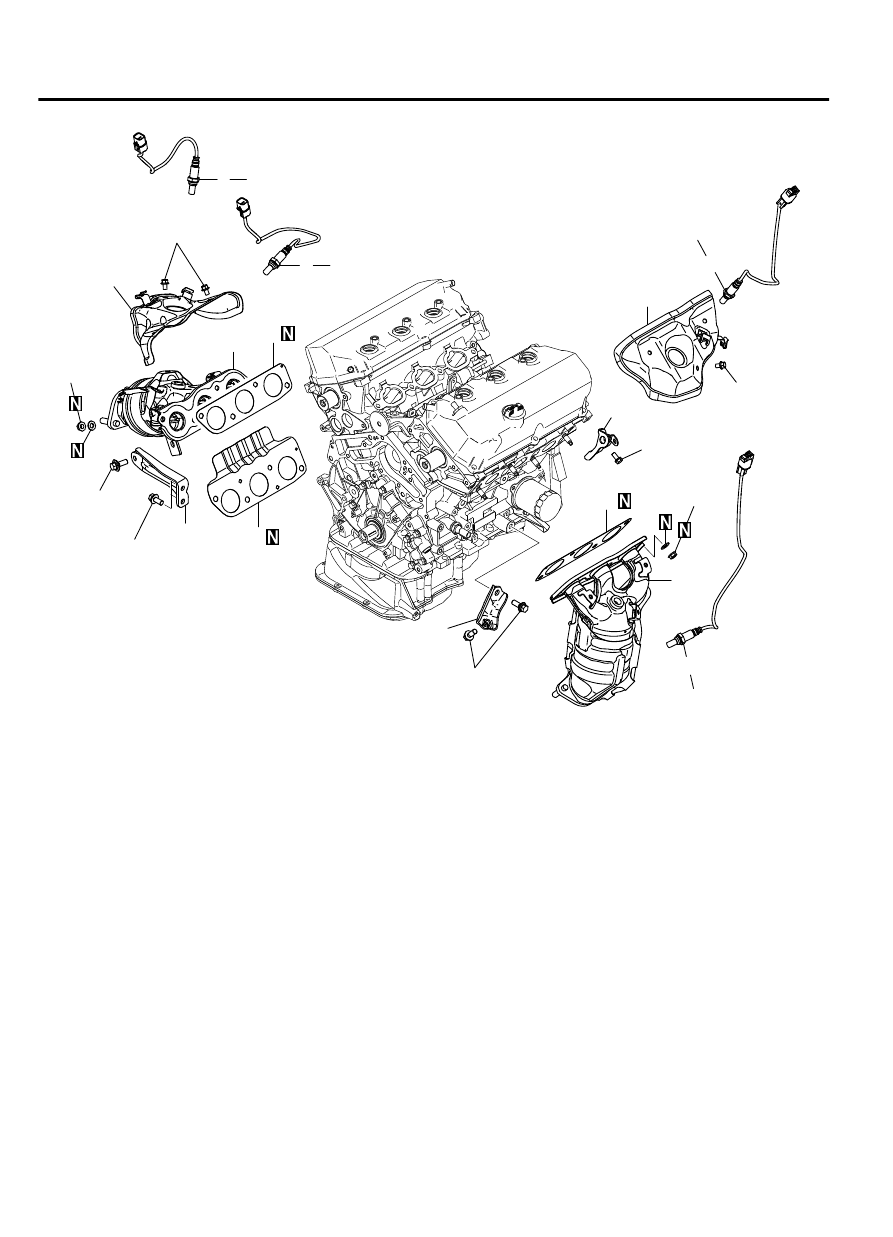

EXHAUST MANIFOLD

ZK600036

1

2

3

4

5

8

9

10

11

12

13

16 ± 4 N·m
13 ± 3 ft-lb

44 ± 5 N·m
35 ± 5 ft-lb

44 ± 5 N·m
35 ± 5 ft-lb

41 ± 10 N·m
30 ± 7 ft-lb

47 ± 11 N·m
35 ± 7 ft-lb

49 ± 5 N·m
30 ± 7 ft-lb

16 ± 4 N·m
13 ± 3 ft-lb

44 ± 5 N·m
35 ± 5 ft-lb

17 ± 2 N·m
13 ± 1 ft-lb

47 ± 11 N·m
35 ± 7 ft-lb

49 ± 5 N·m
30 ± 7 ft-lb

6

14

44 ± 5 N·m
35 ± 5 ft-lb

0000

7

Removal steps

1.

RIGHT

 BANK

 HEATED

 OXYGEN

SENSOR (FRONT)

2.

RIGHT

 BANK

 HEATED

 OXYGEN

SENSOR (REAR)

3.

EXHAUST MANIFOLD COVER, RIGHT

>>D<<

4.

EXHAUST MANIFOLD BRACKET, RIGHT

5.

EXHAUST MANIFOLD, RIGHT

>>C<<

6.

EXHAUST

 MANIFOLD

 GASKET

<EXCEPT CALIFORNIA>

7.

EXHAUST

 MANIFOLD

 GASKET

<CALIFORNIA>

Removal steps

8.

ENGINE HANGER

9.

LEFT BANK HEATED OXYGEN SENSOR
(FRONT)

10. LEFT BANK HEATED OXYGEN SENSOR

(REAR)

11. EXHAUST MANIFOLD COVER, LEFT

>>B<<

12. EXHAUST MANIFOLD BRACKET, LEFT
13. EXHAUST MANIFOLD, LEFT

>>A<<

14. EXHAUST MANIFOLD GASKET
