SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-105

Step 7. Check the wiring harness between C-208
power window relay connector terminal No.4 and
E-05 power window main switch connector
terminal No.6.

NOTE:

Prior to the wiring harness inspection, check
intermediate connectors C-15, E-32 and junction
block connector C-203, and repair if necessary.

•

Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction

P.00-6

).

NO :

Repair the harness wire, and then go to
Step 7.

Step 8. Connector check: E-23 front power
window motor (RH) connector

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the connector.

AC308773

Junction block side

Junction block
(front view)

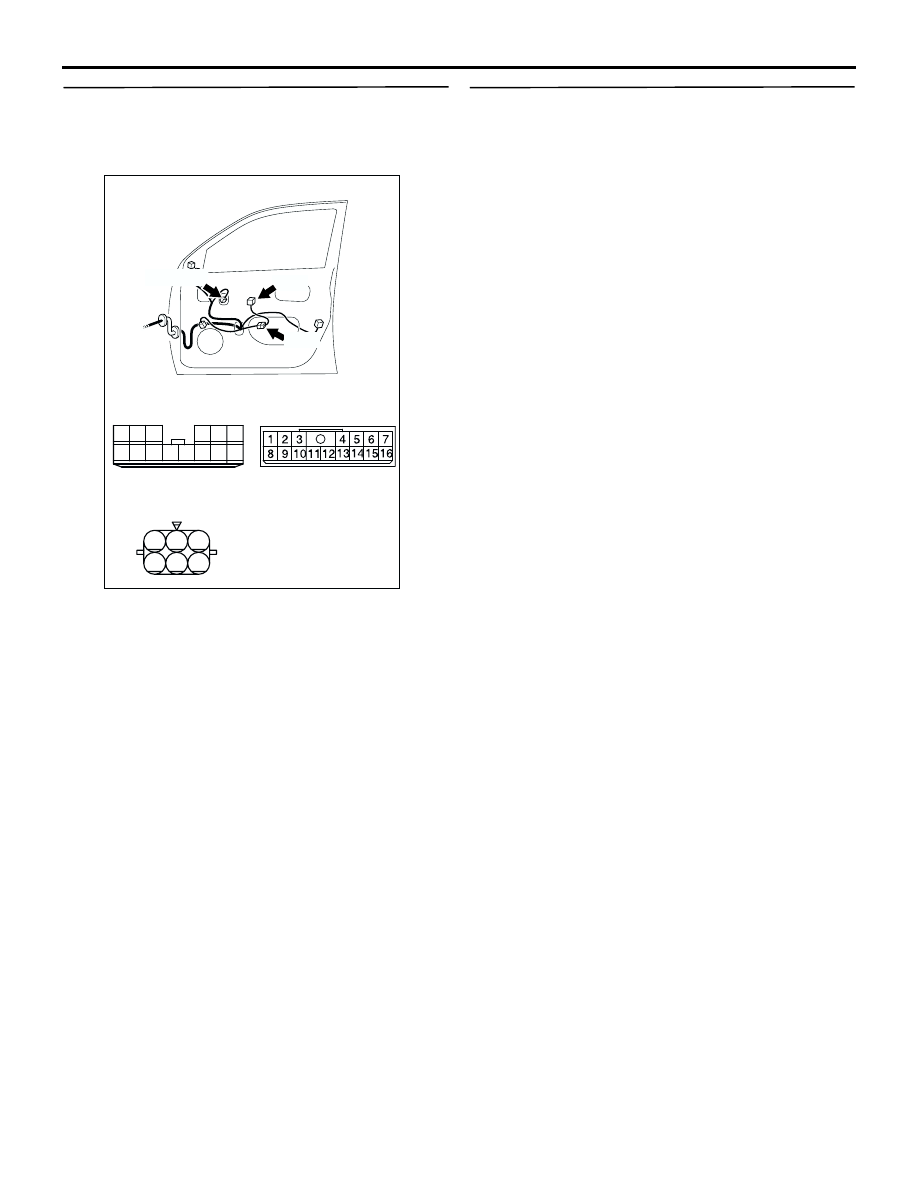

Connectors: C-203, C-208

C-203

C-208

Harness side

C-203

AG

<RHD>

C-208

AC308798AB

Connector: E-05, E-32

<RHD>

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Harness side

E-05

E-32

E-05

E-32

AC308769

AI

Connector: C-15 <RHD>

AC308797

Connector: E-23

Harness side

E-23(GR)

AF

<LHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-106

Step 9. Check the wiring harness from E-23 front
power window motor (RH) connector terminal
Nos. 1 and 3 to E-05 power window main switch
connector terminal Nos. 7 and 1.

NOTE: Prior to the wiring harness inspection, check
intermediate connector E-32, and repair if necessary.

•

Check the input and output lines for open or short
circuit.

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Repair the wiring harness.

Step 10. Retest the system.

After the power window main switch is replaced,
check that the driver's door power window can be
operated by the power window main switch.
(1) Replace the power window main switch.
(2) Check that the driver's power window works by

means of the power window main switch.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Replace the front power window motor
assembly (LH).

AC308798

Connectors: E-05, E-23, E-32
<RHD>

E-05

Harness side

E-23

Harness side

E-05

E-23(GR)

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AE

4

6 5

3 2 1

E-32

E-32

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-107

INSPECTION PROCEDURE D-3: Relevant power window(s) do not work by means of the front and
rear passenger's power window sub switches.

FUSIBLE
LINK

5

POWER
WINDOW
RELAY

CPU

POWER
WINDOW
SUB SWITCH
(FRONT: RH)

POWER WINDOW
MOTOR
(FRONT: RH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

ETACS-
ECU

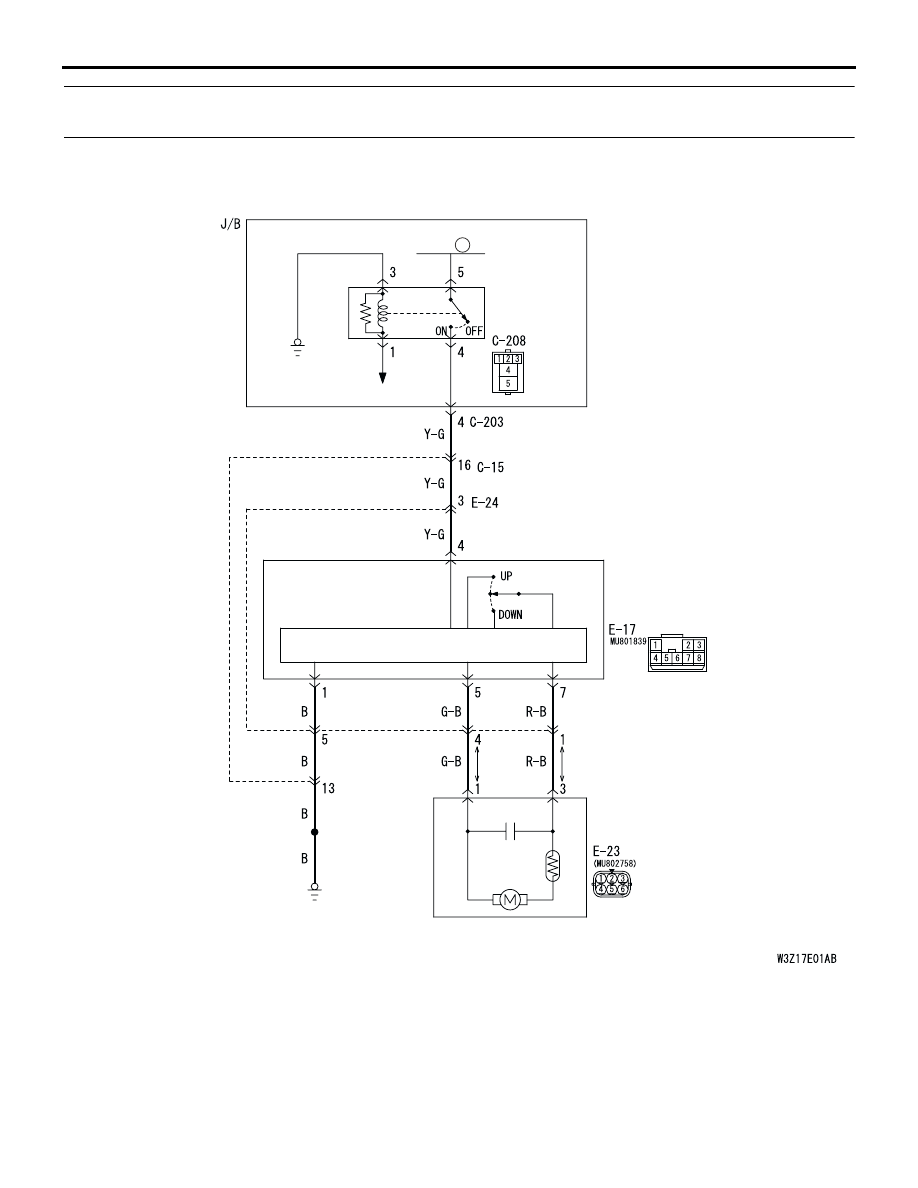

Power Window (front: RH) Circuit <LHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-108

FUSIBLE
LINK

5

POWER
WINDOW
RELAY

CPU

POWER
WINDOW
SUB SWITCH
(FRONT: LH)

POWER WINDOW
MOTOR
(FRONT: LH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

ETACS-ECU

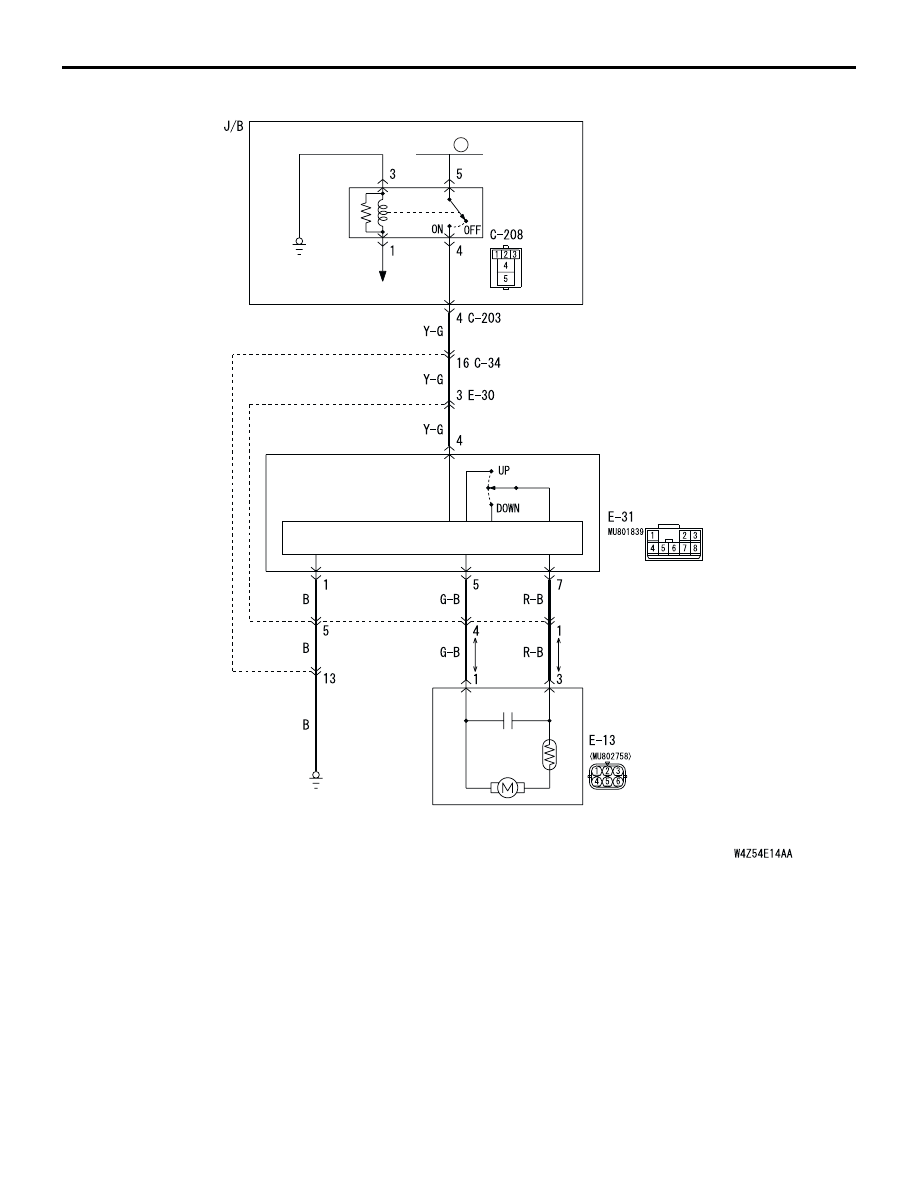

Power Window (front: LH) Circuit <RHD>
