SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-101

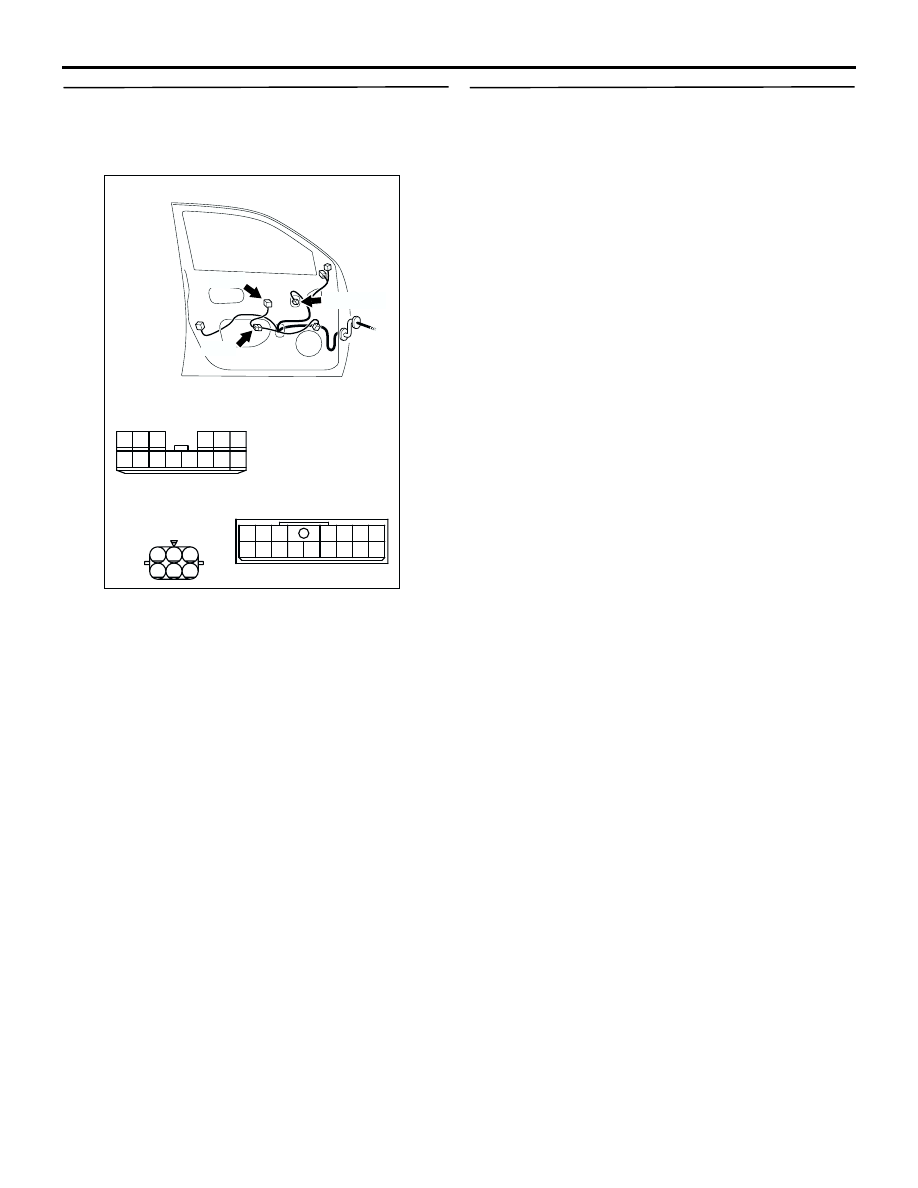

Step 9. Check the wiring harness from E-13
power window motor (front LH) connector
terminal Nos. 1 and 3 to E-05 power window main
switch connector terminal Nos. 7 and 1.

NOTE: Prior to the wiring harness inspection, check
intermediate connector E-12, and repair if necessary.

•

Check the input and output lines for open or short
circuit.

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Repair the wiring harness.

Step 10. Retest the system.

After the power window main switch is replaced,
check that the driver's door power window can be
operated by the power window main switch.
(1) Replace the power window main switch.
(2) Check that the driver's power window works by

means of the power window main switch.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Replace the power window motor assembly
(front LH).

AC308792

Connectors: E-05, E-12, E-13
<LHD>

E-05

Harness side

E-13

Harness side

E-05

E-13(GR)

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC

4

6 5

3 2 1

E-12

E-12

10

2
9

1
8

3

12

11

4

13

6

15

5

14

7

16

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-102

INSPECTION PROCEDURE D-2: Driver's power window does not work by means of the power window
main switch. <R.H. drive vehicles>

FUSIBLE
LINK

5

POWER
WINDOW
RELAY

ETACS-ECU

POWER
WINDOW
MAIN SWITCH

POWER WINDOW
MOTOR
(FRONT: RH)

FRONT
(RH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

CPU

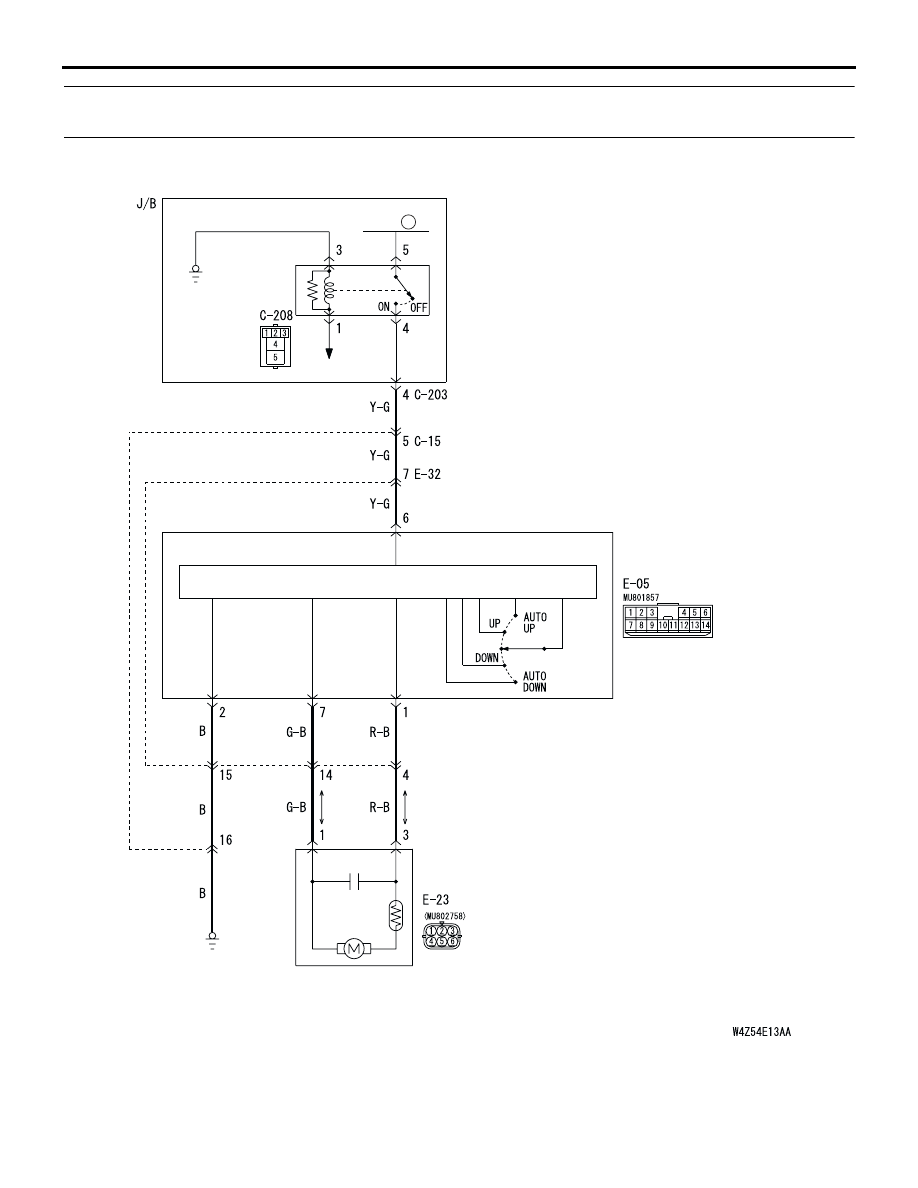

Power Window (front: RH) Circuit <RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-103

COMMENTS ON TROUBLE SYMPTOM
If the driver's power window does not work by means
of the power window main switch, the power window
main switch or the driver's door power window motor
may be defective.

POSSIBLE CAUSES

•

Malfunction of the power window main switch

•

Malfunction of the front power window motor (LH)

•

Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. Check the power window main switch.

Check that all of the front passenger's and rear door
power windows can operate by means of the power
window main switch.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to Inspection Procedure D-1 "Power
windows do not work at all

P.54B-86

."

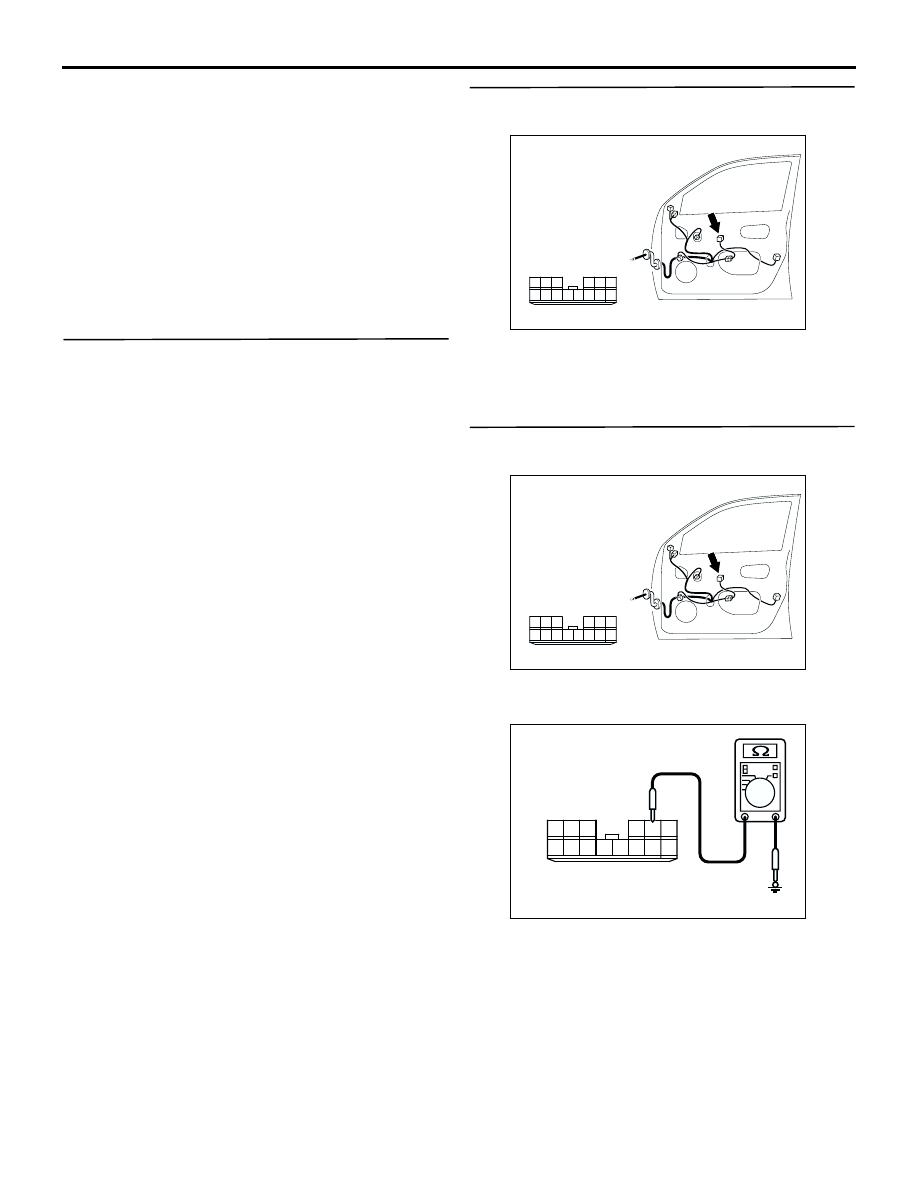

Step 2. Connector check: E-05 power window
main switch connector

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the connector.

Step 3. Resistance measurement at the E-05
power window main switch connector

(1) Disconnect the connector, and measure at the

wiring harness side.

AC308797AE

Connector: E-05

<RHD>

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Harness side

AC308797AE

Connector: E-05

<RHD>

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC304116

Connector E-05
(Harness side)

AB

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-104

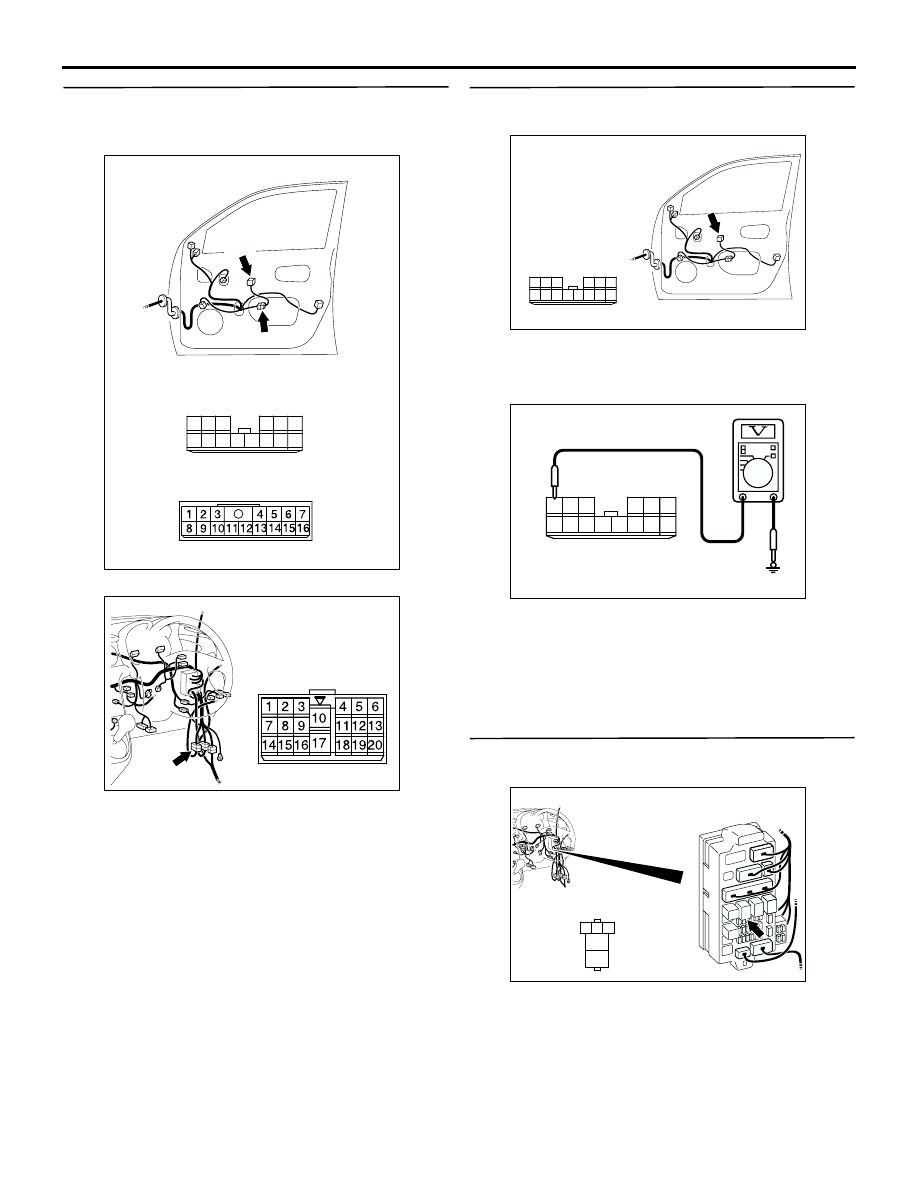

Step 4. Check the wiring harness between E-05
power window main switch connector terminal
No.2 and body earth.

NOTE:

Prior to the wiring harness inspection, check
intermediate connectors C-15 and E-32, and repair if
necessary.

•

Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction

P.00-6

).

NO :

Repair the wiring harness.

Step 5. Voltage measurement at the E-05 power
window main switch connector

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Turn the ignition switch to the ON position.

(3) Voltage between terminal 6 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Go to Step 6.

Step 6. Connector check: C-208 power window
relay connector

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the connector.

AC308798AB

Connector: E-05, E-32

<RHD>

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Harness side

E-05

E-32

E-05

E-32

AC308769

AI

Connector: C-15 <RHD>

AC308797AE

Connector: E-05

<RHD>

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC303986

Connector E-05
(Harness side)

AB

AC308772

Connector: C-208

AF

3

4

5

1

2

Junction block (Front view)

Junction block side

<RHD>
