SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-245

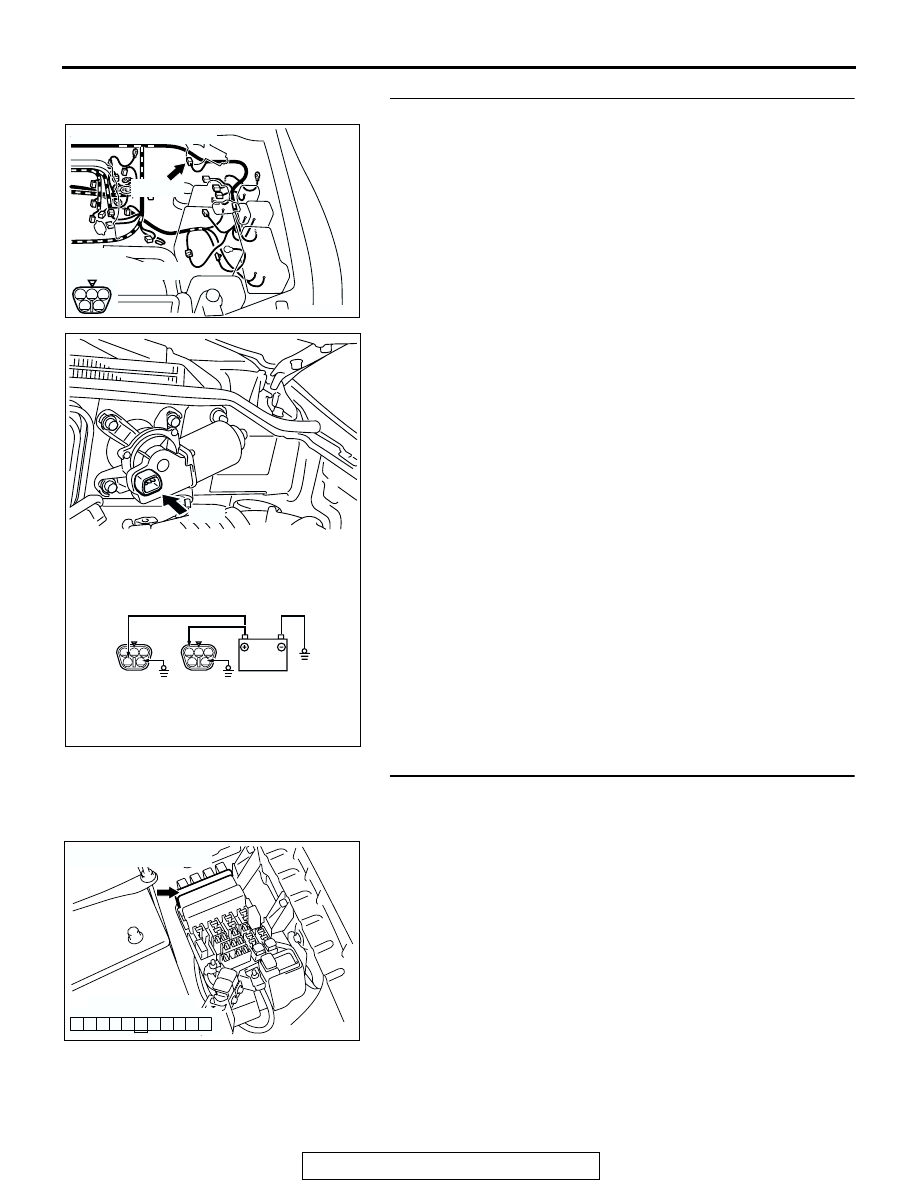

STEP 3. Check the windshield wiper motor.
(1) Disconnect windshield wiper motor connector B-12.

(2) Connect a battery to the windshield wiper motor as shown.

Then check the windshield wiper motor operates normally
at high and low speeds.

Q: Does the windshield wiper motor operate normally?

YES : Go to Step 4.
NO :  Replace the windshield wiper motor. Verify that the

windshield wiper operates normally when the
windshield wiper switch is moved to each position.

STEP 4. Check front-ECU connector A-08X for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is front-ECU connector A-08X in good condition?

YES : Go to Step 5.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the windshield wiper operates

normally when the windshield wiper switch is moved
to each position.

AC205116 AD

CONNECTOR: B-12

B-12 (B)

(HARNESS SIDE)

B-12 (B)

1

2

3

4

5

1

2 3

4

5

1

2 3

4

5

ACX02403

B-12

AB

LOW-SPEED

HIGH-SPEED

AC204183

CONNECTOR : A-08X

AC

22

23

21

26 25

27

28

31 30 29

24

RELAY BOX SIDE

A-08X

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-246

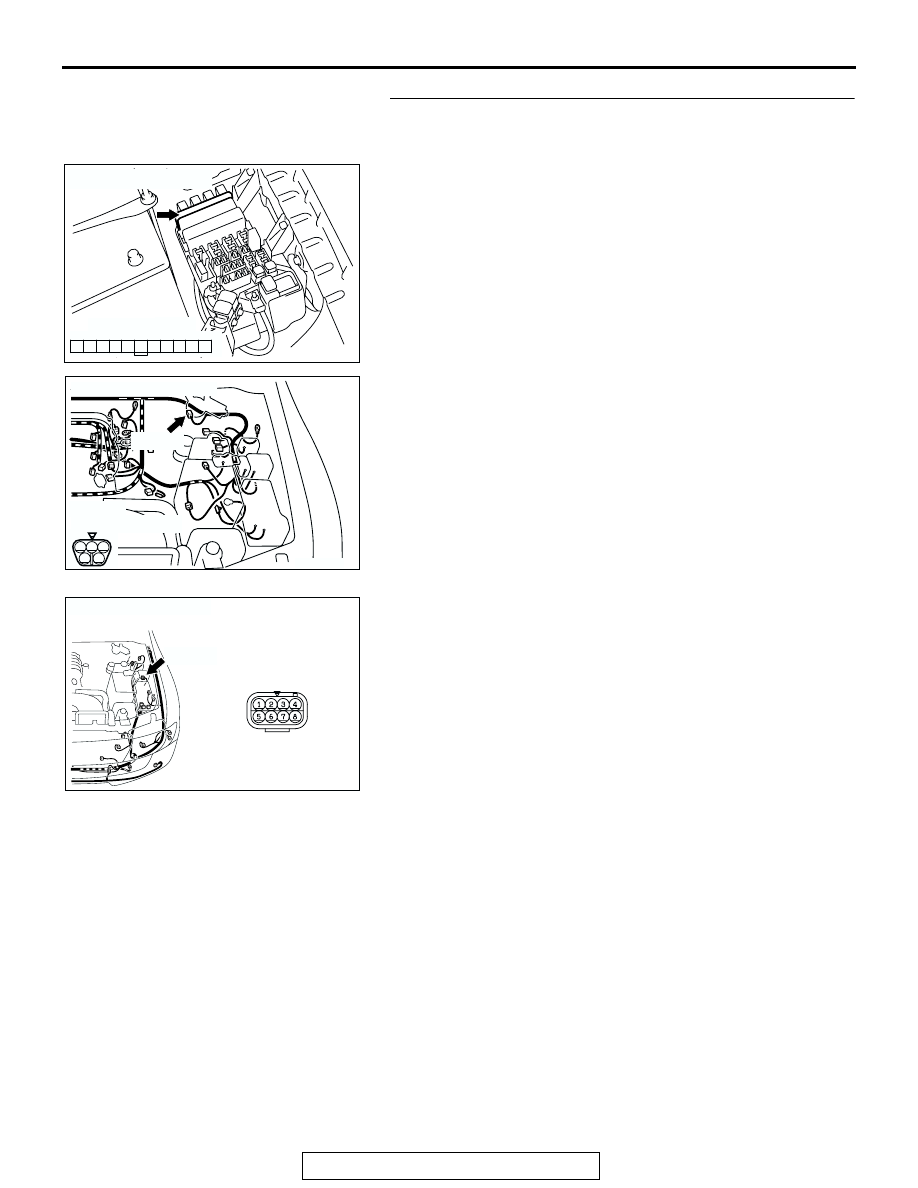

STEP 5. Check the wiring harness between windshield
wiper motor connector B-12 (terminal 1) and front-ECU
connector A-08X (terminal 28).

NOTE: Also check intermediate connector A-05 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector A-05 is damaged, repair or
replace the damaged component(s) as described in GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between windshield wiper motor

connector B-12 (terminal 1) and front-ECU connector
A-08X (terminal 28) in good condition?
YES : Go to Step 6.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the windshield wiper operates normally when the
windshield wiper switch is moved to each position.

AC204183

CONNECTOR : A-08X

AC

22

23

21

26 25

27

28

31 30 29

24

RELAY BOX SIDE

A-08X

AC205116 AD

CONNECTOR: B-12

B-12 (B)

(HARNESS SIDE)

B-12 (B)

1

2

3

4

5

AC205142AC

CONNECTOR: A-05

A-05(B)

A-05(B)

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-247

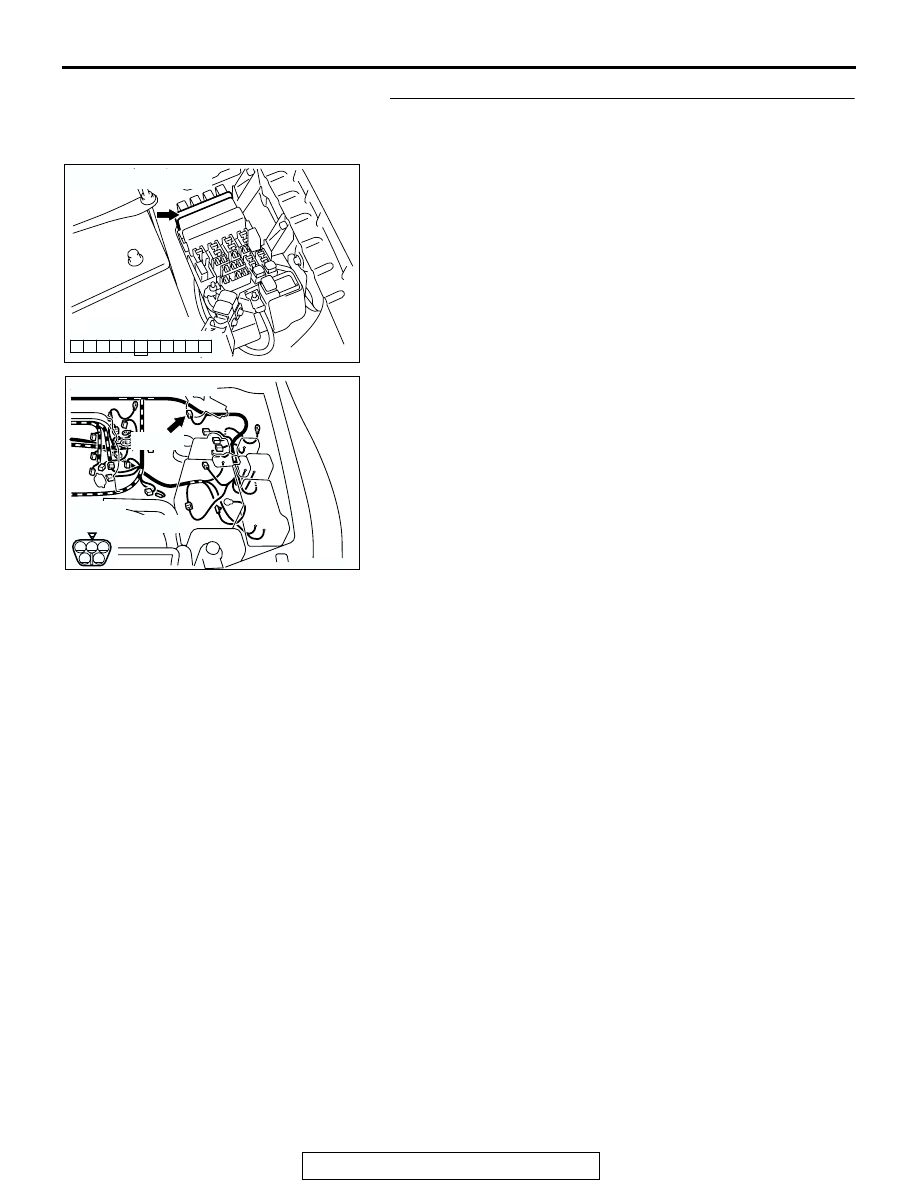

STEP 6. Check the wiring harness between windshield
wiper motor connector B-12 (terminal 4) and front-ECU
connector A-08X (terminal 27).
Q: Is the wiring harness between windshield wiper motor

connector B-12 (terminal 4) and front-ECU connector
A-08X (terminal 27) in good condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the windshield wiper operates normally when the
windshield wiper switch is moved to each position.

AC204183

CONNECTOR : A-08X

AC

22

23

21

26 25

27

28

31 30 29

24

RELAY BOX SIDE

A-08X

AC205116 AD

CONNECTOR: B-12

B-12 (B)

(HARNESS SIDE)

B-12 (B)

1

2

3

4

5

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-248

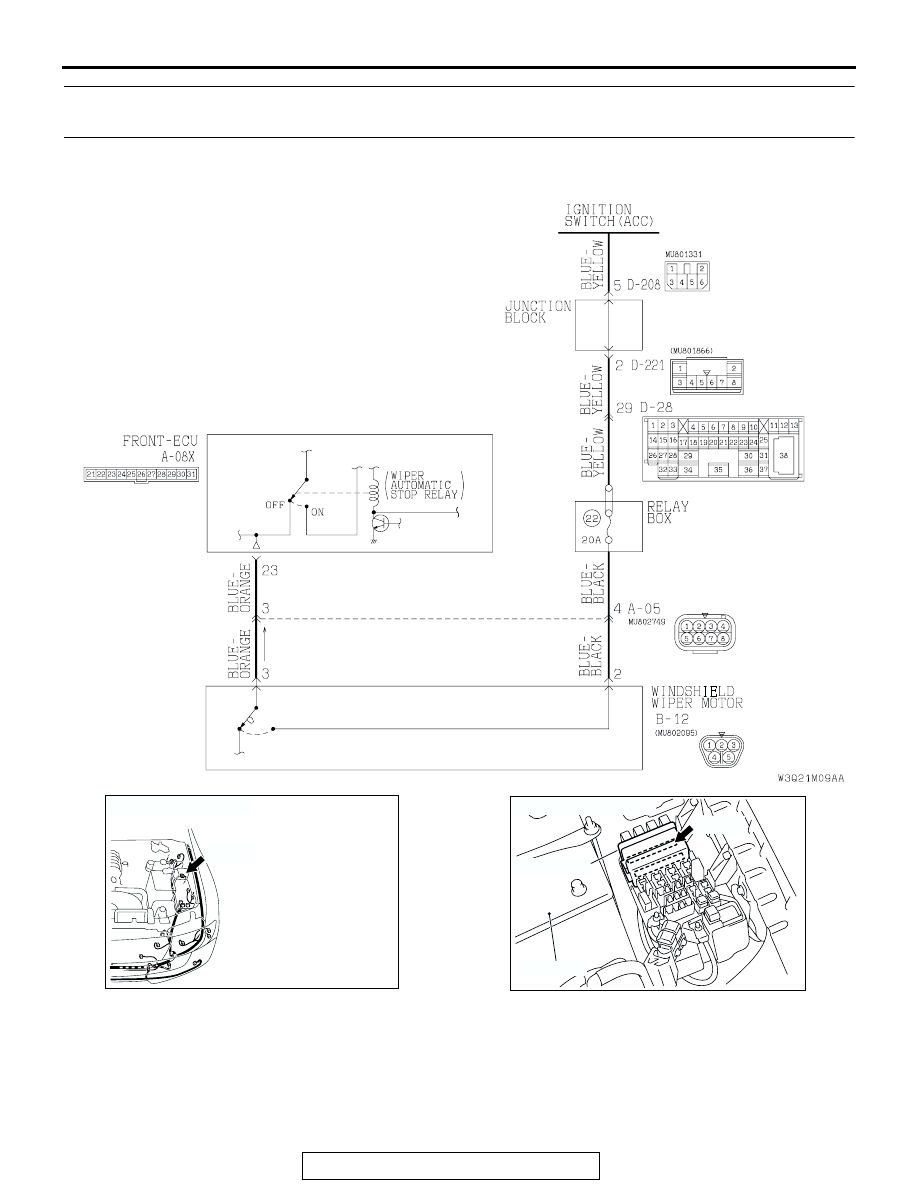

INSPECTION PROCEDURE G-4: Windshield Wiper and Washer: The windshield wiper does not stop at
the predetermined park position.

Windshield Wiper Automatic Stop Relay Circuit

AC205142AB

CONNECTOR: A-05

A-05(B)

AC205138

CONNECTOR: A-08X

AB

BATTERY

FRONT-ECU

A-08X
