MARK

TSB Revision

EXTERIOR

51-31

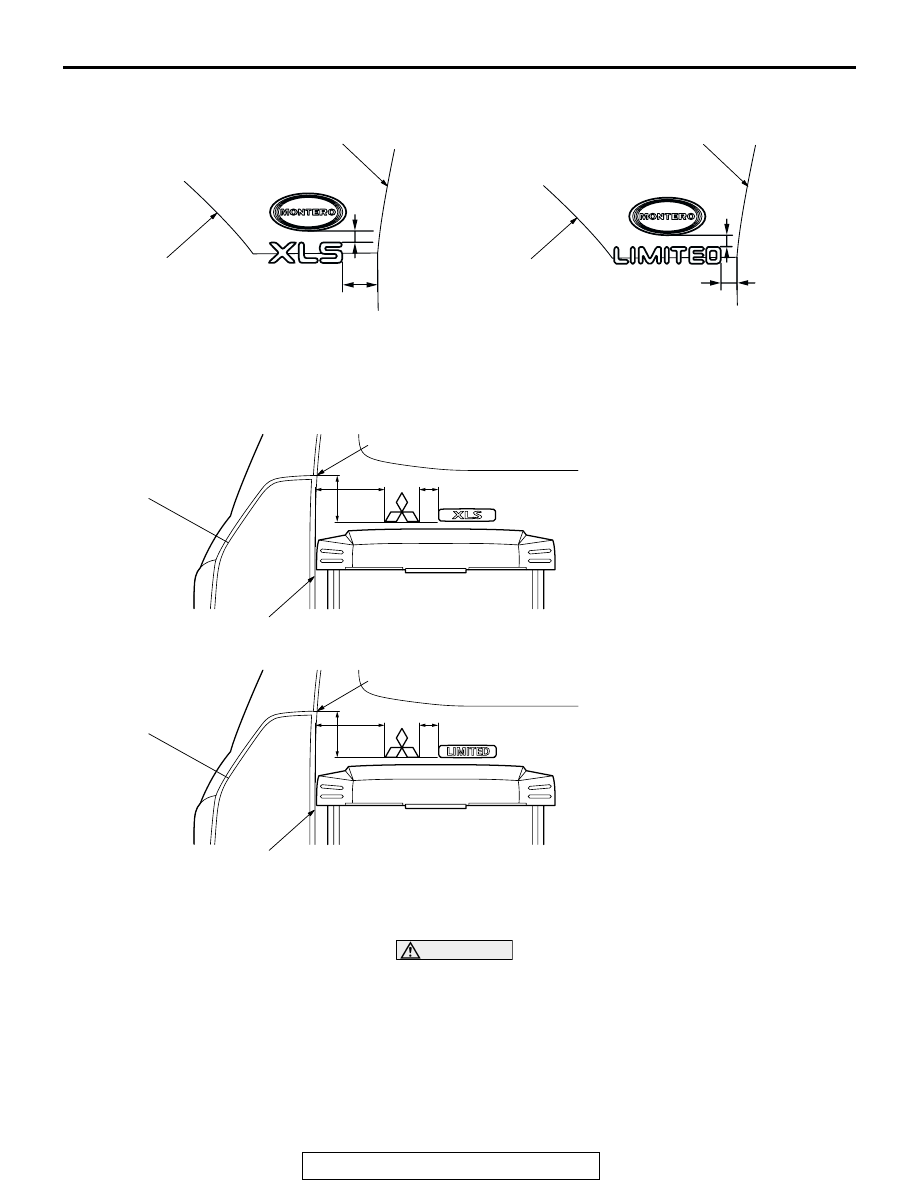

2. Installation procedure

(1) Use 3M

ä AAD Part number 8906 or equivalent to clean

the mark installation surfaces on the body.

CAUTION

When attaching the marks, the ambient temperature
should be 20

− 38°C (60 − 100°F) and the air should be

completely free of dust. If the ambient temperature is lower
than 20

°C (60°F), the marks and the places on the vehicle

body where the marks are to be attached should be heated
to 20

− 38°C (60 − 100°F).

(2) Peel off the backing paper from the reverse side of the

marks, carefully attach the marks to the vehicle body in
the exact position shown.

AC204137

12 (0.5)

PRESS LINE

41 (1.6)

FRONT DOOR OPENING LINE

PRESS LINE

FRONT DOOR OPENING LINE

12 (0.5)

18.5(0.7)

UNITS: mm (in)

MONTERO MARK, GRADE MARK (XLS, LIMITED)

NOTE : RH side is symmetrical on LH side.

AB

AC204140

SIDE OUTER PANEL END LINE

UNITS: mm (in)

SIDE OUTER PANEL END LINE

85 (3.4)

35 (1.4)

125 (4.9)

85 (3.4)

35 (1.4)

125 (4.9)

THREE-DIAMOND MARK, GRADE MARK (XLS, LIMITED)

CONBINATION LIGHT

CONBINATION LIGHT

BACK DOOR END LINE

BACK DOOR END LINE

AB

DOOR MIRROR

TSB Revision

EXTERIOR

51-32

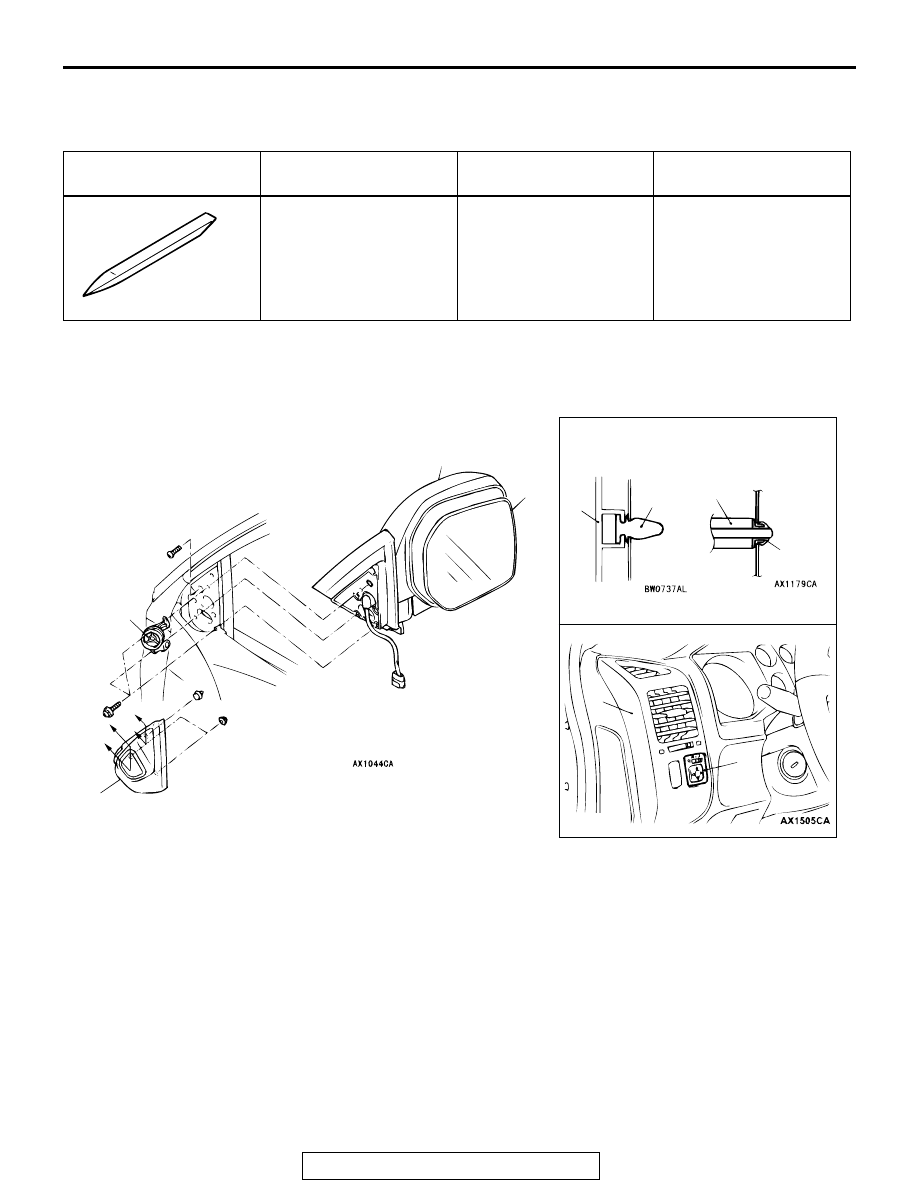

DOOR MIRROR

SPECIAL TOOL

M1511000600100

DOOR MIRROR

REMOVAL AND INSTALLATION

M1511006400171

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB990784 Ornament
remover

General service tool

Removal of air outlet
assembly

MB990784

AC000440

1

2

3

4

1

1

5

6

A
A

B

B

CLIP

CLIP

SECTION A – A

SECTION B – B

AB

DOOR MIRROR REMOVAL STEPS
1. DELTA COVER, INNER
2. TWEETER COVER
3. DOOR MIRROR ASSEMBLY

<<A>> >>A<<

4. MIRROR

REMOTE CONTROLLED MIRROR
SWITCH REMOVAL STEPS
5. AIR OUTLET ASSEMBLY (REFER

TO GROUP 52A - INSTRUMENT
PANEL

P.52A-2

.)

6. REMOTE CONTROLLED MIRROR

SWITCH

DOOR MIRROR

TSB Revision

EXTERIOR

51-33

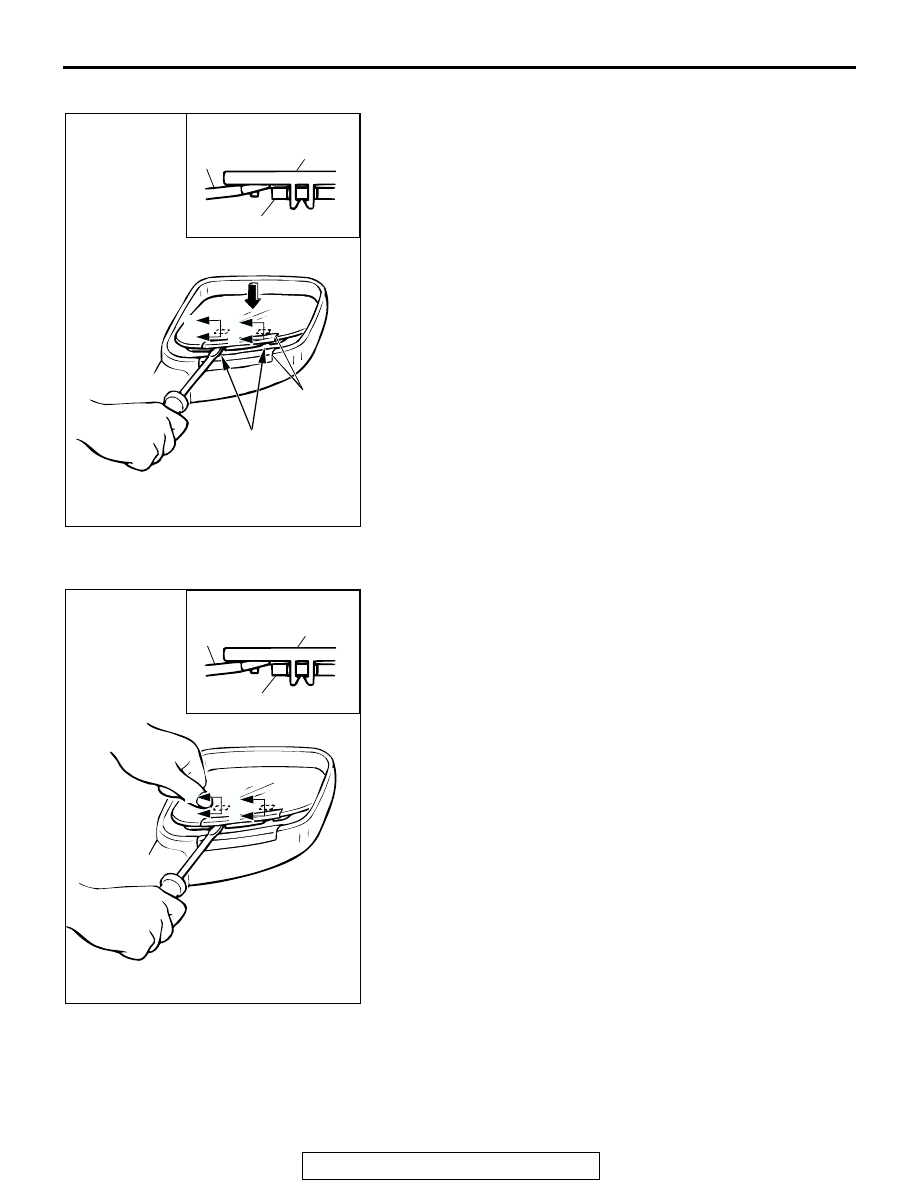

REMOVAL SERVICE POINT

.

<<A>> MIRROR REMOVAL
Push the top of the mirror with your hand to tilt it and attach the
protective tape as shown in the illustration. Then insert a flat-
tipped screwdriver in between the notch at the rear of the mirror
and the pivot plate, and disengage the bottom of the mirror.

INSTALLATION SERVICE POINT

.

>>A<< MIRROR INSTALLATION
While supporting the clip position on the underside of the pivot
plate with a flat-tipped screwdriver, press the clip at the front of
the mirror to engage the bottom of the mirror.

AC000441

00007256

MIRROR

FLAT-TIPPED
SCREWDRIVER

SECTION A – A

PIVOT PLATE

NOTCH

PROTECTIVE
TAPE

A
A

A
A

AB

AC000442

00007258

MIRROR

FLAT-TIPPED
SCREWDRIVER

SECTION A – A

PIVOT PLATE

A
A

A
A

AB

DOOR MIRROR

TSB Revision

EXTERIOR

51-34

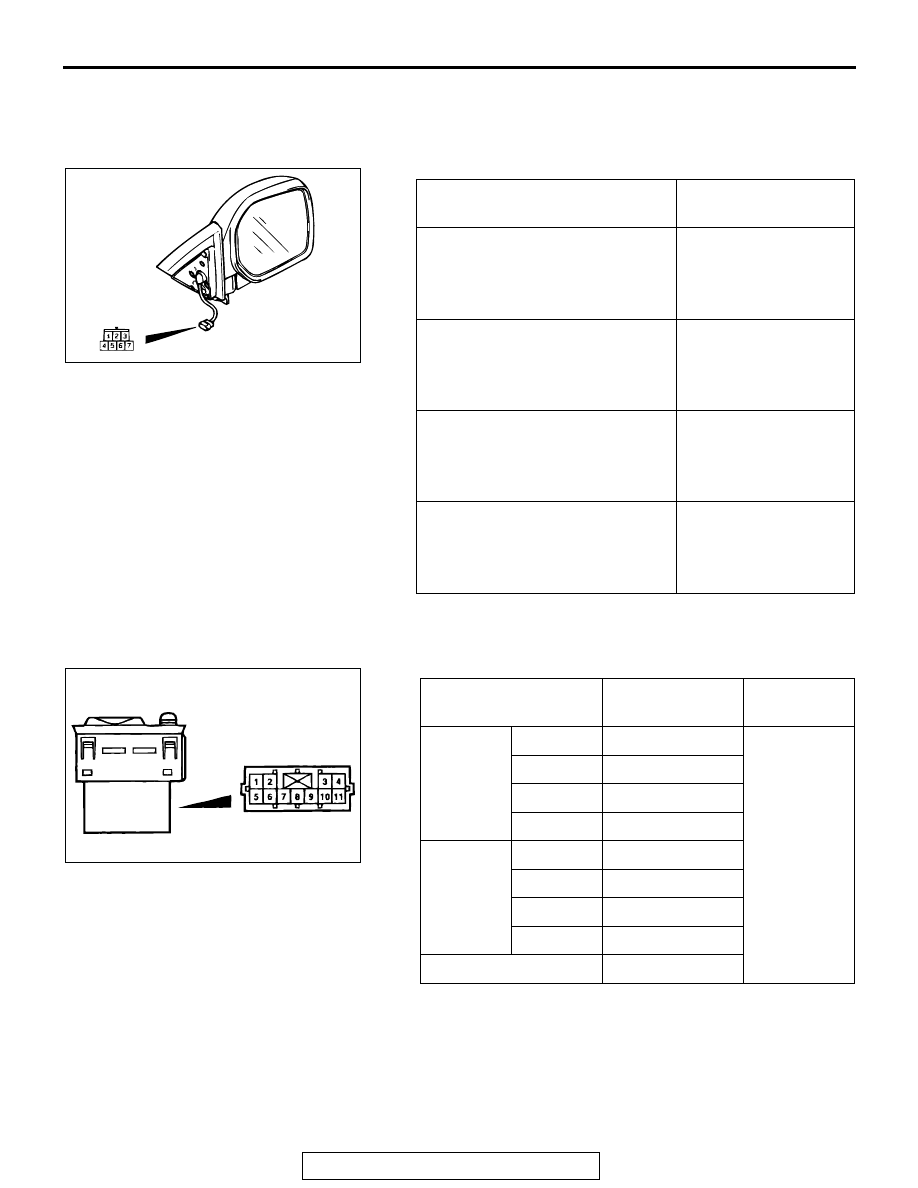

INSPECTION

M1511019100266

REMOTE CONTROLLED MIRROR ASSEMBLY
CHECK

REMOTE CONTROLLED MIRROR SWITCH
CONTINUITY CHECK

BATTERY CONNECTION

SPECIFIED
CONDITION

•Connect terminal 6 to the

negative battery terminal
•Connect terminal 4 to the positive

battery terminal

Mirror glass should
face upward

•Connect terminal 4 to the

negative battery terminal
•Connect terminal 6 to the positive

battery terminal

Mirror glass should
face downward

•Connect terminal 5 to the

negative battery terminal
•Connect terminal 6 to the positive

battery terminal

Mirror glass should
face to the right

•Connect terminal 6 to the

negative battery terminal
•Connect terminal 5 to the positive

battery terminal

Mirror glass should
face to the left

AC000443

SWITCH POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

Left side

Up

1

− 6, 9 − 11

Less than 2
ohms

Down

1

− 11, 6 − 9

Right

1

− 6, 9 − 10

Left

1

− 10, 6 − 9

Right side Up

1

− 6, 3 − 9

Down

1

− 3, 6 − 9

Right

1

− 6, 2 − 9

Left

1

− 2, 6 − 9

Illumination

5

− 8

AC000444
