TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-303

OPERATION

• The battery voltage is applied to the engine con-

trol relay (terminal No. 1 and No. 4).

• The engine-ECU (terminal No. 57) makes the

power transistor in the unit be in "ON" position
and makes currents go on the engine control
relay coil, and that makes the relay be in "ON"
position.

• When the engine control relay is in "ON" position,

the battery voltage is supplied to the
engine-ECU, the sensor and the actuator from
the engine control relay (terminal No. 4).

• The engine-ECU (terminal No. 46, No. 58) is

grounded to the vehicle body.

FUNCTION

• When the ignition switch ON signal is input to the

engine-ECU, the engine-ECU places the engine
control relay in the ON position. Accordingly, the
battery voltage is supplied to the engine-ECU,
sensor and actuator.

PROBABLE CAUSES

• Failed engine control relay

• Open/short circuit in engine control relay circuit or

loose connector contact

• Failed engine-ECU

DIAGNOSIS PROCEDURE

NOTE:

.

*1: L.H. drive vehicles
*2: R.H. drive vehicles

STEP 1. Check battery voltage.

• Measure battery voltage during cranking.

OK: 8 V or more

Q: Is the check result normal?

YES :

Go to Step 2 .

NO :

Check battery (Refer to GROUP 54A

−

Battery

− On-vehicle Service − Battery test

P.54A-5

).

STEP 2. Connector check: B-12X engine control
relay connector

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Repair or replace the connector.

STEP 3. Check engine control relay.

• Check engine control relay (Refer to

P.13A-401

).

Q: Is the check result normal?

YES :

Go to Step 4 .

NO :

Replace the engine control relay.

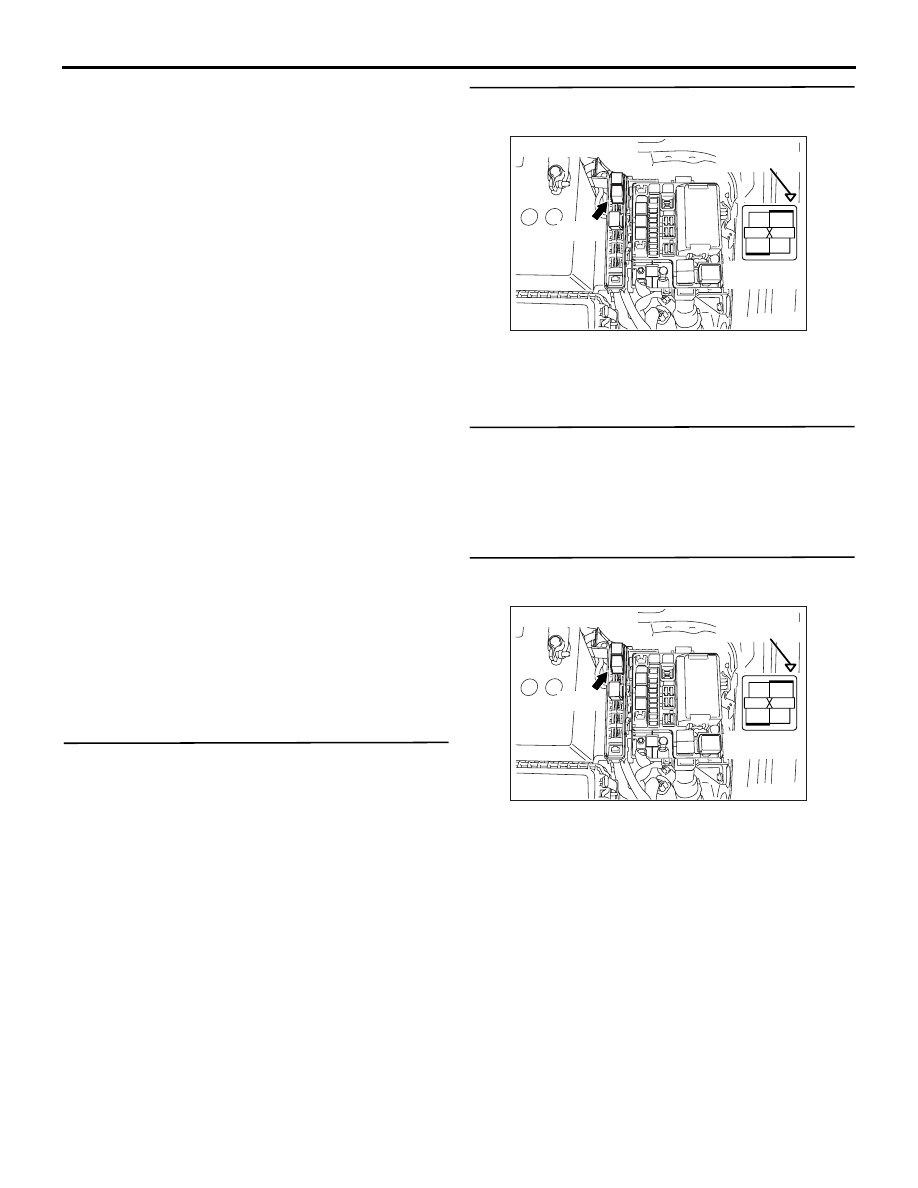

STEP 4. Perform voltage measurement at B-12X
engine control relay connector.

• Remove relay, and measure at relay box side.

• Voltage between terminal No. 1 and earth, also

between terminal No. 2 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Check intermediate connector A-13

*1

 or

C-31

*2

, and repair if necessary. If

intermediate connector is normal, check and
repair harness between B-12X (terminal No.
1, No. 2) engine control relay connector and
battery.

• Check power supply line for

open/short circuit.

AK305003

2

1

3

4

AB

Connector : B-12X

B-12X

Harness side
connector

Relay box’s
triangle marks

AK305003

2

1

3

4

AB

Connector : B-12X

B-12X

Harness side
connector

Relay box’s
triangle marks

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-304

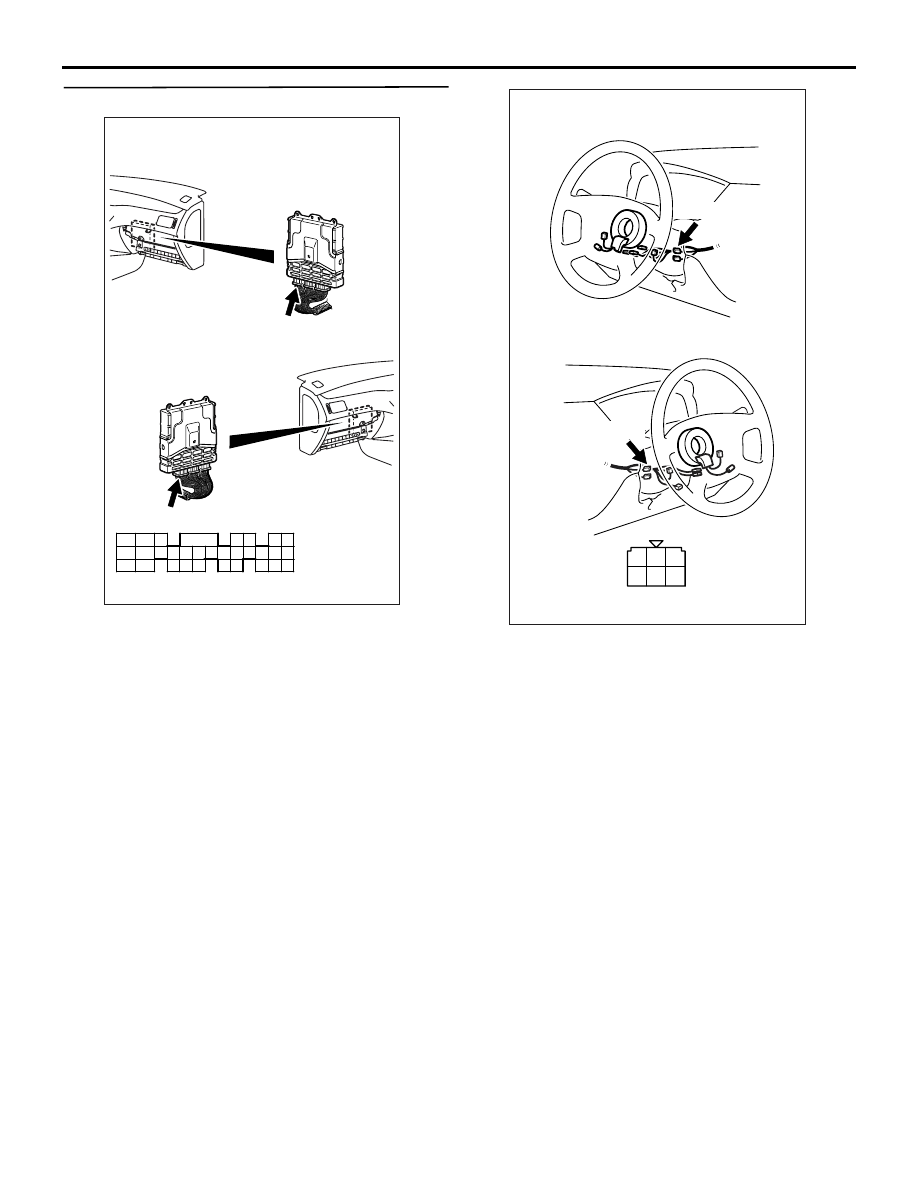

STEP 5. Connector check: C-117 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair or replace the connector.

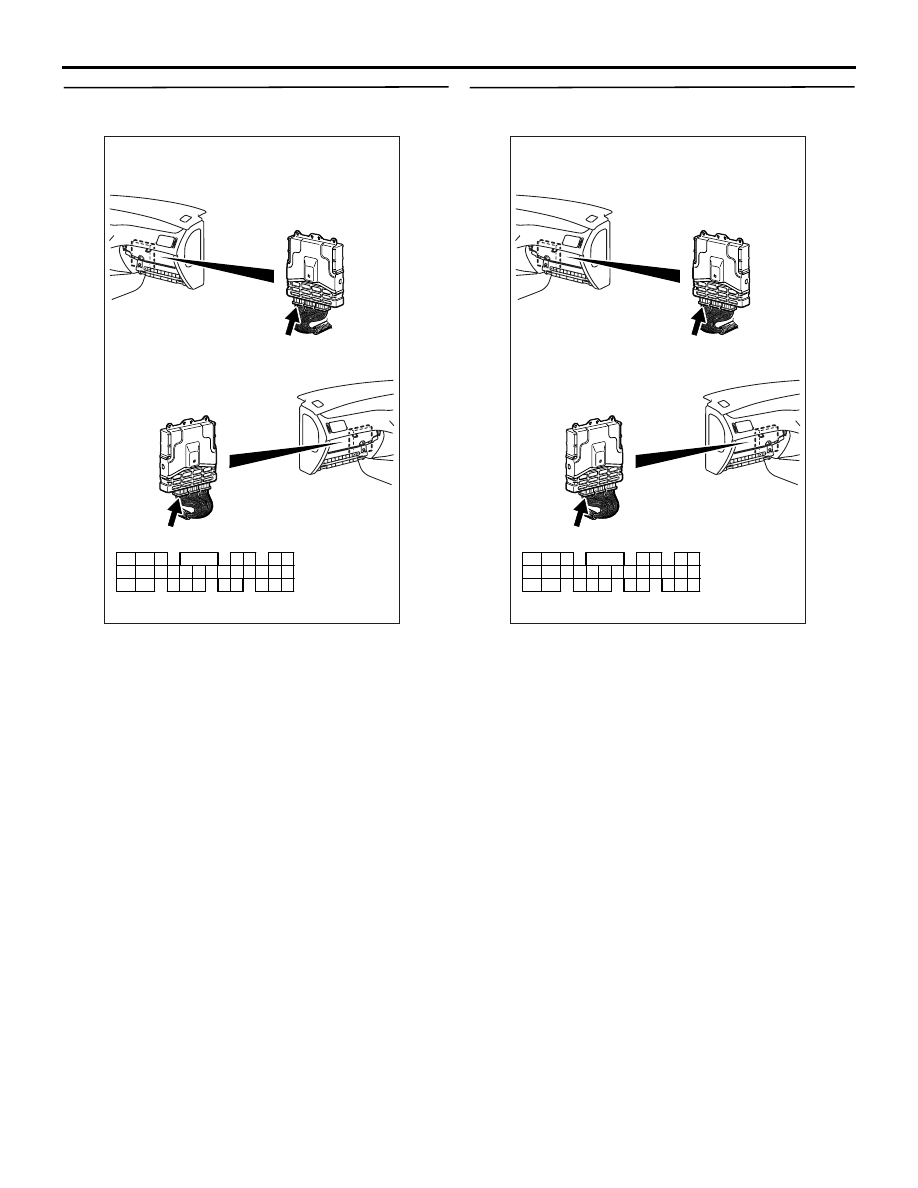

STEP 6. Perform voltage measurement at C-117
engine-ECU connector.

• Disconnect connector, and measure at harness

side.

• Ignition switch: "ON"

• Voltage between terminal No. 99 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 9 .

NO :

Go to Step 7 .

AK501996

80

87

81

94

85

82

84

93

86

98

99

74

92

73

83

88

91

95

97 96

100

89

78

71

90

76

77

75

72
79

AB

Connector: C-117

C-117 (GR)

C-117 (GR)

Harness side connector

<L. H. drive vehicles>

<R. H. drive vehicles>

AK501996

80

87

81

94

85

82

84

93

86

98

99

74

92

73

83

88

91

95

97 96

100

89

78

71

90

76

77

75

72
79

AB

Connector: C-117

C-117 (GR)

C-117 (GR)

Harness side connector

<L. H. drive vehicles>

<R. H. drive vehicles>

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-305

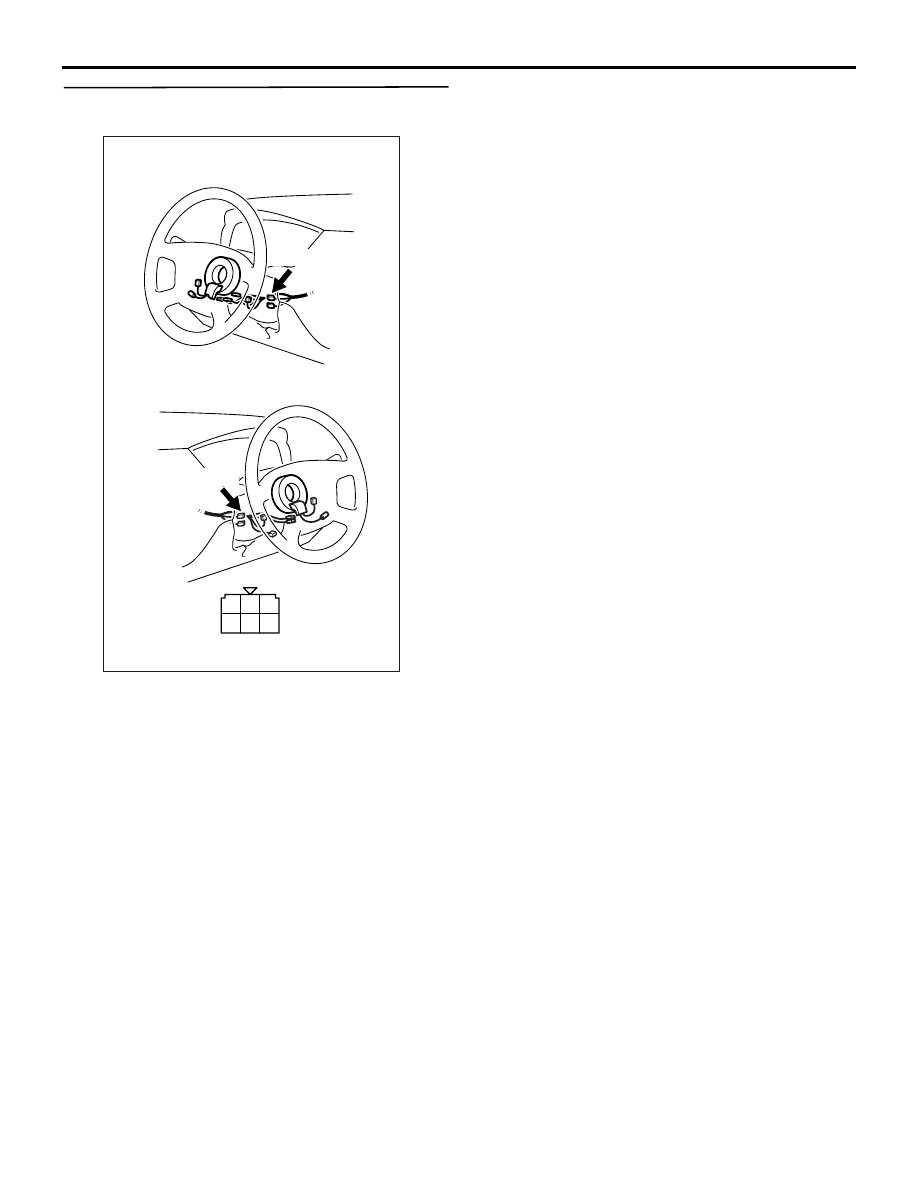

STEP 7. Connector check: C-208 ignition switch
connector

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Repair or replace the connector.

AK305251

1

2

3

4

5

6

Harness side connector

Connector: C-208

C-208

<L. H. drive vehicles>

<R. H. drive vehicles>

C-208

AB

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-306

STEP 8. Check ignition switch.

• Check ignition switch (Refer to GROUP 54A −

Ignition Switch

− Ignition Switch − Inspection

P.54A-30

).

Q: Is the check result normal?

YES :

• Check intermediate connectors C-123,

C-210 and C-211, then repair if
necessary. If intermediate connectors
are normal, check and repair harness
between C-117(terminal No. 99)
engine-ECU connector and C-208
(terminal No. 2) ignition switch
connector.

• Check power supply line for

open/short circuit.

NO :

Replace the ignition switch.
