DIAGNOSTIC TROUBLE CODE PROCEDURES
SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR
54B-31
DIAGNOSIS CODE SET CONDITIONS
If the voltage in the signal line between the
SRS-ECU and the ETACS-ECU has exceeded 4.6 V
for 40 milliseconds or more, the ETACS-ECU will set
diagnosis code No.31 as an open circuit. If the signal
line voltage has reached 1.5 V or less for at least 2.5
seconds, the ETACS-ECU will set diagnosis code
No.32 as a short circuit. If the ignition switch is turned
off, the ETACS-ECU will stop sending the diagnosis
code.
POSSIBLE CAUSES
• Malfunction of the SRS-ECU
• Malfunction of the ETACS-ECU
• Damaged harness wires and connectors
DIAGNOSTIC PROCEDURE
Step 1. M.U.T.-II/III diagnosis code.
Check that the SRS-ECU sets a diagnosis code.
Q: Is the check result normal?
YES :
Go to Step 2.
NO :
Refer to GROUP 52B
− Troubleshooting
.
Step 2. Connector check: C-12 SRS-ECU
connector and C-227 ETACS-ECU connector
Q: Is the check result normal?
YES :
Go to Step 3.
NO :
Repair the defective connector.

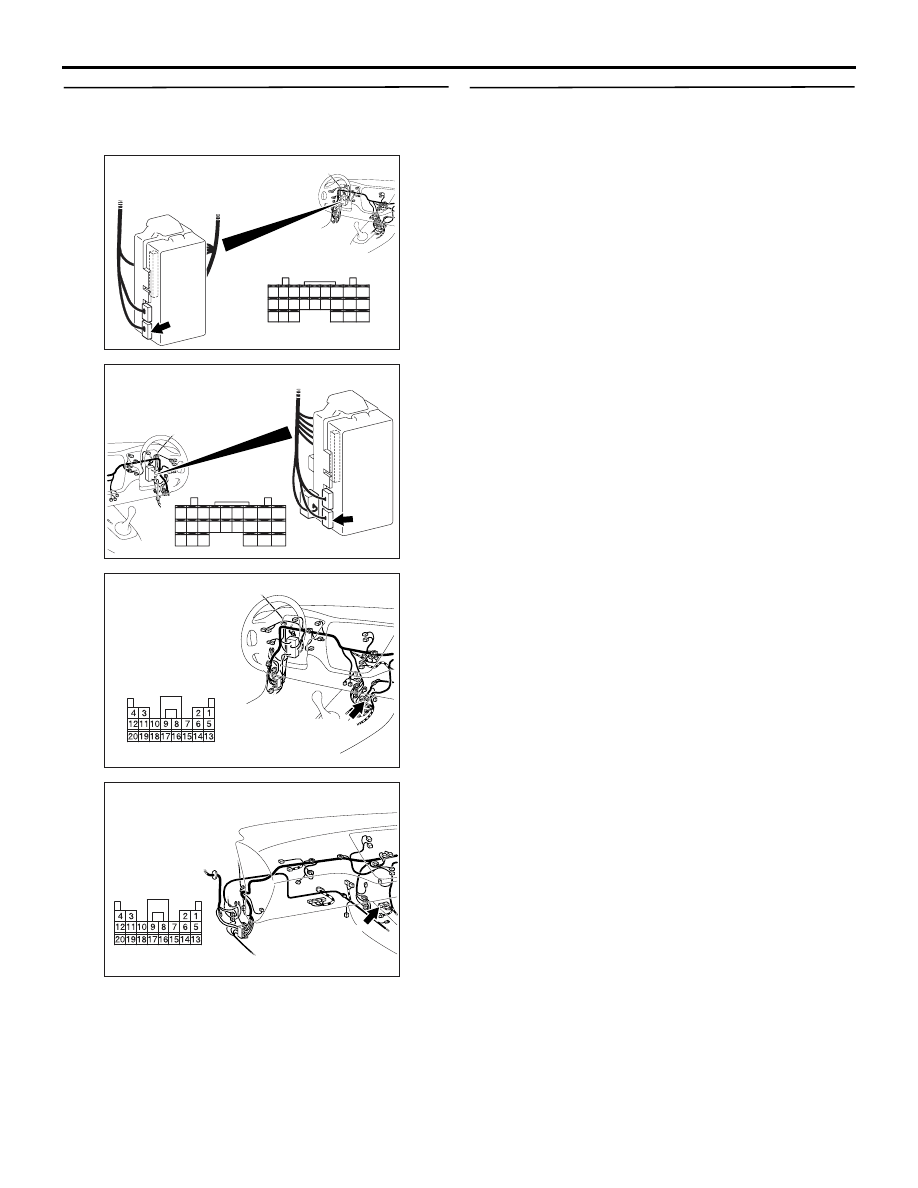

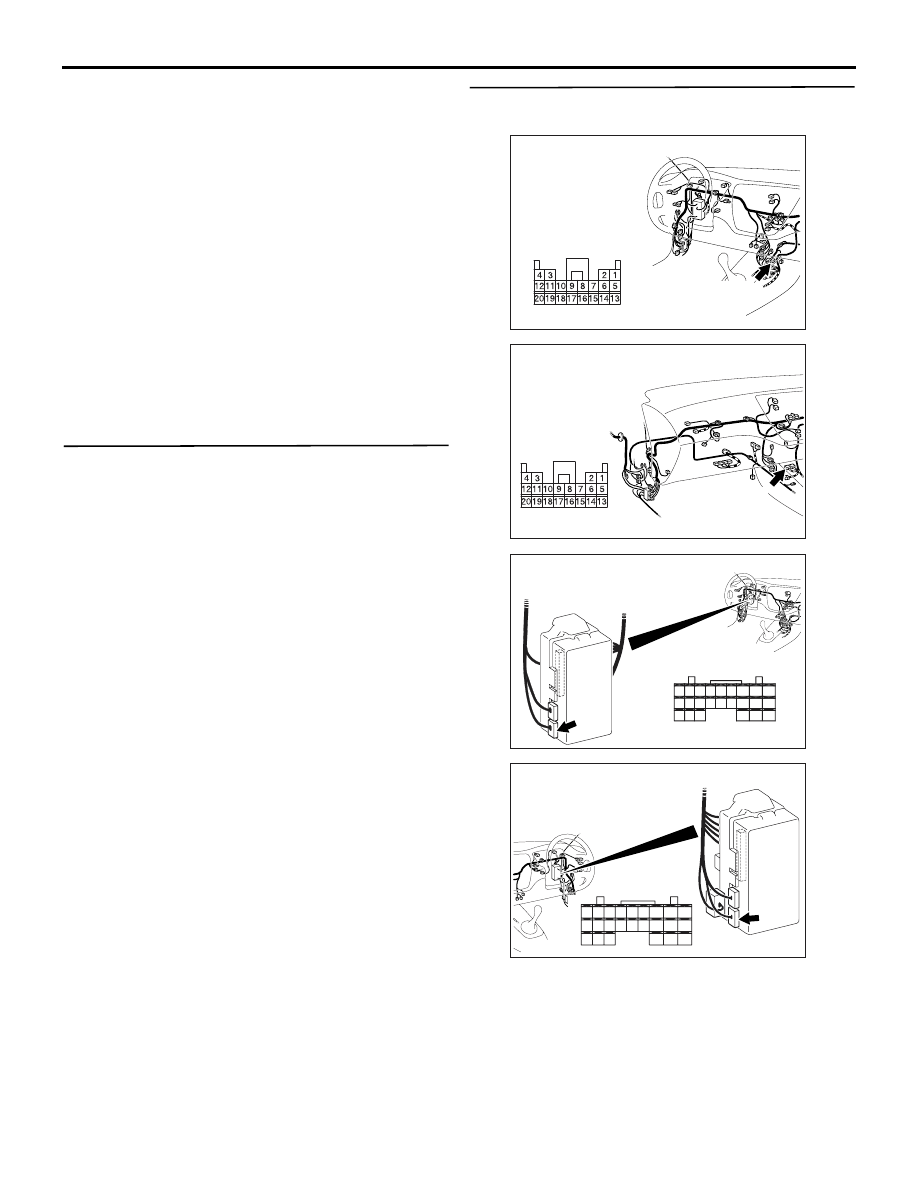

AC310446
