FRONT SEAT ASSEMBLY

INTERIOR

52A-19

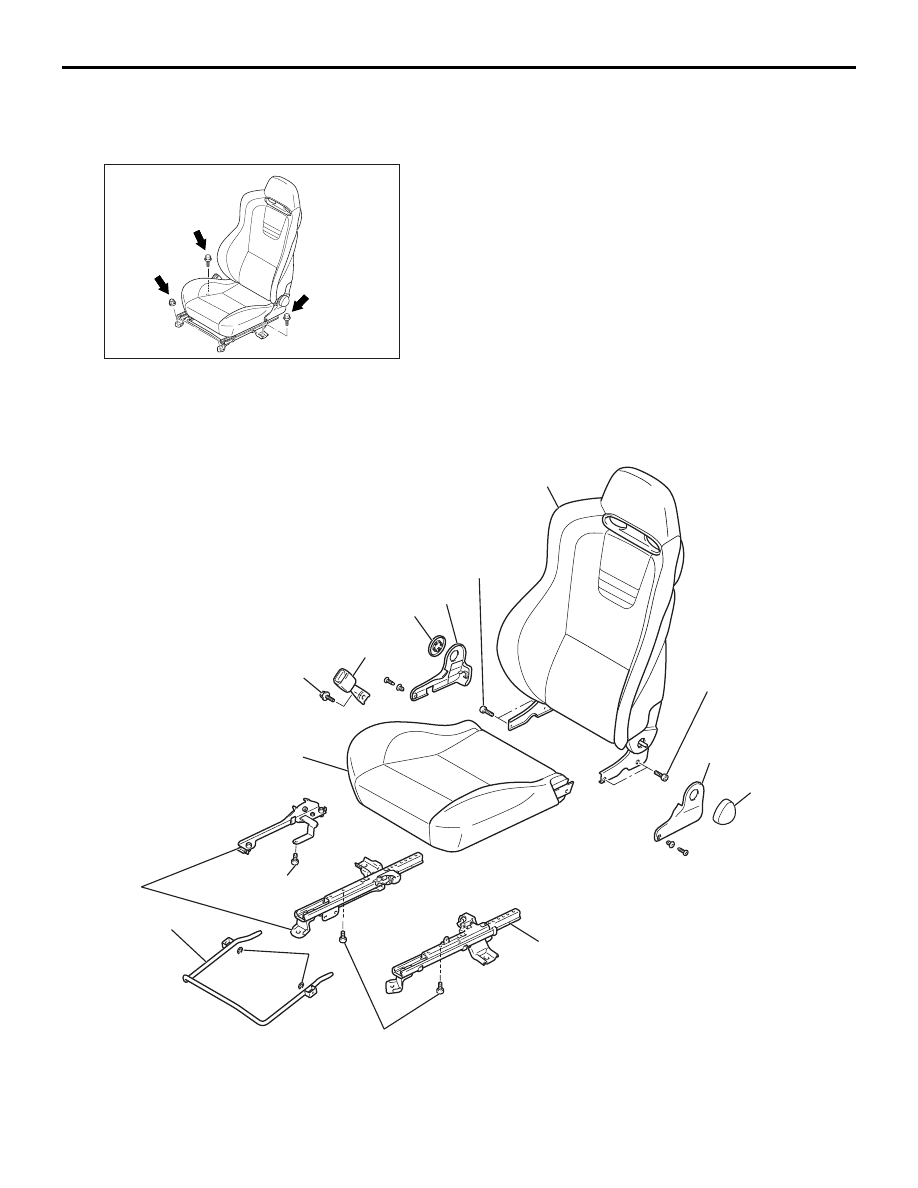

INSTALLATION SERVICE POINT
>>A<< FRONT SEAT ASSEMBLY INSTAL-
LATION

1.

AC310736 AB

Temporarily tighten the nuts and bolts in all mounting

locations shown in the illustration with no load
applied to the front seat cushion, and check the
operation of the seat slide.

2. Tighten the nuts and bolts in all mounting loca-

tions to the specified torque.

DISASSEMBLY AND REASSEMBLY

M1522001500519

AC310735

8

2

7

9

1

6

5

4

11

10

3

22 ± 3 N·m

22 ± 3 N·m

44 ± 10 N·m

22 ± 3 N·m

22 ± 3 N·m

AB

Disassembly steps

1.

Cap

2.

Reclining adjuster knob

3.

Slide adjuster outer

4.

Slide adjuster inner

5.

Inner seat belt

6.

Cushion shield inner

7.

Cushion shield outer

8.

Seatback assembly

9.

Seat cushion assembly

10. Snap ring
11. Slide adjuster lever

REAR SEAT ASSEMBLY

INTERIOR

52A-20

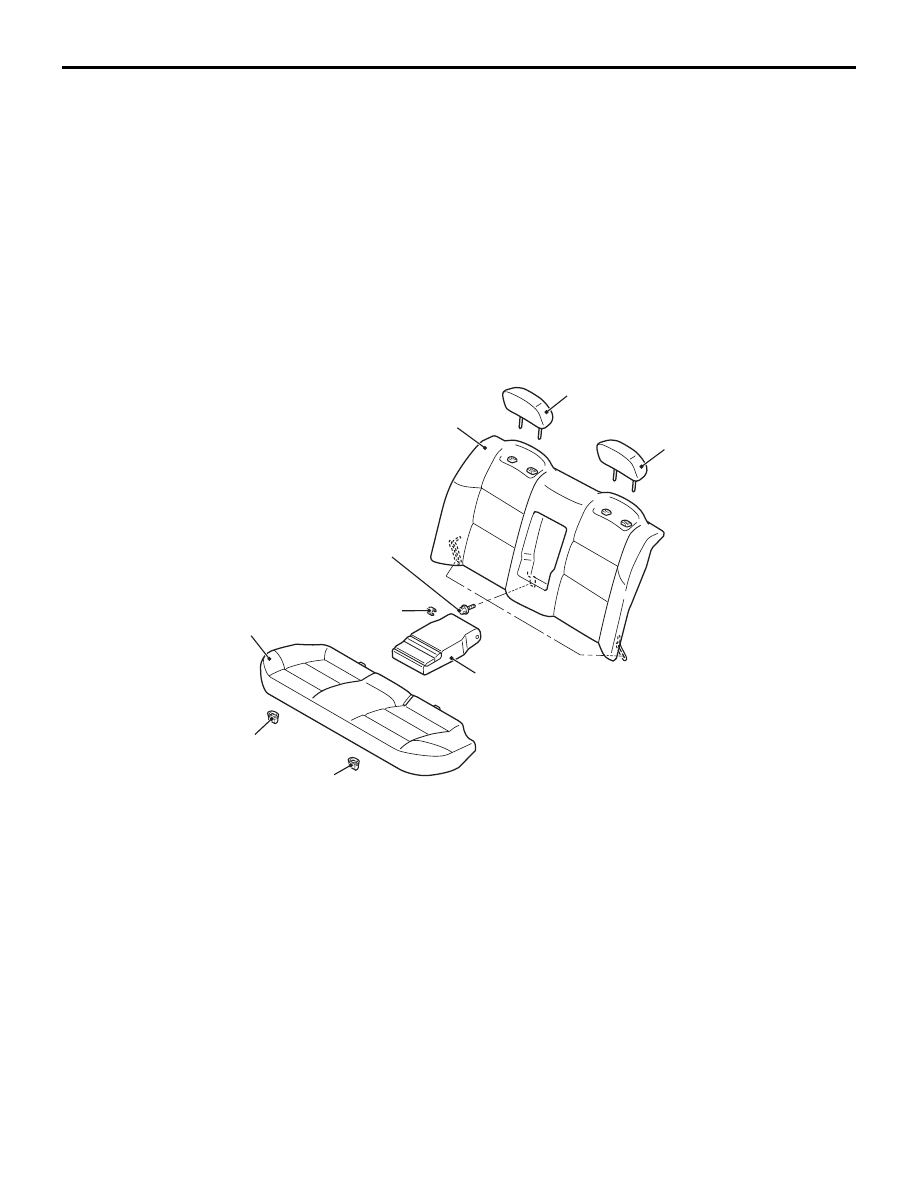

REAR SEAT ASSEMBLY

REMOVAL AND INSTALLATION

M1522001800338

AC310031

1

1

5

3

4

2

6

6

22 ± 4 N·m

AB

1.

Headrestraint
Removal steps

>>

B

<<

2.

Rear seat cushion assembly

3.

Armrest spacer

4.

Armrest

>>

A

<<

5.

Rear seatback assembly

6.

Rear seat hook

Disassembly steps (Continued)

Removal steps (Continued)

REAR SEAT ASSEMBLY

INTERIOR

52A-21

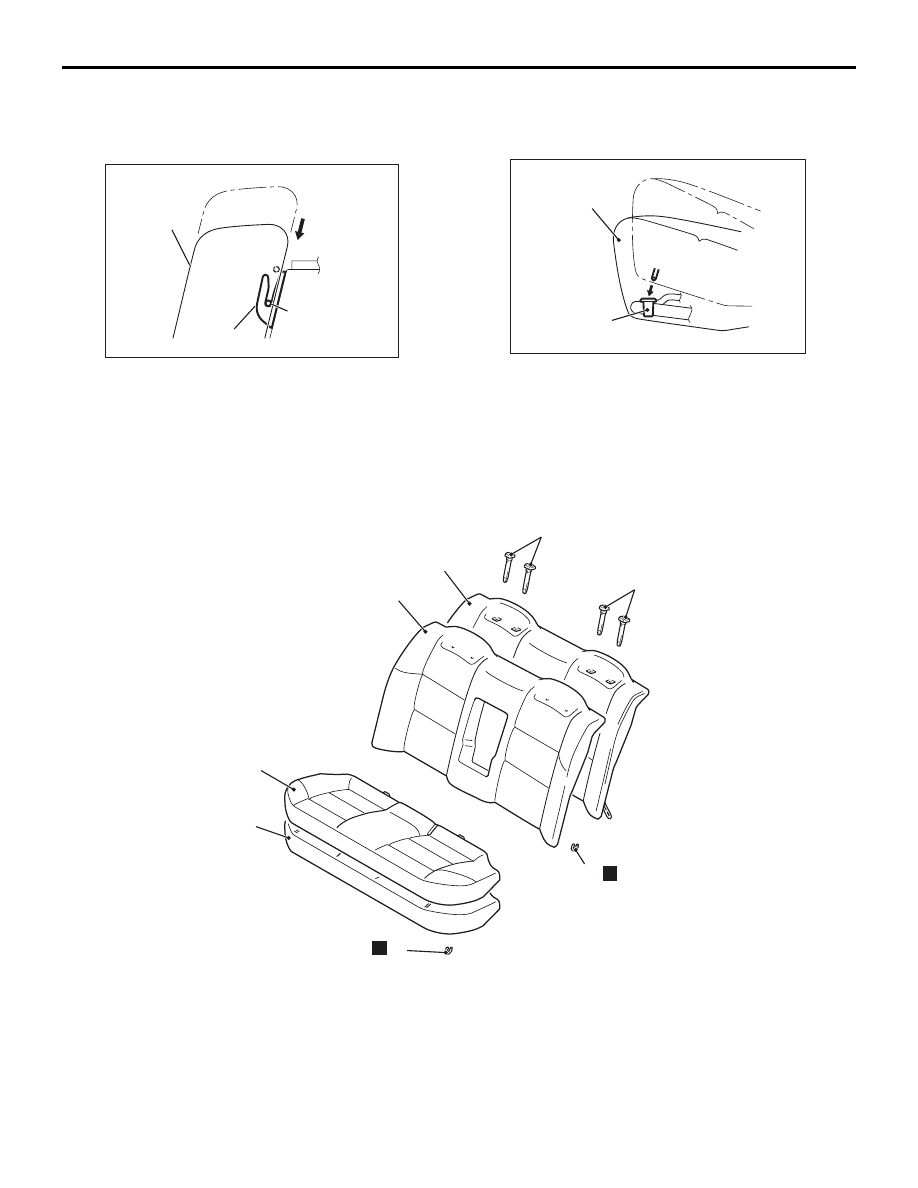

INSTALLATION SERVICE POINTS
>>A<< INSTALLATION OF REAR SEAT-
BACK ASSEMBLY

AC005519AB

Hook

Rear seatback
assembly

Attachment wire

Press the rear seatback assembly in the direction
shown in the illustration and fit the attachment wire
into the hook securely to install the rear seatback
assembly.

>>B<< INSTALLATION OF REAR SEAT
CUSHION ASSEMBLY

AC005521AB

Rear seat hook

Rear seat cushion
assembly

Fit the rear seat cushion into the rear seat hook
securely.

DISASSEMBLY AND REASSEMBLY

M1522002000380

AC310045 AB

2

3

1

4

4

7

6

5

N

N

Disassembly steps

1.

Hog ring

2.

Rear seat cushion cover

3.

Rear seat cushion pad

4.

Headrestraint guide

5.

Hog ring

6.

Rear seatback cover

7.

Rear seatback pad

Disassembly steps (Continued)

FRONT SEAT BELT

INTERIOR

52A-22

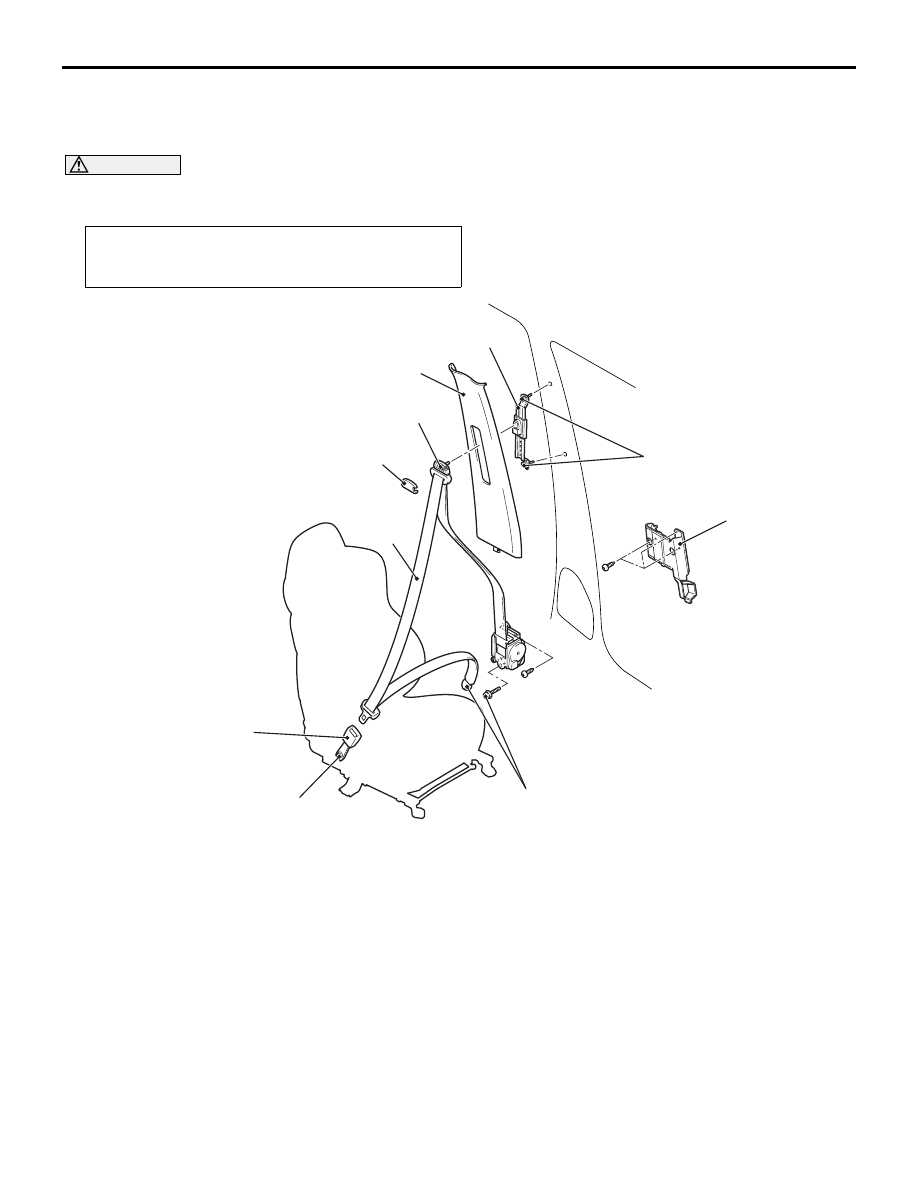

FRONT SEAT BELT

REMOVAL AND INSTALLATION

M1523001300400

CAUTION

SRS: Before removing and installing the seat belts with pre-tensioner, refer to GROUP 52B, Seat Belts
with Pre-tensioner

P.52B-120

.

Pre-removal and Post-installation Operation
• Turn the ignition key to the LOOK (OFF) position.

• Disconnect the negative battery terminal.

AC310727

1

2

3

4

5

6

44 ± 10 N·m

44 ± 10 N·m

44 ± 10 N·m

44 ± 10 N·m

AB

Outer seat belt removal steps

1. Sash guide cover
•

Lower centre pillar trim (refer to

P.52A-10

).

2. Bracket
3. Outer seat belt  (refer to GROUP 52B,

Seat Belts with Pre-tensioner

P.52B-120

).

4. Upper centre pillar trim (Refer to

P.52A-10

).

5. Adjustable seat belt anchor

Inner seat belt removal steps

•

Shield cover (refer to

P.52A-19

).

6. Inner seat belt

Outer seat belt removal steps
