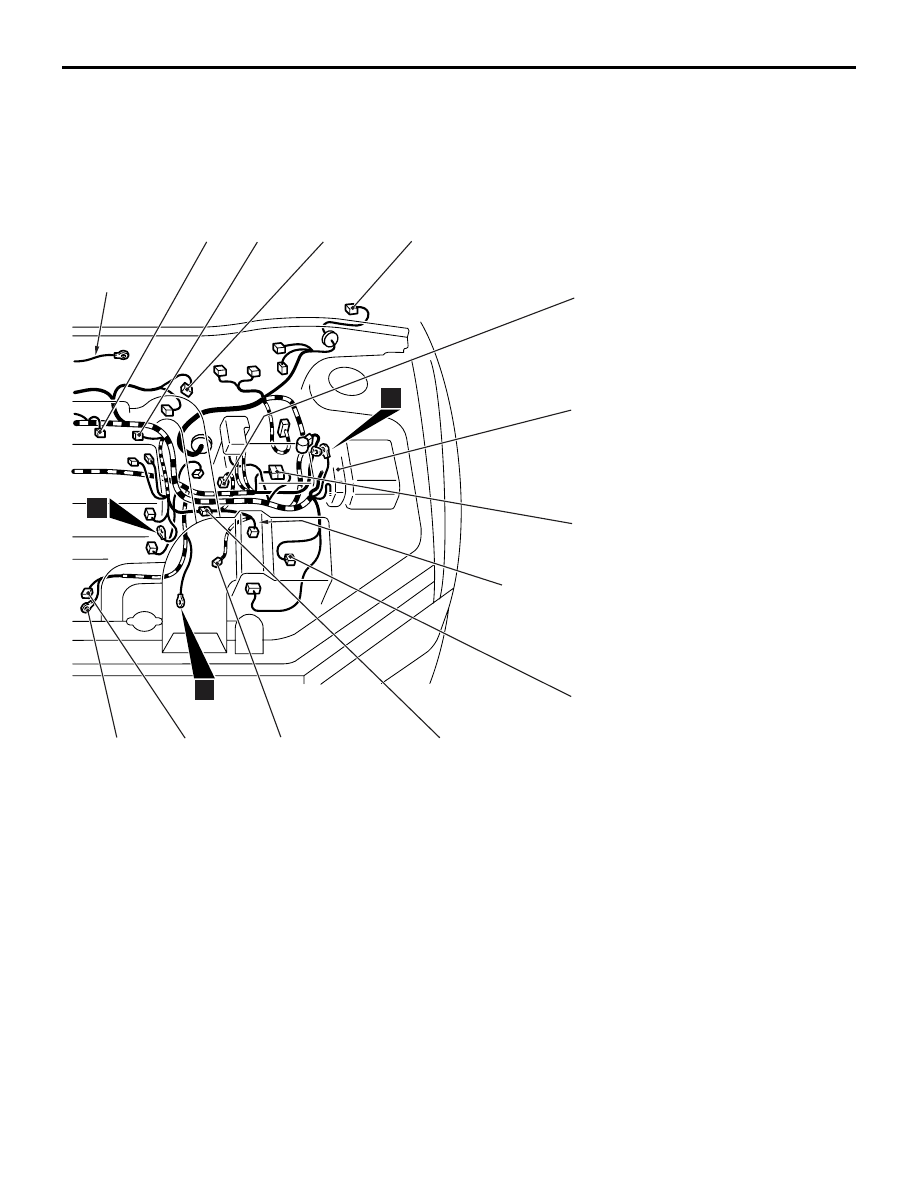

Mitsubishi Lancer Evolution IX. Manual - part 68

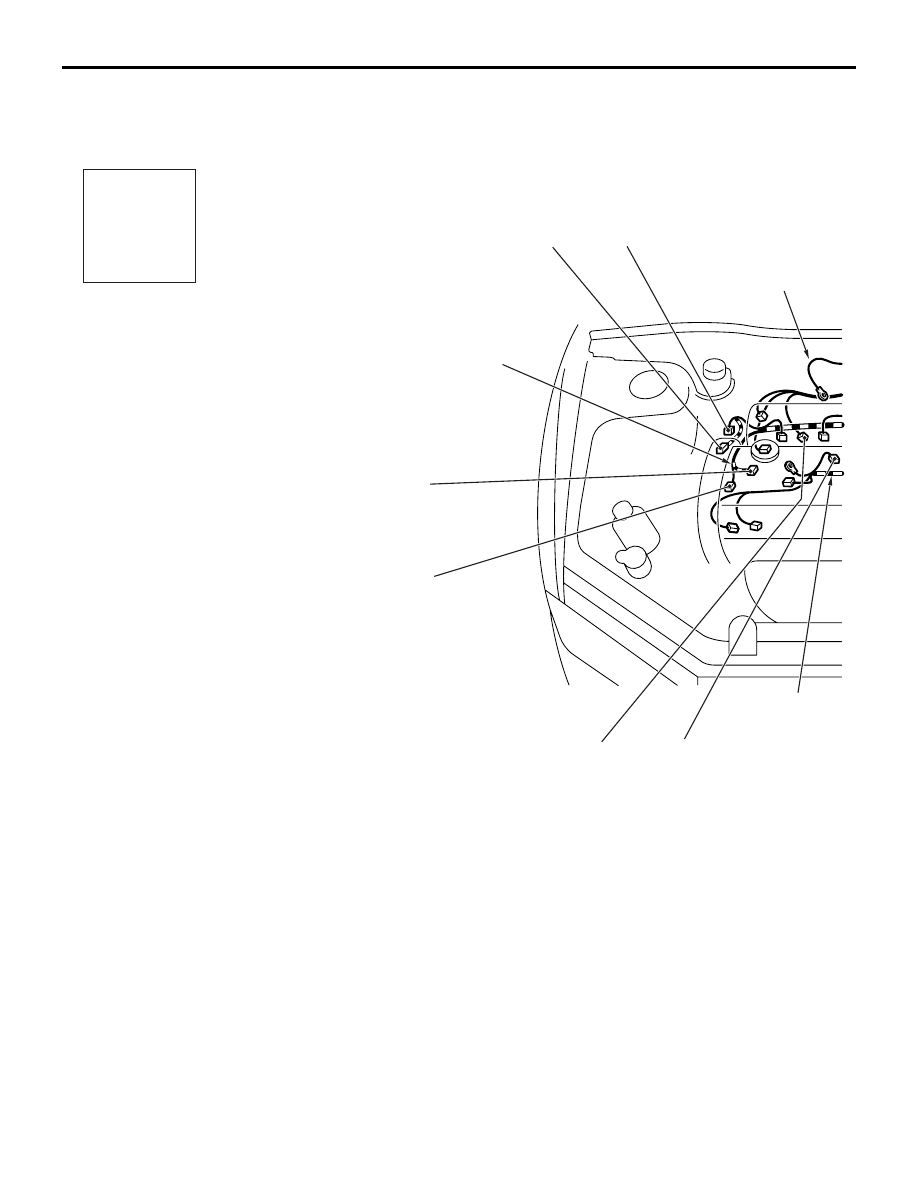

AC500097

AB

B-14

10

B-06X
B-10X
B-12X
B-13X

B-21

B-19

B-03

B-17

B-18

B-01

B-26

B-27

Transmission
wiring harness

4

11

B-04

Earth cable

B-30

B-18

(2-B)

Injector (3)

B-19

(1)

Starter

B-20

(2-B)

Injector (2)

B-21

(1-B)

Starter

B-22

(2-B)

Injector (1)

B-23

(1-B)

Oil pressure switch

B-24

(1)

Alternator

B-25

(4-GR)

Alternator

B-26

(2-GR)

Wastegate solenoid valve

B-27

(8-B)

Control wiring harness and
transmission wiring harness
combination

B-28

(2-B)

Fuel pressure control solenoid valve

B-29

(2-B)

Engine oil level sensor

B-30

(2-B)

Transmission oil temperature sensor

ENGINE AND TRANSMISSION

CONFIGURATION DIAGRAMS

80-13

ENGINE AND TRANSMISSION

CONFIGURATION DIAGRAMS

80-14

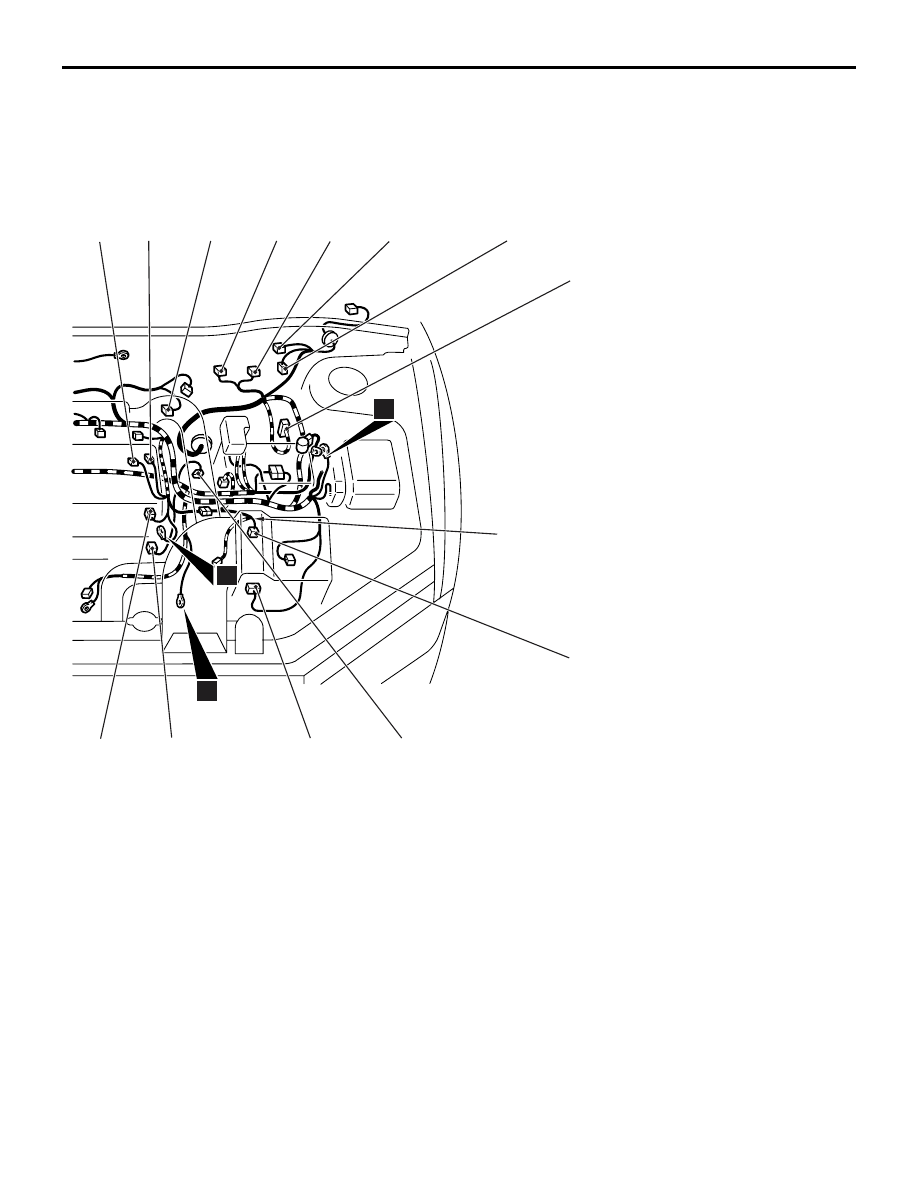

ENGINE AND TRANSMISSION <RH drive vehicles> (CONTINUED)

AC500096

AC

Battery wiring
harness

B-117

B-114

B-113

B-108

B-101

Control wiring
harness

Connector
symbol

-101
thru
-124

B

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

Earth cable

B-123

B-101 (2-BR)

EGR control solenoid valve

B-103 (3-GR)

Ignition coil (1)

B-104 (6-B)

Idle speed control servo

B-105 (7-B)

Air flow sensor

B-106 (3-B)

Exhaust camshaft position sensor

B-107 (2-B)

Engine coolant temperature sensor

B-108 (2-GR)

Detonation sensor

AC500097

AC

B-119

B-120

B-104

B-122

B-106

B-121

B-118

B-112

B-103

B-111

B-105

B-107

Transmission
wiring harness

10

4

11

B-124

B-111 (2-B)

Back-up lamp switch

B-112 (1-B)

Engine coolant temperature gauge
unit

B-113 (4-B)

Oxygen sensor (Front)

B-114 (3-GR)

Ignition coil (2)

B-117 (3-B)

Crank angle sensor

B-118 (34-B)

ABS-ECU

B-119 (6-B)

Injector resistor

B-120 (4)

Fuel pump relay (3)

B-121 (2-B)

Fuel pump resistor

B-122 (4)

Electric pump relay

B-123 (2-B)

Oil feeder control valve

B-124 (3-B)

Intake camshaft position sensor

ENGINE AND TRANSMISSION

CONFIGURATION DIAGRAMS

80-15

DASH PANEL

CONFIGURATION DIAGRAMS

80-16

DASH PANEL

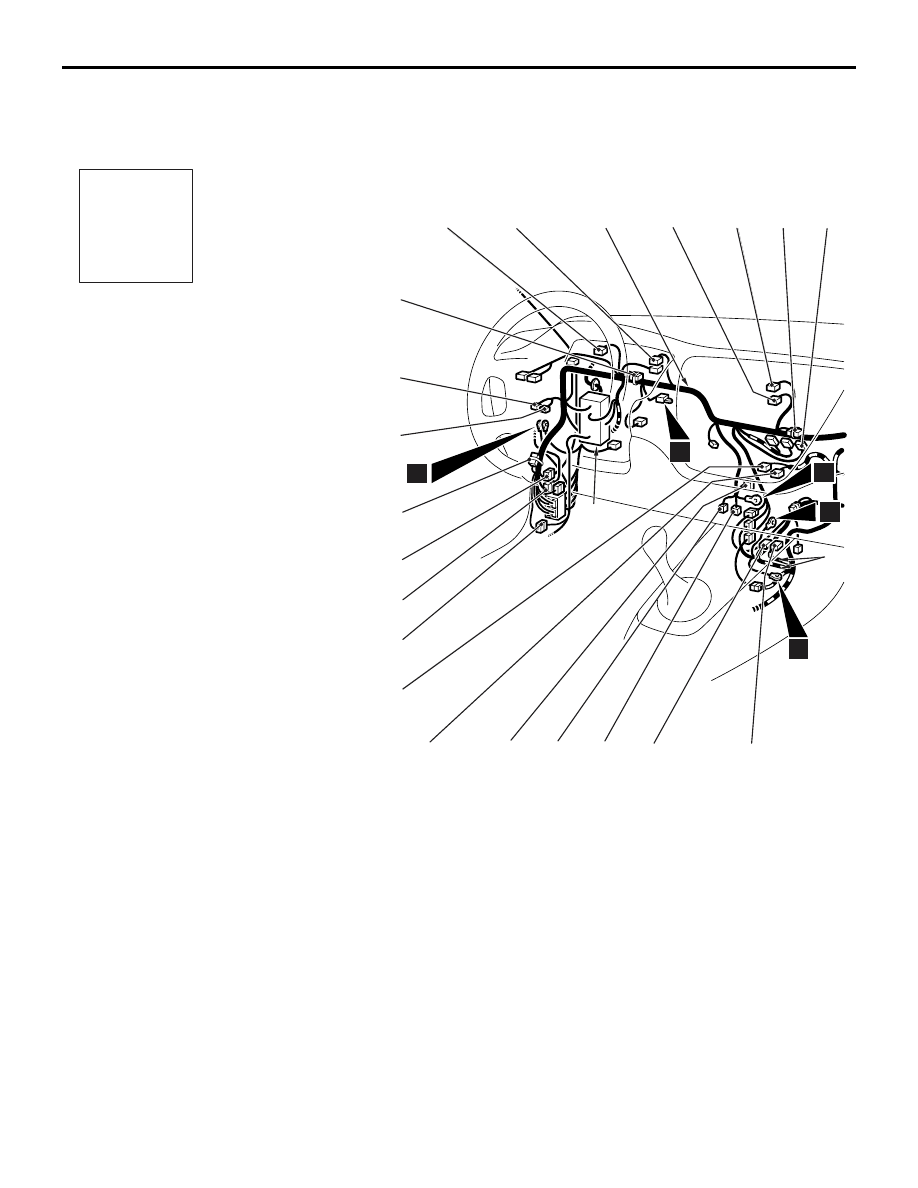

DASH PANEL <LH drive vehicles>

M1801000601545

AC500099

AB

Connector
symbol

-01
thru
-37

C

C-01

C-21

C-24

C-02

C-04

C-05

C-03

C-18

C-17

C-15

C-14

C-13

C-12

7

6

14

5

15

J/B

Y

Instrument
panel wiring
harness

C-20

C-23

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

C-27

C-29

C-28

C-37

C-36

C-01

(21)

Combination meter

C-02

(21-L)

Combination meter

C-03

(4)

Hazard warning switch

C-04

(4)

Clock

C-05

(22-GR) J/C (1)

C-06

(22-GR) J/C (3)

C-07

(7)

Outside/inside air selection damper
control motor

C-10

(13)

Instrument panel wiring harness and
A/C wiring harness combination

C-12

(20-Y)

SRS-ECU

C-13

(22-Y)

SRS-ECU
