Mitsubishi Lancer Evolution IX. Manual - part 27

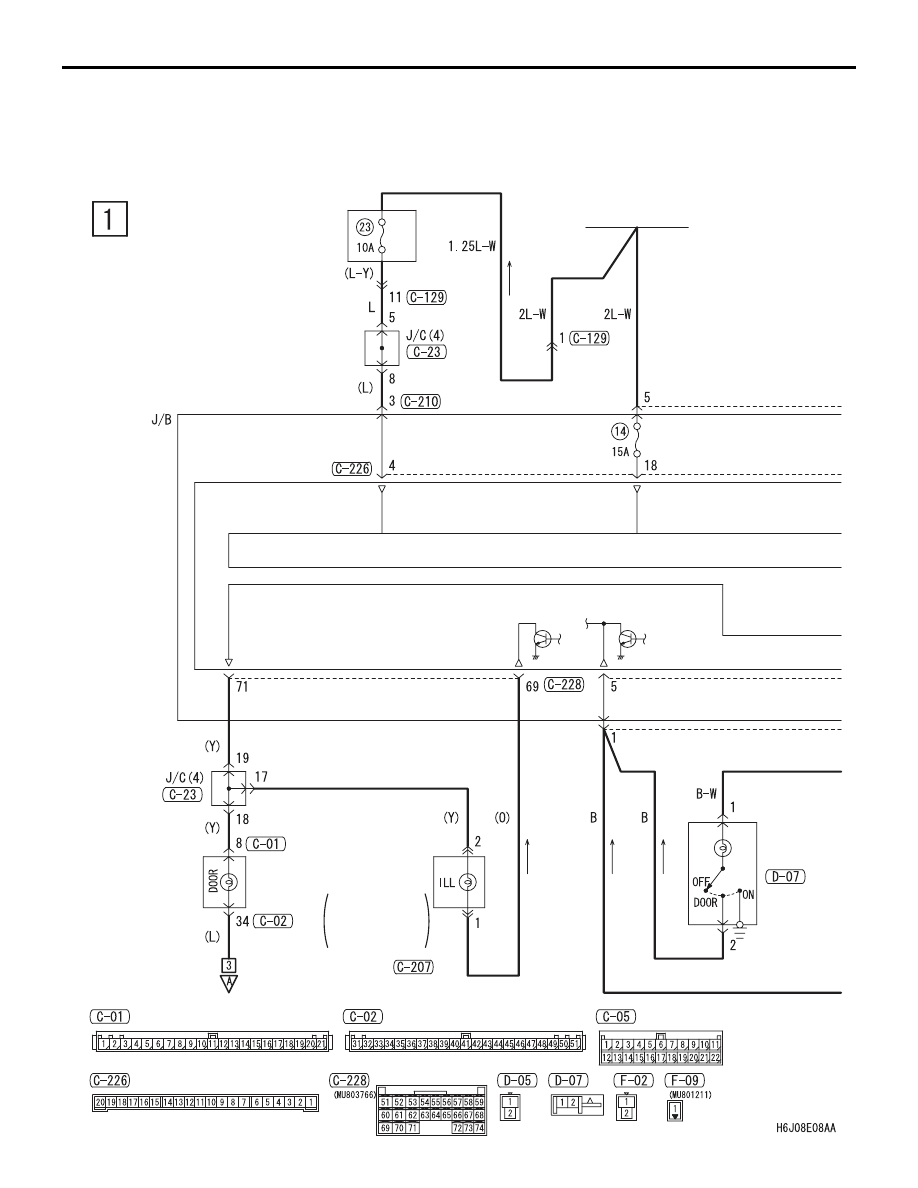

ROOM LAMP, LUGGAGE COMPARTMENT LAMP, IGNITION KEY CYLINDER ILLUMINATION LAMP AND DOOR AJAR WARNING LAMP

CIRCUIT DIAGRAMS

90-87

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

IGNITION
SWITCH (IG1)

BATTERY

RELAY
BOX

KEEP RELAY

LOAD
DETERMINATION
CIRCUIT

FRONT
ROOM
LAMP

LUGGAGE
COMPARTMENT
LAMP

LUGGAGE
COMPARTMENT
LAMP SWITCH

POWER

SOURCE

·HEADLAMP
·HEADLAMP LEVELLING SYSTEM
·REAR FOG LAMP
·TAIL LAMP, POSITION LAMP,
 LICENCE PLATE LAMP AND
 LIGHTING MONITOR BUZZER
·TURN-SIGNAL LAMP AND
 HAZARD WARNING LAMP
·WINDSHIELD WIPER AND
 WASHER

ROOM LAMP, LUGGAGE COMPARTMENT LAMP, IGNITION KEY CYLINDER ILLUMINATION LAMP AND DOOR AJAR WARNING LAMP

CIRCUIT DIAGRAMS

90-88

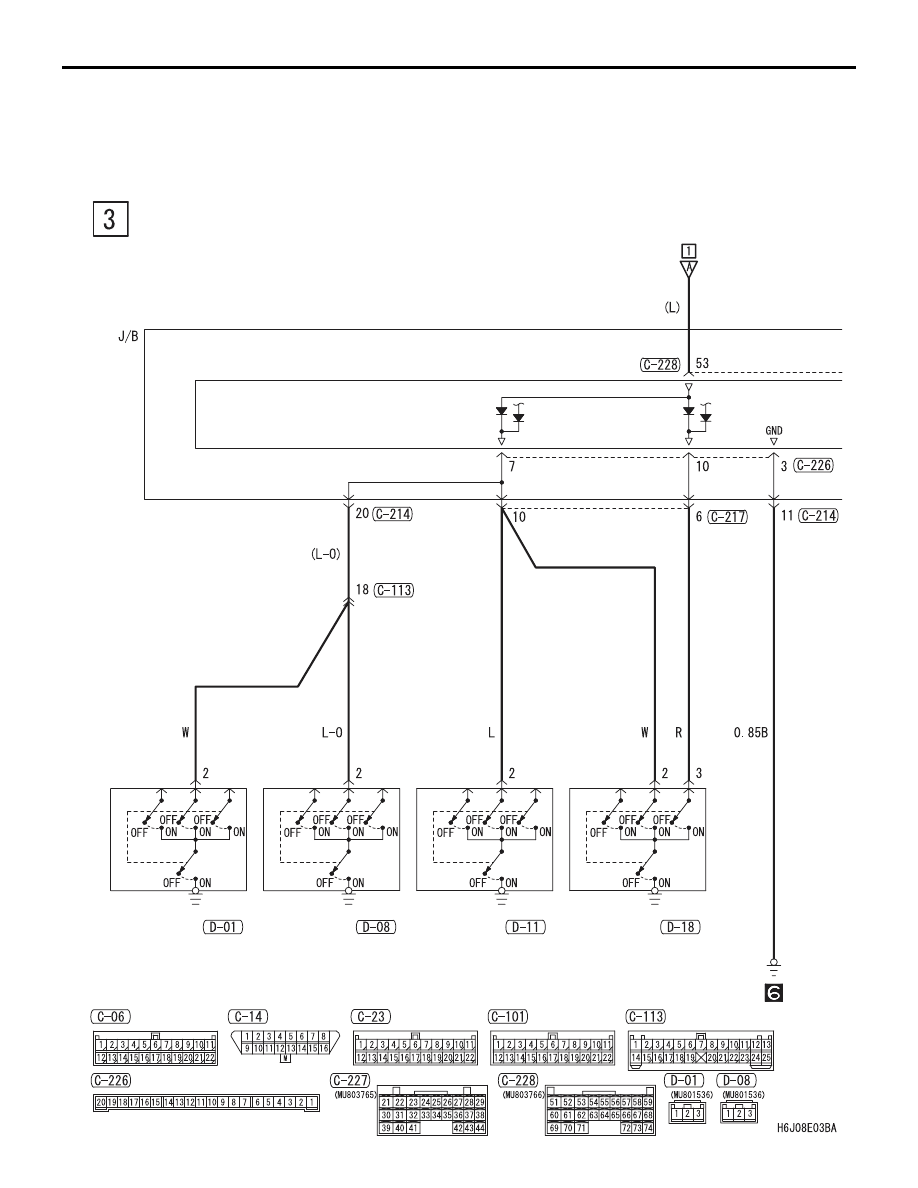

ROOM LAMP, LUGGAGE COMPARTMENT LAMP, IGNITION KEY CYLINDER ILLUMINATION LAMP
AND DOOR AJAR WARNING LAMP <LH drive vehicles> (CONTINUED)

COMBINATION
METER

ETACS-ECU

FRONT
DOOR
SWITCH (RH)

REAR
DOOR
SWITCH (RH)

REAR
DOOR
SWITCH (LH)

FRONT
DOOR
SWITCH (LH)

J/B SIDE

FRONT
SIDE

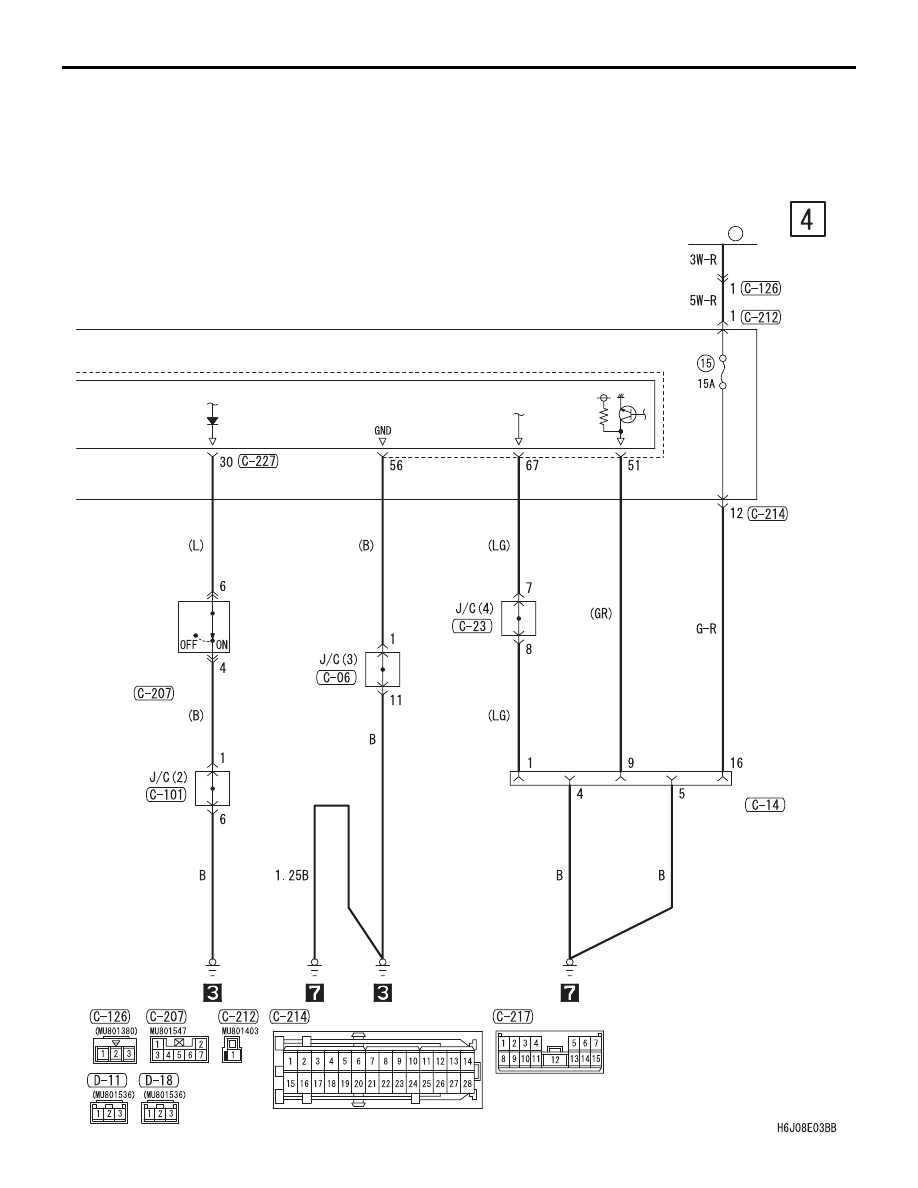

ROOM LAMP, LUGGAGE COMPARTMENT LAMP, IGNITION KEY CYLINDER ILLUMINATION LAMP AND DOOR AJAR WARNING LAMP

CIRCUIT DIAGRAMS

90-89

FUSIBLE
LINK

1

KEY
REMINDER
SWITCH
(WHEN
KEY IS
REMOVED)

DIAGNOSIS
CONNECTOR

ROOM LAMP, LUGGAGE COMPARTMENT LAMP, IGNITION KEY CYLINDER ILLUMINATION LAMP AND DOOR AJAR WARNING LAMP

CIRCUIT DIAGRAMS

90-90

ROOM LAMP, LUGGAGE COMPARTMENT LAMP, IGNITION KEY CYLINDER
ILLUMINATION LAMP AND DOOR AJAR WARNING LAMP <RH drive vehicles>

M1901024000035

IGNITION
SWITCH (ACC)

RELAY
BOX

ETACS-ECU

COMBINATION
METER

KEY REMINDER
SWITCH

REAR
ROOM
LAMP

IGNITION KEY
CYLINDER
ILLUMINATION
LAMP

INTERIOR LAMP AUTOMATIC

SHUTDOWN BACK-UP CIRCUIT

J/B SIDE
