Mitsubishi Lancer Evolution IX. Manual - part 23

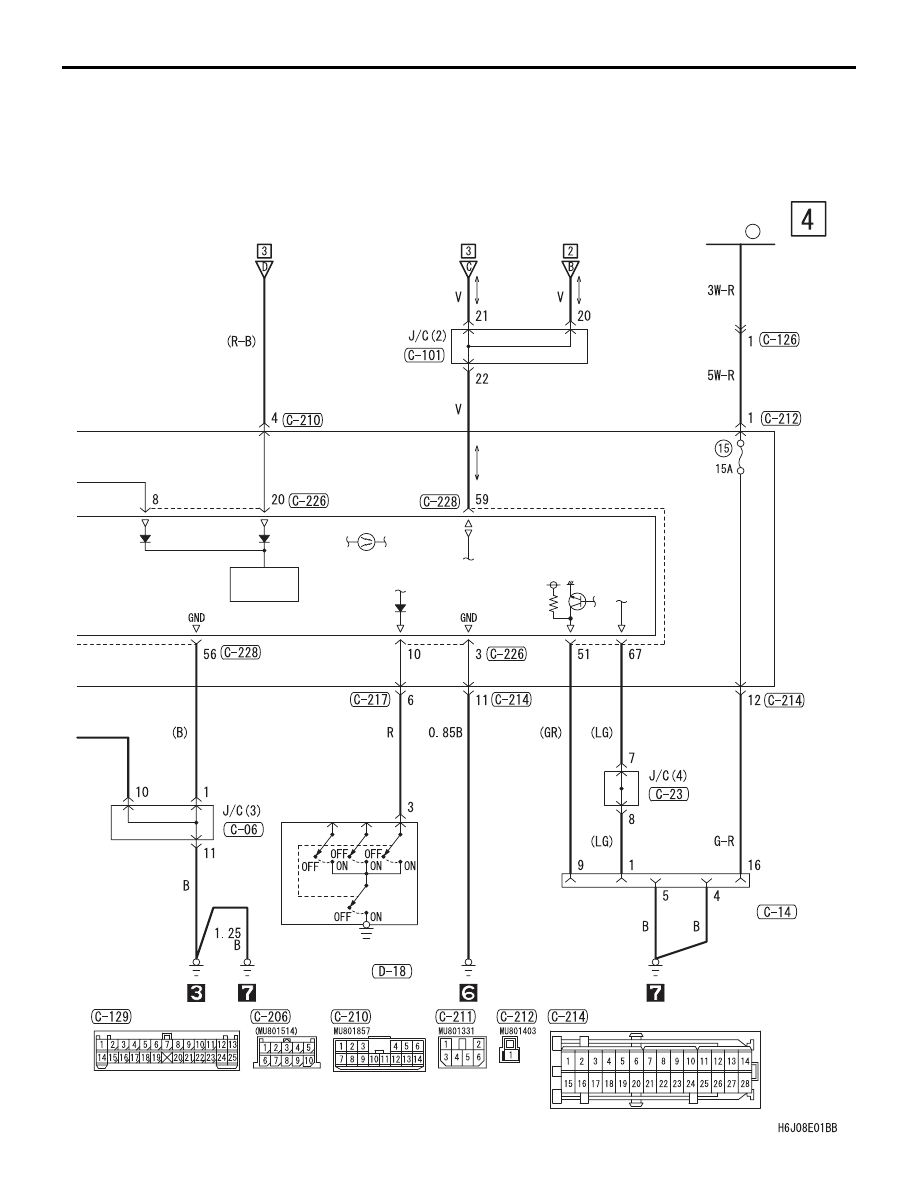

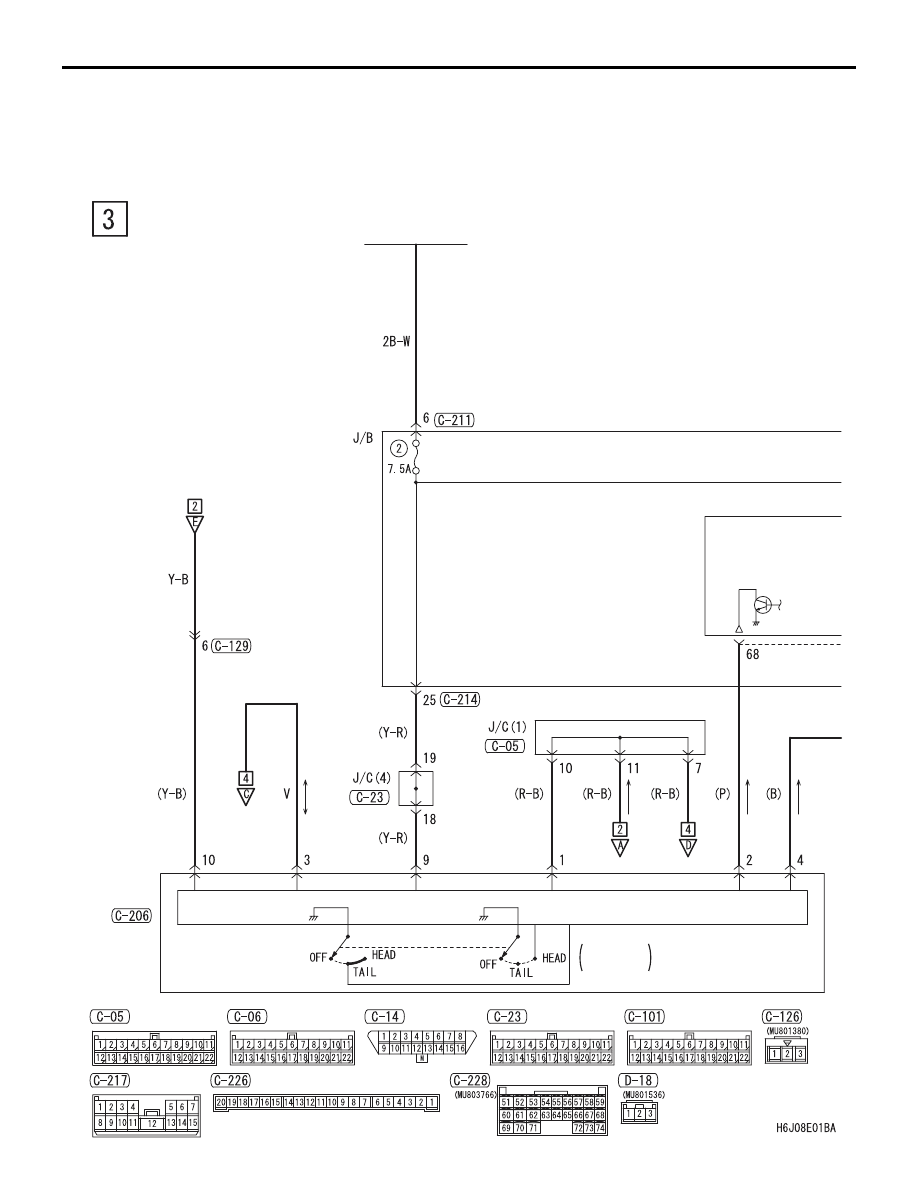

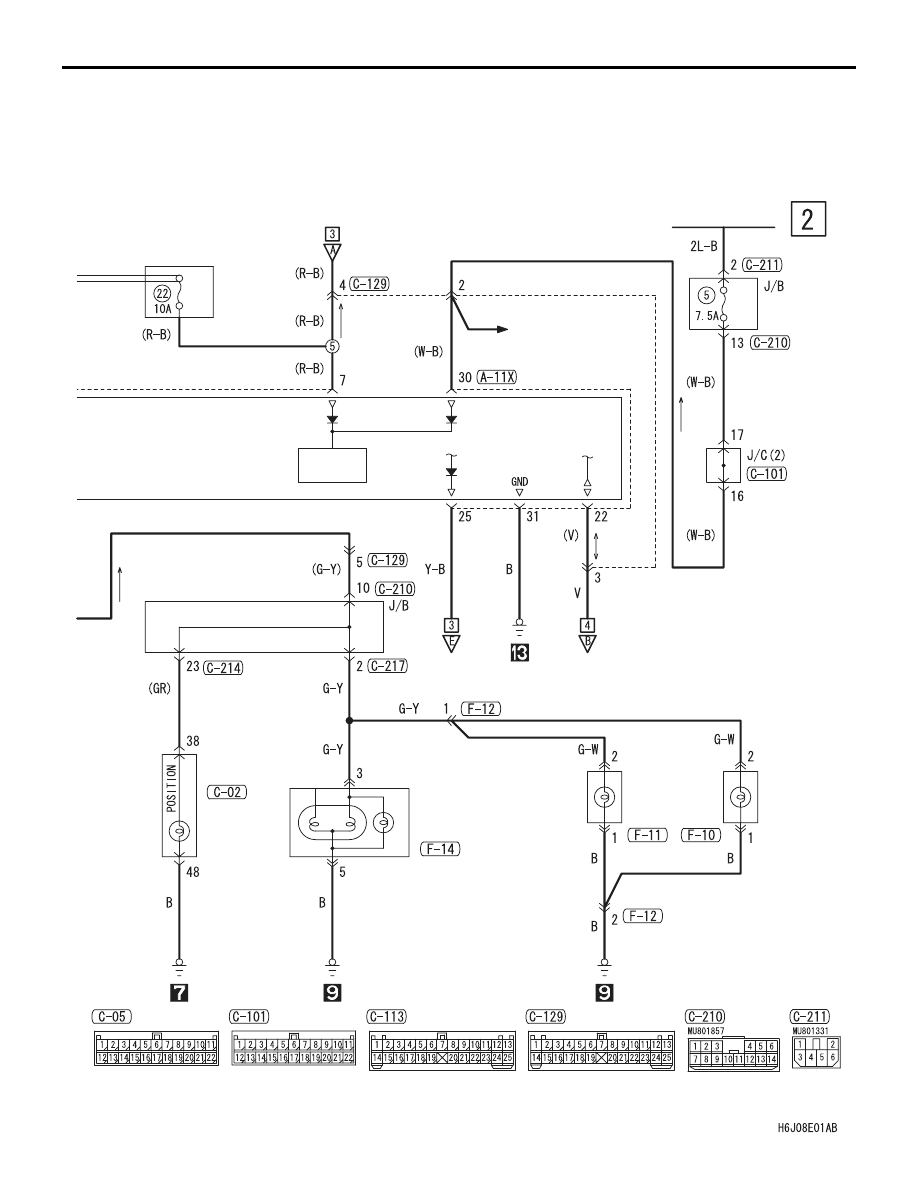

TAIL LAMP, POSITION LAMP, LICENCE PLATE LAMP AND LIGHTING MONITOR BUZZER

CIRCUIT DIAGRAMS

90-71

RELAY
BOX

POWER
SOURCE

REAR
COMBINATION
LAMP
(TAIL : LH)

COMBINATION
METER

IGNITION
SWITCH (IG2)

LICENCE
PLATE
LAMP

(LH)

(RH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

J/C(1)

·AUTOMATIC AIR
 CONDITIONER
·COOLING SYSTEM

TAIL LAMP, POSITION LAMP, LICENCE PLATE LAMP AND LIGHTING MONITOR BUZZER

CIRCUIT DIAGRAMS

90-72

TAIL LAMP, POSITION LAMP, LICENCE PLATE LAMP AND LIGHTING MONITOR BUZZER



<LH drive vehicles> (CONTINUED)

IGNITION
SWITCH (IG1)

COLUMN
SWITCH

LIGHTING
SWITCH

COLUMN-ECU

FRONT
SIDE

J/B/ SIDE

FRONT-ECU

TAIL LAMP, POSITION LAMP, LICENCE PLATE LAMP AND LIGHTING MONITOR BUZZER

CIRCUIT DIAGRAMS

90-73

COLUMN
SWITCH

POWER
SOURCE

FRONT
DOOR SWITCH
(LH)

BUZZER

FRONT-ECU

J/C(1)

FUSIBLE
LINK

1

ETACS-
ECU

DIAGNOSIS
CONNECTOR

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue    W : White
Y : Yellow     SB : Sky blue     BR : Brown    O : Orange
GR : Grey     R : Red     P : Pink     V : Violet    PU : Purple

TAIL LAMP, POSITION LAMP, LICENCE PLATE LAMP AND LIGHTING MONITOR BUZZER

CIRCUIT DIAGRAMS

90-74

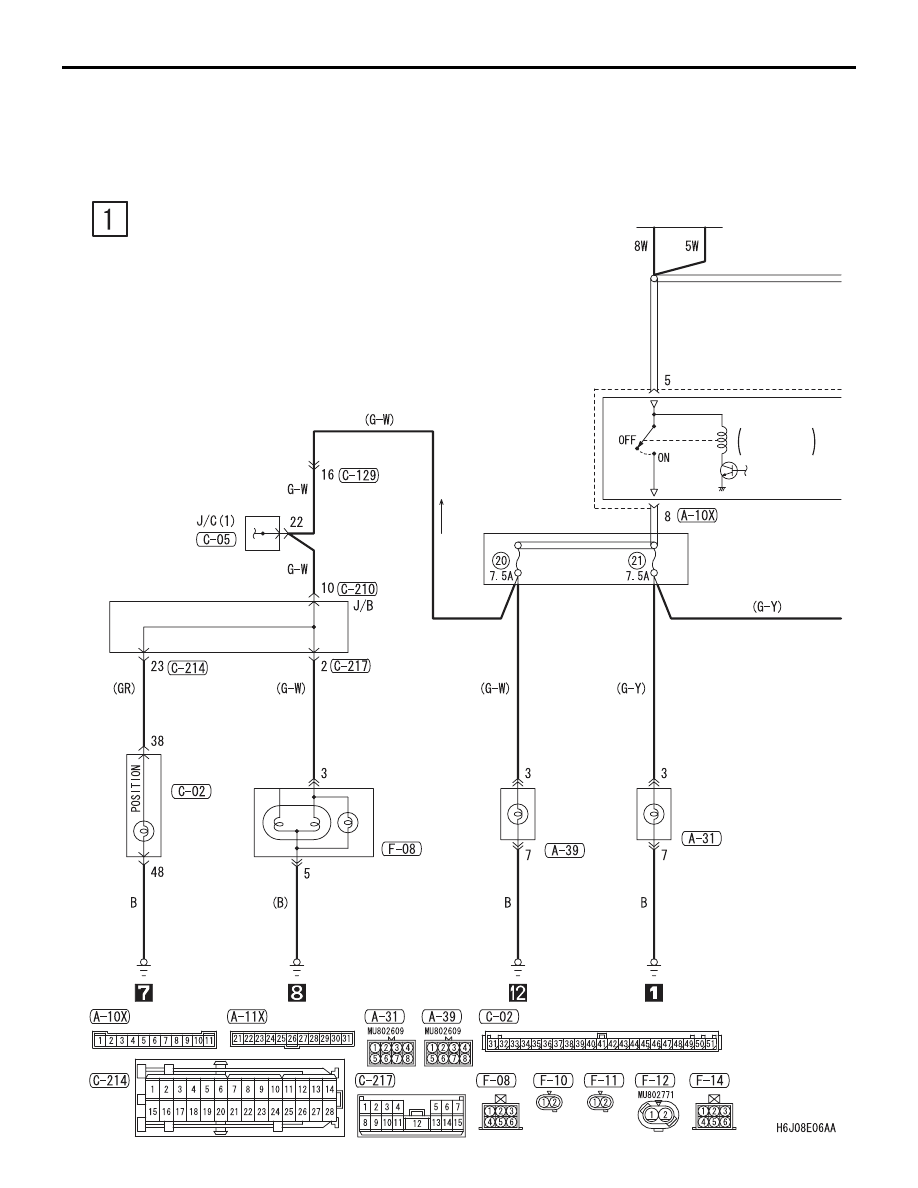

TAIL LAMP, POSITION LAMP, LICENCE PLATE LAMP AND LIGHTING MONITOR
BUZZER <RH drive vehicles>

M1901001700806

BATTERY

RELAY
BOX

TAIL LAMP
RELAY

REAR
COMBINATION
LAMP
(TAIL : RH)

HEADLAMP
ASSEMBLY
(POSITION
 : RH)

COMBINATION
METER

HEADLAMP
ASSEMBLY
(POSITION : LH)

FRONT-ECU
