ENGINE  –

Starter Motor

11-83

STARTER MOTOR

DISASSEMBLY AND REASSEMBLY

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

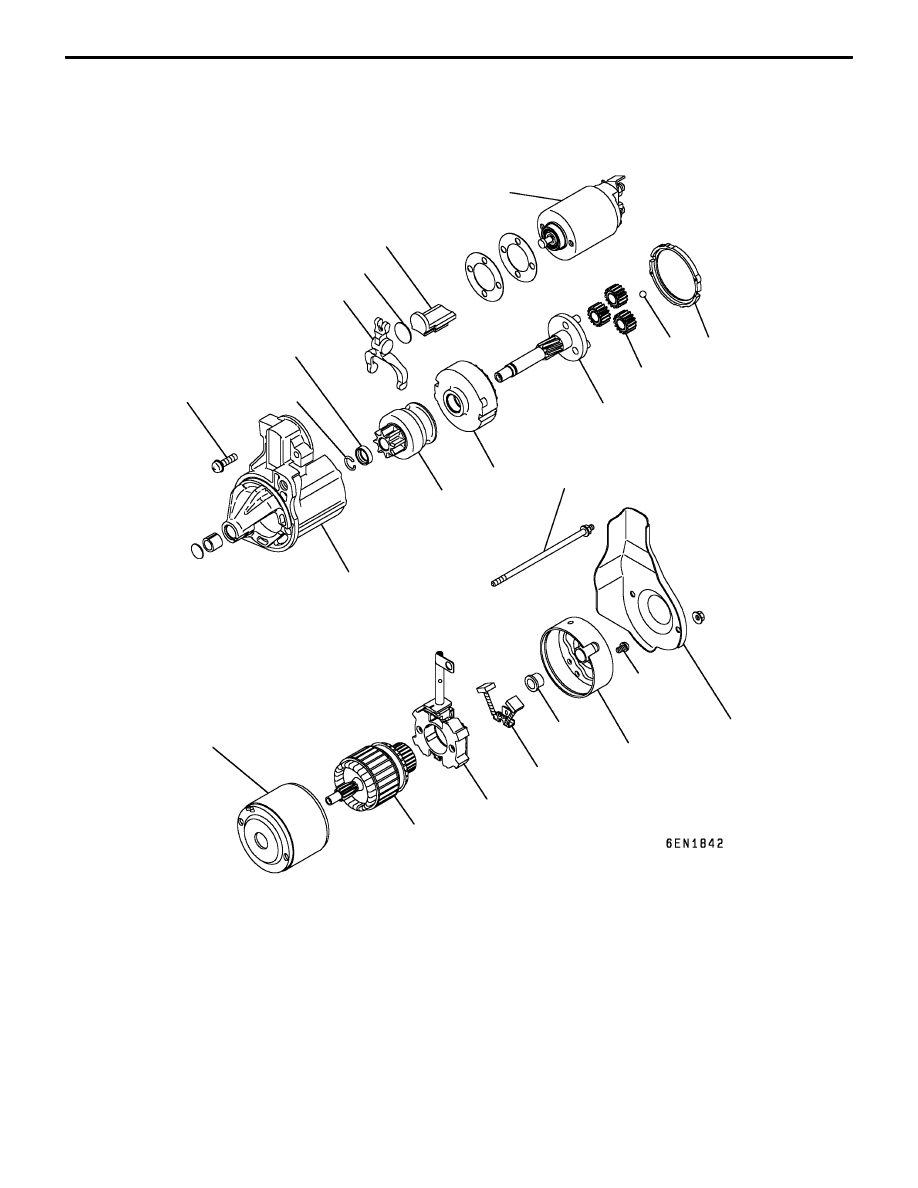

Disassembly steps

1. Cover
2. Screw

A

A

"

3. Magnetic switch
4. Screw
5. Through
6. Rear bracket
7. Brush holder
8. Brush
9. Rear bearing

A

B

"

10. Armature

11. Yoke assembly

A

B

"

12. Ball

13. Packing A
14. Packing B
15. Plate
16. Planetary gear
17. Lever

A

C

" "

A

A

18. Snap ring

A

C

" "

A

A

19. Stop ring
20. Overrunning clutch
21. Internal gear
22. Planetary gear holder
23. Front bracket

ENGINE  –

Starter Motor

11-84

DISASSEMBLY SERVICE POINTS

A

A

"

MAGNETIC SWITCH REMOVAL

Disconnect field coil wire from “M” terminal of magnetic switch.

A

B

"

ARMATURE / BALL REMOVAL

Caution
When removing the armature, take care not to lose the
ball (which is used as a bearing) in the armature end.

A

C

"

SNAP RING / STOP RING REMOVAL

(1) Press stop ring off snap ring with a suitable socket.

(2) Remove snap ring with snap ring pliers and then remove

stop ring and overrunning clutch.

STARTER MOTOR PARTS CLEANING

(1) Do not immerse parts in cleaning solvent. Immersing the

yoke and field coil assembly and/or armature will damage
insulation. Wipe motor assembly with a cloth only.

(2) Do not immerse drive unit in cleaning solvent. Overrunning

clutch is pre-lubricated at the factory and solvent will wash
lubrication from clutch.

(3) The drive unit may be cleaned with a brush moistened

with cleaning solvent and wiped dry with a cloth.

Magnetic
switch

“S” terminal

“B” terminal

Field coil wire

“M” terminal

Stop ring

Socket

Pinion gear

Overrunning
clutch

Armature

Snap ring

Pinion gear

Overrunning
clutch

Snap ring pliers

Armature

ENGINE  –

Starter Motor

11-85

REASSEMBLY SERVICE POINTS

"

A

A

STOP RING / SNAP RING INSTALLATION

Using a suitable pulling tool, pull overrunnig clutch stop ring
over snap ring.

INSPECTION

COMMUTATOR CHECK

(1) Place the armature in a pair of “V” blocks and check

the runout with a dial indicator.

Standard value: 0.05 mm

Limit: 0.1 mm

(2) Measure the commutator outer diameter.

Standard value: 32.0 mm

Limit: 31.4 mm

(3) Check the undercut depth between segments.

Standard value: 0.5 mm

BRUSH HOLDER CHECK

Check the continuity between brush holder plate and brush
holder.
If there is no continuity, the brush holder is in order.

Stop ring

Overrunning
clutch

Stop ring

Snap ring

Undercut

Segment

Mica

Brush holder

ENGINE  –

Starter Motor

11-86

OVERRUNING CLUTCH CHECK

(1) While holding clutch housing, rotate the pinion. Drive

pinion should rotate smoothly in one direction, but should
not rotate in opposite direction. If clutch does not function
properly, replace overrunnig clutch assembly.

(2) Inspect pinion for wear or burrs. If pinion is worn or burred,

replace overrunning clutch assembly. If pinion is damaged,
also inspect ring gear for wear or burrs.

FRONT AND REAR BRACKET BUSHING CHECK

Inspect bushing for wear or burrs. If bushing is worn or burred,
replace front bracket assembly or rear bracket assembly.

BRUSH AND SPRING REPLACEMENT

(1) Brushes that are worn beyond wear limit line, or oil-soaked,

should be replaced.

(2) When replacing ground brush, slide the brush from brush

holder by prying retaining spring back.

ARMATURE TEST

ARMATURE COIL SHORT-CIRCUIT TEST

(1) Place armature in a growler.
(2) Hold a thin steel blade parallel and just above while rotating

armature slowly in growler. A shorted armature will cause
blade to vibrate and be attracted to the core. Replace
shorted armature.

ARMATURE COIL EARTH TEST

Check the insulation between each commutator segment and
armature coil core.
If there is no continuity, the insulation is in order.

Free

Lock

Wear limit line

Growler
