04 - Retrieving and Clearing DTCs

Activity 04- Page 4

Activity 04
(Continued)

- OR -

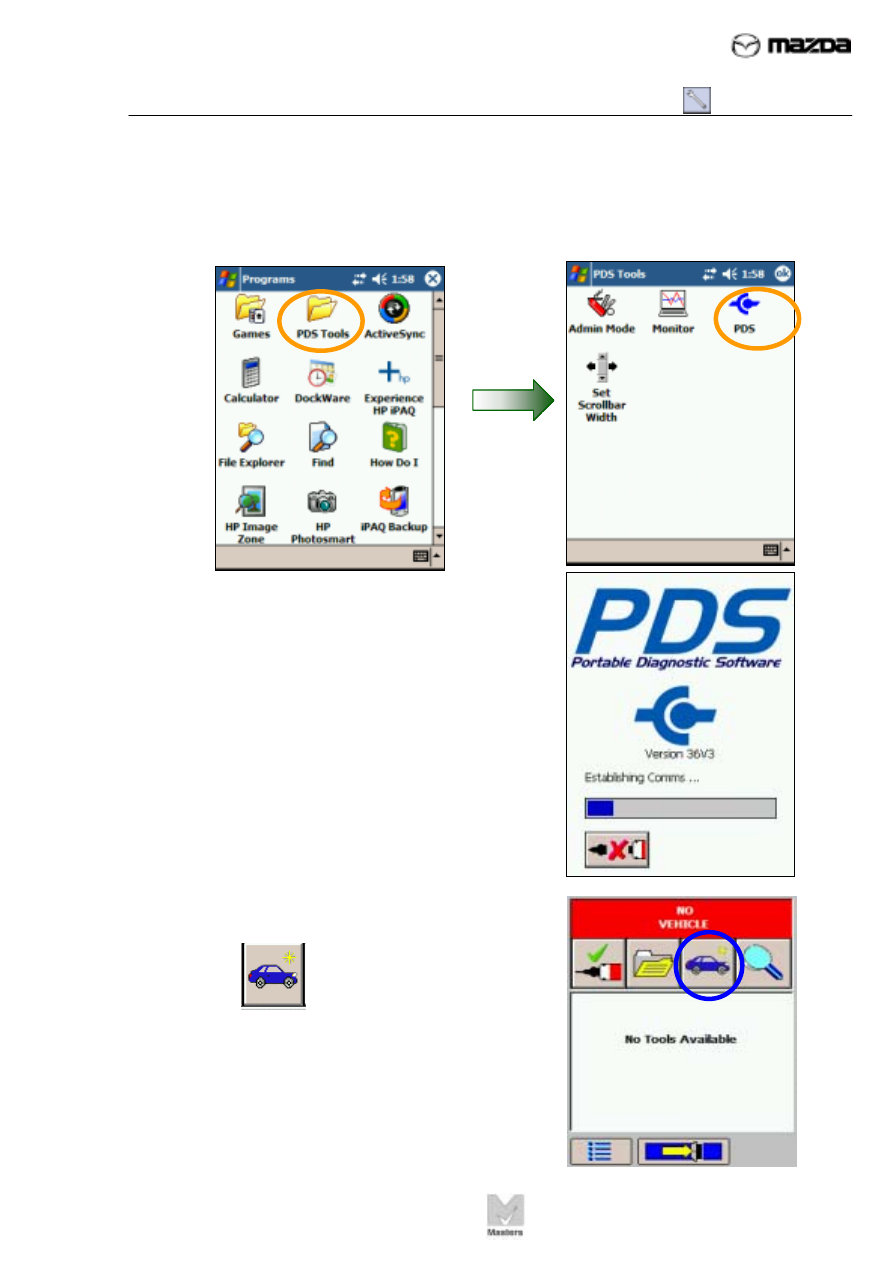

Tap PDS Tools if it is displayed, then tap PDS.

6. The PDS Establishing Communications screen

flashes on then off. This screen indicates the
PDA is connecting to the VCM via the USB
network.

7. Tap the

New Vehicle icon.

TC001-18-01H

INTRODUCTION TO M-MDS
04 - Retrieving and Clearing DTCs

Activity 04- Page 5

Activity 04
(Continued)

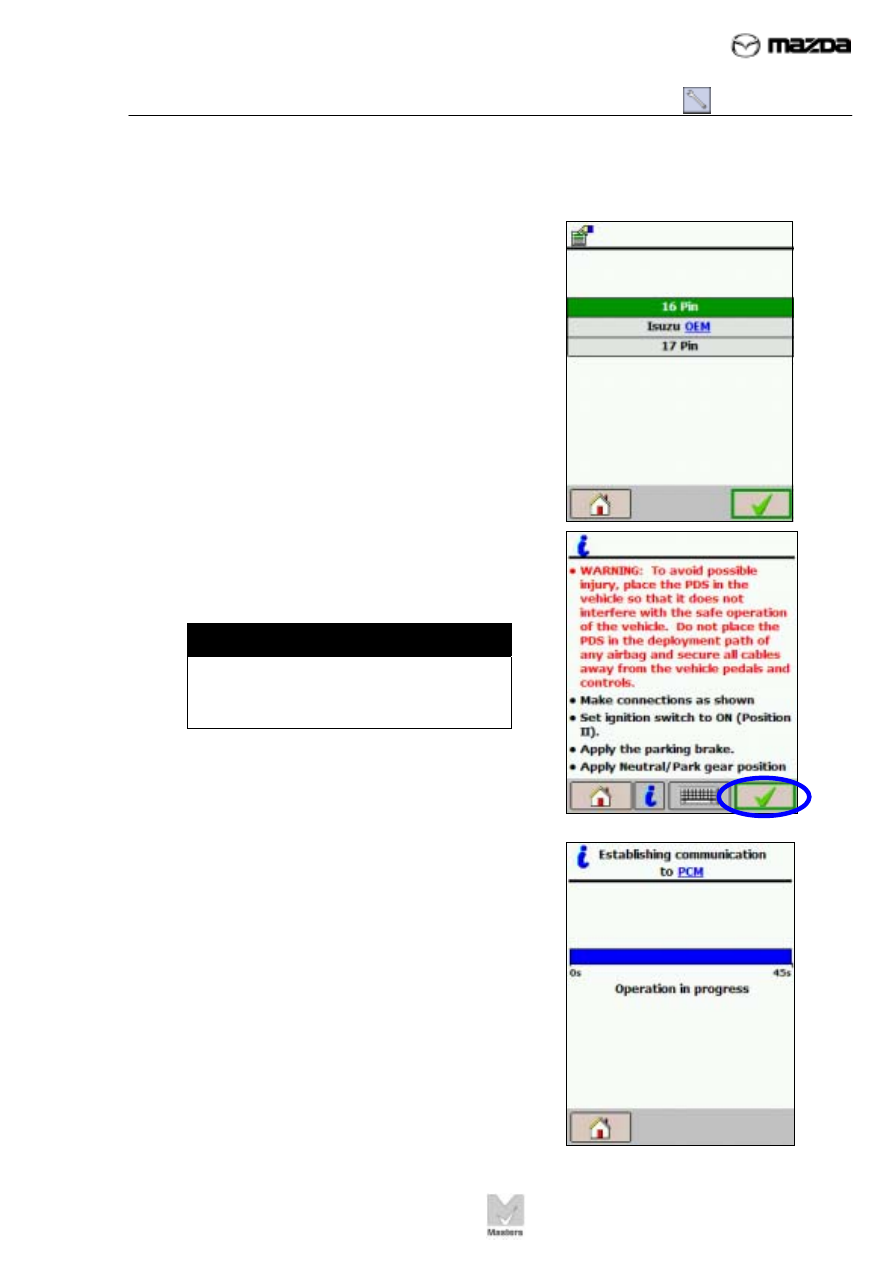

8. Select

16 pin, then tap tick.

9. Turn the ignition key to Key On Engine Off

(KOEO), then tap tick.

10. Watch

the

following Establishing

Communication screen flash on then off.

CAUTION

If you do not turn the ignition key ON,
you will need to perform a soft reset
on your PDA and reboot the VCM.

TC001-18-01H

INTRODUCTION TO M-MDS
04 - Retrieving and Clearing DTCs

Activity 04- Page 6

Activity 04
(Continued)

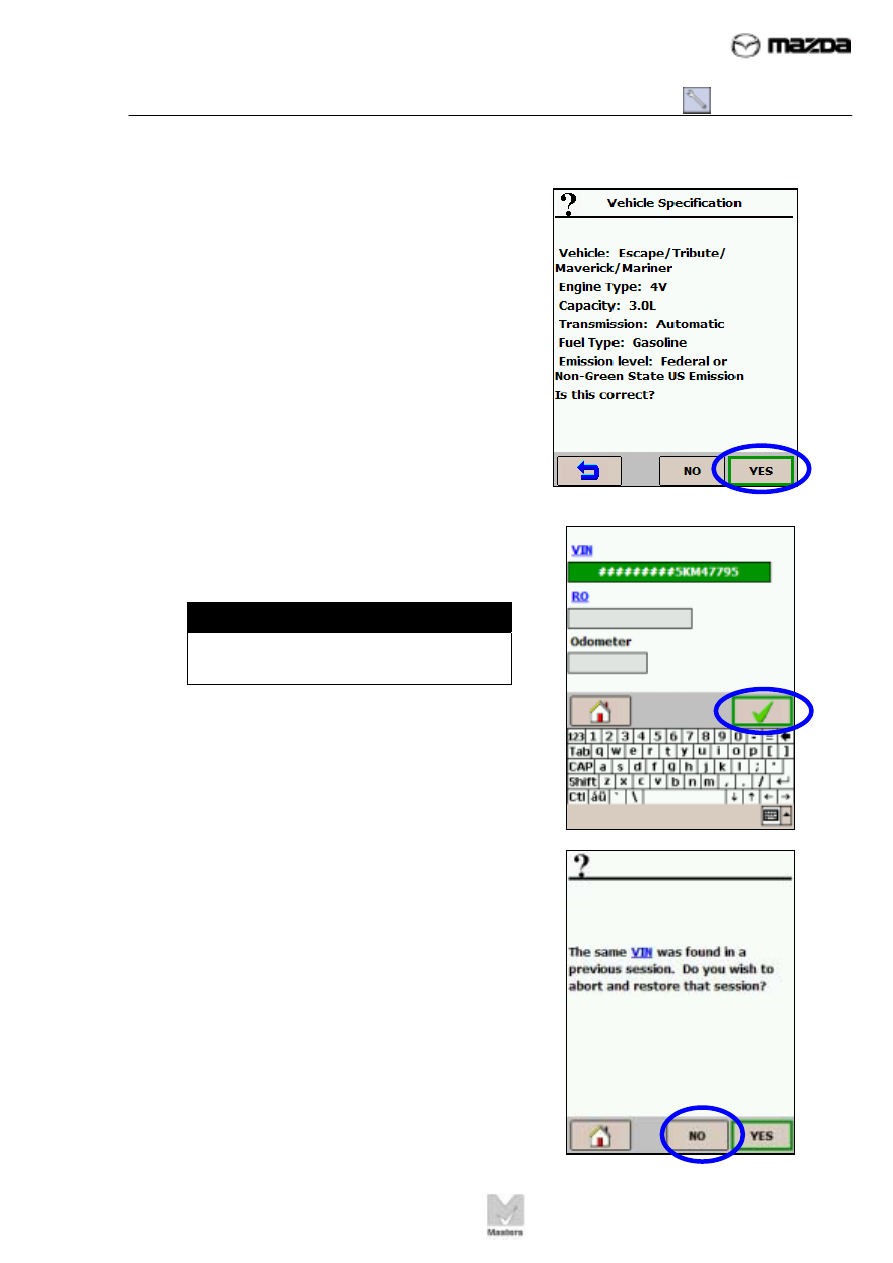

11. Verify the vehicle information is correct,

then tap YES.

12. If desired, leave the fields empty or tap data

into any of the fields, then tap tick.

13. If this screen displays, tap NO.

NOTE

This is an optional screen and you
may not see it.

TC001-18-01H

INTRODUCTION TO M-MDS
04 - Retrieving and Clearing DTCs

Activity 04- Page 7

Activity 04
(Continued)

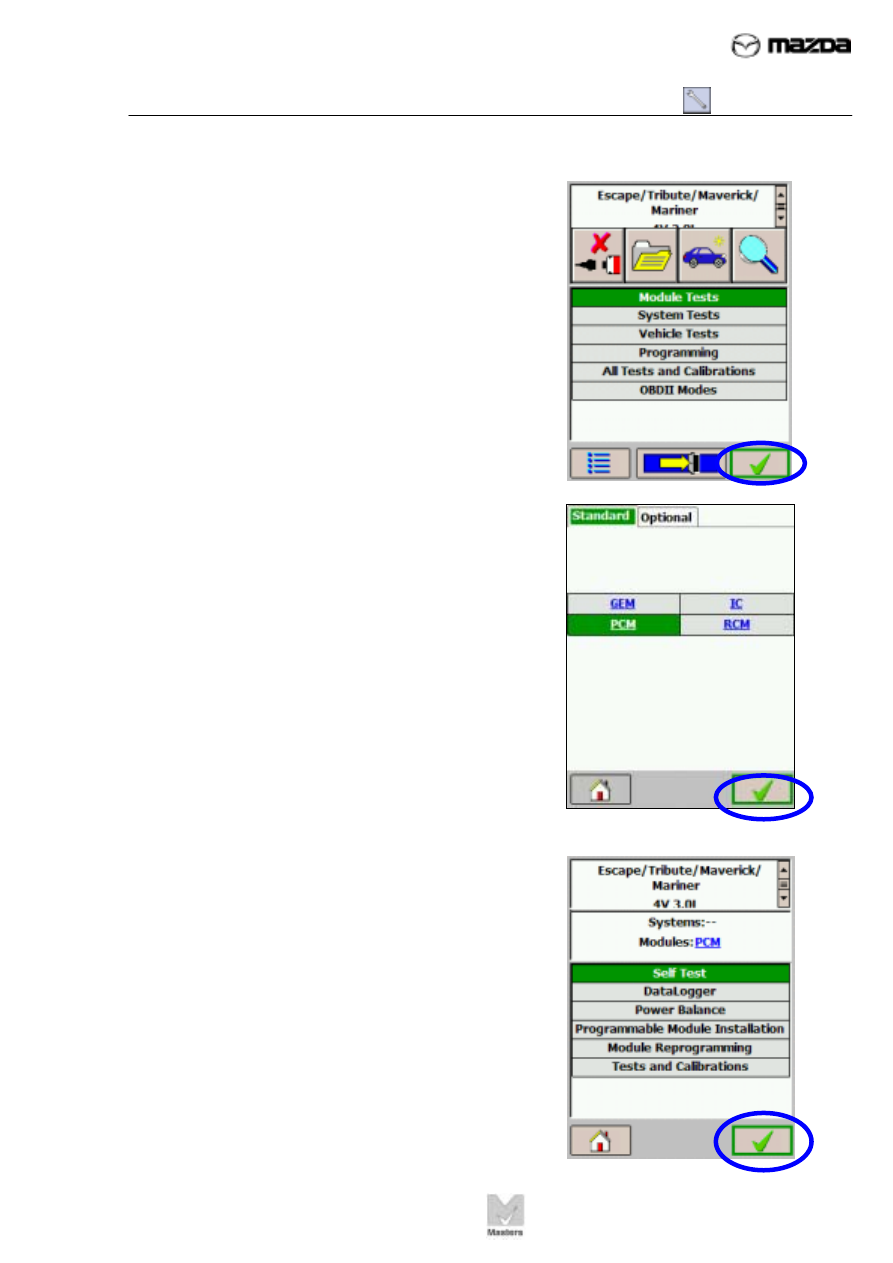

14. Tap

Module Tests if it is not highlighted,

then tap tick.

15. Tap

tick.

Retrieve DTCs

16. Tap

Self Test if it is not highlighted, then tap

tick.
