Mazda Transaxle FN4A-EL. Manual - part 3





K1–4

AUTOMATIC TRANSAXLE

Disassembly

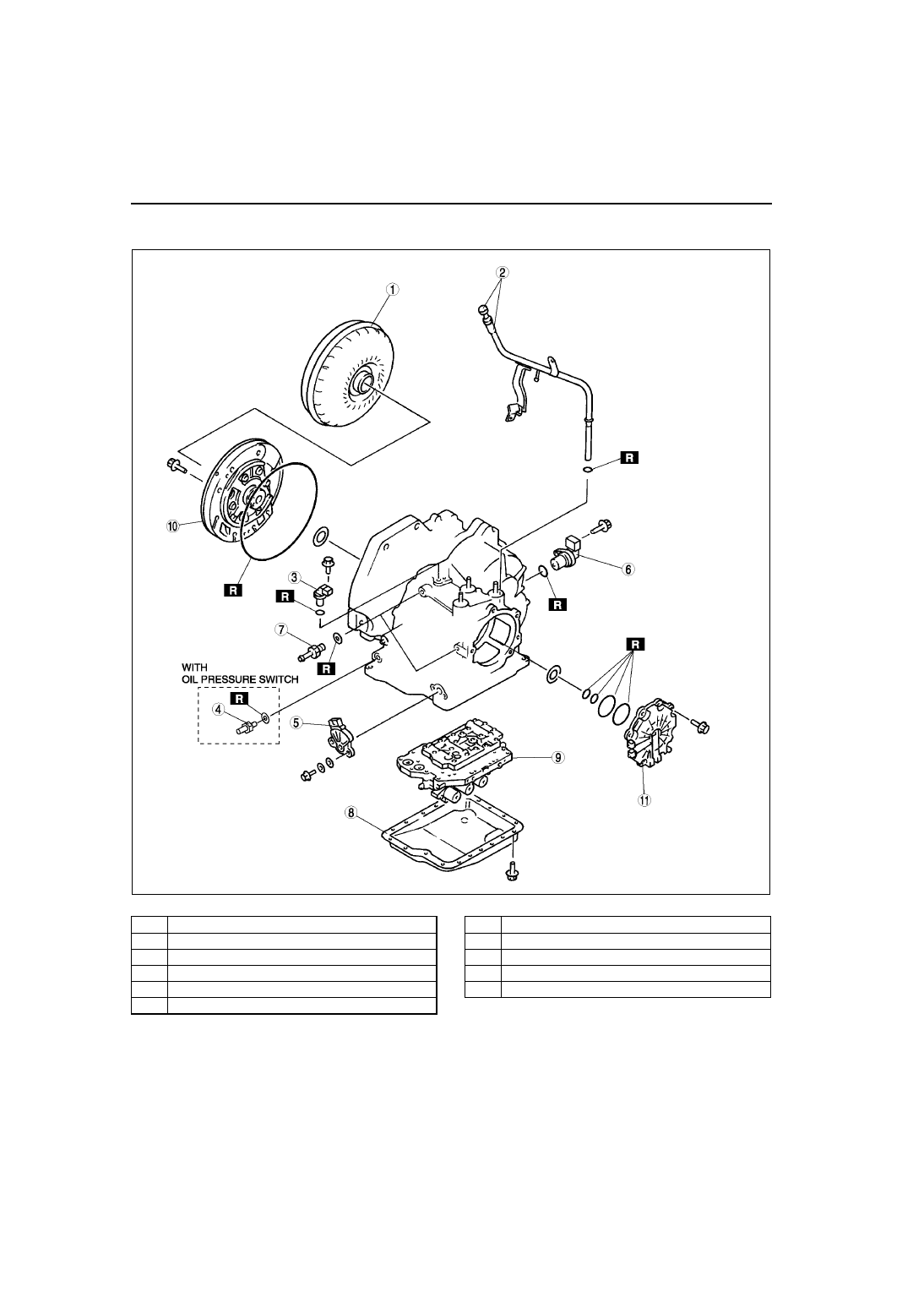

Components

.

A6E5714A001

1

Torque converter

2

Oil dipstick and oil filler tube

3

Input/turbine speed sensor

4

Oil pressure switch

5

Transaxle range switch

6

Vehicle speed sensor

7

Connector pipe

8

Oil pan

9

Control valve body component

10

Oil pump

11

End cover

AUTOMATIC TRANSAXLE

K1–5

K1

.

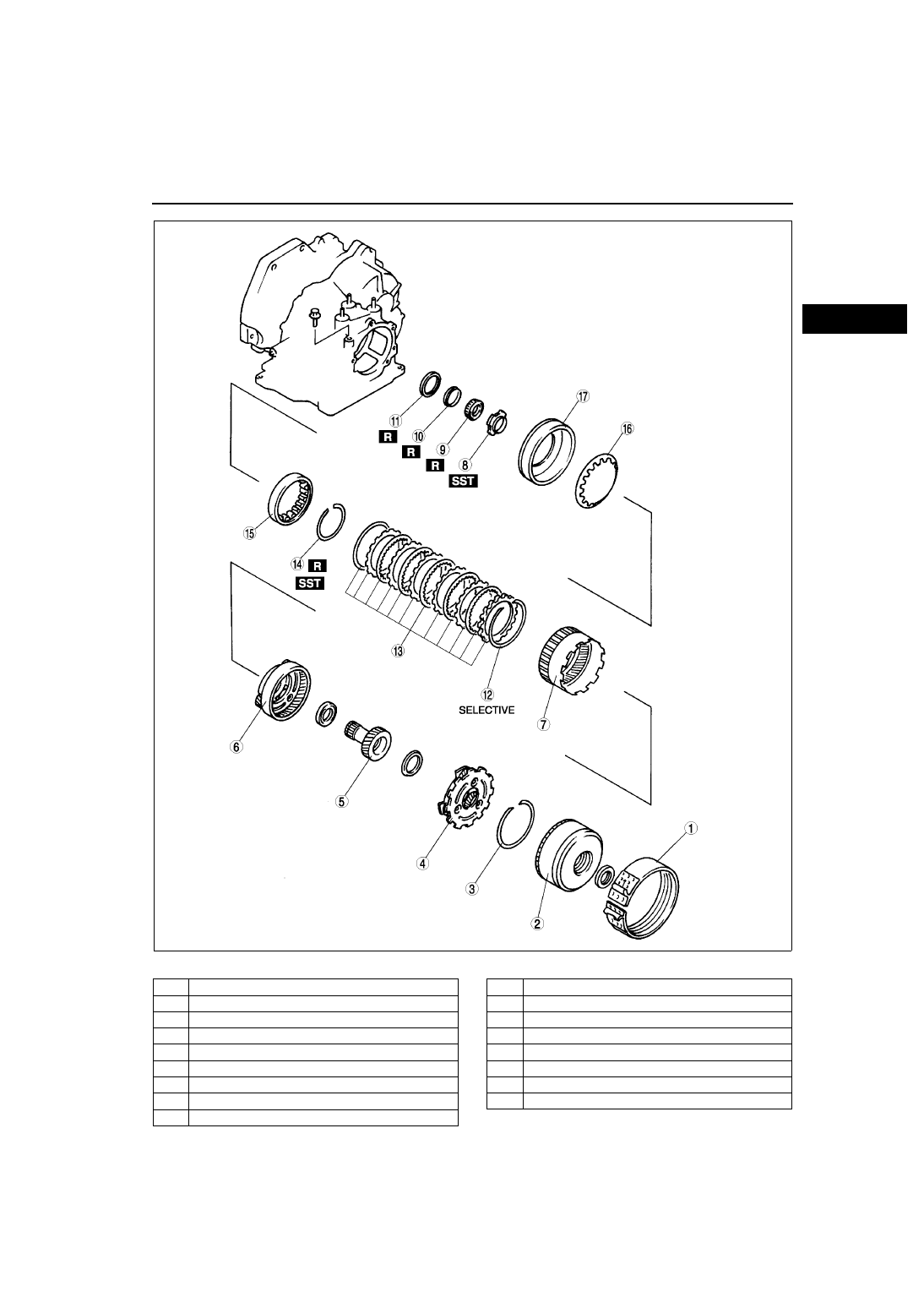

A6E5714A002

1

2-4 brake band

2

Clutch component

3

Snap ring

4

Rear planetory gear component

5

Front sun gear

6

Front planetary gear component

7

Front internal gear and one-way clutch

8

Lock  nut

9

Bearing

10

Distance piece

11

Bearing race

12

Snap ring

13

Low and reverse brake

14

Snap ring

15

One-way clutch inner race

16

Piston return spring

17

Low and reverse brake piston

K1–6

AUTOMATIC TRANSAXLE

.

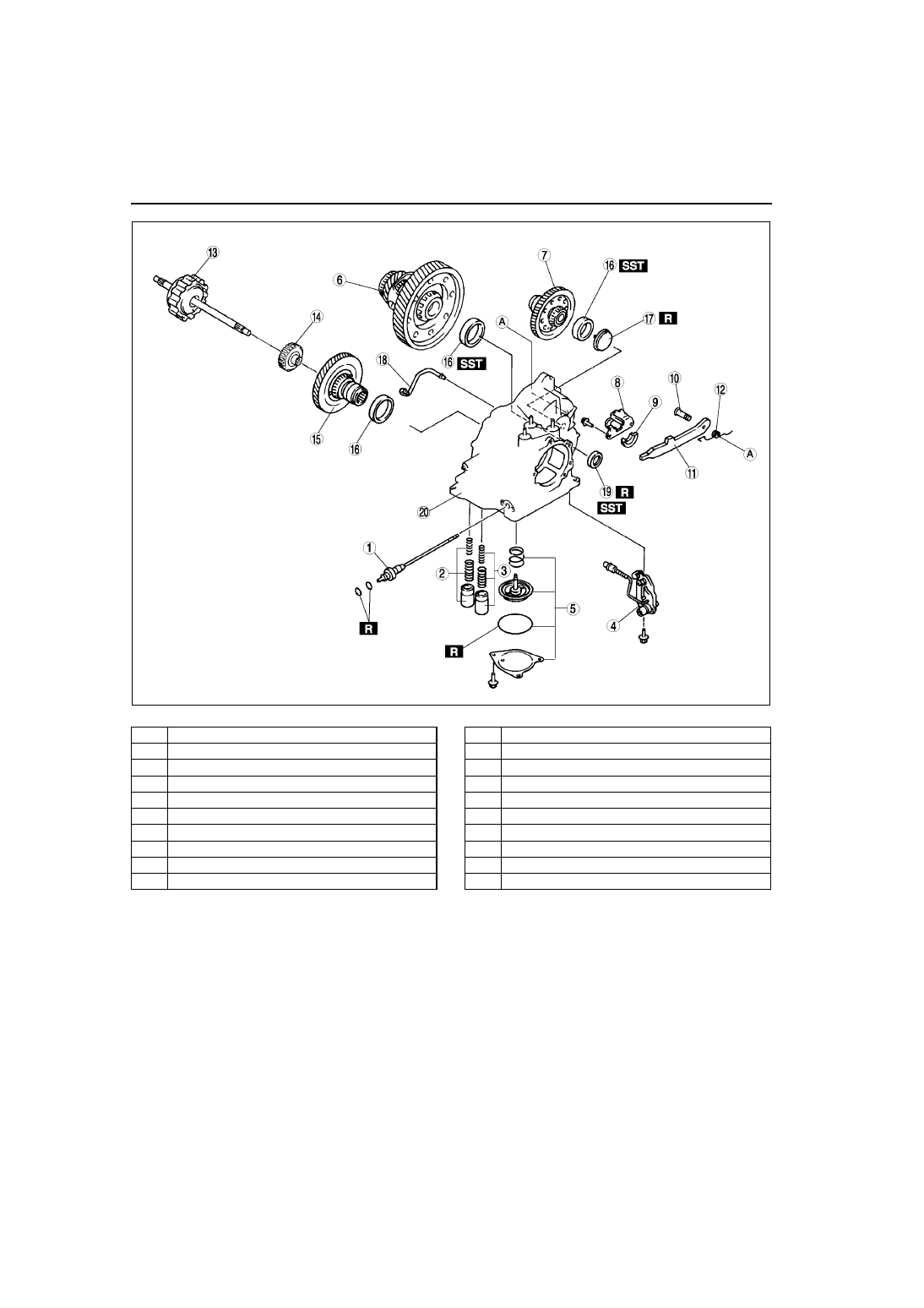

A6E5714A003

1

Manual shaft

2

Servo apply accumulator

3

Forward accumulator

4

Parking rod lever component

5

Band servo

6

Differential

7

Secondary gear and output gear

8

Actuator plate

9

Support actuator

10

Parking pawl shaft

11

Parking pawl

12

Pawl return spring

13

Forward clutch

14

Forward clutch hub

15

Primary gear

16

Bearing race

17

Funnel

18

Oil pipe

19

Oil seal

20

Transaxle case

AUTOMATIC TRANSAXLE

K1–7

K1

.

Disassembly procedure

1. Remove the torque converter, and immediately turn it so that the hole faces upward.

This will help to keep any remaining fluid from spilling.

2. Remove the ATF dipstick and oil filler tube.
3. Remove the O-ring from the oil filler tube.
4. Remove the breather hose.
5. Assemble the SST.

6. Lift the transaxle and mount it on the SST.
7. Remove the input/turbine speed sensor.
8. Remove the O-ring from the input/turbine speed

sensor.

9. Remove the oil pressure switch. (with oil pressure

switch)

10. Remove the transaxle range switch.
11. Remove the vehicle speed sensor.
12. Remove the O-ring from the vehicle speedometer

sensor.

13. Remove the connector pipe.

Warning

••••

Using compressed air can cause dirt and
other particles to fly, out, causing injury to the eyes. Wear protective eye wear whenever using
compressed air.

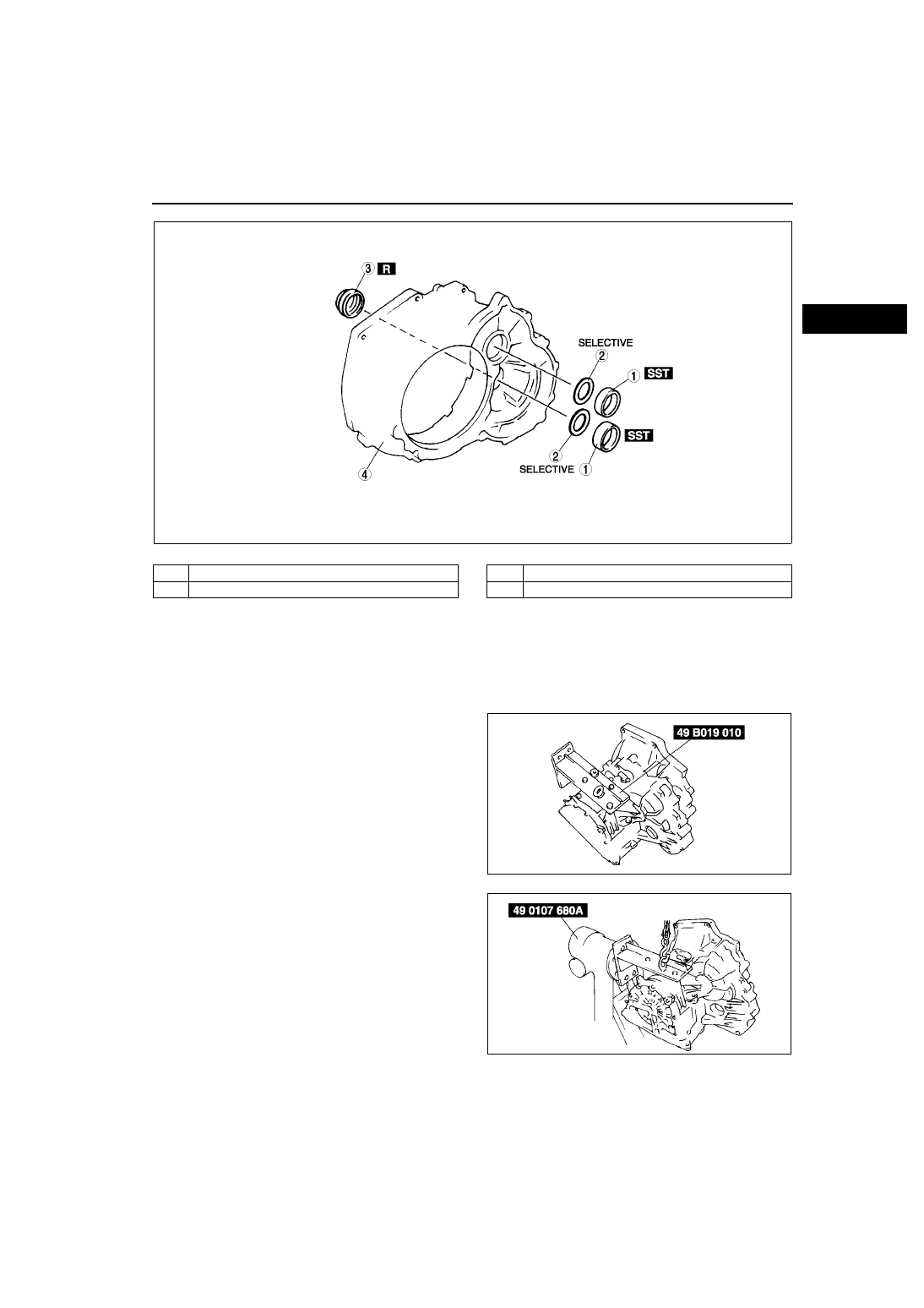

A6E5714A004

1

Bearing race

2

Adjustment shim

3

Oil  seal

4

Converter housing

A6E5714A005

A6E5714A006
